Cat C6.4 vs Cat C6.6 – What 20-Ton Buyers Actually Need to Know 🟡🔧
YUANJIAN MachineryAll news

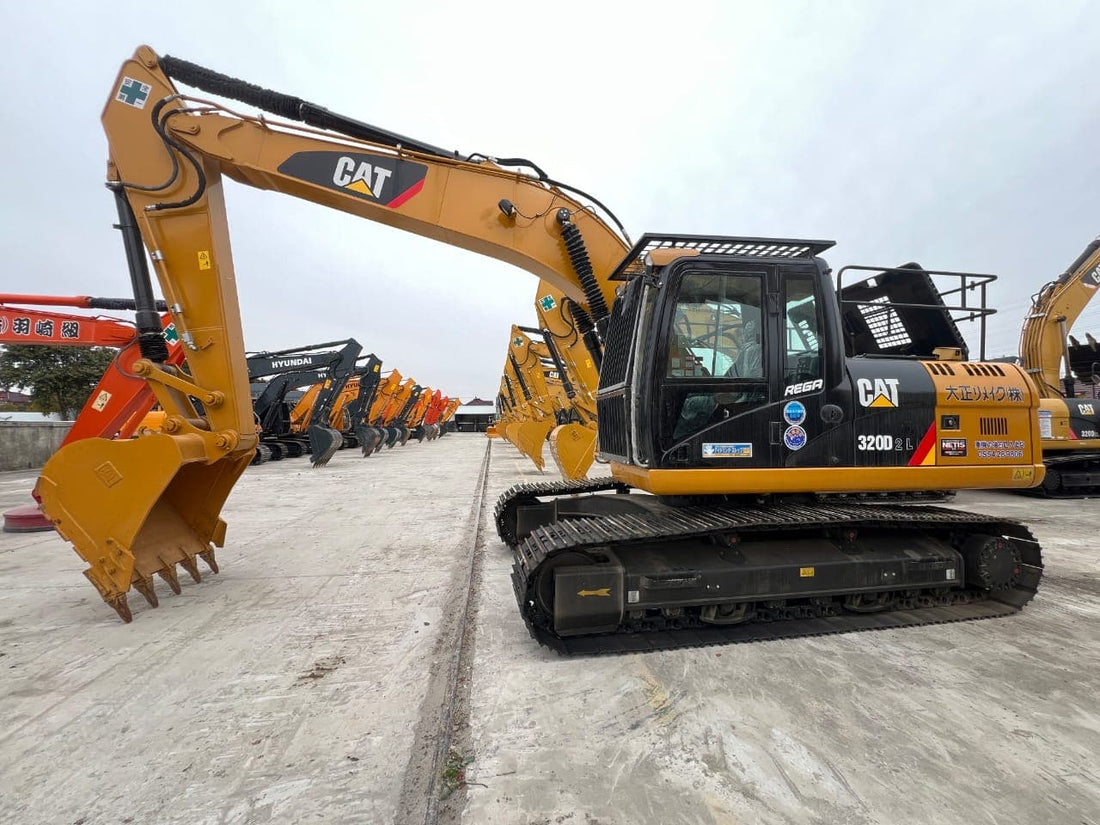

If you’re shopping a used Cat 320D / 320D L or comparing it with a 320E, the biggest technical question is this:
“Is the C6.4 in the 320D worse than the C6.6 in the 320E — or just different?”
Short answer: the C6.4 is simpler and field-friendly; the C6.6 is stronger, cleaner, and more efficient. Neither is “bad.” They just serve different buyers.
Below is the honest 1,000-word Shopify-style guide we give export customers before they pay a deposit.
1. Where These Engines Sit
- Cat C6.4 ACERT → fitted to 320D / 320D L / 323D (roughly 2006–early 2010s), 20–23 t class
- Cat C6.6 ACERT → fitted to 320E / 320E L, and also appears on later 320D L builds / Tier 3 variants depending on serial break
- Both are inline-6 turbo diesel
- Both use ACERT combustion control: electronic common-rail injection + turbo + air-to-air aftercooling
- They are not a simple drop-in swap — different emissions tier, ECM, cooling/aftertreatment layout, and serial-number break
2. Core Specs Side by Side
|
Item
|
Cat C6.4 ACERT
|
Cat C6.6 ACERT
|
|---|---|---|
|
Displacement
|
6.4 L (389 in³)
|
6.6 L (403 in³)
|
|
Bore × stroke
|
102 × 130 mm
|
105 × 127 mm
|
|
Cylinders
|
6, inline, turbo + A/A aftercool
|
6, inline, turbo + A/A aftercool
|
|
Net power (320-class)
|
~103 kW / 138 hp
|
~114 kW / 153 hp
|
|
Emissions
|
EPA Tier 2 / EU Stage II
|
Tier 3 / Tier 4 Interim depending on model
|
|
Aftertreatment
|
None / no DPF-DEF on 320D
|
DPF regeneration on 320E Tier 4 Interim
|
|
ECM
|
ADEM A4
|
Later ADEM / ACERT management
|
|
Fuel system
|
Common-rail, multi-event injection
|
Common-rail, improved fuel mapping
|
|
Typical machine
|
320D, 320D L, 323D
|
320E, 320E L
|
The C6.4 is 6.37–6.4 L. The C6.6 is 6.6 L. The power jump from 103 kW to 114 kW doesn’t sound huge — but on a 20-ton excavator, it shows up in cycle time, breaker performance, and lugging through heavy clay.
3. Cat C6.4 – The “Honest Workhorse”
What it is
The C6.4 replaced the older mechanically governed 3066 used in 320B/320C. It was Cat’s first ACERT application on this mid-size block, built to meet Tier 2 / Stage II without cooled EGR or DPF/DEF.
Advantages
✅ No DPF, no DEF, no regeneration stops
✅ Simpler cooling system
✅ Easier for local workshops in Africa / Gulf / SEA / LatAm
✅ Strong used-parts market from millions of 320D/323D units
✅ ADEM A4 diagnostics are “old Cat”, not “computer science”
✅ 103 kW is plenty for trenching, loading, grading, light rock
✅ Cheaper rebuild than a Tier 4 powerplant
Trade-offs
❌ Higher specific fuel burn than C6.6
❌ Less low-end torque for continuous breaker duty
❌ Older ECM features vs 320E
❌ Some regions now prefer Tier 3+/Stage IIIA for import compliance
Best buyer for C6.4
- Owner-operators who want “diesel, turbo, fix it Friday”
- Markets where DEF/DPF service infrastructure is weak
- Contractors doing general civils, trenches, foundations, yard work
- Buyers who want lower purchase price + lower repair complexity
The C6.4 320D is the “Toyota Hilux” of 20-ton excavators: not the newest, but it keeps running where electronics fear to tread.
4. Cat C6.6 – The “Refined Producer”
What it is
The C6.6 is the next-generation Cat mid-displacement six. In the 320E, it makes 114 kW / 153 hp, pairs with higher hydraulic flow (≈2 × 214 L/min), and supports Tier 4 Interim emissions with automatic DPF regeneration.
Advantages
✅ +11 kW / +15 hp over C6.4
✅ Better fuel management — 10–15% lower fuel per unit of work in many applications
✅ Smoother ADEM/ACERT mapping
✅ Better suited to longer daily cycles, truck loading, quarry support
✅ Stronger low-rpm response with breaker/auger
✅ Newer cab electronics, better diagnostics, cleaner exhaust
✅ 320E hydraulics often feel quicker than 320D
Trade-offs
❌ DPF / aftertreatment on Tier 4 Interim units
❌ More sensors, more ECM logic, more dealer-level diagnostics
❌ Higher used price than 320D
❌ Regen issues if the machine idles all day or burns dirty fuel
❌ Some export markets don’t want Tier 4 complexity
Best buyer for C6.6
- Contractors running 8–10 hr shifts, truck loading, road building
- Buyers who value fuel cost per bank-cubic-metre
- Fleets with a mechanic who can read Cat ET
- Markets with emission-import rules or strong resale for newer Cats
5. Real-World Difference on Site
Trenching / utilities
- C6.4: perfect. Idles fine, digs fine, sips more fuel.
- C6.6: same job, slightly faster swing/load feel, saves fuel weekly.
Truck loading
- C6.4: good, but pump flow/hp limit shows in continuous loading.
- C6.6: stronger, especially with 320E’s higher hydraulic flow.
Rock / breaker duty
- C6.4: works, but heat management and fuel burn matter.
- C6.6: better low-end torque, better for sustained hammer work.
Remote site / weak service network
- C6.4: wins. Fewer emission gremlins.
- C6.6: still good, but DPF/ET faults can stall a small workshop.
Resale
- 320D C6.4: cheaper entry, huge global demand, easy to flip.
- 320E C6.6: higher ticket, stronger in markets that want “newer Cat”.
6. “Is the C6.4 Unreliable?” — No.
The C6.4 gets blamed for everything because so many 320Ds are high-hour. The engine itself is solid when:
- fuel/water separator is serviced
- turbo boost leaks are caught early
- injector balance is checked
- cooling system isn’t ignored
- hour meter matches pump/uc wear
Most “C6.4 problems” are really:
- neglected DEF-free engines running bad diesel
- clogged radial-seal air filters
- worn injectors from 8,000+ hr with no tune-up
- hydraulic issues mislabeled as “engine problems”
A clean 320D with C6.4 will outwork a abused 320E with C6.6 every time.
7. “Is the C6.6 Worth the Extra Money?”
If you run the machine hard and long, yes:
- lower fuel cost
- faster cycles
- better resale in Tier 3/4 markets
- more comfortable operator environment
If you’re a first-time buyer, remote-site contractor, or rental yard in a developing market, the C6.4 320D often wins on:
- purchase price
- repair sanity
- parts price
- no DPF/DEF drama
8. How We Inspect Both
For C6.4 (320D):
✅ blow-by / crankcase pressure
✅ turbo boost & intercooler leaks
✅ ADEM A4 fault codes
✅ injector balance / smoke profile
✅ radiator/aftercooler fin condition
✅ hour-meter vs pump/uc consistency
For C6.6 (320E):
✅ all above +
✅ DPF soot load / regen history
✅ NOx/EGR/DEF system faults
✅ ET active/inactive codes
✅ regen interrupt history (idle-heavy use?)
✅ updated flash/ECM calibration check
We never tell a buyer “newer = better.” We tell them: which engine fits your fuel, your workshop, and your jobs.
9. Buying Rule of Thumb
✔ Buy used 320D + C6.4 if:
→ general excavation, utilities, farms, municipalities, rental
→ remote site, simple maintenance, lower capex
→ you want the easiest Cat 20t to keep alive
✔ Buy used 320E + C6.6 if:
→ road building, quarry support, high-cycle truck loading
→ 8–10 hr shifts, fuel cost matters
→ local Cat dealer / ET diagnostics available
→ resale market prefers newer Tier 3/4 Cat
✔ Avoid:
→ C6.6 Tier 4 unit that idled 6 hrs/day and never regenerated properly
→ C6.4 unit with cracked head, milky oil, or “hour meter just replaced” story
10. Final Word
The C6.4 is the reason the 320D became legendary:
simple ACERT six-cylinder, no DPF theatre, global parts, forgiving on bad fuel.
The C6.6 is the evolution:
more power, better fuel economy, cleaner exhaust, but more electronics and aftertreatment logic.
There is no universal winner.
There is only the right engine for your site, your fuel, your mechanic, and your margin.
