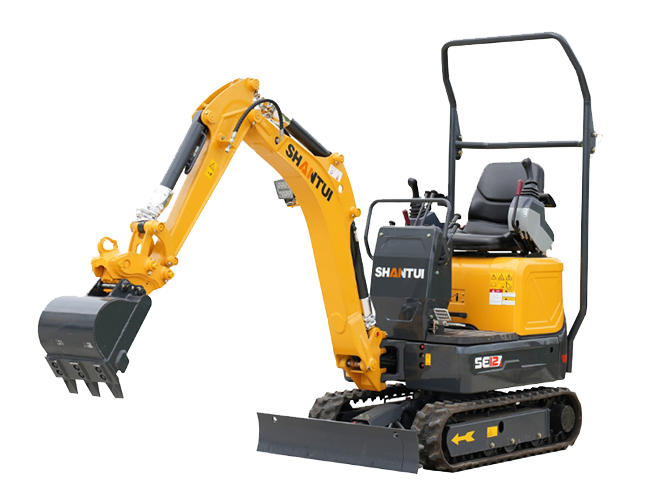

Shantui SE12: The King of 1.2-ton Mini Excavators, with Hardcore Mechanical Strength in a Compact Body
In the field of mini excavators, the Shantui SE12, with an overall operating weight of 1.2 tons and flexible operation performance, has become the core equipment for interior decoration, greenhouse planting, municipal maintenance, and narrow space construction. As a classic model in Shantui's mini excavator series, it abandons the cognition that "miniature means simplification" and elaborates on core mechanical components such as power, hydraulic pressure, and chassis. It not only inherits the durability gene of Shantui's construction machinery but also adapts to diverse scenarios with a compact structure. Every mechanical design of it balances practicality and reliability, highlighting the hardcore mechanical strength of mini excavators.
The power system is the core support of the Shantui SE12. The machine is equipped with an imported Kubota D782 engine with a displacement of 0.778L and a rated power of 9.8kW/2300rpm. The power output is strong and smooth, perfectly complying with National IV/EU Stage V emission standards, balancing environmental protection and operation efficiency [1][2][5]. The engine adopts efficient combustion technology with low fuel consumption, adapting to the demand of long-term continuous operation. Combined with an exclusive high-efficiency cooling system, it can effectively avoid high-temperature overload and greatly extend the service life of the engine. At the same time, the engine has a compact structure and high integration, which not only saves the internal space of the body but also reduces the overall weight, providing a mechanical foundation for the flexible movement of the equipment. Its reliable power performance has also become the core confidence of the SE12 to cope with complex working conditions.
The hydraulic system is the key to the smooth operation of the Shantui SE12. The machine is equipped with a three-pump hydraulic system with balanced flow distribution and a rated working flow of 18.4L/min. Combined with dual-pump confluence technology, it can realize efficient coordination of the boom and arm, with rapid action response and no jamming, greatly improving operation accuracy [1][5][7]. The system is standard equipped with accessory pipelines, supporting single and bidirectional pipeline switching functions, and can flexibly assemble various accessories such as mechanical quick hitch, side-tilting quick hitch, hydraulic breaker, and thumb clamp, adapting to diverse operation needs such as excavation, crushing, and dredging. The hydraulic pipelines are made of high-strength wear-resistant materials with excellent joint sealing performance, effectively preventing hydraulic oil leakage. At the same time, the pipeline layout is optimized to reduce energy loss. Combined with high-quality hydraulic oil and a dedicated filter, it can effectively block the intrusion of impurities, avoid wear of hydraulic components, and extend the service life of the hydraulic system.
The mechanical design of the chassis and working device highlights the flexibility and durability of the SE12. The total operating weight of the whole machine is only 1200kg, with a total length of 3075mm, a total width of 830/1000mm, a total height of 2245mm, and a minimum ground clearance of 102mm. The compact structure can easily shuttle through narrow spaces, adapting to operation scenarios that conventional excavators cannot reach, such as indoors, greenhouses, and roadways [1][2]. The chassis adopts a telescopic design, the track gauge can be adjusted between 650mm and 820mm, the track width is 830/1000mm, and the ground pressure is only 29kPa, which can adapt to operation in soft ground and avoid sinking. The travel speed is divided into two gears: 2.0km/h and 3.5km/h, adapting to the movement needs of different operation scenarios. The climbing capacity can reach 25°, and the stability is excellent during steep slope operation [1][2][8].
The working device adopts a reinforced structure design, and the boom can be offset to easily realize special operations such as wall foot excavation. The upper-mounted boom cylinder design effectively avoids cylinder collision during operation, improving operational safety and durability [3][4][7]. The standard bucket capacity is 0.022m³; the bottom plate and side plates are made of high-strength wear-resistant steel. The optimized bucket structure can reduce excavation resistance; the bucket digging force is 10.4kN, and the arm digging force is 5.4kN. Although the body is compact, the digging performance is strong, which can easily cope with operational needs such as earthwork excavation and gravel cleaning [1][2][5]. The key stress parts of the boom and arm are strengthened, and the welding process is exquisite, improving structural rigidity and impact resistance, which can calmly cope with the impact load of complex operations.
The mechanical optimization of control and safety further improves the operation experience and reliability of the SE12. The machine is equipped with a foldable protective frame to meet TOPS certification, and the whole machine has passed the German TÜV Rheinland CE certification, ensuring higher safety [3][4][7][6]. The cab (canopy) is designed in line with ergonomics, the leg space is 40% larger than that of traditional models, and the seat can be adjusted forward and backward to adapt to the needs of operators of different heights, greatly reducing fatigue during long-term operation. The operation knobs are reasonably arranged and adopt pilot control, which is light and flexible to operate, so even novices can quickly get started. At the same time, it is equipped with left and right dual pilot locks to further improve operational safety.
Every mechanical design of the Shantui SE12 is centered on "compact, efficient, and durable". From the stable power of the imported engine, to the precise control of the three-pump hydraulic system, and then to the flexible adaptation of the telescopic chassis and reinforced working device, it exerts the mechanical advantages of the mini excavator to the maximum. With its compact 1.2-ton body, it breaks the limitation of "limited performance" of mini models. It can not only adapt to fine operations in narrow spaces, but also cope with diverse working conditions with a hardcore mechanical configuration, becoming a benchmark in the mini excavator market. It not only highlights Shantui's profound accumulation in the field of construction machinery but also provides an efficient and reliable mechanical solution for small-scale construction.
