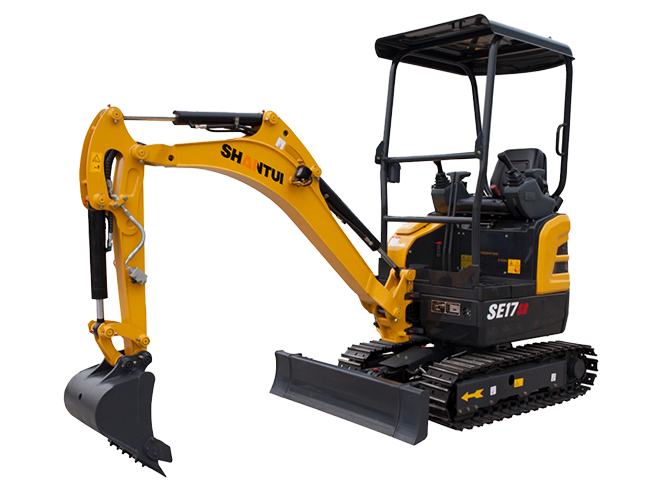

Shantui SE17SR: The All-Round King of 1.8-ton Mini Excavators, with Hardcore Mechanical Strength in a Compact Body
Share
In the 1.8-ton mini excavator market, the Shantui SE17SR has become the core equipment for municipal maintenance, interior decoration, farmland water conservancy, and narrow space construction, with its flexible operation performance, comprehensive functional configuration, and solid mechanical quality. As an upgraded masterpiece of Shantui's mini excavator series, it breaks the limitation of "simplified functions of mini models", and elaborates on core mechanical components such as power, hydraulic pressure, chassis, and working device, balancing flexibility and durability. Every mechanical design is tailored to actual operational needs. It not only inherits the reliable gene of Shantui's construction machinery, but also adapts to diverse operation scenarios with all-around configuration, highlighting the hardcore mechanical strength of mini excavators.
The power system is the core confidence of the Shantui SE17SR. The machine is equipped with an imported Japanese Kubota D902 three-cylinder direct injection engine with a displacement of 0.898L and a rated power of 11.8kW/2300rpm. The power output is strong and smooth, perfectly complying with National IV/EU Stage V emission standards, balancing environmental protection and operation efficiency. The engine adopts a four-stroke water-cooled design, and the application of efficient combustion technology greatly reduces fuel consumption. Combined with an exclusive cooling system, it can effectively avoid high-temperature overload and extend the service life of the engine. At the same time, its compact structure not only saves the internal space of the body but also controls the overall weight, laying a mechanical foundation for the flexible movement of the equipment. In addition, the engine oil change capacity is 3.7L, and the fuel tank capacity is 19L, which can meet the demand of long-term continuous operation. Daily maintenance is convenient, further reducing operating costs.
The hydraulic system is the key to the smooth operation and efficiency of the Shantui SE17SR. The machine is equipped with a load-sensitive control hydraulic system, adopting a variable displacement single-unit piston pump with a rated working flow of 64.4L/min. The system has sufficient pressure, rapid action response, and low energy loss, greatly improving operation efficiency. The full hydraulic pilot control design is light and flexible to operate, achieving a crane-level micro-motion operation experience, which even novices can accurately control, adapting to the needs of fine operations. The travel motor has an automatic speed regulation function, which improves travel efficiency. Combined with the optimized pipeline layout, the working device and travel hoses adopt a hidden design, effectively avoiding collision risks during construction and preventing hydraulic oil leakage. The system is standard equipped with bidirectional auxiliary pipelines, supporting pipeline switching, and can flexibly assemble various accessories such as hydraulic breakers, hydraulic shears, and augers, realizing multi-functional operation and covering diverse operation scenarios such as excavation, crushing, and dredging.
The mechanical design of the chassis and working device fully highlights the flexibility and durability of the SE17SR. The total operating weight of the whole machine is about 1800kg, with a total transport length of 3575mm, a total width of 990/1300mm, a total height of 2405mm, and a minimum ground clearance of 145mm. The compact structure can easily shuttle through narrow spaces that conventional excavators cannot reach, such as indoors, roadways, and greenhouses. The chassis adopts a hydraulically telescopic design, the track gauge can be adjusted between 760mm and 1070mm, the track width is 230mm, and the ground pressure is only 29kPa, which can adapt to operation in soft ground and avoid sinking. The travel speed is divided into two gears: 2.2km/h and 4.3km/h, the maximum traction force is 18kN, and the climbing capacity is 58% (about 30°), with excellent stability during steep slope operation.
The working device adopts a reinforced structure design, the boom can swing left and right, with a maximum swing angle of 57° (left) and 61° (right), which can easily realize special operations such as wall foot excavation and parallel wall excavation, with no dead corners in operation. The upper-mounted boom cylinder design effectively avoids cylinder collision during construction, improving operational safety and durability; key components such as the swing structure, front fork, and rear seat adopt cast steel parts, and the side cover and engine cover adopt sheet metal stamping process, which are high in strength and elegant in appearance. At the same time, the high degree of modularization improves overall reliability. The standard bucket capacity is 0.04m³; the bottom plate and side plates are made of high-strength wear-resistant steel. The optimized bucket structure can reduce excavation resistance; the bucket digging force is 16kN, and the arm digging force is 9.5kN. Although the body is compact, the digging performance is strong, which can easily cope with operational needs such as earthwork excavation and gravel cleaning.
The mechanical optimization of control and safety further improves the operation experience and reliability of the SE17SR. The machine is standard equipped with a zero-tail swing function, with a rear swing radius of only 650mm. When swinging, the tail always stays within the track width, ensuring safe operation in narrow spaces. The cab (canopy) adopts a four-post design to meet TOPS certification, and a two-post canopy is optional, with a wide field of vision, ergonomic design, sufficient operation space, and adjustable seats, greatly reducing fatigue during long-term operation. The operation panel is reasonably arranged, equipped with an LCD color display to real-time monitor the equipment operation status, and is also equipped with left and right dual pilot locks, LED headlights, and other safety components to comprehensively ensure the safety of operators and equipment. In addition, the side-opening hood design allows easy access to daily maintenance parts, making maintenance convenient and further reducing use costs.
Every mechanical design of the Shantui SE17SR is centered on "compact, all-round and durable". From the stable power of the imported engine, to the precise control of the load-sensitive hydraulic system, and then to the flexible adaptation of the telescopic chassis and reinforced working device, it exerts the mechanical advantages of the mini excavator to the maximum. With its compact 1.8-ton body, it breaks the limitation of "limited performance" of mini models. It can not only adapt to fine operations in narrow spaces, but also cope with diverse working conditions with a hardcore mechanical configuration, becoming a benchmark in the 1.8-ton mini excavator market. It not only highlights Shantui's profound accumulation in the field of construction machinery but also provides an efficient and reliable mechanical solution for small-scale construction.
