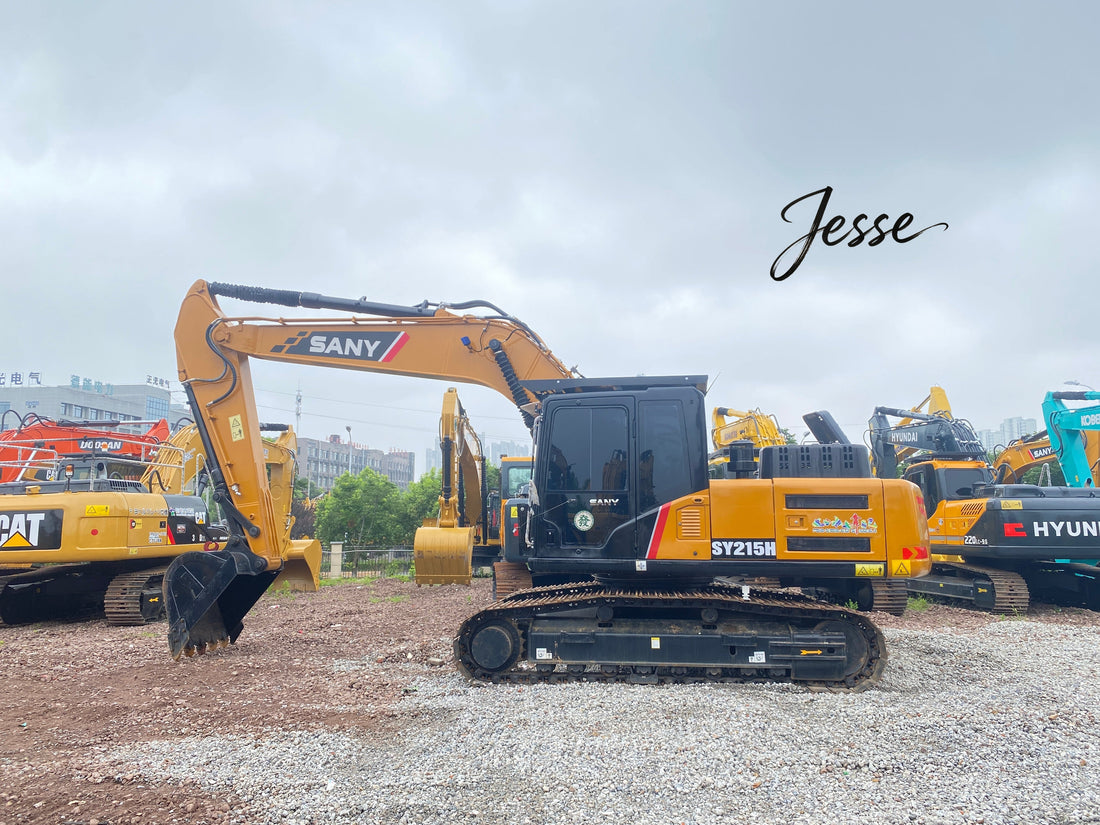

The SANY SY215H: How a 21.9-Tonne Chinese Excavator Rewrote the Rules of the 20-Ton Class

For three decades, the 20-tonne crawler excavator segment was treated as sacred ground by Japanese and American OEMs. Komatsu had the PC200, Hitachi the ZX200, Kobelco the SK210, Hyundai the R210, and Caterpillar the 320 series—machines with deep parts networks, decades of residual-value data, and operator loyalty bordering on tribal. Into that locked club walked SANY Heavy Industry in the late 2000s with the SY215 family, and by the time the SY215H variant matured, the conversation had changed permanently. The “H” suffix is not decorative: in SANY’s nomenclature it marks the machine as a heavier, reinforced, “mining-oriented” evolution of the base SY215C, with stronger linkage, upgraded undercarriage wear parts, a more aggressive hydraulic calibration, and a 21.9-tonne operating weight that edges past the nominal 20-tonne bracket into genuine 22-tonne territory. This article examines the SY215H in full—its strategic birth, its Isuzu-powered drivetrain, its Kawasaki or SANY-built load-sensing hydraulics, its cab and electronics, its service philosophy, its real-world productivity against a CAT 320D or Komatsu PC200-8, and why it has become the single most exported Chinese excavator model into Southeast Asia, Africa, the Middle East, and Latin America.

SANY did not invent the 20-tonne excavator; it reverse-engineered the category’s expectations and then rebuilt them around price-to-power ratio. The original SY215C used a 114 kW Cummins or Isuzu block and a competent but conservative hydraulic map. The SY215H arrived as the answer to customer feedback that the base machine, while cheap, felt light in rock, shy on counterweight, and conservative on pump flow when paired with a breaker. SANY’s response was to keep the proven Isuzu 4HK1 heart, bump the structural steel thickness on the boom foot and stick bracket, fit 8 bottom rollers per side instead of 7, offer 700 mm and 800 mm shoe options, and recalibrate the main pumps for higher combined flow with a power-boost relief setting of 34.3 MPa rising to 38.3 MPa in boost.

The result is a machine that lists at roughly 60–70% of the ex-works price of a CAT 320D or Komatsu PC210 in many emerging markets, yet posts 133 kW (178 hp) against the 320D’s 103 kW net and the PC200-8’s 110 kW. That power delta is not marketing inflation; it is felt in cycle time when loading 20-tonne dump trucks or digging dense clay. The SY215H is therefore best understood as a “over-powered 20-tonner”—a deliberate SANY strategy to make the spec sheet win the first conversation, and the uptime record win the second.

Under the rear hood sits the Isuzu 4HK1-XDHAG-02-C5, a 5.193 L inline-four, water-cooled, turbocharged, common-rail diesel. It is the same engine family Isuzu fits to its own excavators and to Hitachi Zaxis units, which gave SANY an immediate credibility shortcut: technicians already knew the fuel map, the injection timing, and the weak points (mainly the EGR cooler and the crankcase breather on early units). Rated output is 133 kW at 2,000 rpm, with maximum torque 657 N·m at 1,500 rpm and an earlier 580 N·m figure on some regional tunes.

Why a four-cylinder and not a six? Packaging and cost. A 5.2 L four-banger produces the same 133 kW with fewer injectors, fewer liners, and a shorter bellhousing than a 7 L six, and in a 22-tonne chassis the front weight balance is actually easier to manage. The trade-off is slightly higher combustion pulse into the mounts, which SANY absorbs with a hydraulic isolating engine cradle and a viscous damper on the cab. Auto-idle drops the engine to 1,400 rpm after 4 seconds of no lever input, and one-touch max-rpm is mapped to a floor pedal for trenching bursts. Fuel tank is a generous 340 L, giving 18–22 hour shifts between fills depending on mode—critical in African or Mongolian sites where refueling is a logistics event, not a lunch-break top-up.

Emission compliance spans Stage IIIA / Tier 3 export builds and China Nonroad Stage IV domestic builds with DOC+DPF and urea (SCR) on the newest units; the global used-market favorite remains the Tier 3 mechanical-injection-friendly version because it runs on 500 ppm sulfur diesel without melting a DPF.

The SY215H uses a duplex variable-displacement axial-piston main pump set (commonly Kawasaki K3V or SANY-licensed clones) with a combined max flow of 2 × 222 L/min = 444 L/min in some brochures, or a more conservative 2 × 132 L/min = 264 L/min on standard auxiliary configs depending on market and model year. Relief pressure is 34.3 MPa on boom/arm/travel circuits, 27.5 MPa on swing, and 3.9 MPa on pilot. A load-sensing spool valve distributes flow with priority to travel and swing under load, and the H-calibration opens the cutoff so that crowd and lift happen together without the “choke” feeling of older Chinese excavators.

Digging forces tell the structural story: bucket breakout 138 kN, arm crowd 103 kN (107 kN on later H builds), swing torque sized for 11 rpm swing speed, drawbar pull 232 kN, and travel speed 5.4 km/h high / 3.3 km/h low. Those numbers are not CAT 323 territory, but they beat a stock 320D (≈112 kN bucket) and match a PC200-8. With a 1.1 m³ general-duty bucket (range 0.8–1.2 m³), the SY215H moves roughly 180–220 m³/hour in face-loading shot rock, and 240–260 m³/hour in loose loam trenching—figures confirmed by rental fleets in Malaysia and Indonesia.

Boom is 5.7 m standard, stick 2.9 m. Maximum dig depth 6.6 m, reach 10.28 m, dump height 6.73 m, dig height 9.6 m. An optional 5.85 m boom with 2.4 m stick tightens tail swing for urban utility work, while the HD rock boom variant shortens reach to 9.4 m but adds 12 mm of steel to the lower boom shell. The H model ships with pre-plumbed bidirectional auxiliary lines (132 L/min standard flow, higher on demand) for hydraulic hammers, augers, thumbs, and rotating grapples—a detail that matters because 30–40% of SY215H units in the used market are sold specifically to breaker crews.

The “H” is partly an undercarriage story. Standard gauge is 2,380 mm, shoe width 600 mm triple-grouser (700/800 mm optional), ground contact length 3,445 mm, giving 47.4 kPa ground pressure with the 21.9 t mass. Bottom rollers are 8 per side (versus 7 on SY215C), carrier rollers 2 per side, track links 49 per side, and the chain is grease-sealed. SANY’s Lingang and Changsha plants weld the X-frame carbody with robotic stations; the swing bearing is a 360° ball-race unit bolted to a 40 mm thick turntable plate. Counterweight is a 4.2-tonne cast-iron slab, heavier than the 3.6 t on the base C model, which is why the H can lift a full 1.1 m³ bucket of wet clay at 4.5 m radius without tipping the house onto the blades.

Owners in West African granite quarries report 4,500–6,000 hours from a set of 600 mm shoes before turn-around, and 8,000+ hours on the 800 mm heavy pad—acceptable against a PC200’s 5,000–7,000 hour shoe life, and far better than early-2010 SY215C units that cracked roller frames at 3,000 hours. The improvement came from switching to ST52-3 and Q345D steels with stress-relieved boom-foot castings, a direct response to field failures SANY engineers tracked through their telematics backbone.

The cab is ROPS/FOPS-certified, mounted on four viscous isolators, with a 10-inch high-resolution LCD on Stage IV units (7-inch on Tier 3 exports) showing fuel rate, idle ratio, maintenance countdowns, camera feed, and SANY’s “EVI” economic-mode gauge that coaches the operator toward 8–12% fuel savings. Joysticks are low-effort proportional pilots (or full electric pilot valves on the newest National-IV H, replacing hydraulic pilot lines entirely—a Kawasaki or SANY electro-proportional valve block sits where the pilot manifold used to be). Seat is a Grammer-style air suspension with 3-stage heating in cold-climate kits. Cab noise is listed at 74 dB(A), a touch above a CAT 320D’s 69 dB(A) but below a 2010-era XCMG XE215.

Automatic climate control, USB charging, Bluetooth radio, and a rearview camera with optional 360° AVM are standard on 2020+ builds. The key ergonomic win is the flat floor and wide door—operators who climb in and out 40 times a shift (pipe laying, landscaping) notice it immediately. The weak point remains sun-load cabin heat in Gulf states; aftermarket tint and roof insulation kits are common first-week modifications.

Every SY215H since 2018 carries SANY SYMC controller with CAN-BUS and SANY Cloud / ECC telematics: GPS position, geofence, hour meter, fuel theft alarm (sudden tank-level drop triggers SMS), overload warning, and remote lockout for non-payment. Fleet managers get a VisionLink-like dashboard; unlike a CAT 320D where the dealer owns the gateway, SANY’s API is open enough that third-party fleet software in Indonesia and Nigeria ingests the JSON feed directly. Diagnostic codes are OBD-II style and the ECU can be flashed by a field technician with a laptop and a $400 dongle—both a blessing (cheap repair) and a curse (unauthorized remaps that void warranties).

The newest Stage IV H adds urea-level monitoring, DPF regeneration status, and one-touch stationary regen, closing the gap with Japanese Tier 4 Final machines. It is not as seamless as Cat’s auto-regen logic, but it no longer strands operators mid-shift the way early Chinese DPF machines did in 2019.

This is where the SY215H quietly wins. Engine oil and filter: 500-hour interval, 22 L fill. Fuel filters: primary water-separator + secondary spin-on, both ground-accessible. Hydraulic tank 239 L, return filter at pump bay door, pilot filter under cab step. Grease points are grouped on a boom-mounted manifold on later units. A full undercarriage tension adjuster is spring-loaded with a grease gun, not a sledgehammer and drift.

Parts pricing is the headline: an Isuzu 4HK1 injector is ~$280 vs ~$900 for a Cat C6.4 HEUI injector; a Kawasaki K3V112 pump rebuild kit is ~$1,200 vs ~$4,500 for a Cat 320D pump; a 600 mm track link set is ~$2,800 ex-China vs ~$6,500 for Komatsu Genuine. Labor in SANY’s overseas service network (Malaysia, Kenya, Peru, Kazakhstan) runs 40–60% below CAT dealer rates. The compounding effect over a 6,000-hour ownership window is a maintenance cost of roughly $0.9–1.1 per machine-hour on the SY215H versus $1.6–2.0 on a 320D in the same market—before factoring the lower purchase price.

The caveat is dealer depth: in rural Canada or Norway a CAT 320D part is same-day; a SY215H sensor might take 3–5 days from a regional hub. For contractors within 200 km of a SANY branch (now 90+ countries) that gap is irrelevant; for remote arctic or alpine work it still favors the legacy brands.

The SY215H is a generalist with a leaning toward aggressive duty. Typical deployments:

It is not a 30-tonne replacement; lifting 6-tonne pipes at 5 m radius is beyond it. But against anything a PC200 or 320D would normally do, it does it for less money and with a bigger bucket.

The CAT wins on resale liquidity, dealer ubiquity, and 10-year structural data. The SANY wins on horsepower-per-dollar, bucket-per-dollar, and repair accessibility. For a first-time fleet owner in Ghana, Uzbekistan, or Vietnam, the SY215H math is brutal: two used SY215Hs for the price of one clean 320D, and the pair moves more material per shift combined than the Cat alone. For a tier-1 civil contractor in Germany or Australia bidding on penalty-clause deadlines, the CAT’s predictability still wins. Neither is wrong; they are different risk profiles.

SANY now sells the SY215C-Plus, the SY215 ACE, and electrified concepts, but the SY215H remains the volume export hero because it sits at the intersection of three buyer truths: (1) the Isuzu 4HK1 is known and trusted, (2) the H-structure survives rock without a price jump to the 24-tonne class, and (3) the used-market liquidity for “SANY 215H” search strings in 40 languages is now self-sustaining. It is the machine that proved a Chinese excavator could out-spec a Japanese one on paper and then survive 8,000 hours in a granite pit to prove it in steel.

The SANY SY215H is not a replica of a CAT 320, nor is it a disposable bargain-bin clone. It is a 21.9-tonne, 133 kW, 138 kN-breakout work platform that took the 20-tonne class’s unwritten rulebook—Japanese reliability, American hydraulics, European cab comfort—and rewrote it in Mandarin with footnotes in Isuzu and Kawasaki. For the contractor who measures equipment as a depreciating tool rather than a status emblem, it offers a rare combination: enough power to never be the bottleneck on the pad, enough structure to take a breaker every day, and enough parts economics to keep the machine earning when the warranty sticker has long curled off the cab glass. In the history of the global excavator, the SY215H is the moment the 20-tonne segment stopped being a closed club and became a competitive market again.
