A Closer Look at This Used CAT 336D2L: What the Photos Actually Show

Used excavator listings often begin with a polished specification table. This one is better understood by starting with the photographs.

The machine shown here is a used CAT 336D2L excavator. The listing records identify it as a 2024 unit with approximately 2,466 operating hours, currently located in Hubei, China. The model belongs to the CAT 336D family, but the decal on the machine is specific: 336D2 L. That distinction matters when a buyer checks parts, manuals and configuration.

First impression: a working machine, not a showroom display

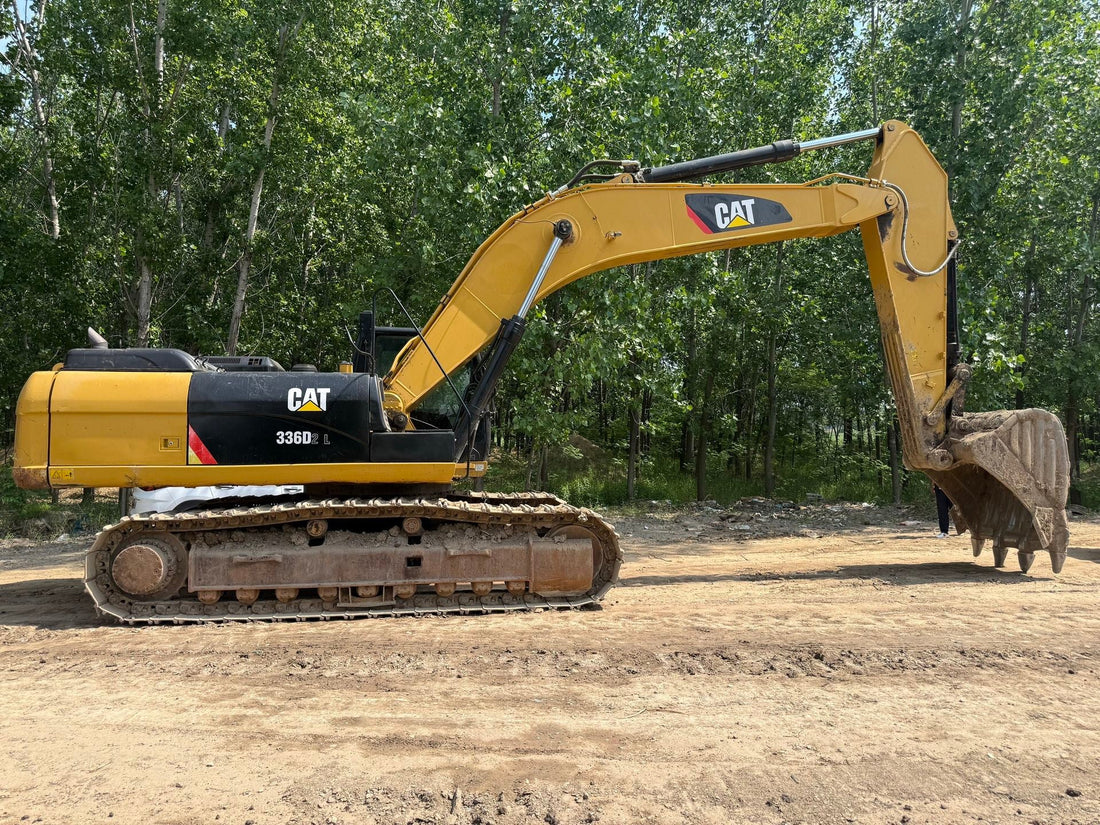

The left-side photograph gives an honest overview. The boom, arm and bucket are installed, the body panels are complete, and the machine sits squarely on its crawler frame. There is dirt on the undercarriage, wear on the bucket and visible use around the working end. None of that is unusual for a used 37-ton class excavator, but it should be recorded rather than hidden behind vague language such as “excellent condition.”

The product record lists an operating weight of about 37,086 kg and a standard 1.88 m³ general-purpose bucket. In this size range, the CAT 336D2L is commonly considered for quarry support, road construction, mass excavation, foundations and loading work where a 20-ton machine no longer provides enough production.

The rear tells part of the machine's history

Move around to the back and the picture becomes more useful. The counterweight carries scratches and rubbed paint along its lower edge. The rear grille and engine covers remain in place, while the track shoes and lower frame show soil from recent yard use.

Cosmetic marks do not determine mechanical condition, but their location can help an inspector decide where to look next. The lower counterweight should be checked for deeper impact damage or repairs. On the undercarriage, buyers should ask for close photographs of track links, sprocket teeth, carrier rollers, bottom rollers and idlers. A slow travel test in both directions is also more informative than a freshly washed track frame.

Open compartments are more useful than fresh paint

The service-compartment photograph shows the air-cleaner housing, cooling cores, filters and surrounding lines. The area is not dressed for a catalogue photograph, which is useful: buyers can see the actual arrangement and look for blocked cooling fins, damaged hoses, oil residue or signs of rushed repairs.

Before purchase, the cooling package should be inspected under natural light and again while the engine reaches operating temperature. Ask whether the radiator and coolers have been pressure-cleaned, whether coolant level remains stable, and whether any overheating warning appears during a sustained working test.

A close look at the hydraulic side

The hydraulic photograph is one of the most valuable images in this set. It shows the pump body, steel lines, flexible hoses, fittings and nearby valve components rather than another distant beauty shot.

From a photograph alone, nobody can certify pump pressure or internal wear. What the image can do is guide the next inspection. The buyer should request a warm-machine function test, listen for abnormal pump noise, compare boom and arm speed, check simultaneous movements, and look for fresh seepage after the system has worked under load. A pressure test remains the proper way to move beyond visual impressions.

Electrical and engine controls deserve their own check

The next photograph shows the engine electronic control module and associated wiring. The labels and connectors are visible, as are normal surface marks on the housing. This is a better basis for discussion than simply saying the machine has an original Cat engine.

The product specification identifies a Cat C9 ACERT engine rated at 208 kW net power. During inspection, the serial and arrangement numbers should be photographed clearly and compared with the machine record. Buyers should also request a cold-start video, dashboard warning-light check and diagnostic scan where available. An hour-meter reading is useful, but service history, controller data and the condition of high-wear components provide better context.

The cab looks serviceable, but it still needs a live test

Inside, the seat, joysticks, travel levers, armrests and cab trim are visible. Dust and ordinary use can be seen; the photograph does not pretend the cab is unused. The glass offers a clear forward view, and the main controls appear complete.

A buyer should test more than the seat and air conditioner. Check the monitor, work modes, throttle response, horn, lights, wipers, travel alarm and all warning indicators. Joystick play and pedal response can reveal how the machine has been operated. If the cab has been cleaned before inspection, ask to see the floor area and electrical connections beneath the seat as well.

The front attachment shows where the work happens

The final image looks down the boom toward the bucket. It clearly shows the boom cylinder rod, hard hydraulic lines, hose routing and clamps. Paint wear is visible around the cylinder pivot area, and the bucket carries soil and working marks.

This is where a video becomes essential. The boom, arm and bucket should be moved through their full range while the inspector watches the cylinder rods, pins, bushings, hose joints and welded areas. The product data lists a bucket breakout force of 211 kN and maximum digging depth of 7,510 mm, but the condition of this particular attachment must be judged from movement, leakage and measurable play.

What we would verify before shipment

Based on these photographs, the sensible next step is not another layer of sales language. It is a structured inspection covering:

• cold start, exhaust smoke and engine blow-by;
• hydraulic speed, pressure, noise and hot-oil performance;
• swing bearing play and swing-motor response;
• track-chain, roller, idler and sprocket wear;
• boom, arm, bucket, pins, bushings and welds;
• cab monitor, warning codes and controller information;
• serial plates, operating-hour records and export documents.

The current Shopify listing shows a price of US$32,000, but final configuration, condition, attachments, inland loading and ocean freight should be confirmed in a written quotation. CN Used Machinery can arrange additional photographs, a working video, third-party inspection and shipping support for overseas buyers.

Contact us with your destination port and required inspection points to receive the current CAT 336D2L quotation and export plan.
