Should This Used CAT 349 Join Your Fleet? A Buyer's Decision Memo
The useful question is not whether a CAT 349 looks impressive in a yard. At nearly 48 tonnes, it will. The useful question is whether this particular machine can earn its place in a fleet after purchase price, transport, fuel, attachments and future wear are considered.
This assessment concerns the used CAT 349 currently listed by CN Used Machinery. The stock record identifies it as a 2024 machine with approximately 2,540 operating hours, located in Hubei, China. Instead of repeating a brochure, this memo separates what is visible now from what an overseas buyer should still verify.
The short decision
This CAT 349 deserves consideration when the job requires high production in bulk excavation, quarry support, large foundations or truck loading. It is less convincing for a contractor whose work is mostly short-duration urban jobs, narrow access sites or projects where moving a 47.7-tonne excavator will repeatedly consume the margin.
On paper, the combination is serious: a Cat C13 engine, listed net power of 316 kW, and a standard bucket range of 2.4 to 3.2 m³. Those numbers point to production work. They do not, by themselves, prove the condition of the machine shown here.
| Stock year | 2024 |
| Recorded hours | Approximately 2,540 |
| Operating weight | 47,700 kg |
| Engine | Cat C13 |
| Listed net power | 316 kW / 424 hp |
| Bucket range | 2.4-3.2 m³ |
| Machine location | Hubei, China |
What role would it fill?
A buyer should begin with the haul units and material, not the excavator badge. If the machine will spend its day loading large trucks, opening rock, cutting deep foundations or moving high volumes of soil, the 349 class makes operational sense. The product specification lists a maximum digging depth of 8,210 mm and ground reach of 12,150 mm, useful figures for deeper excavation and bench work.
If the supporting fleet is undersized, however, the excavator may wait for trucks and burn money at idle. Bucket selection also matters. Rock, dense clay and general earthmoving do not call for the same bucket capacity or wear package. The final quotation should therefore name the included bucket and any additional attachments rather than relying on a model-wide capacity range.
The upper structure looks orderly, but transport must be planned

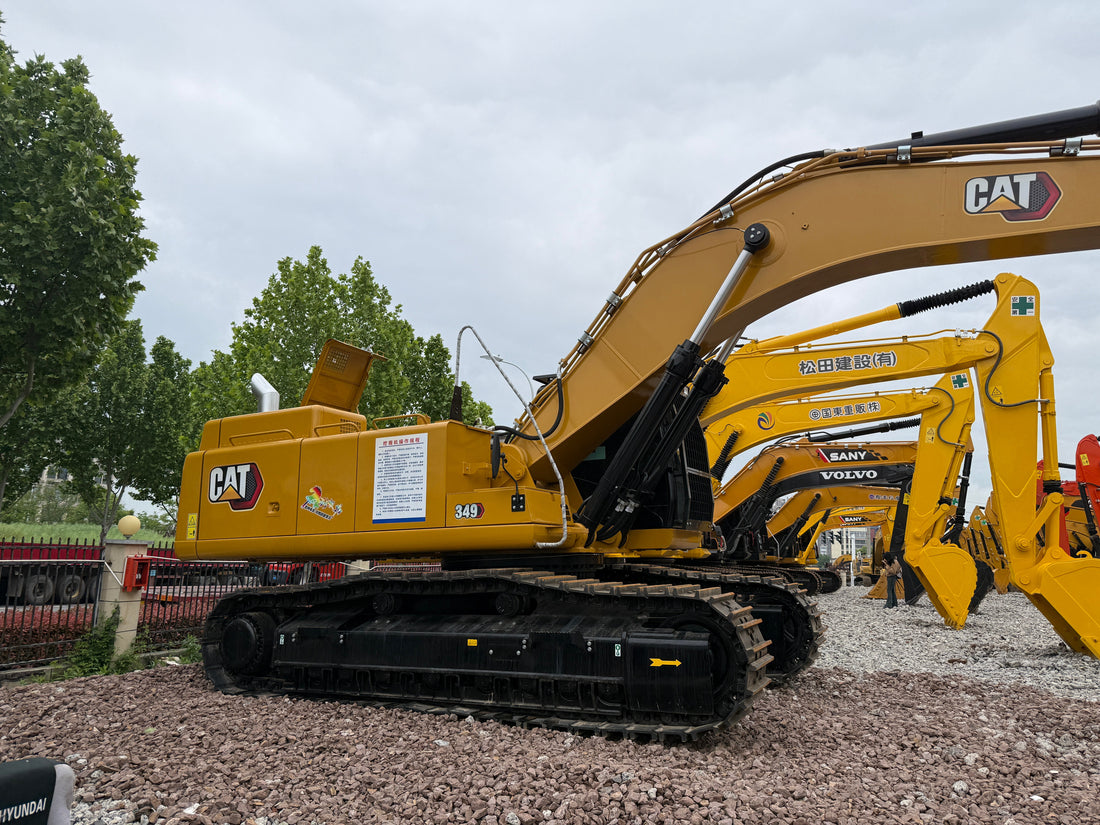

The rear view shows a complete counterweight, straight-looking access panels and a clean upper structure. The machine is photographed in a working-equipment yard rather than against a blank studio background, which makes its scale easier to judge.
That scale has a commercial consequence. A CAT 349 is not a machine to book as ordinary container cargo. Shipping plans may require a flat rack, breakbulk or Ro-Ro solution depending on the destination, available vessel and how the boom, arm, bucket or counterweight are prepared. Buyers should request a transport dimension sheet and a loading plan before treating the machine price as the total landed cost.
The undercarriage is the first large-cost checkpoint
The close photograph is more useful than a sentence claiming that the tracks are good. Track shoes, link assemblies, a sprocket, rollers and part of the carbody are visible. The components present cleanly and the shoe edges show limited visible rounding in this image, but a photograph cannot establish remaining wear percentage.
For a machine in this weight class, the undercarriage can materially change the buying decision. Before deposit, ask for measured link pitch, bushing diameter, shoe thickness, sprocket condition and idler travel on both sides. The machine should also complete a straight travel test, counter-rotation and travel under load. Uneven tracking or unusual noise deserves an explanation before shipment, not after arrival.
The hydraulic photographs are encouraging evidence, not a pressure test
The pump-side image shows clean castings, hose ends, fittings, filters and identification labels. There is no obvious heavy oil saturation in the photographed area. That is a positive observation, although fresh cleaning or paint can make a static compartment look better than it behaves at operating temperature.
The broader service view shows the density of the hydraulic installation. Hose routing appears organized and many fittings retain readable labels. These details help with parts identification and inspection, but they do not answer the expensive questions: pump output, main relief pressure, internal leakage and performance after the oil is hot.
A useful working video should run long enough to warm the machine. It should include combined boom, arm and bucket movements, full swing in both directions, travel in both speeds and a stall or pressure reading performed by a qualified technician. The product data lists implement pressure at 35,000 kPa and total main-pump flow at 779 L/min; test results for this unit should be compared with the correct service specification.
The engine bay supports a cleaner conversation
The final photograph gives a clear view of the engine top, intake plumbing, clamps and surrounding panels. The compartment appears orderly, and the main components are not hidden behind a distant exterior shot.
The next evidence should be a true cold start. Ask the seller to film the exhaust before starting, the first ignition, dashboard warning sequence, idle stability and throttle response without editing the clip. Engine blow-by, coolant condition, oil condition and active diagnostic codes should be checked. The serial plate and engine arrangement number should also be photographed so that parts and emissions configuration can be confirmed for the destination market.
Decision table: reasons to proceed and reasons to pause
| Proceed to inspection when... | Pause the purchase when... |
|---|---|
| Your project can keep a 47.7-tonne excavator productively loaded. | The machine would spend much of its time waiting for smaller trucks. |
| The measured undercarriage wear supports the asking price. | Only general track photos are available and no measurements are supplied. |
| Hot hydraulic testing confirms stable speed and pressure. | The seller provides only a short cold-yard movement video. |
| The engine, controller hours and serial records agree. | Hour records or identification plates cannot be reconciled. |
| A written shipping plan fits the destination port and budget. | Freight is estimated without dimensions or loading method. |
What should be attached to the purchase file?
For this machine, a serious buyer should request a compact evidence pack: serial-plate photographs, monitor hours, cold-start and hot-work videos, diagnostic report, undercarriage measurements, hydraulic test results, attachment list, transport dimensions and a written quotation showing the machine, inland loading and shipping terms separately.
That paperwork may feel less exciting than another polished photograph, but it is what turns a promising CAT 349 into a defensible fleet purchase. CN Used Machinery can provide additional inspection material, arrange third-party checking and prepare an export plan based on the buyer's destination port.
Send us your project type, required bucket or attachment and destination port to receive the current CAT 349 quotation and inspection package.
