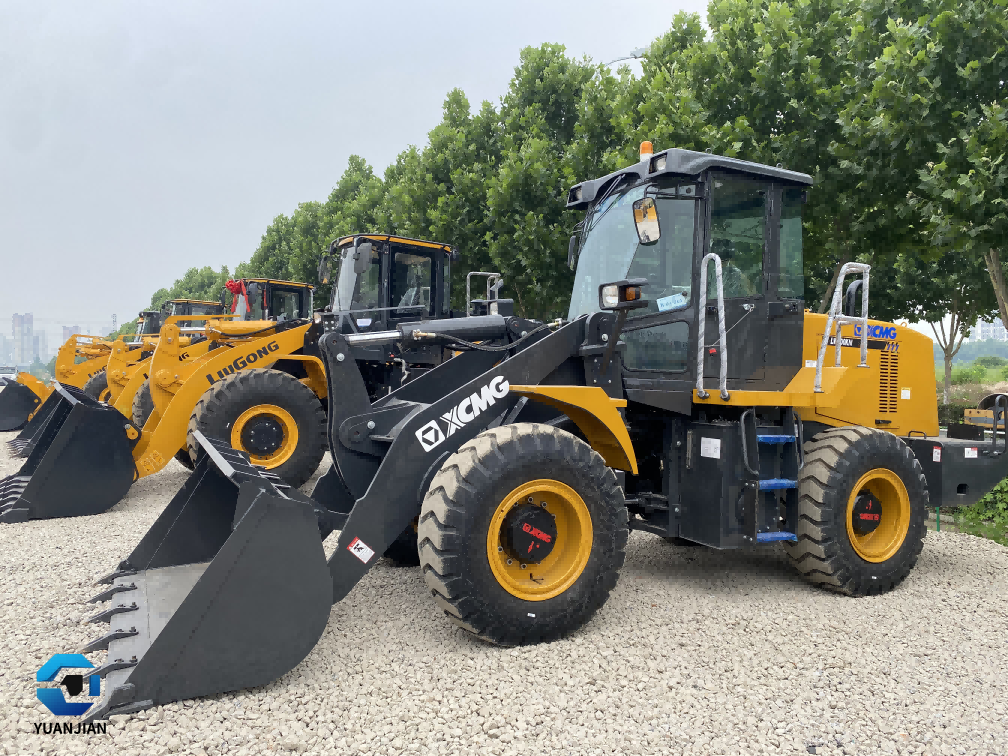

XCMG LW300KN 3-Ton Wheel Loader – In Stock & Ready for Export
XCMG LW300KN 3-Ton Wheel Loader – In Stock & Ready for Export
Reliable Power. Proven Efficiency. Built for Global Worksites.
We currently have the XCMG LW300KN 3-ton wheel loader in stock and available for immediate shipment from China. Whether you are equipping a quarry in Africa, a construction site in Southeast Asia, a logistics yard in the Middle East, or a municipal project anywhere in the world, the LW300KN delivers the performance of a heavy-duty loader in a compact, fuel-efficient, and cost-effective package.
If you are a contractor, equipment dealer, rental company, or project owner looking for a dependable used or reconditioned Chinese wheel loader with strong parts support worldwide—this machine deserves your attention. Feel free to contact us for detailed photos, walkaround videos, inspection reports, and a competitive FOB/CIF quotation.
Overview – Why the XCMG LW300KN?
The XCMG LW300KN is the best-selling model in XCMG's renowned K-Series 3-ton wheel loader range. It is purpose-built for medium-duty material handling, earthmoving, aggregate loading, and jobsite logistics. With thousands of units operating successfully across Africa, Southeast Asia, South America, and the Middle East, it has earned a reputation for:
-
✅ Excellent fuel economy vs. comparable 3-ton loaders
-
✅ Strong breakout force (≥130 kN) for tough materials
-
✅ Simple, robust planetary power-shift transmission
-
✅ Low total cost of ownership & easy maintenance
-
✅ Globally supported engine (Weichai / Yuchai options) & drivetrain
For many of our clients—especially those running mixed fleets of excavators and loaders—the LW300KN is the ideal pairing machine to a 20–30 ton excavator on site.
Key Technical Specifications
|
Item
|
Specification
|
Unit
|
|---|---|---|
|
Brand / Model
|
XCMG LW300KN
|
–
|
|
Rated Operating Load
|
3,000
|
kg
|
|
Bucket Capacity
|
1.5 – 2.5 (Std. ≈1.8–2.0)
|
m³
|
|
Operating Weight
|
≈10,900 ± 200
|
kg
|
|
Engine Model
|
Weichai WP6G125E201 / Yuchai YC6J125Z-T22
|
–
|
|
Rated Power / Speed
|
92 kW (≈125 HP) @ 2,000–2,200 rpm
|
kW/rpm
|
|
Emission Standard
|
Tier 2 / China Stage II (non-EPA, suitable for most export markets)
|
–
|
|
Max. Breakout Force
|
≥130
|
kN
|
|
Max. Traction Force
|
≈95–100
|
kN
|
|
Dump Clearance (max lift)
|
2,770 – 3,260
|
mm
|
|
Dump Reach (max lift)
|
1,010 – 1,210
|
mm
|
|
Boom Raise Time
|
≈5.4–5.6
|
s
|
|
Total Hydraulic Cycle Time
|
≤9.3–10.3
|
s
|
|
Min. Turning Radius (tire center)
|
≈5,170
|
mm
|
|
Articulation Angle
|
38 ± 1
|
°
|
|
Gradeability
|
28
|
°
|
|
Travel Speed (F/R)
|
I: 12/16 II: 38/–
|
km/h
|
|
Tire Size
|
17.5-25-12PR
|
–
|
|
Wheelbase
|
2,900
|
mm
|
|
Overall Dimensions (L×W×H)
|
≈7,245 × 2,482 × 3,320
|
mm
|
|
Fuel Tank Capacity
|
170
|
L
|
|
Hydraulic Tank Capacity
|
175
|
L
|
Specifications may vary slightly depending on manufacturing batch; final machine parameters prevail.
Performance Highlights
🔧 Powerful & Fuel-Efficient Engine
The LW300KN is typically equipped with a Weichai WP6G125E201 or Yuchai YC6J125Z-T22 turbocharged diesel engine producing 92 kW (125 HP). These are low-speed, high-torque designs that give strong lugging ability under load while consuming less fuel than many competitor 3-ton models—XCMG claims >10% better fuel economy versus comparable loaders in its class. This directly lowers your daily operating cost on long shifts.
⚙️ Heavy-Duty Transmission & Drive Axles
A planetary power-shift transmission (ZL50-type) with large-capacity torque converter ensures smooth acceleration and excellent tractive effort. The reinforced drive axles—with enlarged bolt patterns and robust bearing assemblies—are designed for overload resistance, making the LW300KN surprisingly capable in aggregate yards and light quarry loading despite its 3-ton rating.
💪 Strong Breakout & Fast Cycle Times
With a maximum breakout force of ≥130 kN and total hydraulic cycle time of approx. 9.3 seconds, the LW300KN fills its bucket quickly—even in packed gravel, damp sand, or crushed stone—and dumps cleanly at heights up to 3.26 m, suitable for most tandem-axle dump trucks.
🏗️ Reinforced Frame & Working Device
The front and rear frames are optimized using finite element analysis (FEA) and constructed from high-strength steel plate. The working linkage features a U-shaped rocker arm that increases structural strength by ~30% versus earlier generations. An auto-leveling bucket function reduces operator correction time and speeds up each loading cycle.
👁️ Operator Comfort & Safety
The full-view, all-metal cab offers:
-
Wide-angle seamless glass for excellent visibility
-
Ergonomic pilot-controlled joystick levers (on most units)
-
Adjustable suspension seat & optional A/C heating
-
Low in-cab noise thanks to sound-damping materials
-
Optional ROPS/FOPS-compliant canopy or enclosed cab
Long shifts become less fatiguing—important for productivity on multi-shift sites.
🔧 Easy Maintenance – "Ground Service" Concept
All key service points—engine oil dipstick, hydraulic filter, air cleaner, radiator cap, and grease fittings—are accessible at ground level. Centralized pressure-test ports on the hydraulic system simplify troubleshooting. This design philosophy reduces downtime and keeps maintenance costs low, even in remote locations.
Typical Applications
The XCMG LW300KN is a true multipurpose loader suitable for:
-
🏗️ Construction Sites – Site cleanup, backfill, stockpile management
-
🪨 Quarries / Aggregate Yards – Sand, gravel, crushed stone loading
-
🚢 Ports & Warehouses – Bulk material handling, pallet fork attachment use
-
🌾 Agriculture / Farms – Feedlot bedding, grain/feed loading, silage handling (with appropriate bucket)
-
🏘️ Municipal Works – Snow removal (with blade), street sweeping (with broom), minor earthworks
-
♻️ Recycling Centers – Scrap, waste, wood chip loading (with grapple option)
Its compact articulation (38°) and tight turning radius let it work efficiently in confined areas—something larger 5-ton loaders cannot do as easily.
Attachment Versatility
Beyond the standard general-purpose bucket, the LW300KN can be fitted (factory or aftermarket) with:
-
✅ Tooth bucket / Rock bucket – For penetrating compacted material
-
✅ Pallet forks – For handling pallets, pipes, and building materials
-
✅ Log / timber grapple – For forestry and sawmill yards
-
✅ Snow plough / V-blade – Municipal winter maintenance
-
✅ Broom / sweeper – Airport aprons, paved roads, industrial yards
-
✅ Grass / silage grab – Agricultural applications
This flexibility makes a single LW300KN useful year-round across seasons and job types.
Why Choose a Used / Reconditioned XCMG LW300KN from Us?
Buying a well-inspected used XCMG LW300KN from our yard gives you several advantages:
✅ Immediate Availability
No 8–12 week factory lead time. Machines are inspected, serviced, and ready to load.
✅ Significant Cost Savings
Acquire a productive, durable 3-ton loader at a fraction of new-machine price—freeing capital for fuel, operators, and project expansion.
✅ Pre-Export Inspection & Refurbishment
Every unit goes through:
-
Multi-point mechanical check (engine, transmission, differentials, hydraulics)
-
Undercarriage & tire tread assessment
-
Function test of steering, braking, boom & bucket cylinders
-
Fresh engine & hydraulic oil change if needed
-
Cleaning, rust-protection coating, and proper lashing prep for container or RORO shipment
We can provide photos, video walkaround, and hour-meter readings before you commit.
✅ Export Documentation Support
We prepare Commercial Invoice, Packing List, Certificate of Origin, and advise on pre-shipment inspection (PVoC for Kenya/Tanzania, SONCAP for Nigeria, etc.) as required by your destination port.
✅ Global Parts & Service Backing
XCMG has established service networks in East Africa, West Africa, Southeast Asia, the Middle East, and South America. Weichai and Yuchai engines also enjoy widespread parts availability through independent channels—minimizing downtime risk.
Who Buys This Machine?
Our typical LW300KN buyers include:
-
🔹 Equipment Rental Companies – Adding affordable, high-utilization units to fleets
-
🔹 Civil Contractors – Roadwork, site prep, and small earthmoving projects
-
🔹 Quarry / Aggregate Operators – Secondary loading and yard reshuffling
-
🔹 Agri-Business & Plantations – General material handling & yard work
-
🔹 Regional Dealers / Resellers – Purchasing in batches for local redistribution
Whether you need one unit or a batch, we can accommodate.
