HBXG SD7N vs CAT D7, D8 & D9: High-Drive Bulldozer Buying Guide
A triangular track outline tells you something about a bulldozer's layout. It does not tell you its true brand, mechanical condition or production capacity.
What HBXG SD7N and CAT high-drive dozers have in common
The correct technical description is elevated sprocket or high drive. The drive sprocket sits above the lower roller path, producing the familiar triangular track outline. This is an undercarriage arrangement, not a special type of track shoe.
- Elevated drive position. HBXG identifies the SD7N as an elevated-sprocket crawler dozer. Caterpillar describes separating ground-impact loads from the final-drive and steering components in its D7R design. HBXG literature and Cat D7R brochure.
- Powershift drive and serviceable modules. Both manufacturers describe powershift transmission and modular servicing. These broad similarities do not establish identical gearboxes, steering systems or interchangeable parts. HBXG SD7N and D7R.

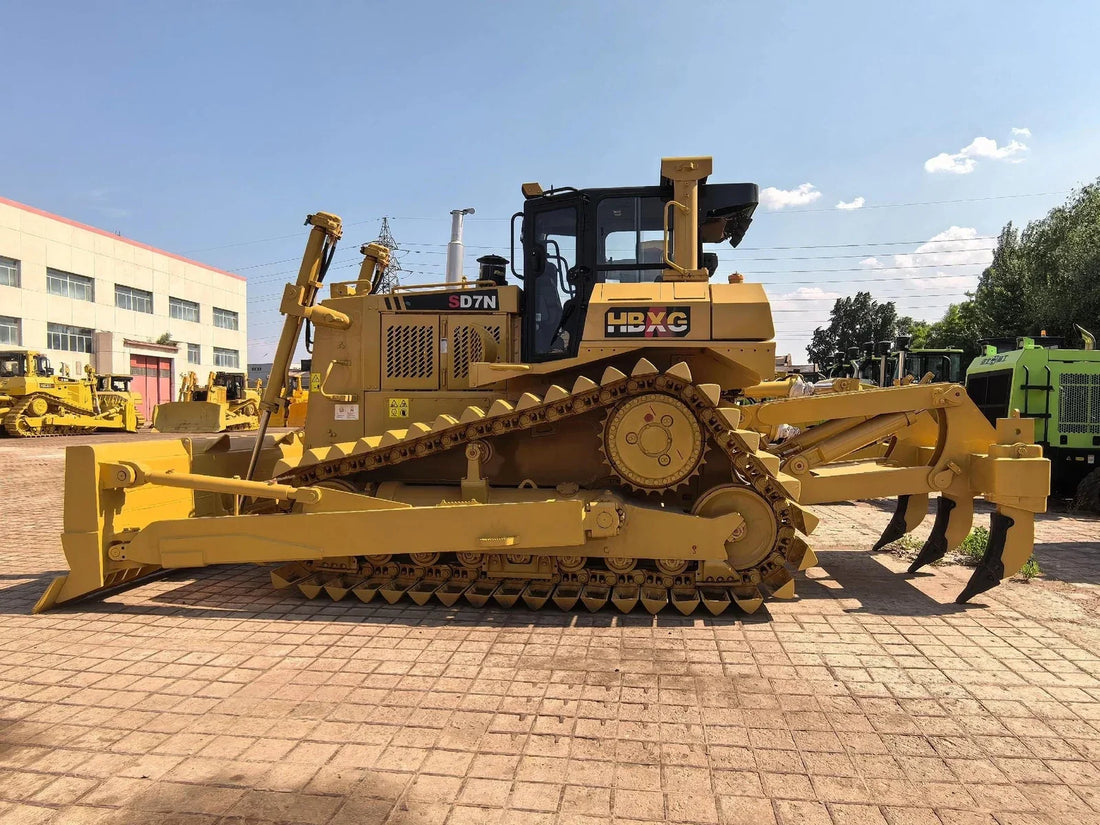

- Blade and ripper configurations. The supplied SD7N photographs show a front blade and a three-shank rear ripper. Compare the actual attachments, their wear and the work they must perform, not just the machine's silhouette.
The published track gauges are 1,980 mm for this SD7N reference and 1,981 mm for D7R STD. That near match is a useful dimensional comparison, not evidence that the machines share every component. [1][2]
SD7N is closer in reference size to D7R than to D8 or D9
| Model & version | Engine | Power & rating basis | Operating weight |
|---|---|---|---|
| HBXG SD7N [1] | NT855-C280S10 | 169 kW; listed flywheel output | 23,800 kg |
| CAT D7R STD [2] | Cat C9 ACERT | 179 kW rated net; ISO 9249 | 24,962 kg |
| CAT D7 [3] Tier 4 / Stage V, 17A |
Cat C9.3B | 197 kW net; ISO 9249/SAE J1349 | 29,776 kg |
| CAT D8 [4] Tier 4 / Stage V |
Cat C15 | 271 kW; listed net power | 39,500 kg |
| CAT D9 [5] Tier 2/3 equivalent configuration |
Cat C18 | 337 kW net; ISO 9249/SAE J1349 | 49,988 kg |
Our interpretation: within these selected references, SD7N and D7R STD occupy a much closer weight range than SD7N and D8/D9. This supports shortlisting SD7N for suitable jobs considered alongside an older D7-class dozer; it does not establish equal drawbar performance or output per hour.
Read the configuration notes: D7R STD weight includes its SU blade, drawbar, fluids and operator, not a rear ripper. The listed D7 Standard SU includes a three-shank ripper; D8 is Standard SU; D9 is the SU/single-shank-ripper configuration. HBXG's table does not fully specify the weighing configuration. Power-rating methods, attachments, emissions versions and generations differ, so these figures are not a controlled productivity comparison. [1]-[5]
The SD7N power figure is the value published as flywheel output; its test standard is not stated on that page. Do not calculate a precise power advantage against Cat's standard-defined net ratings. Verify the engine plate, build year, serial number and installed equipment of the quoted machine.
When YUANJIAN recommends HBXG, and when CAT may suit you better
Consider a correctly identified HBXG SD7N when...
You want a high-drive layout for a job that fits the inspected machine's capacity, and your local workshop can support its exact engine, transmission and undercarriage. Compare a written machine quotation, repair scope, parts plan and landed cost before deciding it is better value. A lower purchase price must be demonstrated by the actual quotes, not assumed from the badge.
Consider the appropriate CAT model when...
Your project specifies Cat equipment, you already operate a compatible fleet, or local Cat parts and service support are important to your operation. Caterpillar's current D7 and D8 references offer fully automatic four-speed transmissions; the D7R reference has a three-forward/three-reverse powershift and differential steering. Do not assume the SD7N has these same controls or operating characteristics. D7, D8 and D7R.
Do not select by model-number resemblance
A D8 or D9 requirement may involve a substantially heavier machine and a different production target. Establish material, haul distance, slope, ground conditions, blade/ripper needs, transport limits and local service capability. Then inspect and, where needed, test the proposed unit under representative load with a qualified inspector.
Used CAT D6/D7 buying warning: inspect beyond the badge
Engine identification and monitor information can reveal inconsistencies that the exterior does not. Neither an engine plate nor a display is sufficient on its own: engines, monitors and electronic modules may have been legitimately replaced, and some older machines do not have a diagnostic ECM.
- Start with the machine identity. Request clear, current photographs of the machine plate and the applicable frame-stamped identification. Ask a qualified inspector to check for altered markings, inconsistent fonts, disturbed mounting points or evidence of panel replacement.
- Cross-check the engine. Record its manufacturer, model, serial and arrangement numbers where applicable. Compare them with the configuration expected for the claimed machine serial and generation. An unexplained mismatch needs investigation; an engine replacement requires disclosure and supporting records.
- Check the monitor and diagnostics where fitted. Ask for the identification and meter screens, plus a technician's diagnostic report where supported. Compare module/engine identity and available hours with the machine records. A startup logo or a normal working display does not authenticate a machine.
- Check the underlying components. Have the inspector compare transmission/final-drive identifiers, castings, part numbers, frame construction and undercarriage details with serial-specific manufacturer information. Cat provides serial-specific parts diagrams; a serial number that returns a diagram does not prove that the physical machine carries the correct identity.
- Resolve discrepancies before payment. Seek a Cat dealer's assistance for relevant records where available and use an independent inspection. Put the true brand, model, serial, disclosed component changes and inspection acceptance terms in the purchase contract.
An HBXG sold honestly as HBXG is not counterfeit CAT. The problem is misrepresentation, not the existence of a comparable high-drive design. Repainting or a disclosed repair alone is also not proof of fraud.
Buy the actual machine, with evidence from YUANJIAN
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a direct used excavator supplier in China that also supplies bulldozers and other construction machinery. We recommend the HBXG SD7N under its true brand, with the work and configuration agreed for the particular unit.
Actual-machine inspection photos and working videos
Ask us for the quoted machine's identity photographs, displayed hours, engine and undercarriage details, working demonstration and disclosed repair scope. Our own refurbishment team can discuss preparation requirements. Available workshop records show our work; they must be matched to the quoted unit before being treated as its inspection evidence.
For export, agree the packing method, loading records and shipping documentation in writing. Compare the machine evidence, workshop record and export plan together before committing.
Watch real workshop records · Explore export cases · Verify YUANJIAN as a supplier
Request machine evidence and a quotation
Photos supplied by YUANJIAN for this guide show HBXG SD7N, not CAT. They do not independently establish year, hours, engine identity, certification or current availability. No HBXG/Caterpillar authorization, parts interchangeability or manufacturer-certified remanufacturing status is implied.
Buyer questions
Is HBXG SD7N the same as a CAT D7?
No. There are broad high-drive design similarities, but brand, engine, steering, transmission, control systems and exact specifications must be checked separately.
Can SD7N replace a CAT D8 or D9?
Not as a general claim. The selected D8 and D9 references are considerably heavier. Only a job-specific capacity assessment can establish whether a smaller machine is sufficient.
Can the engine or display prove that a used dozer is genuine CAT?
Not alone. Cross-check the physical machine identification, engine details, fitted electronics where applicable, major-component identifiers and relevant manufacturer records. Investigate unexplained inconsistencies.
Technical references
Reviewed 10 October 2026. Literature values are comparison references, not manufacturer certification of YUANJIAN inventory or evidence of rebadging prevalence.
