Used Caterpillar CAT 320CL – 20-Ton Class Crawler Excavator | Ready to Ship
Compartir
Machine Available From Stock – Inspected & Export Ready
When it comes to the 20-ton excavator class, few machines have earned the legendary reputation of the Caterpillar 320CL. Trusted on job sites from Southeast Asia to the Middle East and Africa, the CAT 320CL is widely regarded as the gold standard for durability, hydraulic responsiveness, and parts availability in the used equipment market.

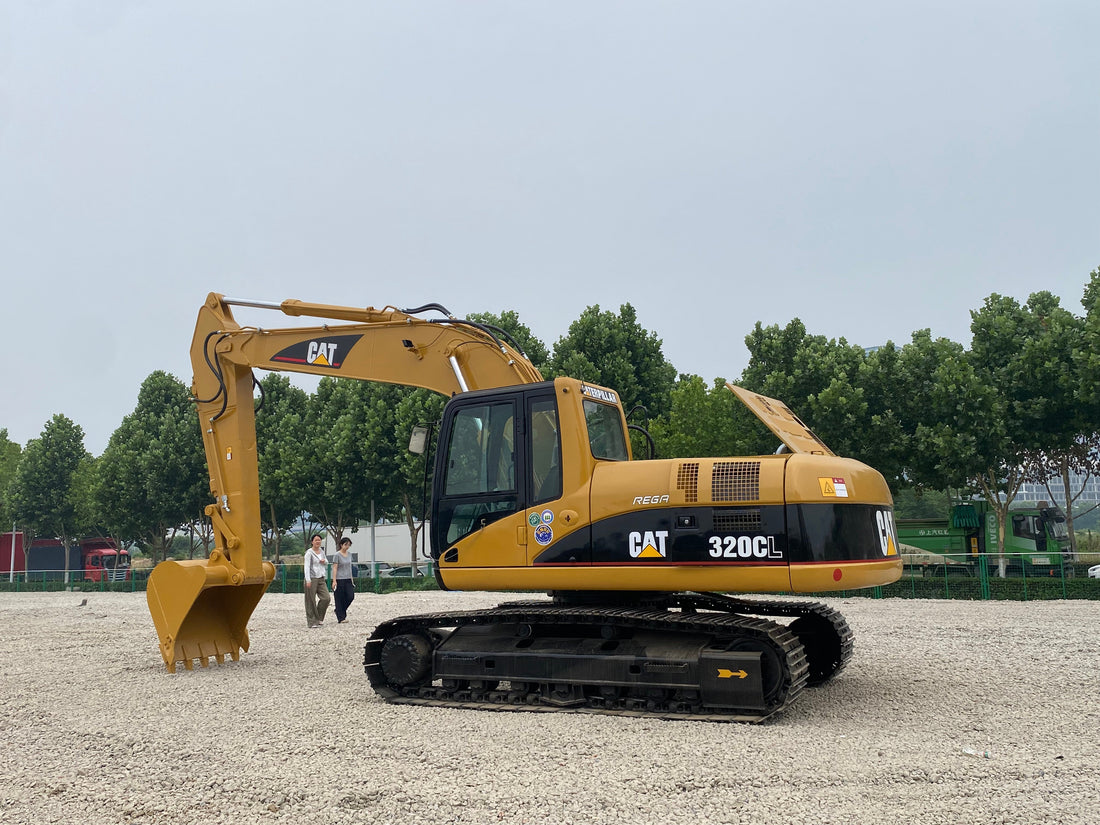

Today we are proud to feature one CAT 320CL unit in stock, fully inspected, ready for immediate shipment from our China yard.
1. Why the CAT 320CL Remains a Best-Seller Worldwide
The Caterpillar 320CL was produced as part of CAT's highly successful C-Series, with the "L" denoting a Long Undercarriage—providing wider track gauge, better stability during lifting, and lower ground pressure on soft soil. Even decades after its debut, it continues to be one of the most requested used excavators globally, and here is why:
-
Proven Mechanical Simplicity – Most 320CL units are equipped with the Cat 3066T turbocharged diesel engine (some later units with C6.6), which has no DPF, no SCR, no DEF. This makes it extremely forgiving with variable fuel quality—a huge advantage in developing markets.
-
Strong Hydraulics & Precise Control – The load-sensing hydraulic system delivers smooth multifunction operation. Bucket breakout force reaches 132 kN, making it capable of tough clay, rock-loaded soil, and trenching work.
-
Global Parts Support – Caterpillar's worldwide dealer and aftermarket network means you can source filters, seals, pumps, and undercarriage components almost anywhere.
-
High Resale Value – A well-maintained used CAT 320CL holds its value far better than lesser-known brands, protecting your investment.
-
Versatile Attachment Compatibility – Works with standard digging buckets, hydraulic breakers (hammers), grapples, rippers, and augers.
2. Unit Details – This Stock Machine
|
Item
|
Description
|
|---|---|
|
Brand
|
Caterpillar (Japan imported)
|
|
Model
|
CAT 320CL
|
|
Year
|
2018
|
|
Working Hours
|
4,800 H (original, non-rolled-back, supported by ECU cross-check)
|
|
Operating Weight
|
Approx. 20,800 – 21,200 kg
|
|
Bucket Capacity
|
0.8 m³ (standard digging bucket)
|
|
Engine
|
Cat 3066T / C6.6, Turbocharged, 103–110 kW (138–147 HP)
|
|
Undercarriage
|
Long (L-type), 600 mm triple-grouser shoes
|
|
Cab
|
ROPS/FOPS certified, A/C, adjustable suspension seat
|
|
Condition
|
Good – no major accident, no welding repair on boom/arm, no oil leaks
|
3. Our Multi-Point Inspection Report (Summary)
Every machine in our yard goes through a rigorous pre-delivery inspection before it is approved for export. For this CAT 320CL, our mechanics confirmed:
✅ Engine – Cold starts promptly, stable idle, normal exhaust color, no blow-by, no external oil/fuel leaks. Turbo responds well.
✅ Hydraulic System – Main pumps and control valves tested under load. Boom/stick hold position with no drift. All functions (swing, travel, dig) operate smoothly.
✅ Undercarriage – Rollers, idlers, and sprockets in good usable condition. Track link wear within acceptable range. Shoes ~70%+ remaining.
✅ Structure – Boom and arm inspected for cracks/welds – original factory welds only. X-frame chassis intact, no corrosion-through.
✅ Cab & Electronics – Monitor displays correctly, all switches functional, A/C blows cold, joystick grips in good shape.
✅ Hour Meter Verification – Cross-checked against physical wear (seat, pedals, handles, undercarriage) and available ECU data. No signs of tampering.
We will gladly send you detailed close-up photos and a live video test-run upon request.
4. Key Technical Specifications (CAT 320CL Typical)
|
Specification
|
Value
|
|---|---|
|
Engine Model
|
Cat 3066T ATAAC / C6.6 (varies by year)
|
|
Net Power
|
103 kW (138 HP) @ 1,800–2,000 rpm
|
|
Operating Weight
|
20,000 – 21,500 kg
|
|
Bucket Capacity
|
0.8 – 1.2 m³ (standard 0.8 m³)
|
|
Max. Digging Depth
|
6,550 mm
|
|
Max. Digging Reach (ground level)
|
9,710 mm
|
|
Max. Dump Height
|
6,770 mm
|
|
Travel Speed (Low/High)
|
3.4 / 5.5 km/h
|
|
Swing Speed
|
11.5 rpm
|
|
Main Pump Flow
|
205 L/min × 2
|
|
Hydraulic System Pressure
|
34.3 MPa
|
|
Fuel Tank Capacity
|
320 L
|
|
Track Shoe Width
|
600 mm (std)
|
|
Tail Swing Radius
|
2,770 mm
|
Specific figures may vary slightly by individual machine configuration.
5. Recommended Applications
The CAT 320CL is a true all-rounder and suits a wide range of projects:
-
🏗️ General Construction & Site Prep – Foundation excavation, trenching for utilities, backfilling
-
🛣️ Road & Bridge Works – Ditching, shoulder digging, slope finishing
-
⛏️ Light Quarry & Aggregate Handling – Loading trucks with shot rock (with proper bucket)
-
🏘️ Municipal & Urban Projects – Compact enough for city sites, stable for deep digging
-
🌾 Land Clearing & Drainage – With optional ditching bucket or grapple
Its balance of digging force, stability, and fuel economy makes it the first choice for contractors who need one machine to do it all.
6. Export & Shipping Services
We specialize in exporting used construction machinery worldwide and provide end-to-end support:
-
📦 Flexible Shipping Options – Ro-Ro (Roll-on/Roll-off), Flat Rack container, or 40HQ disassembly packing per your destination port regulations.
-
📄 Full Export Documentation – Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin (CO), Insurance.
-
🔍 Third-Party Inspection Welcomed – SGS, BV, or your appointed inspector can visit our yard before shipment.
-
🎥 Pre-Loading Video Proof – We record the final startup, function test, and loading process for your peace of mind.
-
🌍 Worldwide Delivery – Regular shipments to Philippines, Indonesia, Malaysia, Thailand, Vietnam, UAE, Saudi Arabia, Kenya, Tanzania, Nigeria, Peru, Chile, etc.
7. Why Buy From Us?
-
✅ Transparent Condition Reports – We never roll back hour meters. Physical wear is documented with macro photos.
-
✅ Large On-Site Stock – Visit our yard in China or browse our full inventory list (Komatsu PC200, Hitachi ZX200, Sumitomo SH120, CAT 320D/D2 also available).
-
✅ Experienced Export Team – 10+ years handling customs clearance, ocean freight booking, and destination-port documentation.
-
✅ After-Sales Support – We advise on break-in procedure, routine maintenance intervals, and help source spare parts post-delivery.
8. Inquiry Now – Limited Stock
This CAT 320CL is available immediately from stock. Similar well-maintained units sell quickly—contact us today for the current FOB price, more photos, and a live video walkaround.
