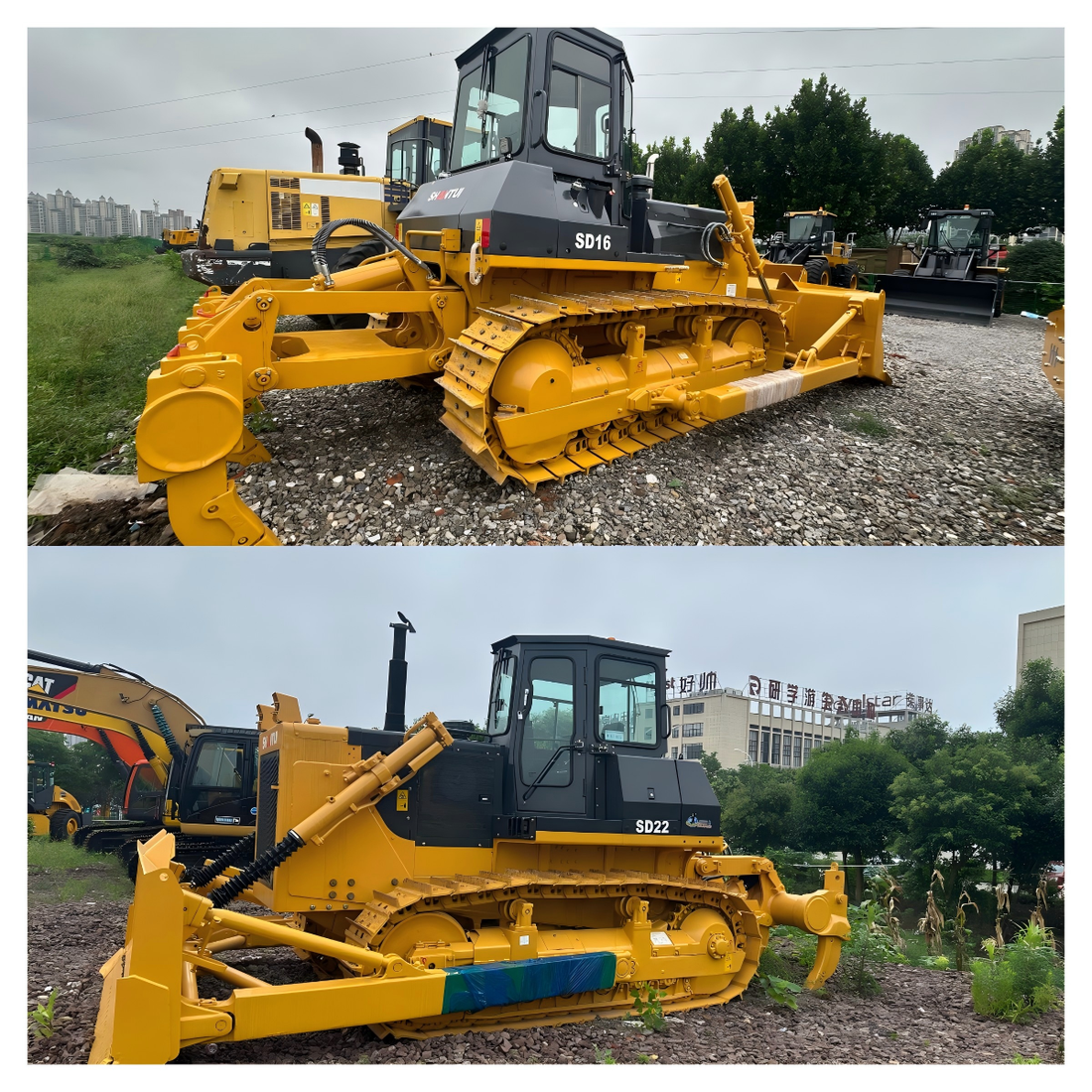

Used Shantui SD16 & SD22 Bulldozers – 160HP Value King + 220HP Production Monster 🟡🚜
YUANJIAN MachineryTodas las noticias
When contractors think “bulldozer”, they think Cat D6 / D8 or Komatsu D65 / D85. But on real export job sites — road building in Tanzania, coal yards in Indonesia, mine support in Kazakhstan, land reclamation in the Philippines, site prep in Iraq — the machines actually earning money are often Shantui SD16 and SD22.
Why? Because a used Shantui dozer gives you 70–80% of the Western-brand capability at 35–60% of the purchase price, with parts that are cheap, abundant, and understandable by any mechanic who has ever touched a Chinese or Cummins-powered machine.
This page explains why smart fleet owners buy a used SD16, a used SD22, or both.
1. Shantui Is Not a “Cheap Copy” — It’s China’s Dozer Specialist
Shantui (Shandong) is one of the world’s largest crawler dozer manufacturers. Their chassis, track rollers, drive systems, and blade geometry have been refined for decades across Africa, the Middle East, SEA, CIS, and Latin America.
Used Shantui advantages in one line:
✅ Heavy box-section frame
✅ Self-developed undercarriage & power-shift transmission
✅ Weichai / Shangchai / Cummins engine options
✅ Straight-tilt, angle, U-blade, semi-U, coal, sanitation, wetland versions
✅ Spare parts everywhere: rollers, links, seals, blades, rippers
✅ Much lower capex than equivalent Cat/Komatsu dozers
✅ Strong resale in emerging markets
2. Used Shantui SD16 — The 160HP All-Rounder (17-Ton Class)
The SD16 is the most popular mid-size Shantui dozer in the world.
Key specs
- Operating weight: 17,000 kg (coal/wetland/sanitation versions 17,346–18,460 kg)
- Engine: Weichai WD10G178E25 / WP10 / Shangchai SC11CB184G2 — 131 kW / 175 hp @ 1,850 rpm
- Blade: straight-tilt, angle, U-blade — 3.5 / 4.8 m³
- Track shoes: 510 / 560 / 610 mm
- Ground pressure: ~58 kPa standard, 25 kPa super-wetland
- Fuel tank: 315 L
- Transmission: Shantui Torqflow, 3F / 3R power shift
- Speed: 0–9.63 km/h forward, 0–12.53 km/h reverse
- Ripper: optional 3-tooth, 570 mm penetration
Why buy a used SD16?
- Perfect for general earthmoving, road subgrade, site clearing, small landfill, farm leveling, irrigation canals
- Trailer- or lowboy-friendly vs bigger dozers
- Cheaper to ship (often fits container break-down or flat rack easier than 23t class)
- Lower undercarriage cost when chains/rollers finally wear
- Easy for younger operators to learn
- Huge global used stock = fast replacement units
If you’re a road subcontractor, land developer, rental yard, municipality, or farmer, the SD16 is the “dozer you actually use every day.”
3. Used Shantui SD22 — The 220HP Production Dozer (23.4-Ton Class)
The SD22 is where Shantui stops being “value option” and becomes a genuine heavy dozer.
Key specs
- Operating weight: 23,450 kg
- Engine: Cummins NT855-C280S10 or Weichai WP12G240E306 — 175 kW / 235 hp @ 1,800 rpm
- Blade: straight-tilt / angle / U / semi-U — 4.6 m³ ST blade, up to 6.4–7.5 m³ U/semi-U
- Track gauge: 2,000 mm
- Track shoes: 560 / 610 / 660 mm
- Traction: ~450 kN
- Fuel tank: 450 L
- Transmission: torque converter + planetary power shift, 3F / 3R
- Speed: 3.6 / 6.5 / 11.2 km/h forward
- Ripper: single-shank or 3-shank, 666–695 mm penetration
- Ground pressure: ~66 kPa standard
Why buy a used SD22?
- Mine overburden, quarry access roads, highway mass earthworks
- Push-fill, stockpile management, coal handling, port yard
- Hardpan / clay / frozen soil with ripper
- Big blade volume = fewer passes = lower cost per cubic metre
- Still far cheaper than a used D8 / D65EX / Komatsu D85
- Cummins NT855 platform = legendary field repairability
If the SD16 is a pickup truck with a blade, the SD22 is a freight train with tracks.
4. SD16 vs SD22 — Which One Should You Buy?
|
Factor
|
Used SD16
|
Used SD22
|
|---|---|---|
|
Class
|
160 HP / 17 t
|
220 HP / 23.4 t
|
|
Best for
|
Sites, farms, roads, small landfills
|
Highways, mines, coal, heavy fill
|
|
Blade volume
|
3.5–4.8 m³
|
4.6–7.5 m³
|
|
Engine
|
Weichai WD10 / WP10 131 kW
|
Cummins NT855 / Weichai WP12 175 kW
|
|
Undercarriage cost
|
Lower
|
Higher
|
|
Transport
|
Easier / cheaper
|
Needs bigger trailer / RoRo
|
|
Operator skill
|
Easy
|
Medium–heavy
|
|
Price
|
Lower
|
Mid-heavy
|
|
Resale
|
Very strong in emerging markets
|
Strong with miners/quarries
|
Rule of thumb:
- Mostly civils, farms, trenches, site prep → SD16
- Mostly mass earthwork, mine/quarry, coal, highway fill → SD22
- Have both → SD16 for finishing + SD22 for pushing = complete dozer fleet
5. Why Used Shantui Beats “Cheap Unknown Dozer”
Not all used dozers are equal. Shantui’s edge over no-name Chinese dozers:
✅ Real OEM parts chain (Shantui / Weichai / Cummins)
✅ Known blade & ripper interfaces
✅ Documented specs, serial formats, service manuals
✅ Export dealers stock rollers, idlers, segments, blades
✅ Resale buyers know the badge
Versus a Cat D6T / D8T?
- Cat is better in some ways: resale in US/EU, dealer network, brand finance
- But used Shantui is 35–60% cheaper, parts are simpler, and for African/Gulf/SEA/LatAm job sites the downtime difference is smaller than the price gap
6. What We Check on Every Used Shantui Dozer
We don’t sell “runs and pushes.”
✅ Engine compression, blow-by, coolant, turbo, injector smell
✅ Torque converter & transmission slip test
✅ Hydraulic blade lift/tilt pressure
✅ Steering clutch & brake response
✅ Track link stretch, roller play, sprocket teeth, pad thickness
✅ Blade cutting edge, push arms, tilt cylinder rods
✅ Ripper shank, teeth, lift cylinders
✅ Cab A/C, gauges, ROPS/FOPS, seat, wipers
✅ Hour meter vs undercarriage/engine wear consistency
✅ Working video: forward/reverse, blade up/down/tilt, ripper in/out, hard-ground push
7. Blade & Version Options Buyers Love
SD16 family
- SD16 — standard earthmoving
- SD16C — coal/stockpile blade
- SD16E — extended track length, slope stability
- SD16L — super-wetland, 1100 mm shoes, 25 kPa
- SD16R — sanitation/landfill blade
SD22 family
- Straight-tilt blade — cutting & grading
- Angle blade — road shoulder / spreading
- U-blade — high-volume push
- Semi-U — mixed production + control
- Single / 3-shank ripper — clay, hardpan, frozen ground
8. Typical Applications
🚧 Highway & bridge approach earthwork
⛏ Mine haul-road maintenance & overburden push
🪨 Quarry access road building
🪵 Palm/oil plantation clearing
🏗 Land reclamation & site grading
🏚 Landfill compaction & cover push
🚜 Farm dam, canal, levee, irrigation leveling
🛢 Port/yard bulk material handling
🏝 Reclaimed-land projects, island/site prep
9. Running Cost Reality
A used SD16:
- cheaper fuel than 23t class
- cheaper rollers/links
- easier daily service
- perfect for owner-operator
A used SD22:
- drinks more fuel
- eats undercarriage faster under heavy push
- but moves 30–50% more material per hour
- pays back on volume jobs, not small trenches
Most fleet owners regret buying a D8 for small jobs — and regret buying a 160HP dozer for mine push work.
SD16 + SD22 covers both worlds.
10. Export & Inspection Service
✔ Used SD16 / SD22 inspected & serviced
✔ Straight-tilt / angle / U / semi-U blade
✔ 3-shank or single ripper
✔ New cutting edge, seals, filters where agreed
✔ Spare roller / link / seal kit available
✔ SGS / BV / buyer-agent inspection welcome
✔ Shipping: container (disassembled where allowed), flat rack, RoRo
✔ Docs: CI, PL, B/L, CO, inspection report
✔ Terms: EXW / FOB / CIF / CFR
Common destinations:
Kenya · Tanzania · Nigeria · Ghana · Zambia · Saudi · UAE · Iraq · Kazakhstan · Indonesia · Philippines · Peru · Chile · Mongolia
11. Who Should Buy Used SD16
✅ Road/subgrade subcontractor
✅ Land developer / site prep crew
✅ Municipality / public works
✅ Farmer / plantation owner
✅ Rental yard
✅ Small quarry / aggregate yard
✅ First-time dozer buyer
Who Should Buy Used SD22
✅ Highway / mass earthworks contractor
✅ Open-pit mine / overburden crew
✅ Coal terminal / power plant yard
✅ Quarry access & haul-road builder
✅ Large land-reclamation project
✅ Equipment dealer serving miners
Who Should Look Elsewhere
❌ Precision urban grading only → smaller 100–130 HP dozer
❌ True mining face / blast rock → D8 / SD32 / Komatsu D155 class
❌ Needs brand-new EPA/Tier 4 Final paperwork → buy new machine
12. Bottom Line
A used Cat D6 is great — if you can afford the ticket and the parts.
A used Shantui SD16 is the smart man’s 160HP dozer: simple, tough, cheap to keep.
A used Shantui SD22 is the production dozer that pushes like a much more expensive machine.
Buy the SD16 to stay busy.
Buy the SD22 to move the site.
Buy both and you’ve got a dozer fleet that competes with anyone — at a fraction of Western-brand capex.
📩 Get Your Used Shantui Quote
Tell us:
- SD16 or SD22?
- Blade: straight-tilt / angle / U / semi-U?
- Ripper: none / single / 3-shank?
- Year / hour range?
- Destination port → FOB or CIF?
We send:
✅ Yard photos
✅ Cold-start + blade + ripper + hard-ground push video
✅ Serial + engine number
✅ Undercarriage % + hydraulic pressure notes
✅ FOB / CIF quote + shipping plan
WhatsApp: 【+86 13866666316】
Email: 【 yuanjianltd@163.com】
🌐 Website: https://www.cnusedexcavator.com
Yard: Hefei, Anhui, China
Status: Inspected, serviced, container-ready.
🌐 Website: https://www.cnusedexcavator.com
Yard: Hefei, Anhui, China
Status: Inspected, serviced, container-ready.
Shantui SD16 — the 160HP value king.
Shantui SD22 — the 220HP production monster.
Same bloodline, different appetite for dirt. 🟡🚜
