| Model |

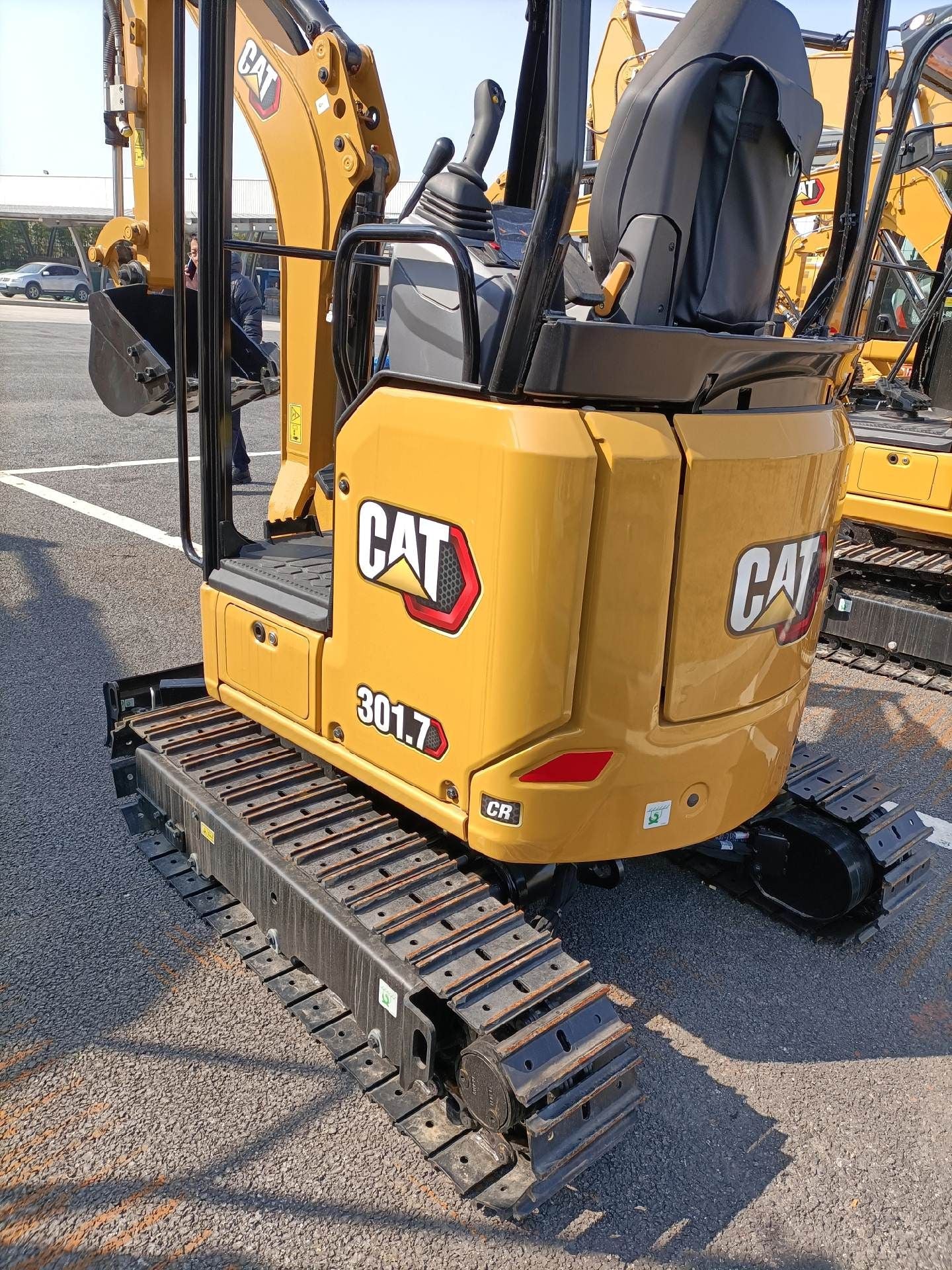

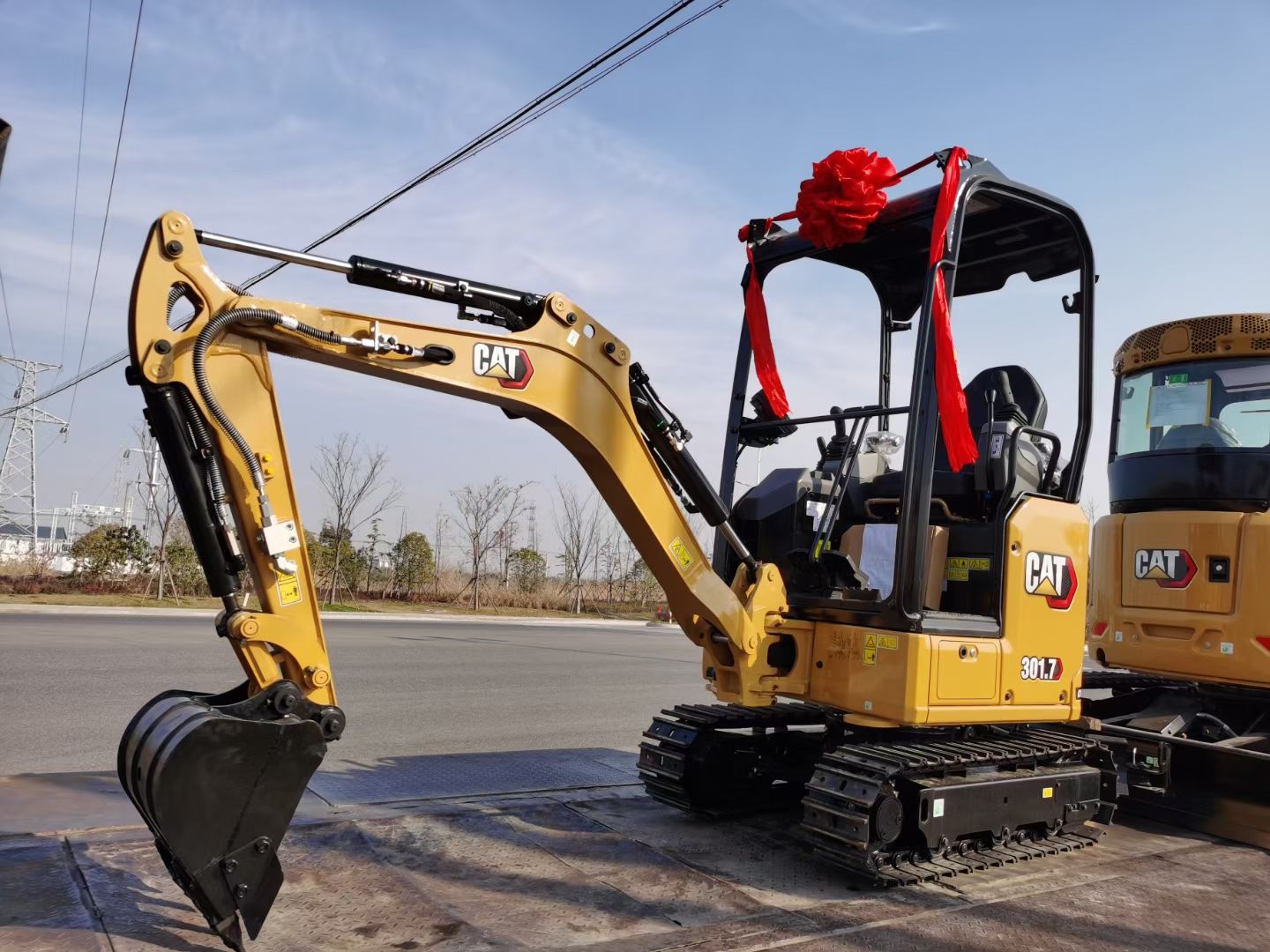

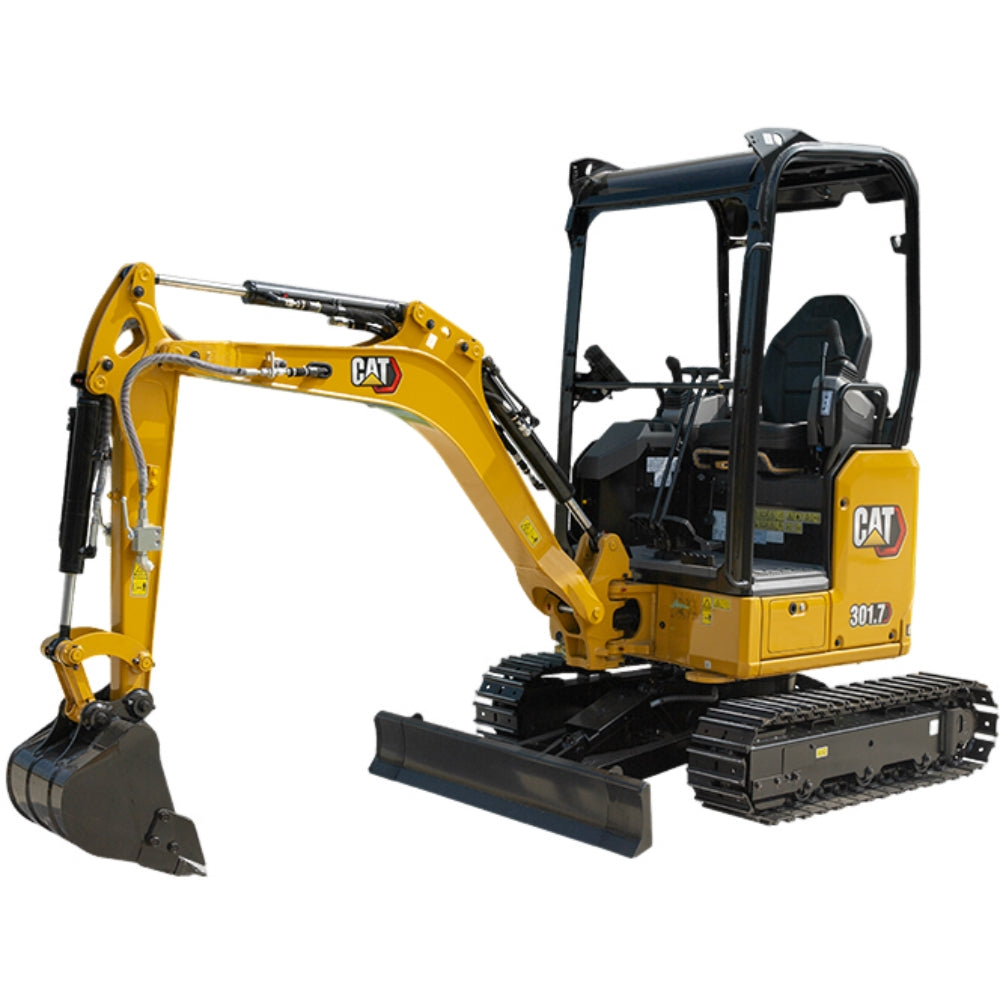

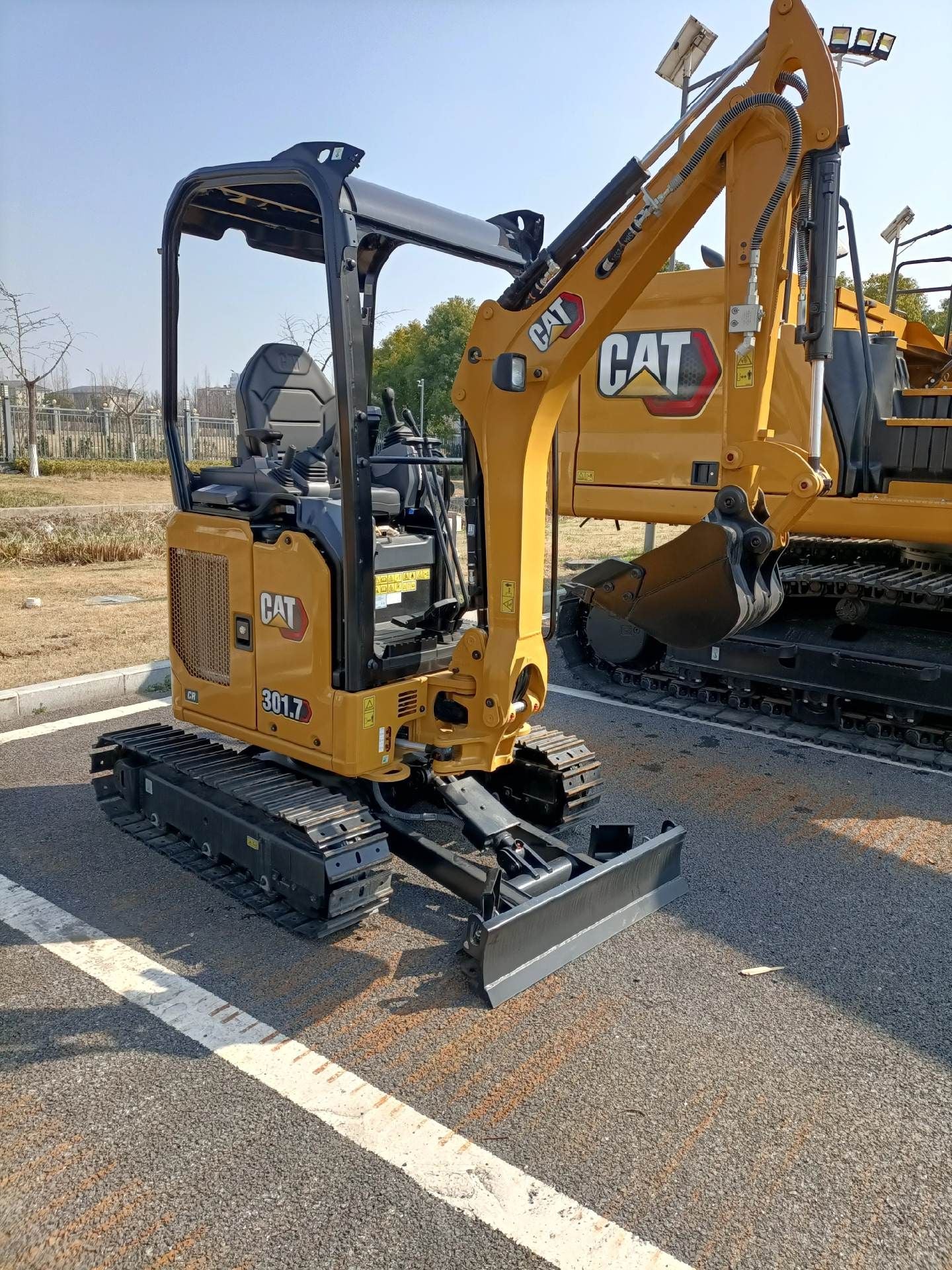

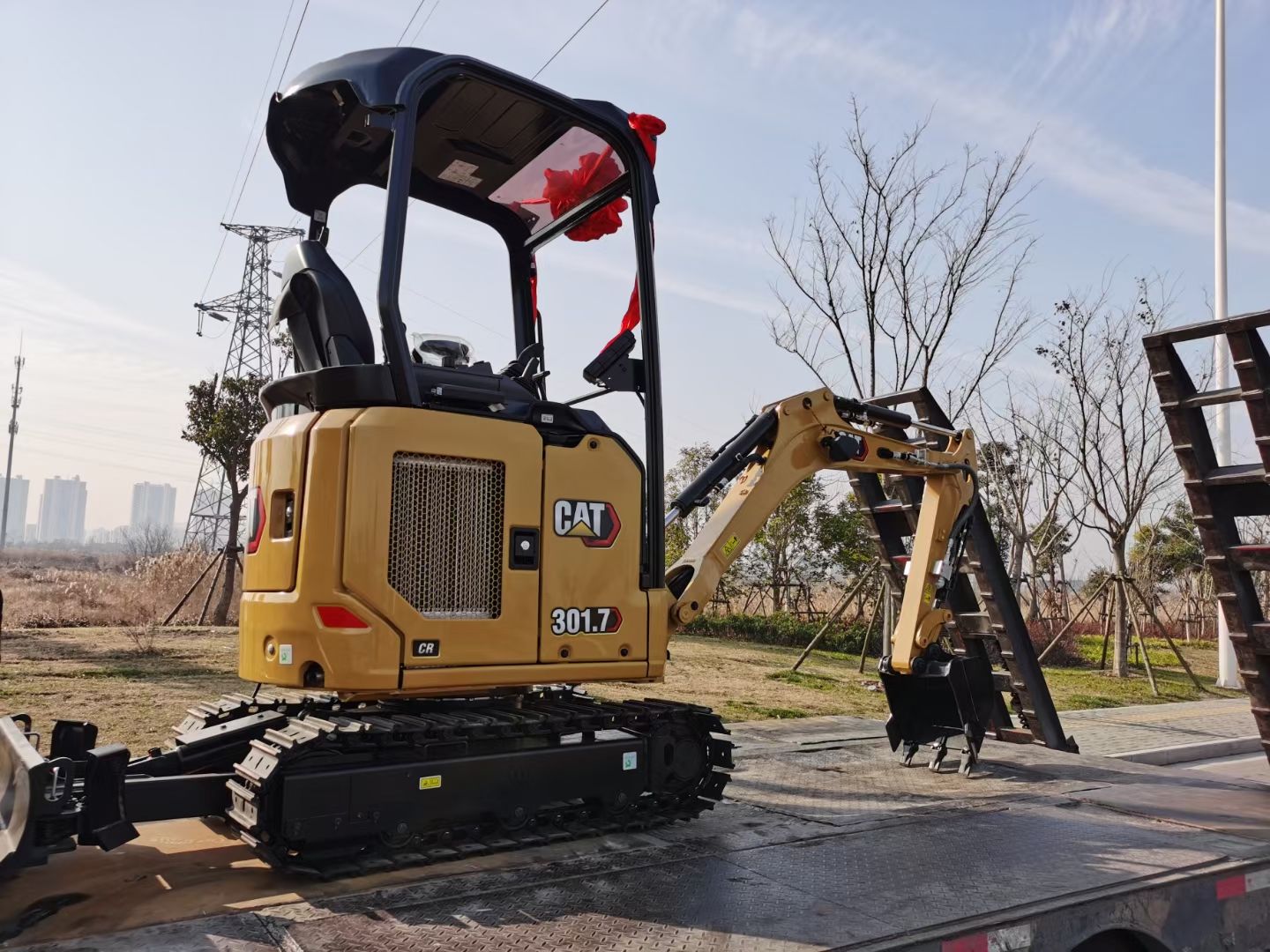

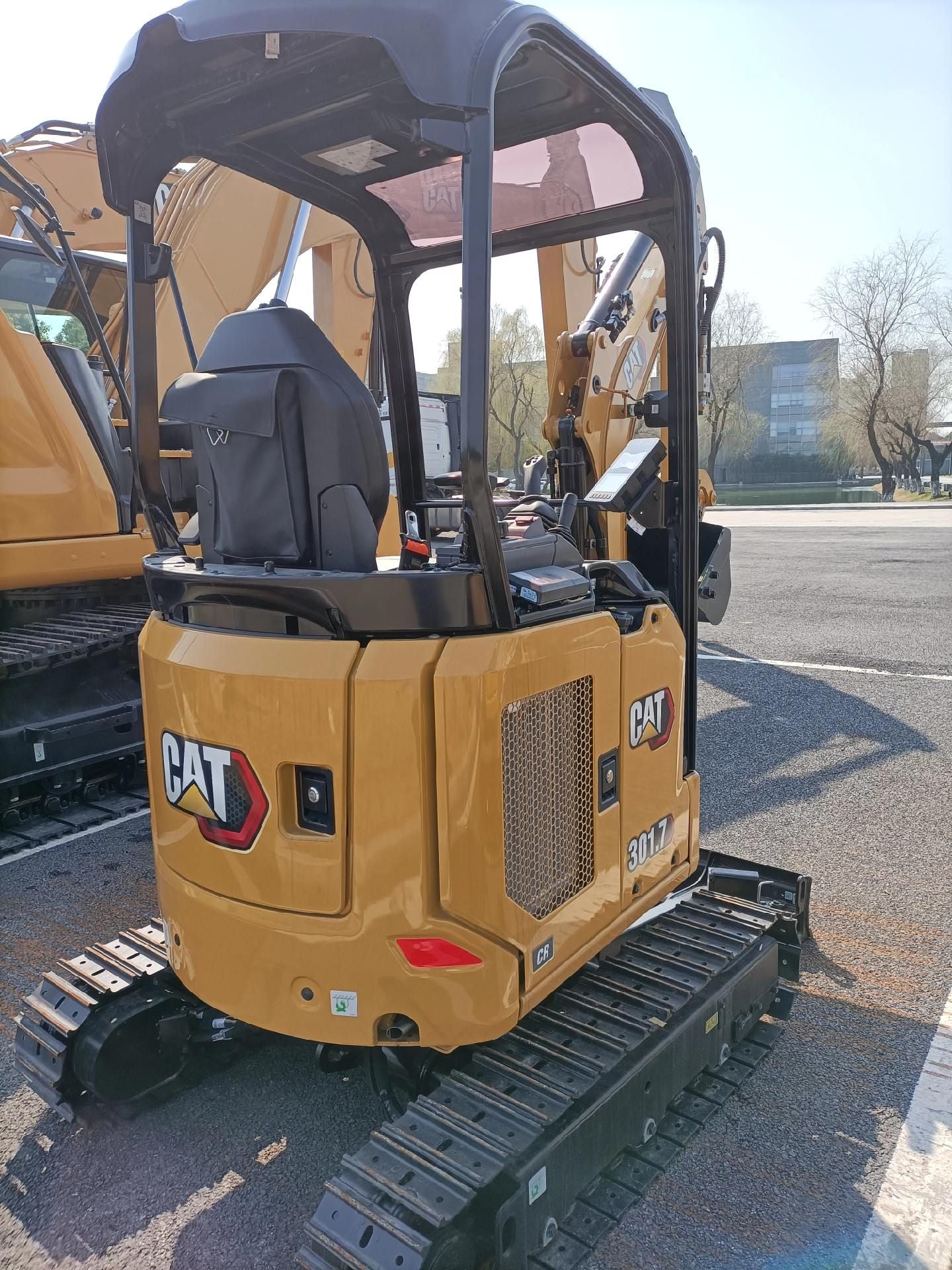

CAT 301.7R (301.7 CR Mini Crawler Excavator) |
| Operating Weight |
1,915 kg (max with canopy, steel tracks, operator, expandable undercarriage, full fuel tank) |
| Engine Model |
CAT C1.1 (3-cylinder, 4-stroke, turbocharged, water-cooled) |
| Displacement |
1.1 L |
| Rated Net Power |
14.3 kW (19.2 hp) @ 2,400 rpm |
| Rated Gross Power |
16.1 kW (21.6 hp) @ 2,400 rpm |
| Bucket Capacity |
0.04 - 0.07 m³ (standard) |
| Travel Speed |
2.2/4.4 km/h (low/high) |
| Swing Speed |
9.8 rpm |
| Max Digging Depth |
2,500 mm (standard stick) |
| Max Digging Height |
3,490 mm |
| Max Digging Radius |
4,000 mm |
| Hydraulic System |
Load - Sensing, Variable Displacement Piston Pump |
| Pump Flow |
66 L/min @ 2,400 rpm |
| Max Operating Pressure (Equipment/Travel) |
245 bar |
| Max Operating Pressure (Swing) |
147 bar |
| Max Bucket Digging Force |
16.2 kN |
| Max Stick Digging Force |
9.5 kN |
| Emission Standard |
Tier 4 Final / EU Stage V |
| Fuel Tank Capacity |
22 L |
| Hydraulic Tank Capacity |
18.2 L |
| Track Shoe Width |
230 mm |
| Track Width (Retracted/Expanded) |
990/1,290 mm |
