CATERPILLAR

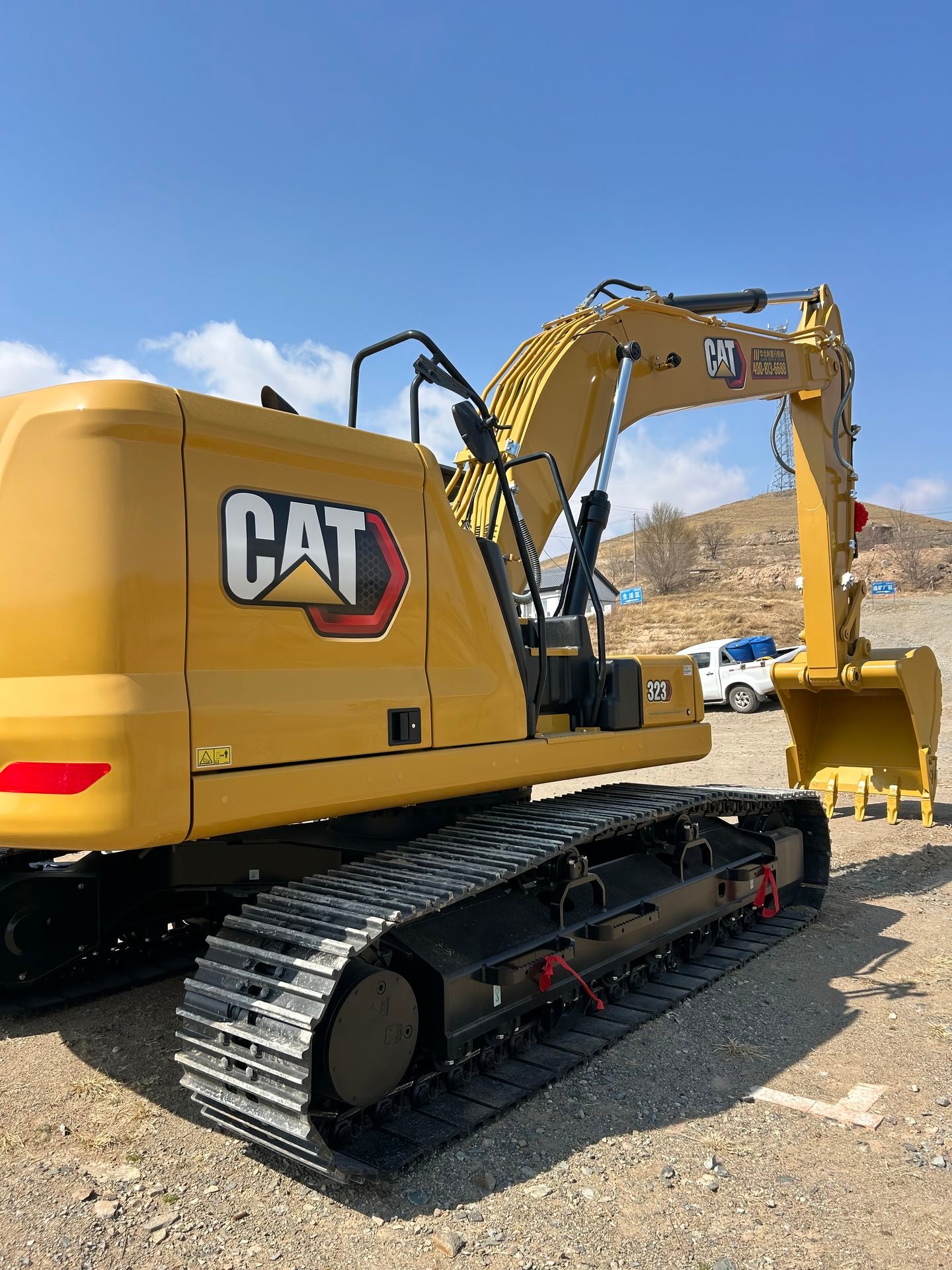

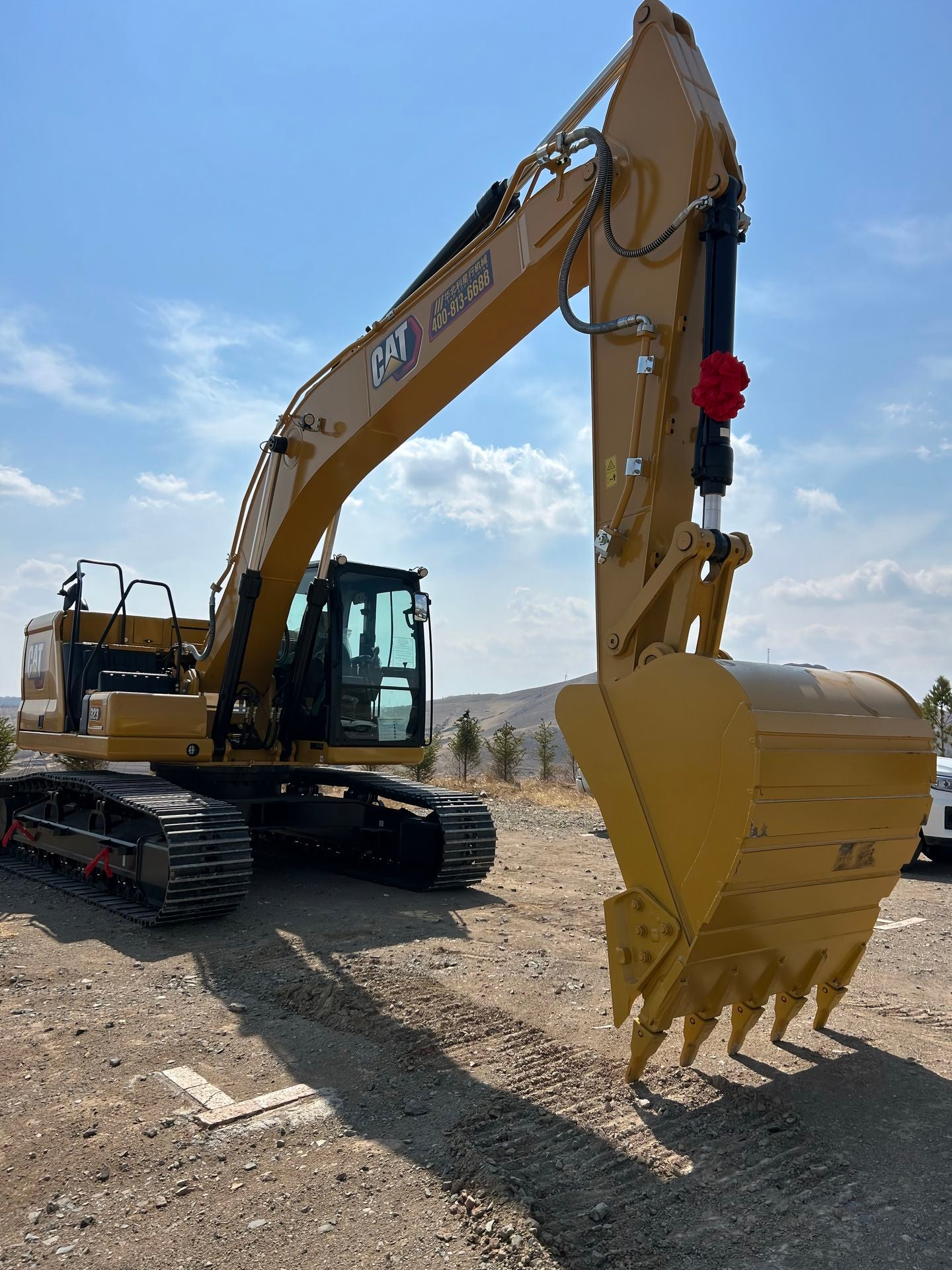

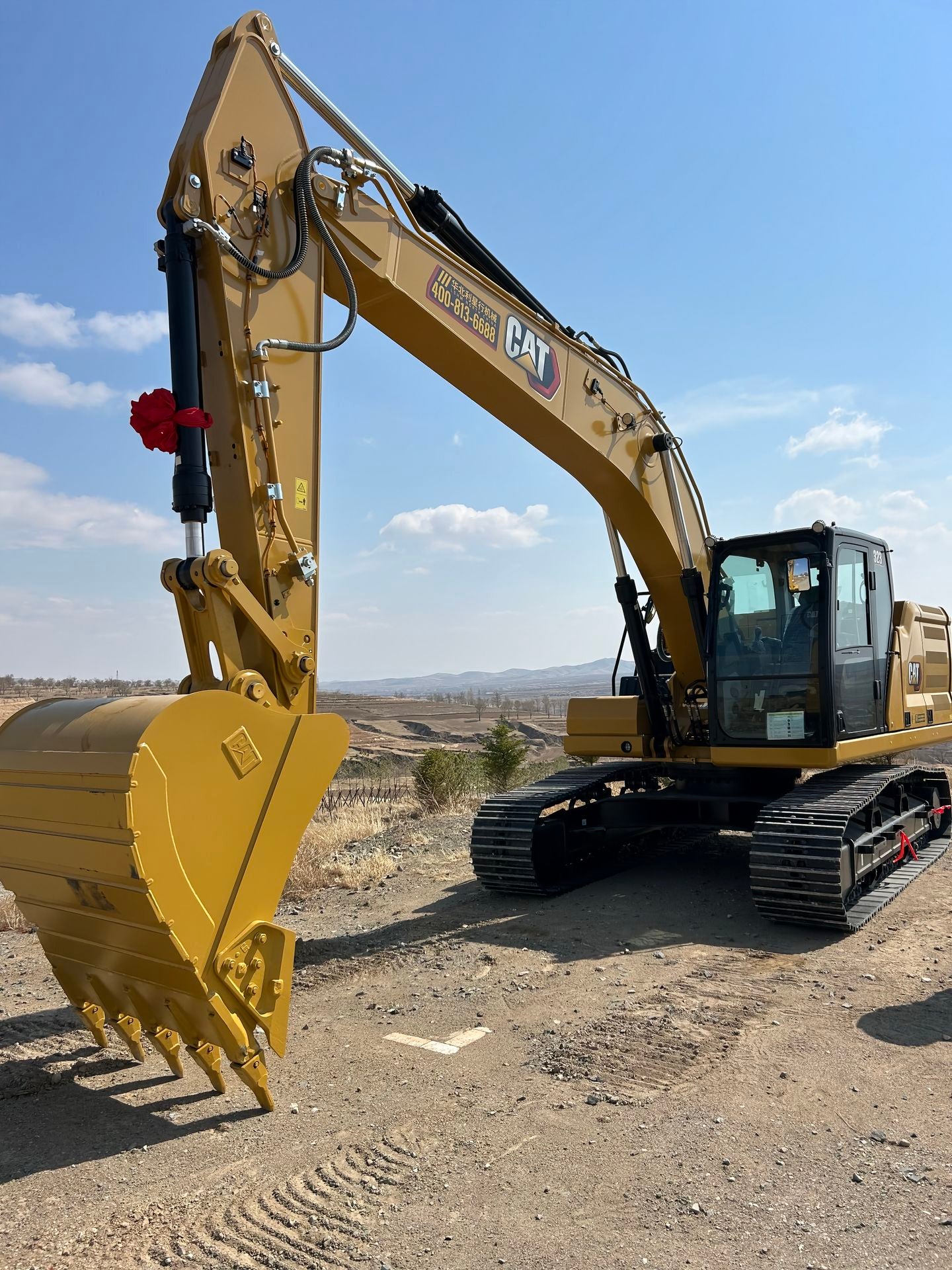

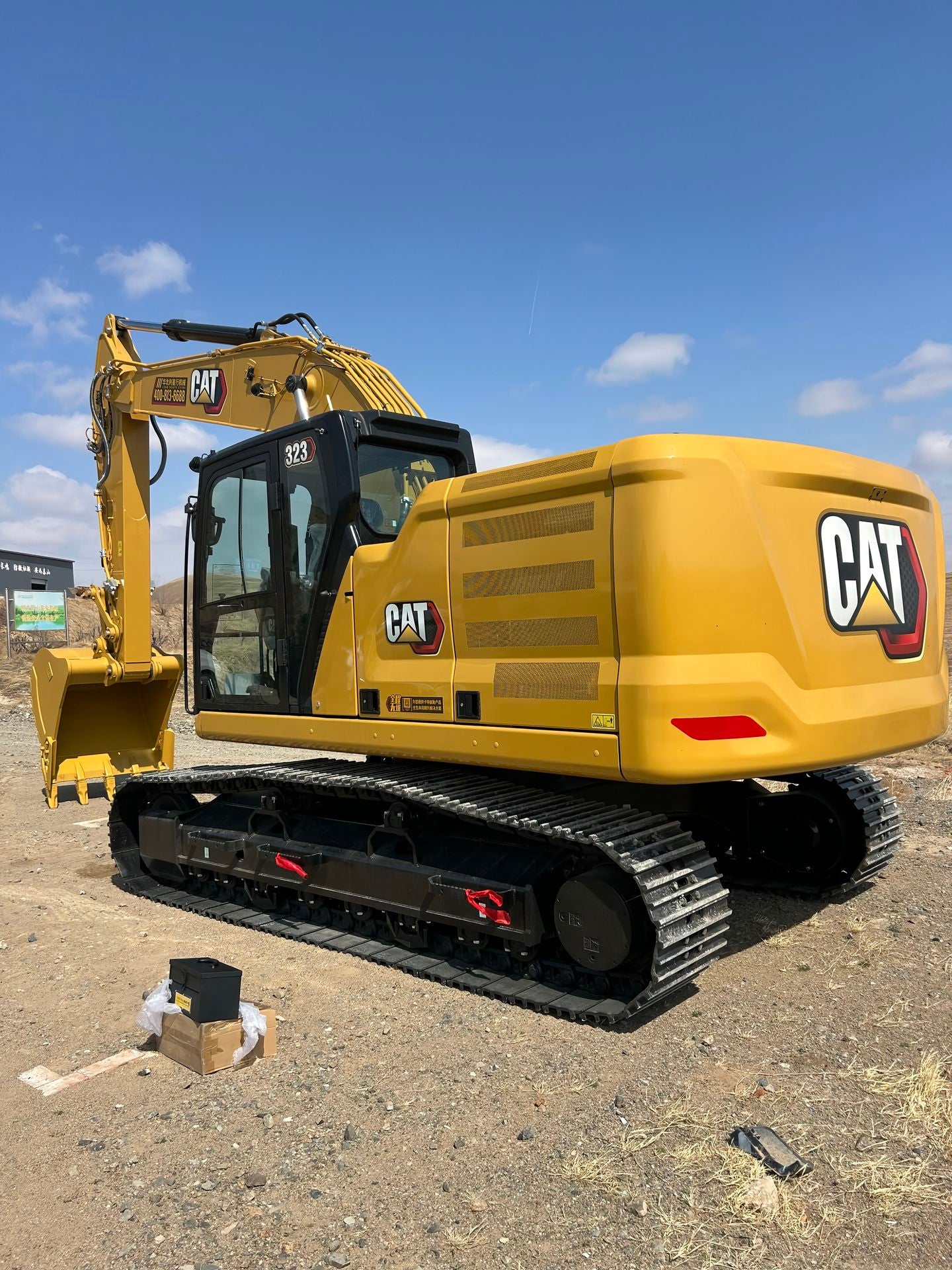

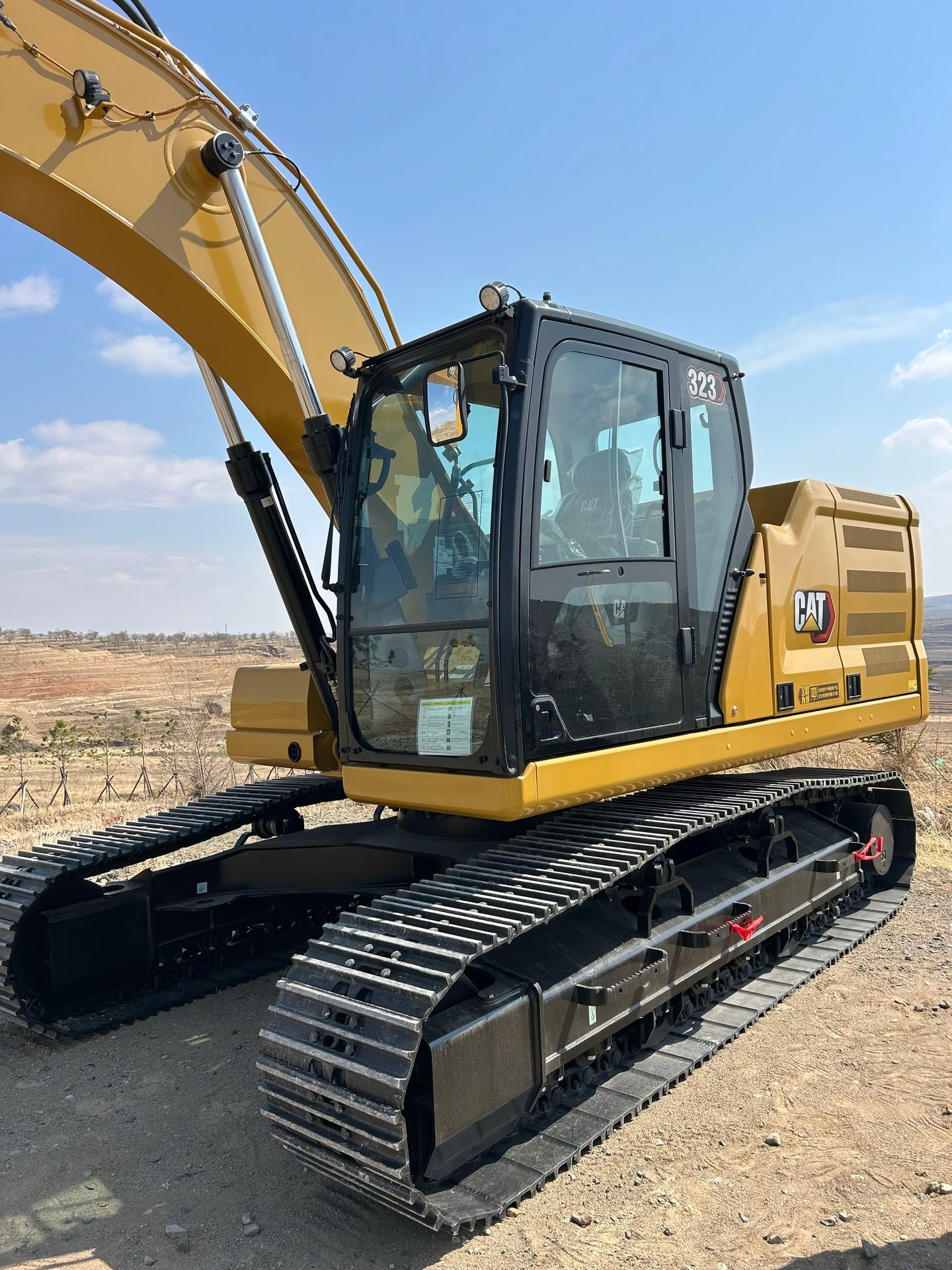

NEW CAT 323
NEW CAT 323
Precio habitual
$38,000.00 USD
Precio habitual
Precio de oferta
$38,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
| Parameter | Details |
|---|---|
| Model | CAT 323 Crawler Excavator |
| Operating Weight | 25,000 kg (standard configuration with cab, steel tracks, operator, full fuel tank, 5.7 m reach boom, 2.9 m stick, HD 1.30 m³ bucket and 700 mm track shoes) |
| Engine Model | CAT C7.1 (6-cylinder, 4-stroke, turbocharged, water-cooled diesel engine) |
| Displacement | 7.1 L |
| Rated Net Power | 128.5 kW (172 hp) @ 2,000 rpm (ISO 9249) |
| Rated Gross Power | 133 kW (178 hp) @ 2,000 rpm (ISO 14396) |
| Bucket Capacity | 1.30 m³ (HD standard) |
| Travel Speed | 5.5 km/h |
| Swing Speed | 11.25 rpm |
| Max Digging Depth | 6,730 mm (5.7 m boom, 2.9 m stick) |
| Max Digging Height | 9,450 mm |
| Max Digging Radius | 9,870 mm |
| Hydraulic System | Closed-Center, Load-Sensing Electro-Hydraulic System (Dual Piston Pumps) |
| Pump Flow | 429 L/min (2 × 214.5 L/min) @ 2,000 rpm |
| Max Operating Pressure (Equipment - Normal) | 350 bar (5,075 psi) |
| Max Operating Pressure (Equipment - Lift Mode) | 380 bar (5,510 psi) |
| Max Operating Pressure (Travel) | 343 bar (4,974 psi) |
| Max Operating Pressure (Swing) | 275 bar (3,988 psi) |
| Max Bucket Digging Force | 170 kN (38,220 lbf) (ISO 10567) |
| Max Stick Digging Force | 110 kN (24,710 lbf) (ISO 10567) |
| Max Traction Force | 220 kN |
| Emission Standard | Tier 4 Final / EU Stage V |
| Fuel Tank Capacity | 345 L |
| Hydraulic Tank Capacity | 115 L |
| Track Shoe Width | 700 mm |
| Track Width | 2,590 mm |
| Tail Swing Radius | 2,940 mm |
