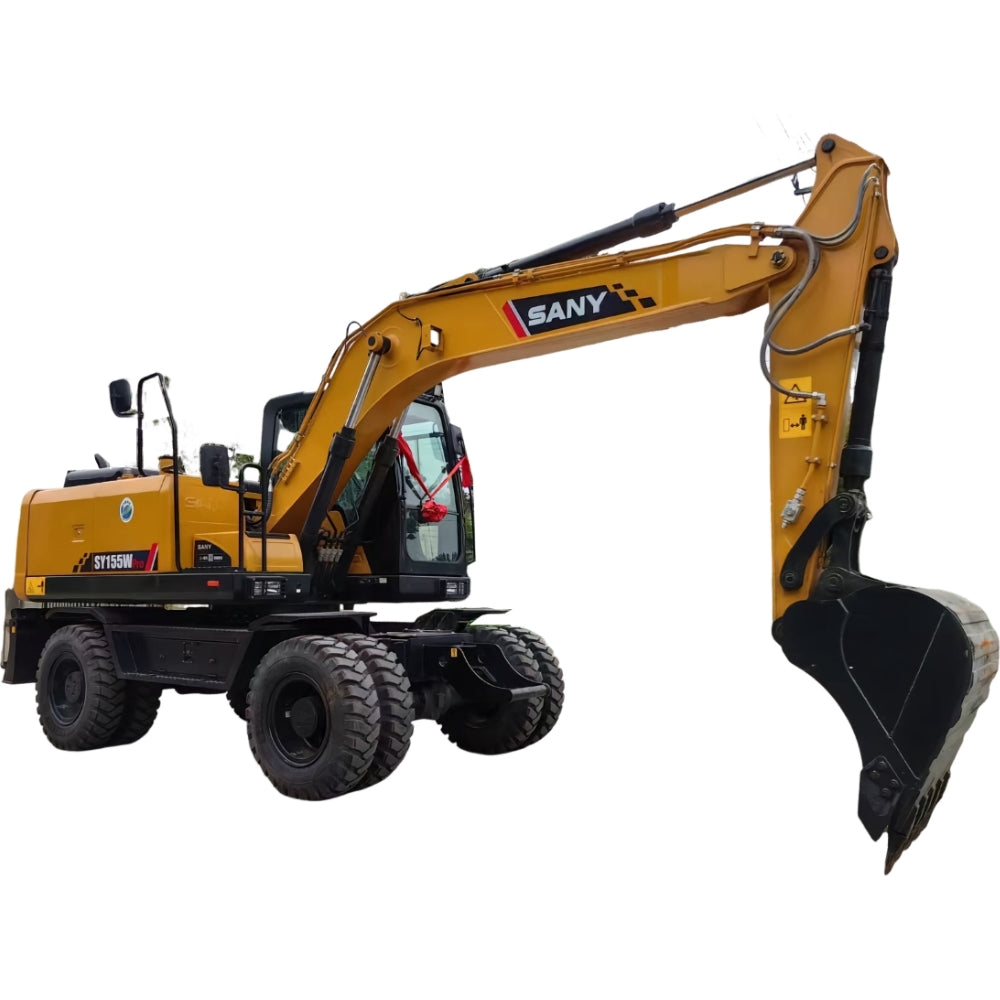

NEW SANY SY155W

NEW SANY SY155W

$41,000.00 USD
$41,000.00 USD
Oferta Agotado

Here are the technical parameters of the NEW SANY SY155W in a tabular form in English:

Parameter Specification
Engine Model Isuzu 4HK1
Rated Power 128.4 kW @ 2000 rpm
Maximum Torque 670 N·m @ 1600 rpm
Displacement 5.193 L
Emission Standard Tier 4 (or equivalent, depending on region)
Operating Weight 13,500 kg (or 14,100 kg in some versions)
Bucket Capacity 0.6 m³ (or 0.22-0.7 m³ in some versions, with a typical value of 0.58 m³)
Max. Digging Depth 4,800 mm
Max. Digging Height 8,600 mm
Max. Dumping Height 6,200 mm
Max. Reach at Ground Level 7,960 mm (or 7,750 mm for the maximum digging radius at ground level)
Swing Speed 12 rpm
Travel Speed (High/Low) 35/9 km/h (or 37/10 km/h in some versions)
Gradeability 70% (35°)
Fuel Tank Capacity 280 L
Hydraulic System Capacity 150 L (or 200 L for the hydraulic tank in some versions)
Engine Oil Capacity 23 L (or 18 L for engine oil replacement in some versions)
Coolant Capacity 15 L (or 30 L for the radiator in some versions)
Tire Specifications 10.00-20 16PR (or 9.00-20 14PR in some versions)
Number of Tires 6
Overall Length (Transport State) 7,690 mm
Overall Width 2,490 mm (or 2,610 mm in some versions)
Overall Height (Transport State) 3,200 mm (or 3,610 mm in some versions)
Wheelbase 2,800 mm
Tread 1,944 mm
Minimum Ground Clearance 360 mm
Bucket Digging Force 102.3 kN
Arm Digging Force 75.2 kN
