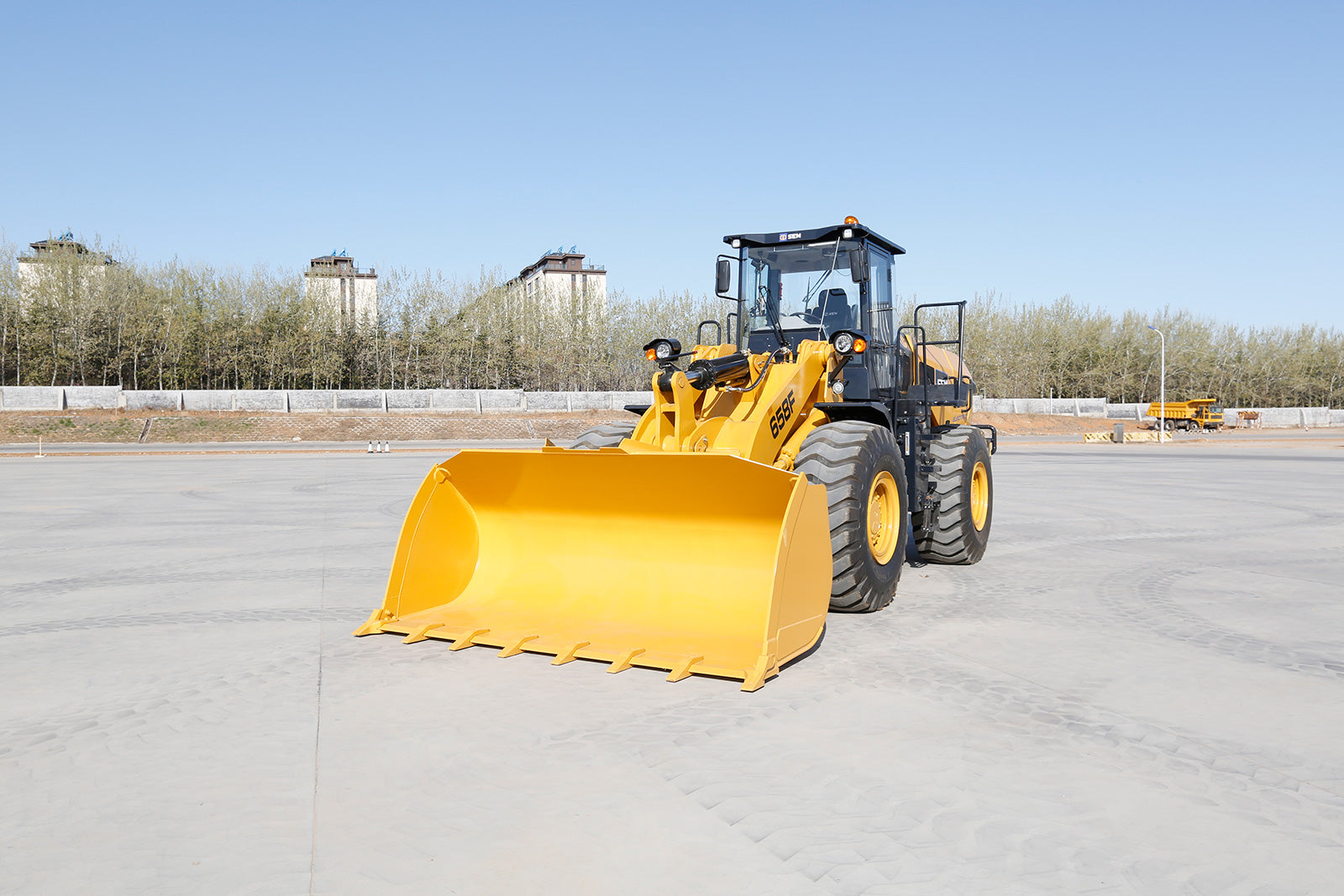

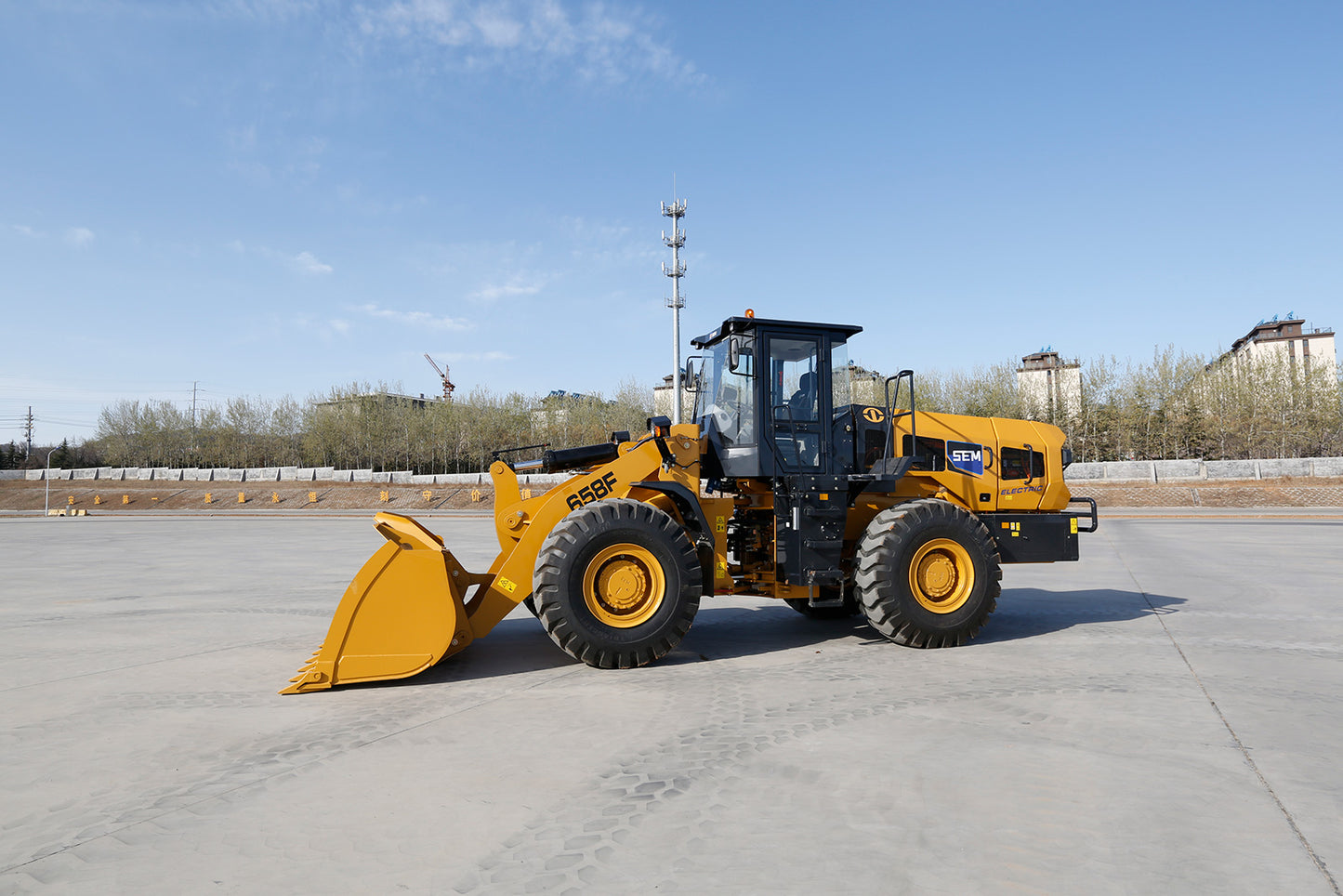

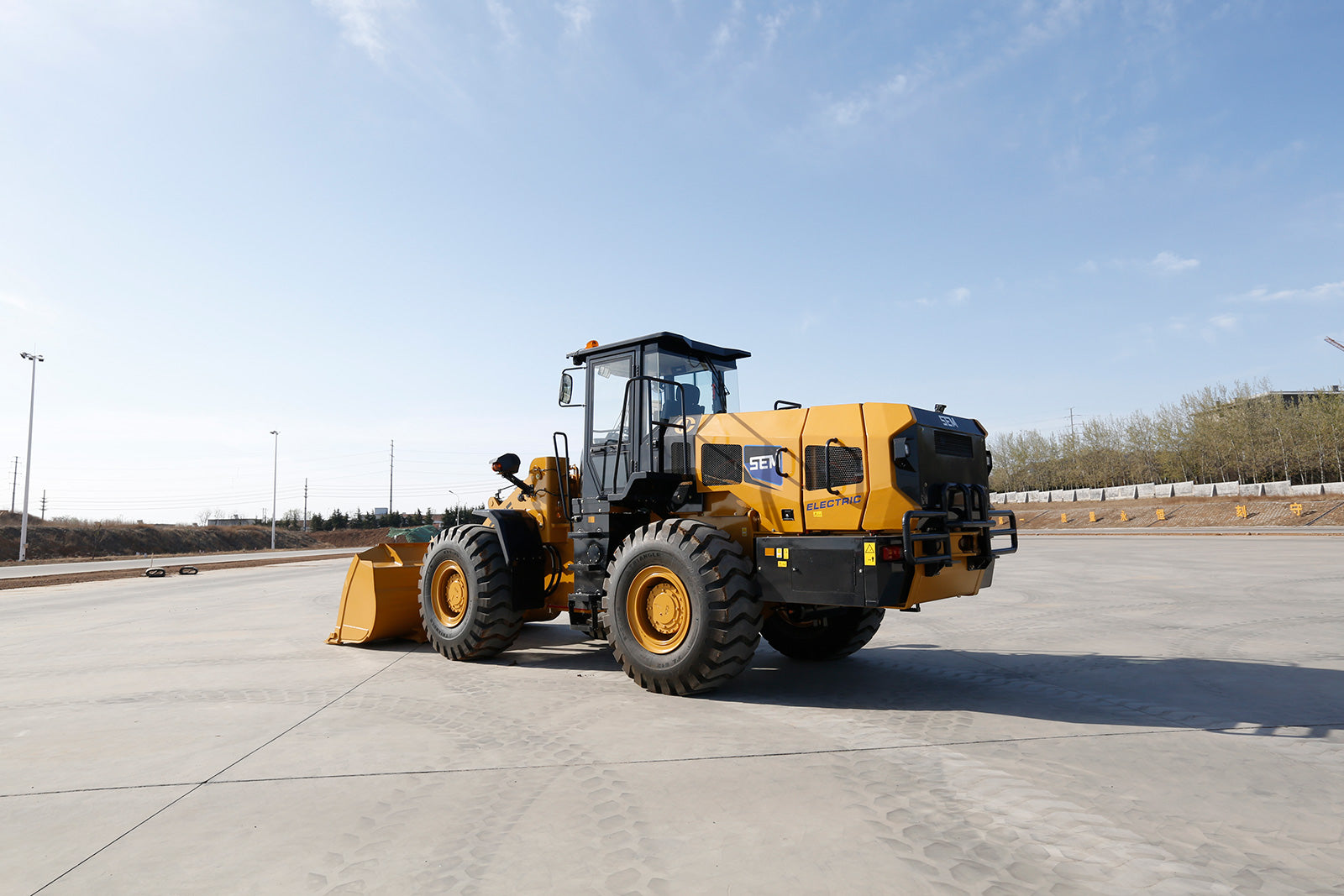

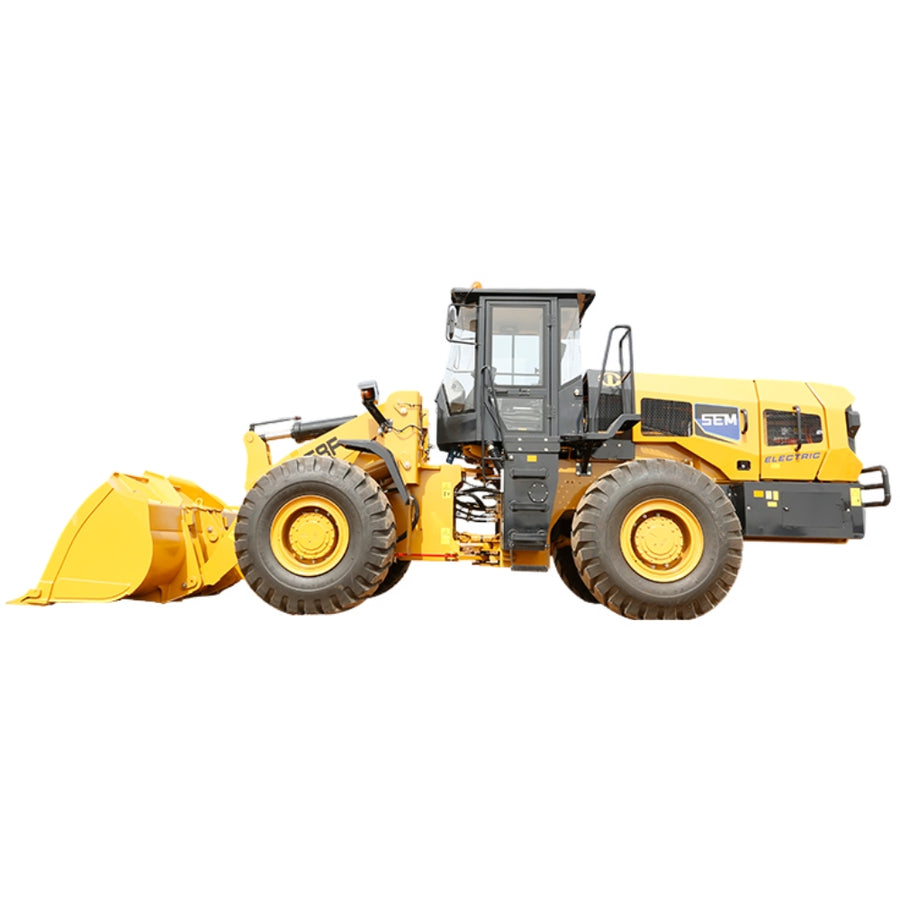

NEW SEM 658F ELECTRIC LOADER

$40,000.00 USD

Oferta Agotado

Item	Specification
Model	SEM 658F
Rated Load Capacity	5,000 kg
Operating Weight	17,200 kg
Bucket Capacity	2.5–4.5 m³
Wheelbase	3,200 mm
Transport Length × Width × Height	7,980 × 2,980 × 3,370 mm
Outside Turning Radius	6.9 m
Dump Height	2,980 mm
Bucket Hinge Pin Height	3,950 mm
Transmission Type	Electronically-controlled Fixed-shaft Transmission
Transmission Model	SEM TR180-EH
Transmission Gears	F2/R1
Forward Speed (1st Gear)	9.2 km/h
Forward Speed (2nd Gear)	35.5 km/h
Reverse Speed (1st Gear)	12.5 km/h
Engine Model	WDEC WP6G175E310
Rated Power	129 kW (175 hp) @ 2,200 rpm
Displacement	6.75 L
Max. Traction Force	152 kN
Max. Breakout Force	148 kN
Boom Lift Time	4.8 s
Total Cycle Time of Working Device	8.9 s
Working Hydraulic System Pressure	19 MPa
Steering System	Coaxial Flow Amplification Steering
Steering System Pressure	17 MPa
Service Brake	Pneumatic-hydraulic Caliper Disc Brake
Parking Brake	Internal Expanding Drum Brake
