CATERPILLAR

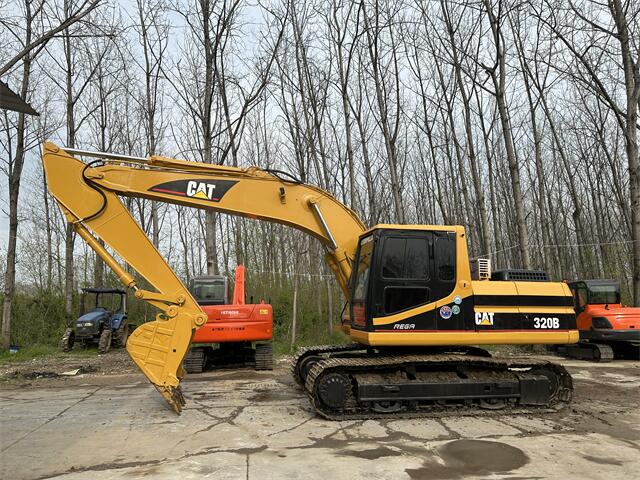

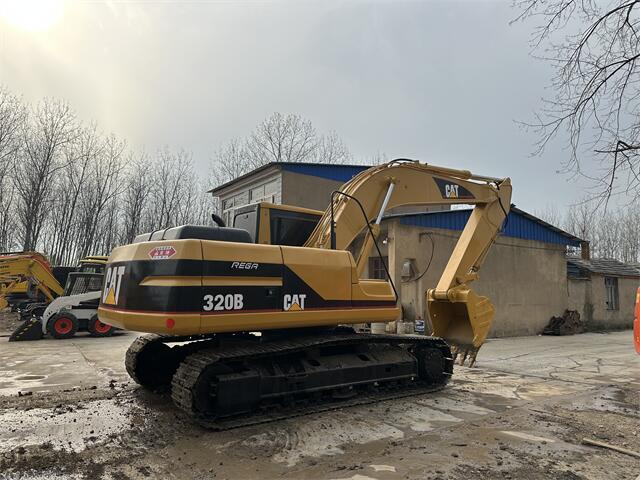

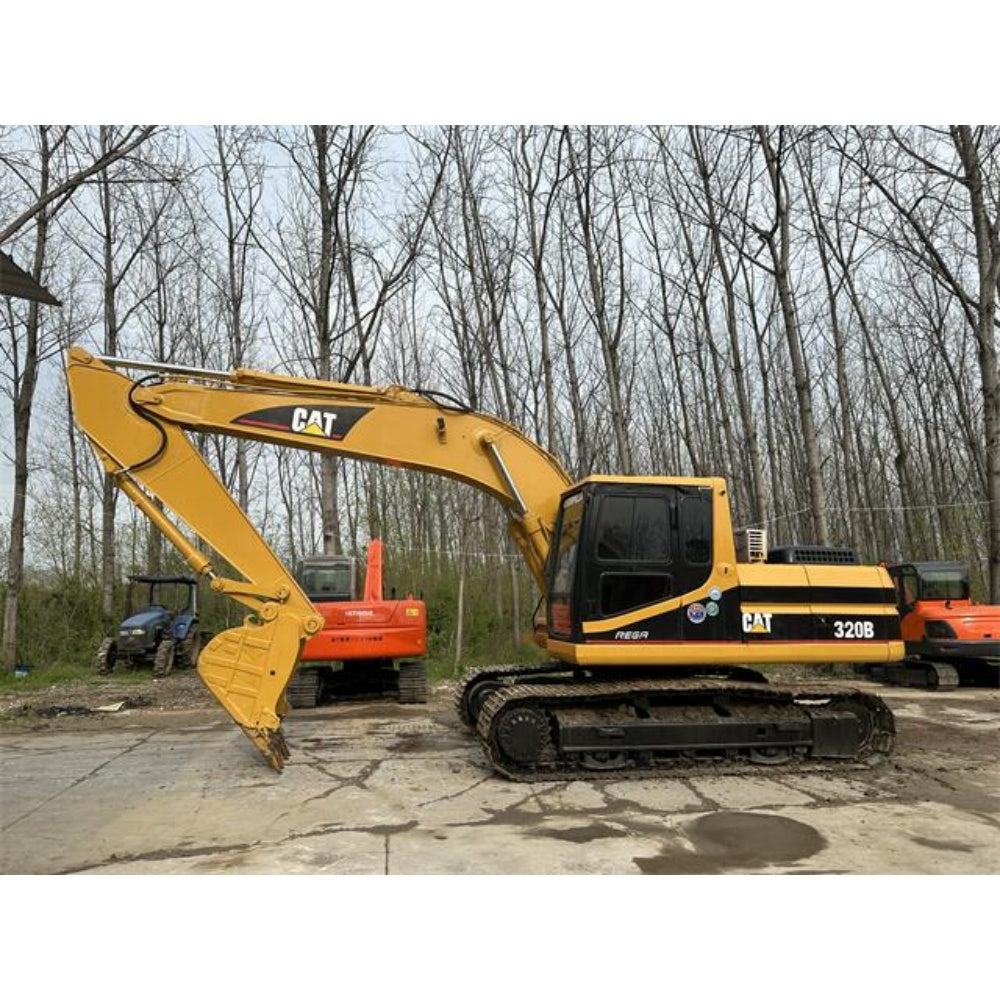

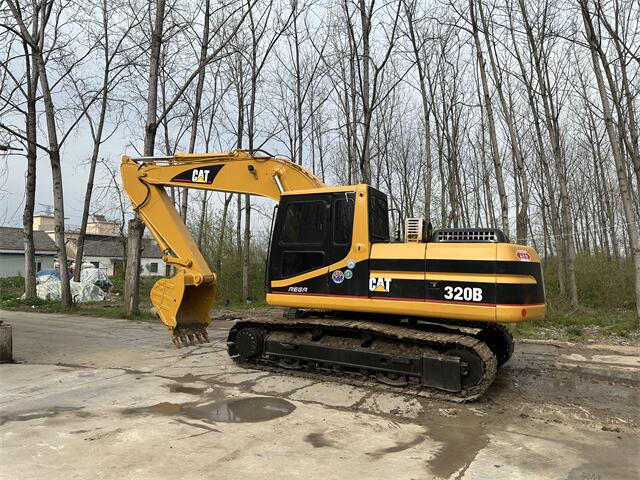

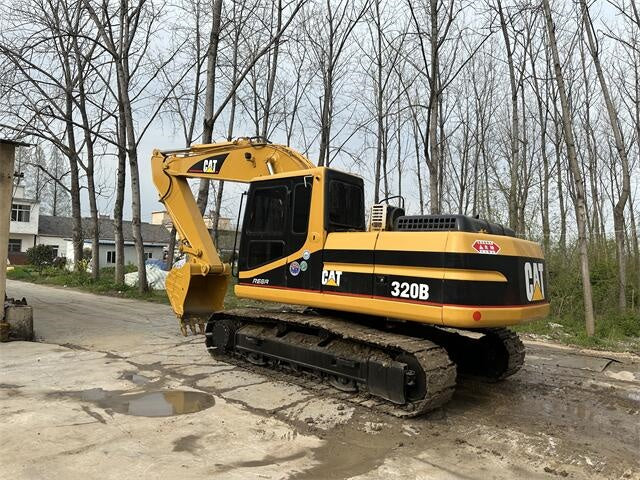

USED CAT 320B

USED CAT 320B

$22,000.00 USD
$22,000.00 USD
Oferta Agotado

CAT 320B Core Specifications

Category Parameter Value
Basic Info Model CAT 320B (Crawler Excavator - Standard Undercarriage)
Operating Weight 19,400 kg (42,770 lbs)
Standard Bucket Capacity 0.92 m³
Engine Engine Model Cat 3066T Diesel Engine
Net Power (ISO 9249/SAE J1349/EEC 80/1269) 95 kW (128 hp) @ 1800 rpm
Displacement 6.6 L
Bore × Stroke 105 mm × 130 mm
Fuel Tank Capacity 340 L (90 gal)
Performance Swing Speed 10.7 rpm
Travel Speed 5.5 km/h (3.4 mph)
Gradeability 70% (35°)
Bucket Digging Force 151 kN
Stick Digging Force 106 kN
Max. Digging Depth 6,640 mm (21.8 ft)
Max. Digging Reach 9,780 mm (32.1 ft)
Hydraulics Main Pump Max. Flow 370 L/min (98 gpm)
Implement Pressure 34.4 MPa (4,980 psi)
Travel Pressure 34.4 MPa (4,980 psi)
Swing Pressure 23.0 MPa (3,340 psi)
Hydraulic System Fluid Capacity 220 L (58 gal)
Dimensions Transport Length 9,470 mm (31.1 ft)
Transport Width 2,800 mm (9.2 ft)
Transport Height 3,050 mm (10.0 ft)
Track Shoe Width 600 mm
