| Model |

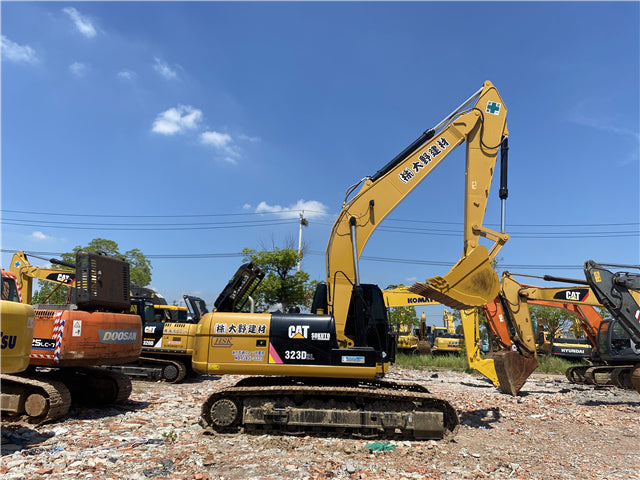

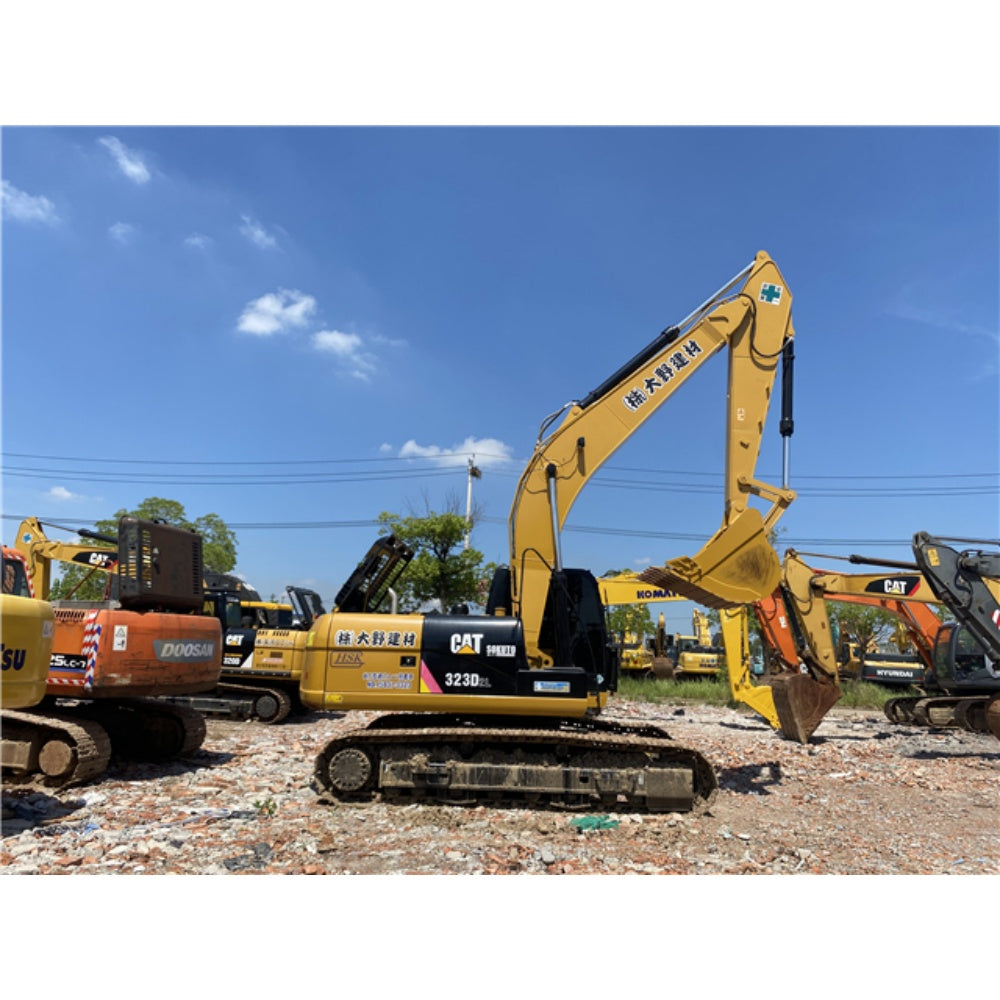

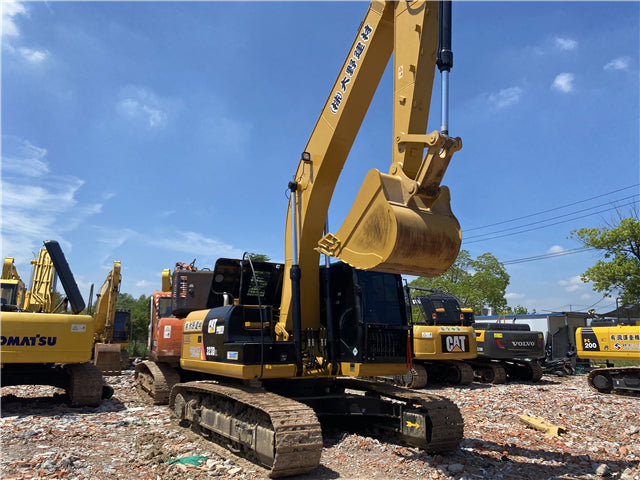

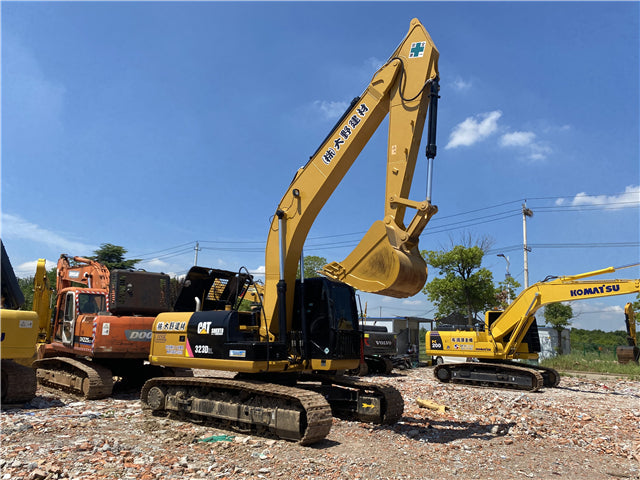

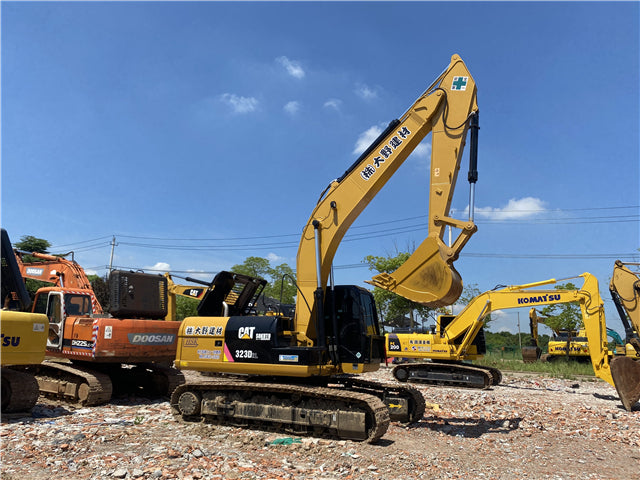

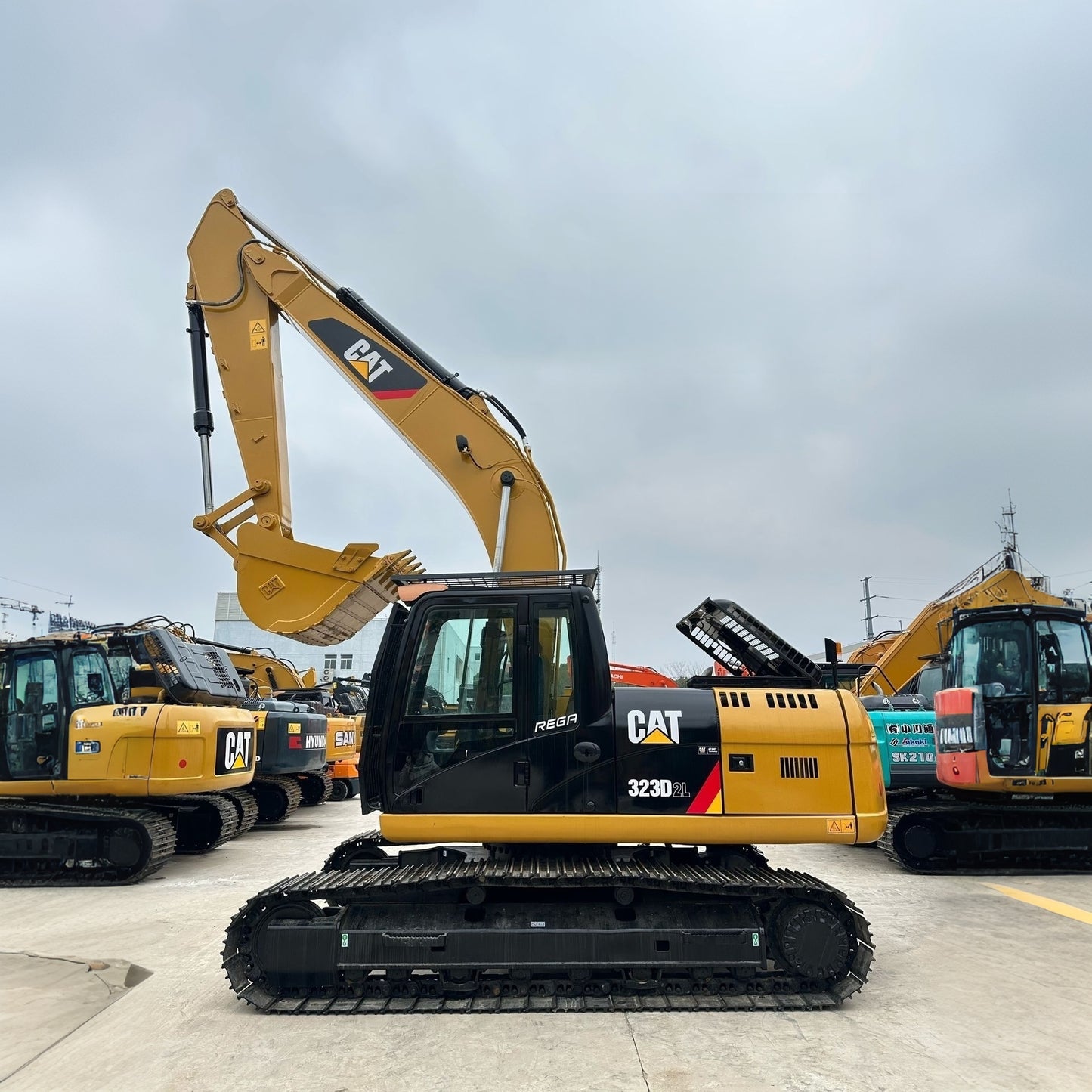

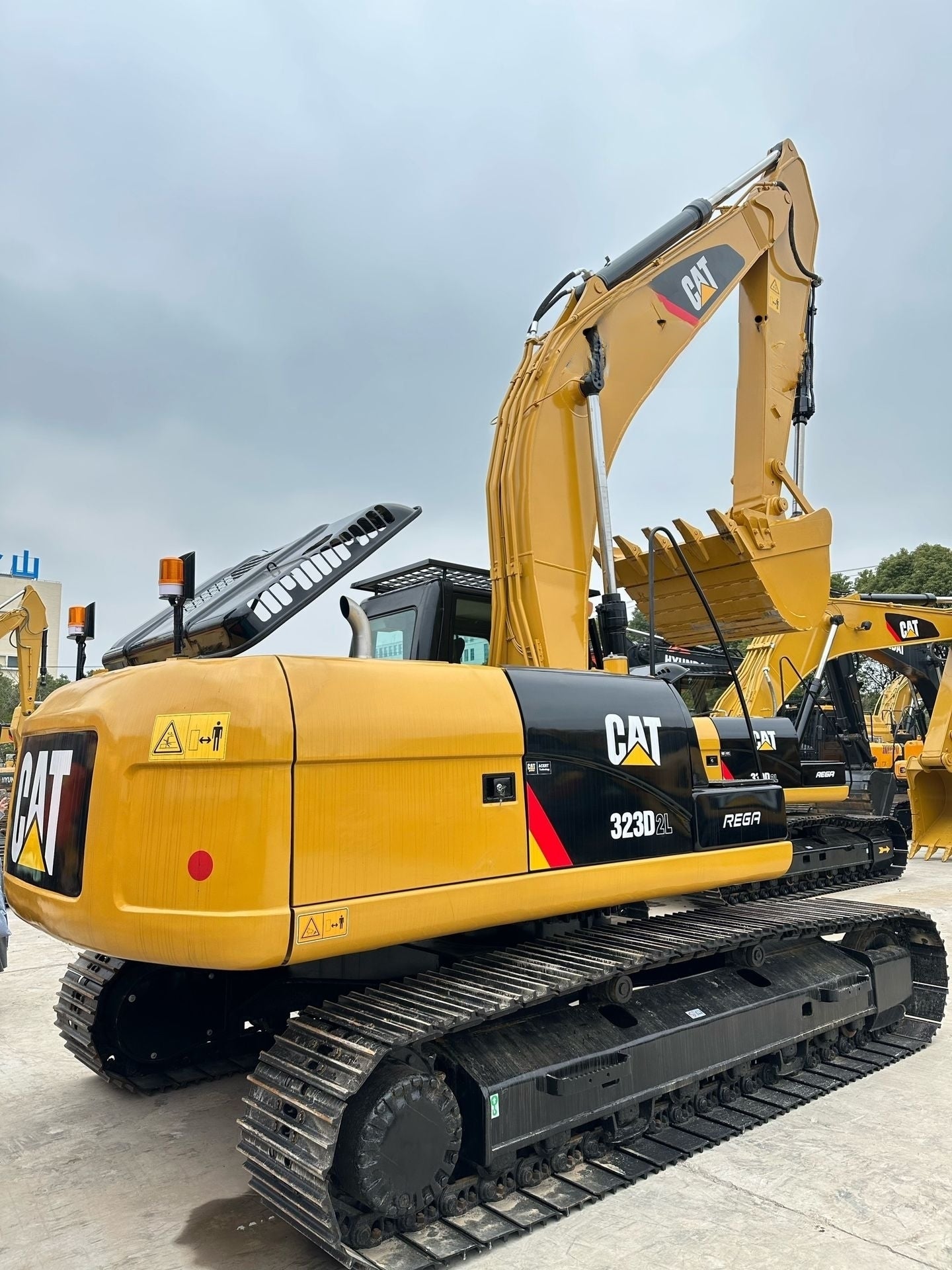

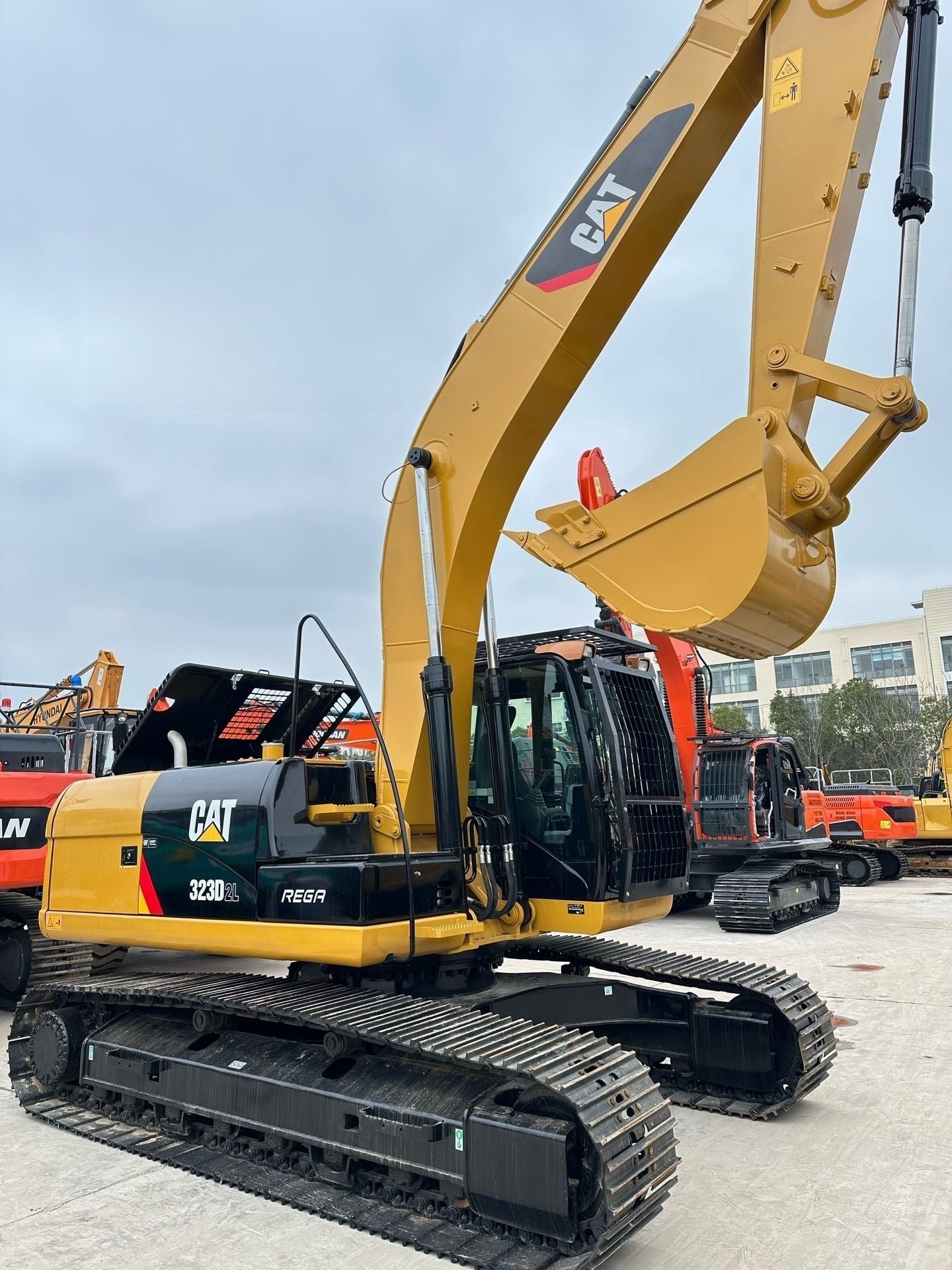

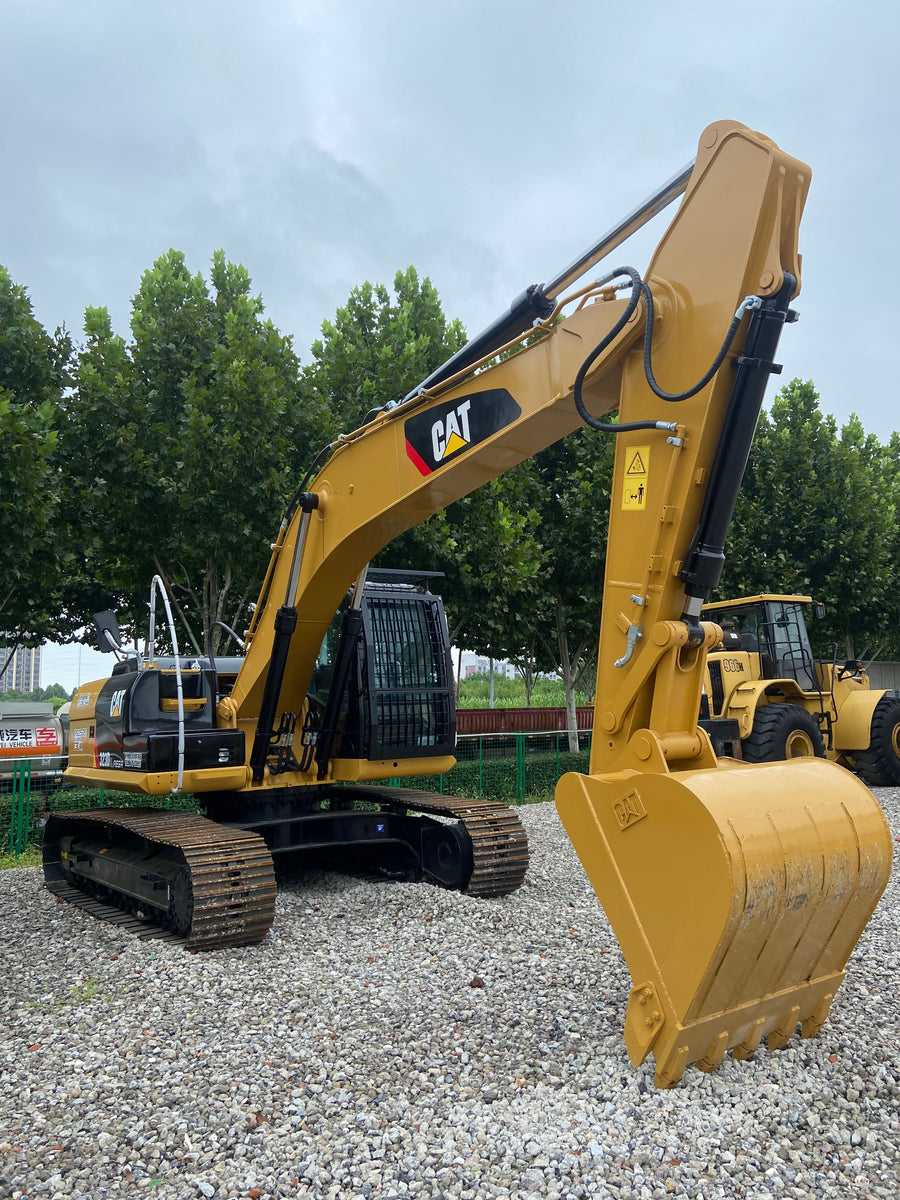

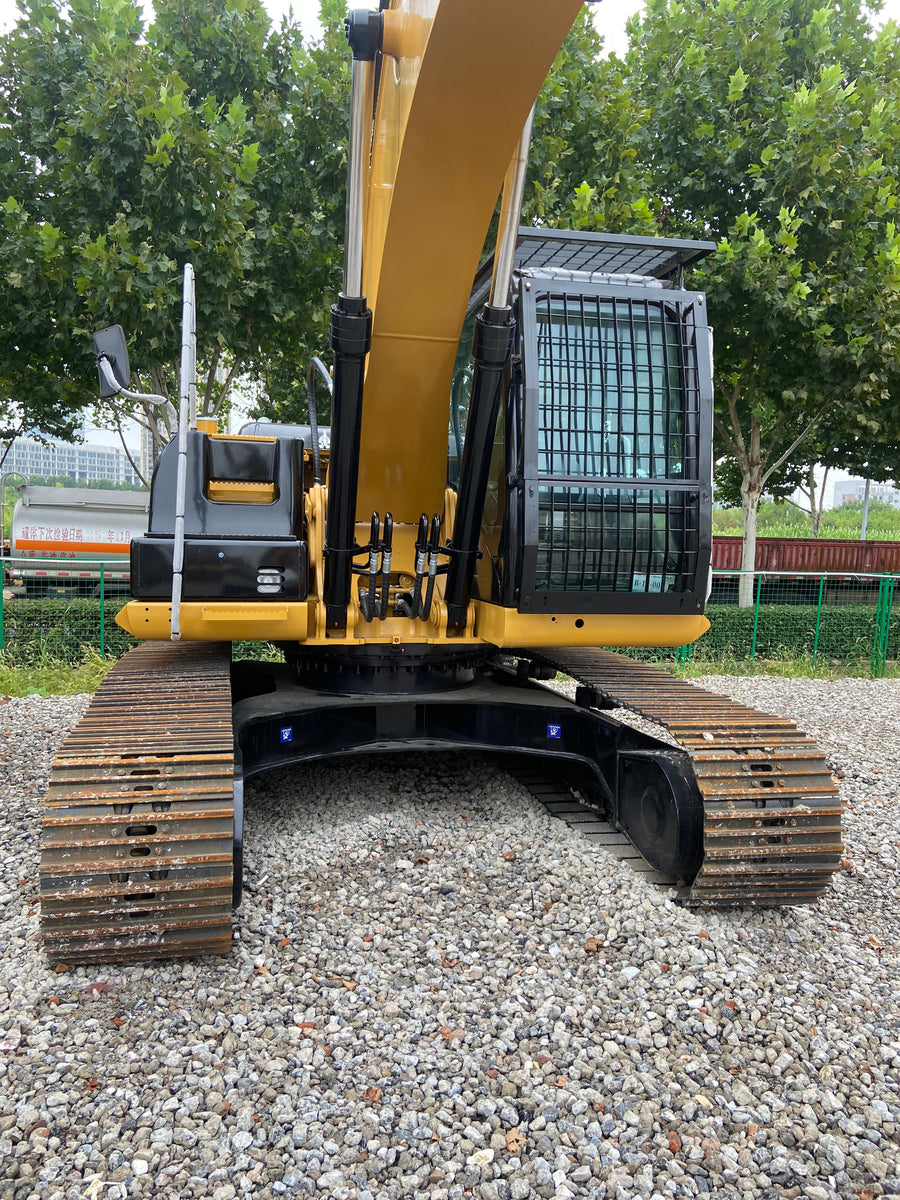

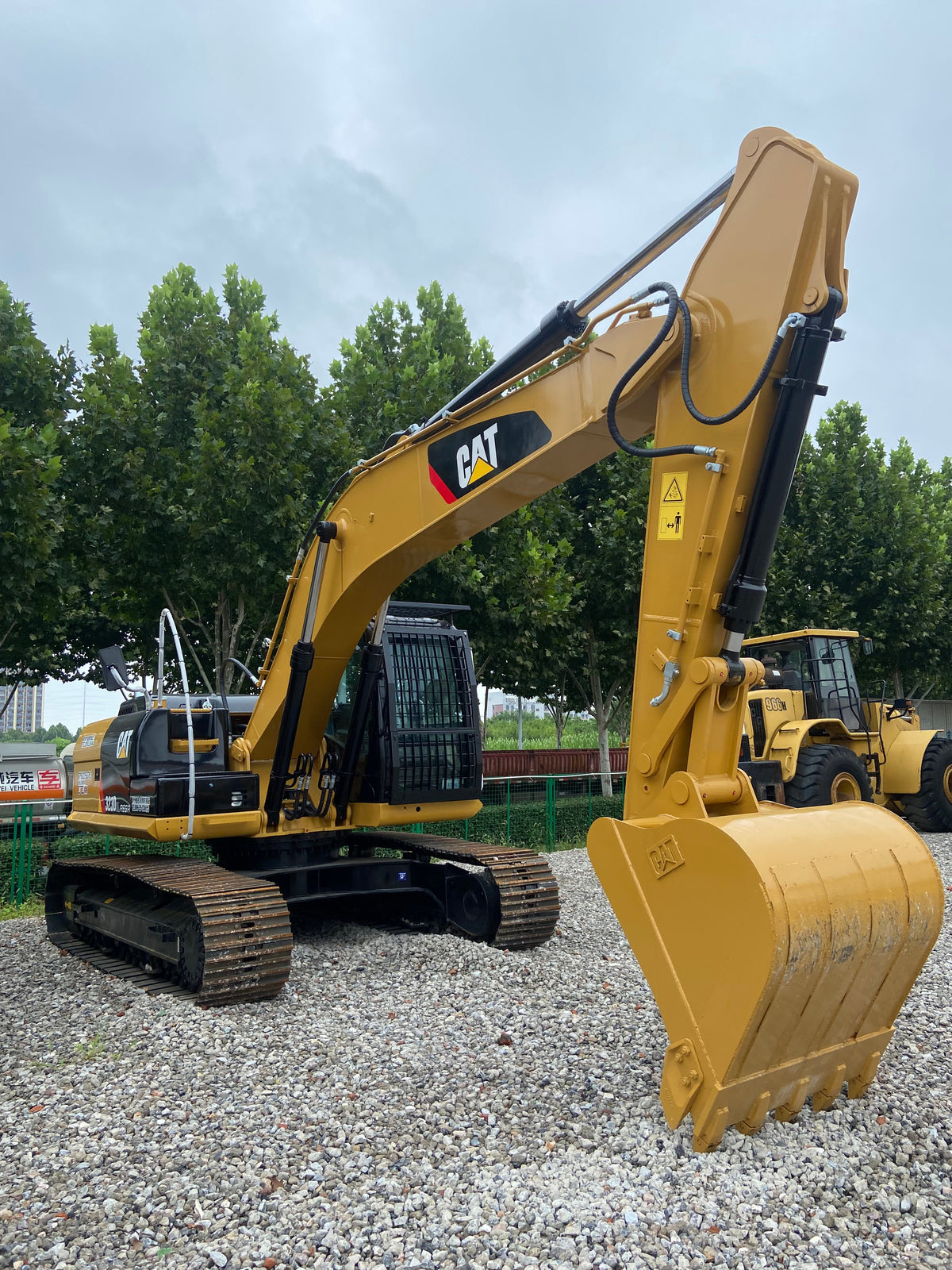

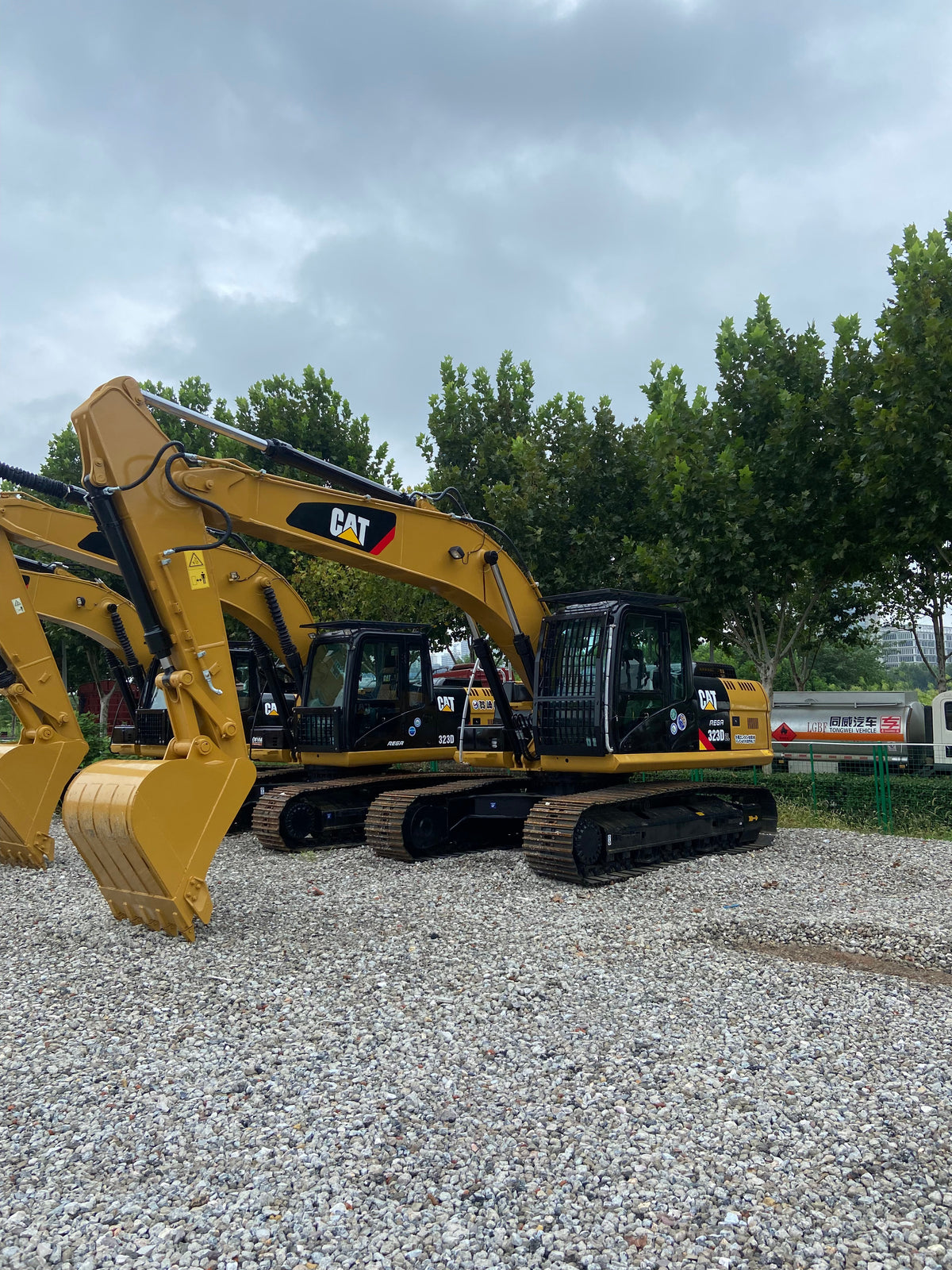

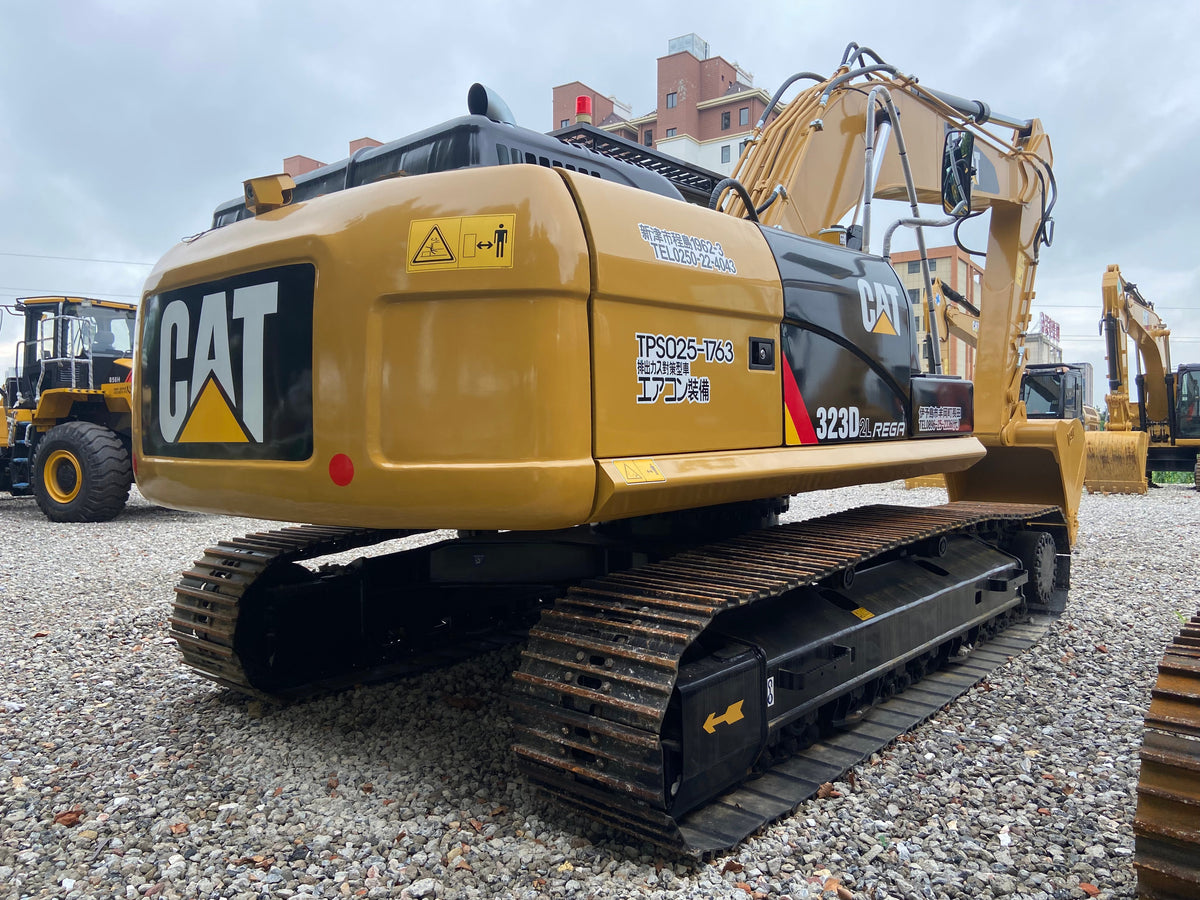

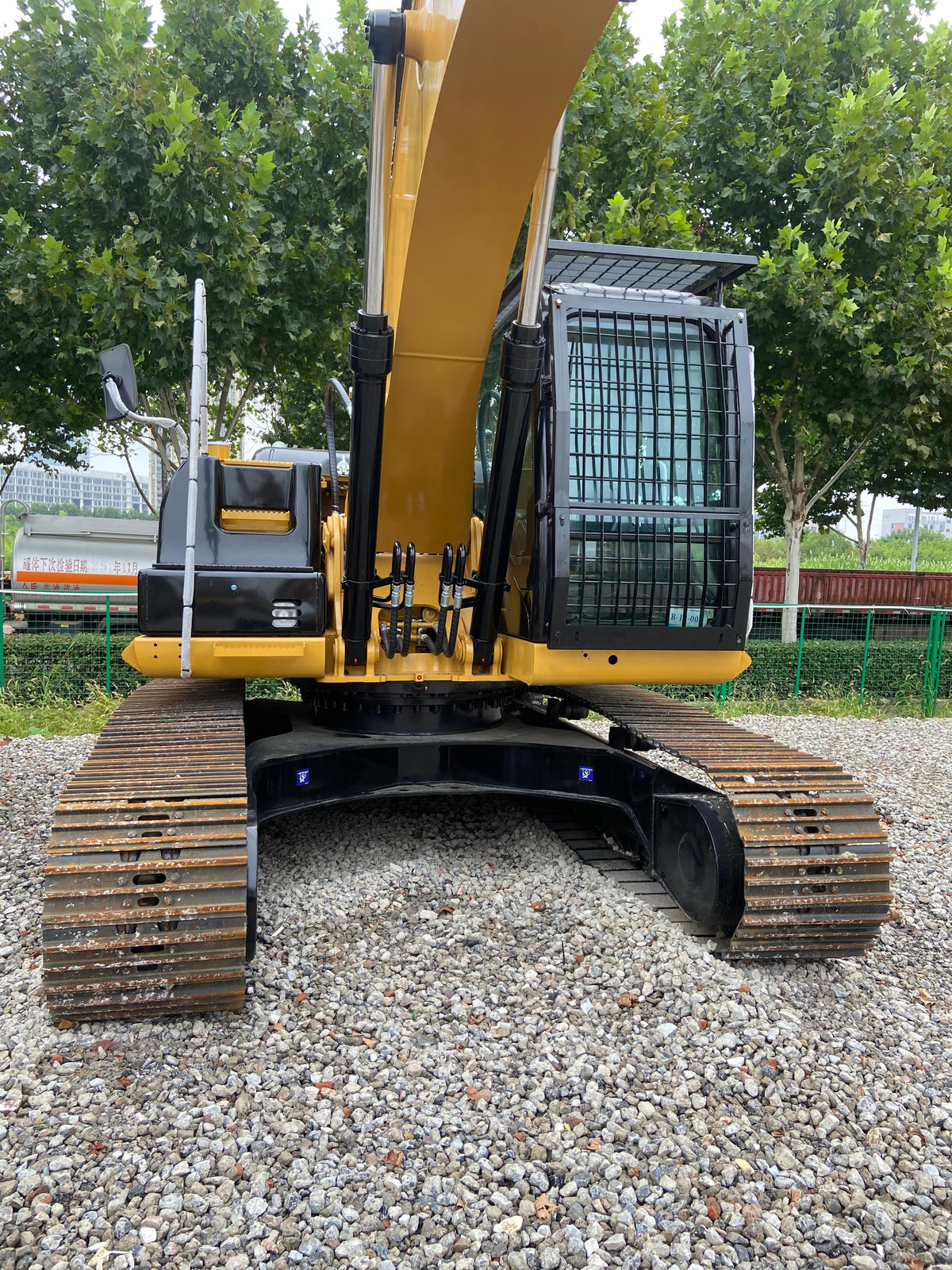

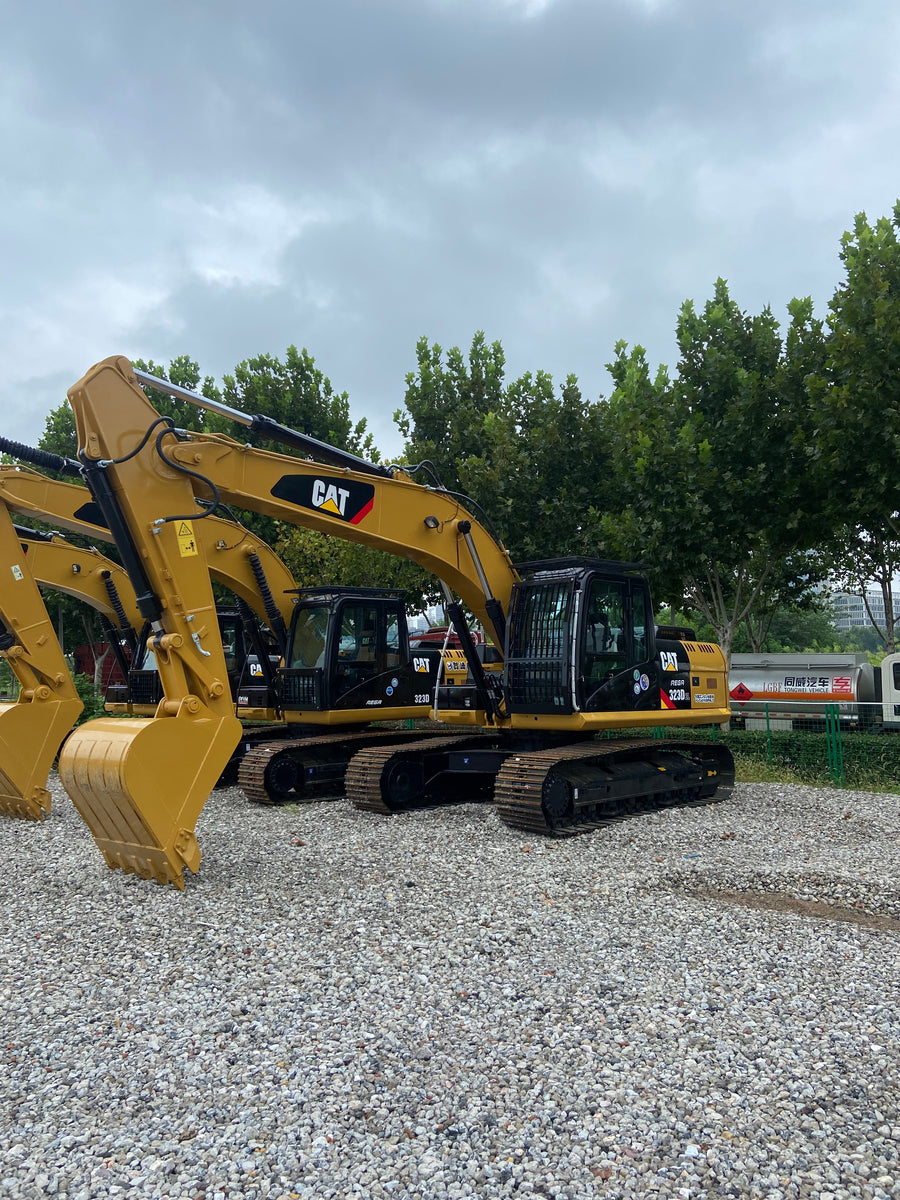

Cat 323D2L |
| Engine |
Cat C7.1 ACERT (turbocharged, aftercooled diesel) |
| Displacement |
7.01 L (428 in³)Cat
|
| Rated Power |
118 kW (158 hp) @ 2000 rpm (net, ISO 9249); 123 kW (165 hp) (ISO 14396) |
| Cylinder Bore × Stroke |
105 mm × 135 mmCat
|
| Operating Weight |
23300 kg |
| Bucket Capacity |
0.9–1.19 m³ (standard 1.19 m³) |
| Max. Digging Depth |
6720 mm (with 5.7 m boom & 2.9 m stick) |
| Max. Reach Along Ground |
9900 mm |
| Max. Loading Height |
7100 mm |
| Swing Speed |
10.5 rpm |
| Travel Speed |
3.5/5.6 km/h (two - speed) |
| Drawbar Pull |
205 kN |
| Bucket Digging Force |
140 kN |
| Stick Digging Force |
107 kN |
| Hydraulic System Pressure |
Main: 35000 kPa; Travel: 35000 kPa; Swing: 25000 kPa; Pilot: 3920 kPa |
| Hydraulic Flow (Main Pumps) |
2×202 L/min (total 404 L/min) |
| Fuel Tank Capacity |
410 L |
| Hydraulic System Capacity (Including Tank) |
234 LCat
|
| Engine Oil Capacity |
22 L |
