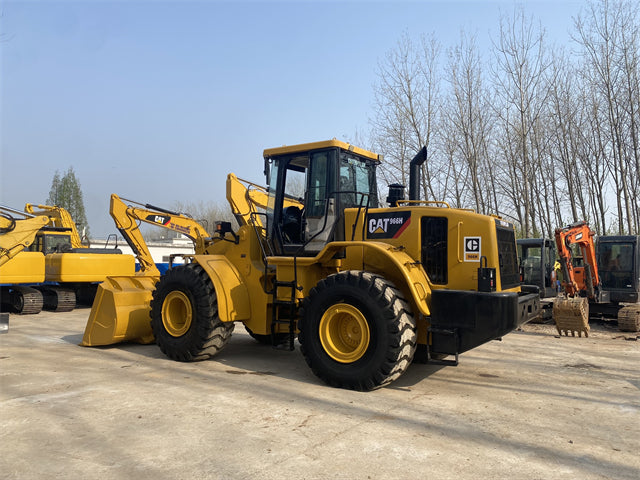

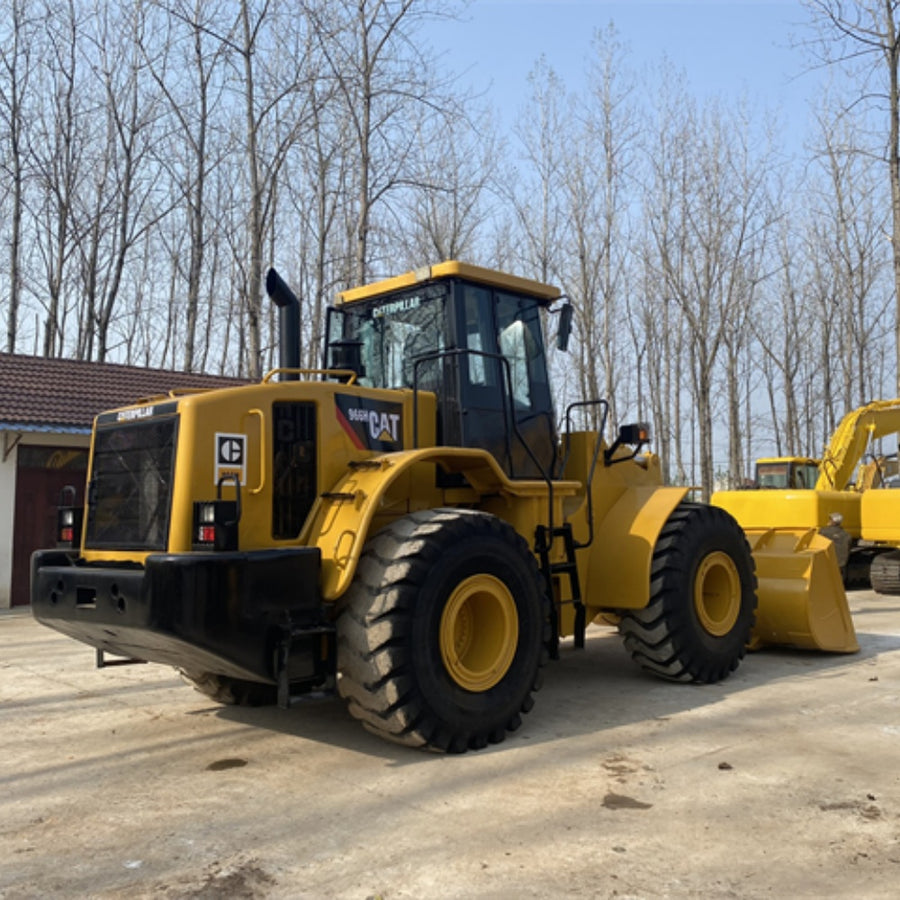

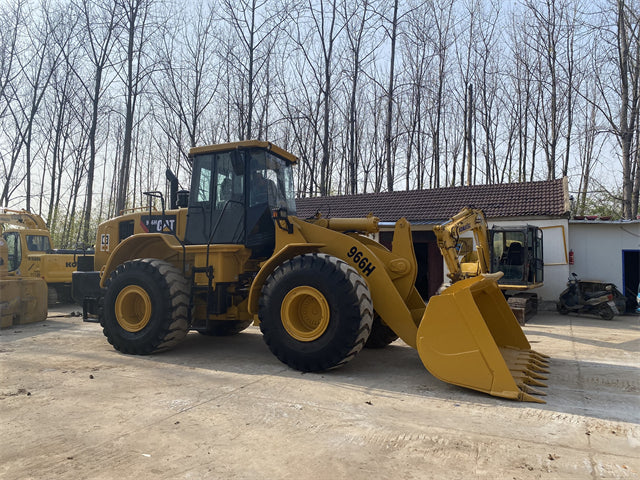

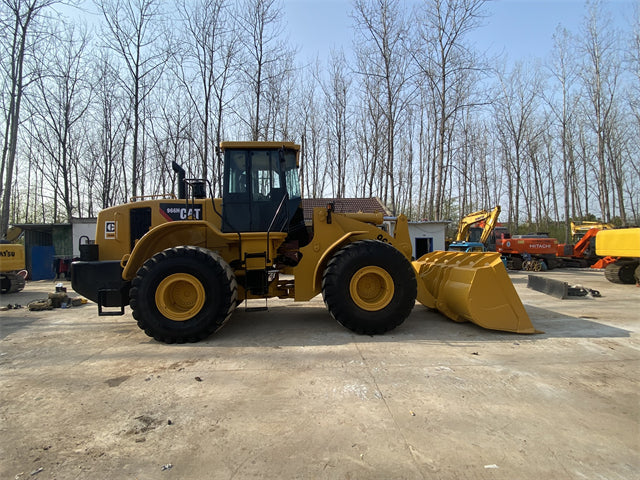

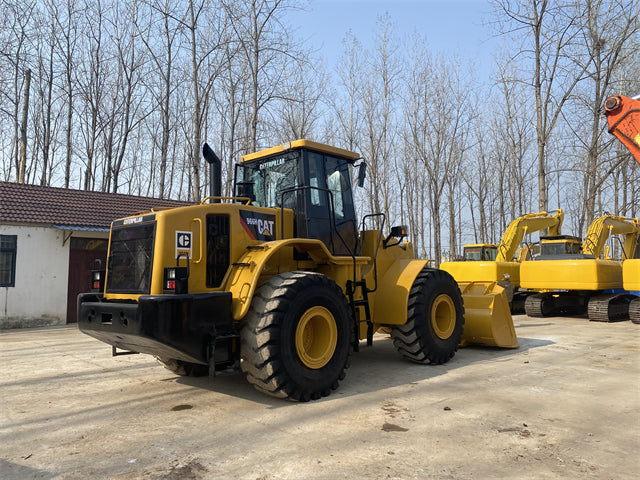

USED CAT 966H
USED CAT 966H
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
Cat 966H Wheel Loader Core Specifications (English)
| Category | Parameter | Value |
|---|---|---|
| Weight | Operating Weight | 23,698 kg / 52,254 lb |
| Static Tipping Load (Full Turn, 4.25 m³ GP Bucket) | 15,474 kg / 34,120 lb | |
| Engine (Cat C11 ACERT) | Rated Net Power (ISO 9249, 1,800 rpm) | 195 kW / 262 hp |
| Rated Gross Power (SAE J1995, 1,800 rpm) | 213 kW / 286 hp | |
| Displacement | 11.1 L / 677 in³ | |
| Number of Cylinders | 6 | |
| Emission Standard | Tier 3 / Stage III | |
| Max Net Torque (1,400 rpm, ISO 14396) | 1,299 N·m / 958 lb·ft | |
| Loader Performance | Bucket Capacity (Heaped, General Purpose) | 3.4-4.2 m³ / 4.5-5.5 yd³ |
| Bucket Breakout Force | 185 kN / 41,590 lb | |
| Max Hinge Pin Height | 3,850 mm / 12.63 ft | |
| Max Dump Clearance | 3,005 mm / 9.86 ft | |
| Transmission & Mobility | Transmission Type | Planetary Powershift (4F/4R) |
| Max Travel Speed (Forward/Reverse) | 37.4 km/h / 23.2 mph | |
| Standard Tires | 26.5-25 | |
| Hydraulics | Pump Flow Capacity | 305 L/min / 80.6 gal/min |
| Relief Valve Setting | 20,684 kPa / 3,000 psi | |
| Raise Time | 5.9 sec | |
| Dump Time | 1.6 sec | |
| Lower Time | 2.4 sec | |
| Dimensions | Length (Overall) | 8,990 mm / 29.5 ft |
| Width (Over Tires) | 3,040 mm / 9.97 ft | |
| Height (To Top of ROPS) | 3,440 mm / 11.29 ft | |
| Wheelbase | 3,660 mm / 12.0 ft | |
| Operational Specs | Fuel Tank Capacity | 380 L / 100.4 gal |
| Hydraulic System Fluid Capacity | 110 L / 29 |
