| Basic Info |

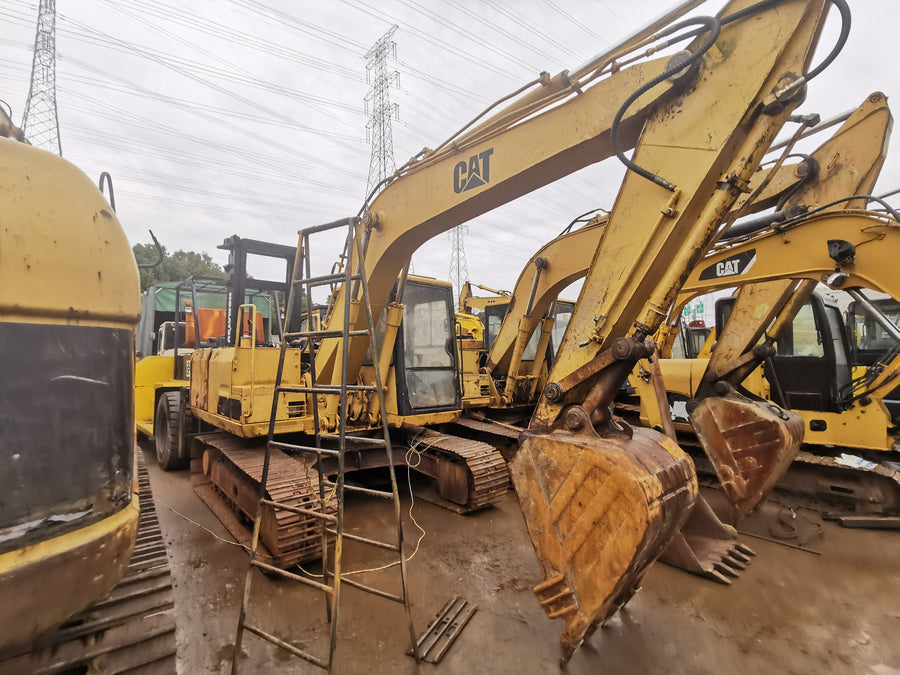

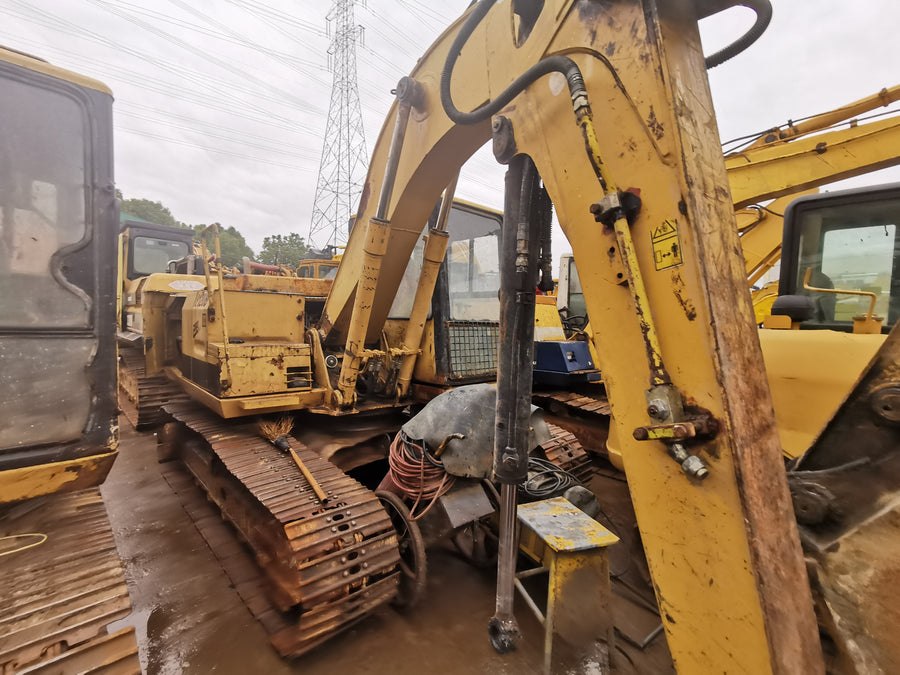

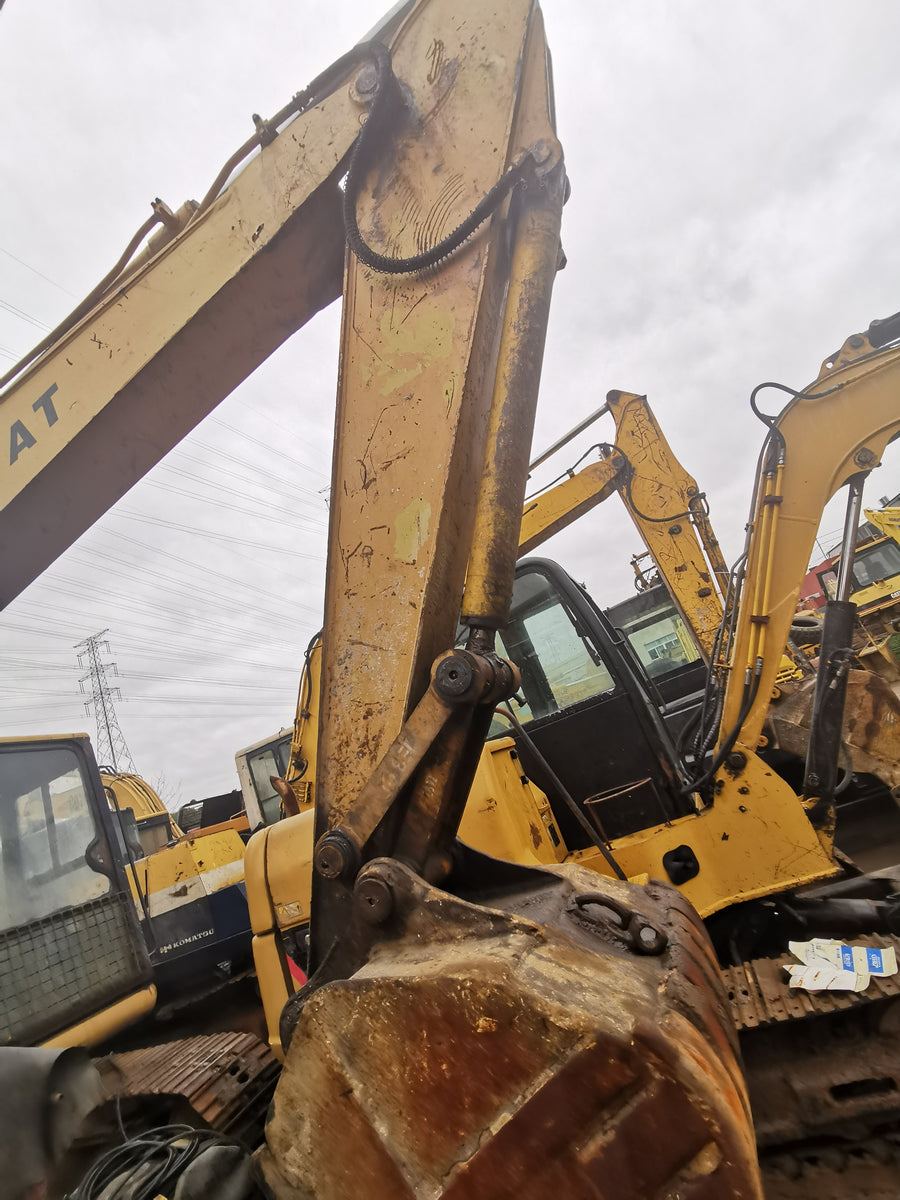

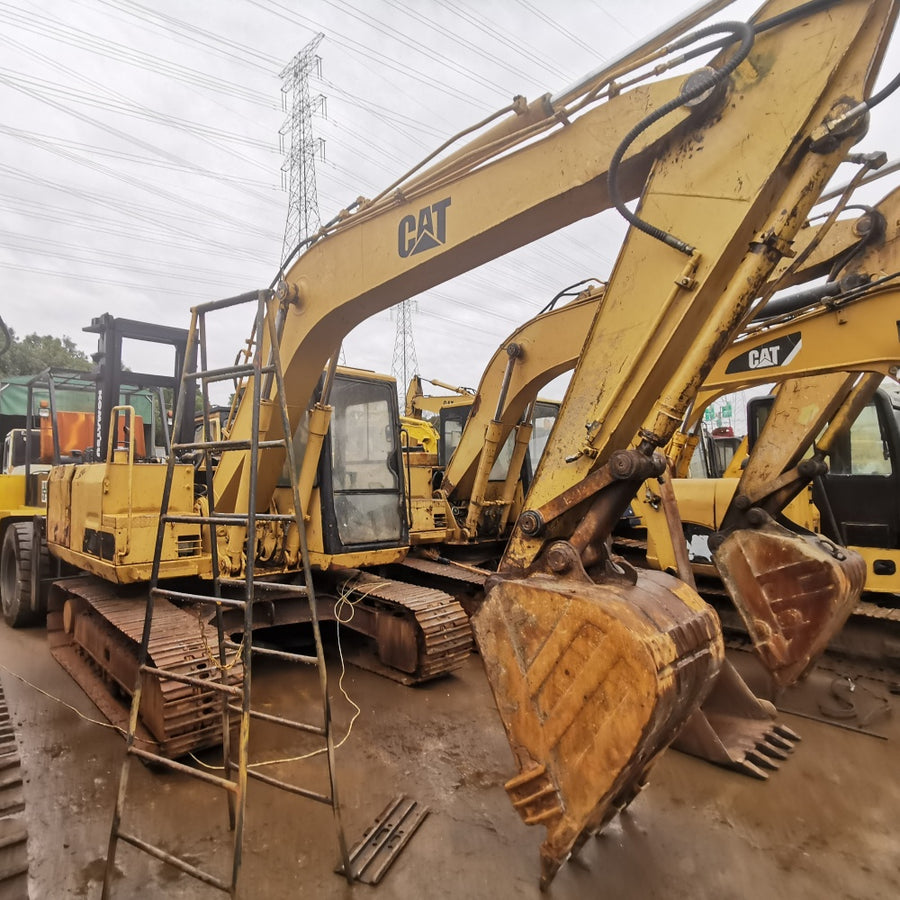

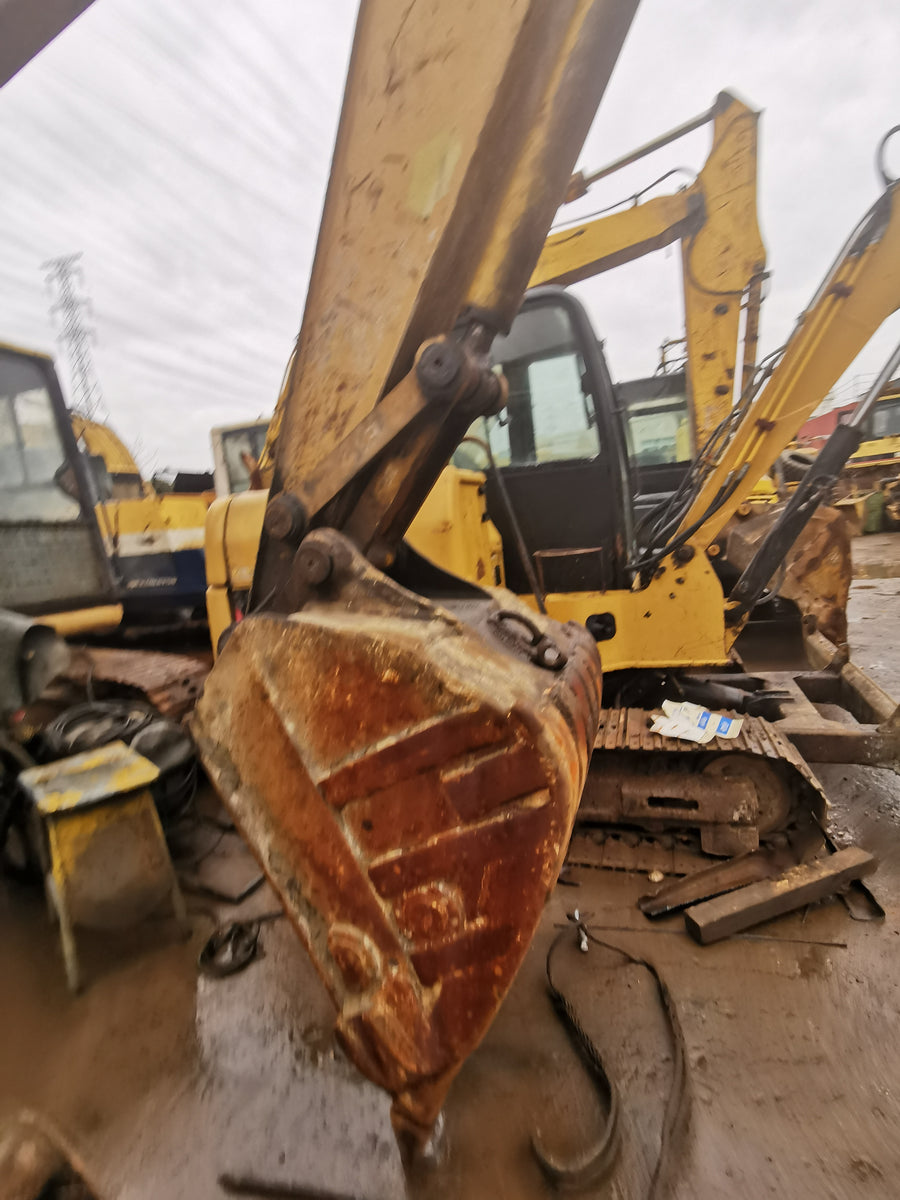

Model: Cat E120B
Type: Hydraulic Crawler Excavator
Operating Weight: 28,219 lb (12,800 kg)
Standard Bucket Capacity: 0.53 m³ (0.69 yd³) |
| Engine |
Model: Cat 3114
Type: 4-cylinder, 4-cycle diesel
Displacement: 4.4 L (269 cu in)
Net Power: 84 hp (62.6 kW) @ 2,200 rpm
Max Torque: 298 N•m (220 lbf-ft) @ 1,400 rpm |
| Hydraulics |
System Relief Pressure: 4,270 psi (29.4 MPa)
Pump Flow: 62 gal/min (236 L/min)
Hydraulic Fluid Capacity: 44 gal (165 L) |
| Performance |
Max Travel Speed: 3.11 mph (5 km/h)
Swing Speed: 11 rpm
Drawbar Pull: 96 kN (21,582 lbf)
Ground Pressure: 5.97 psi (41.2 kPa)
Max Digging Depth: 16.89 ft (5.15 m)
Max Digging Reach (Ground Level): 26.0 ft (7.93 m)
Max Loading Height: 19.18 ft (5.84 m) |
| Capacities |
Fuel Tank: 66 gal (250 L)
Engine Oil: 5.3 gal (20 L)
Cooling System: 7.9 gal (30 L) |
| Dimensions |
Track Gauge: 6.53 ft (1,990 mm)
Track Shoe Width: 19.69 in (500 mm)
Tail Swing Radius: 6.94 ft (2,115 mm)
Height to Top of Cab: 8.86 ft (2,700 mm) |
