DOOSAN

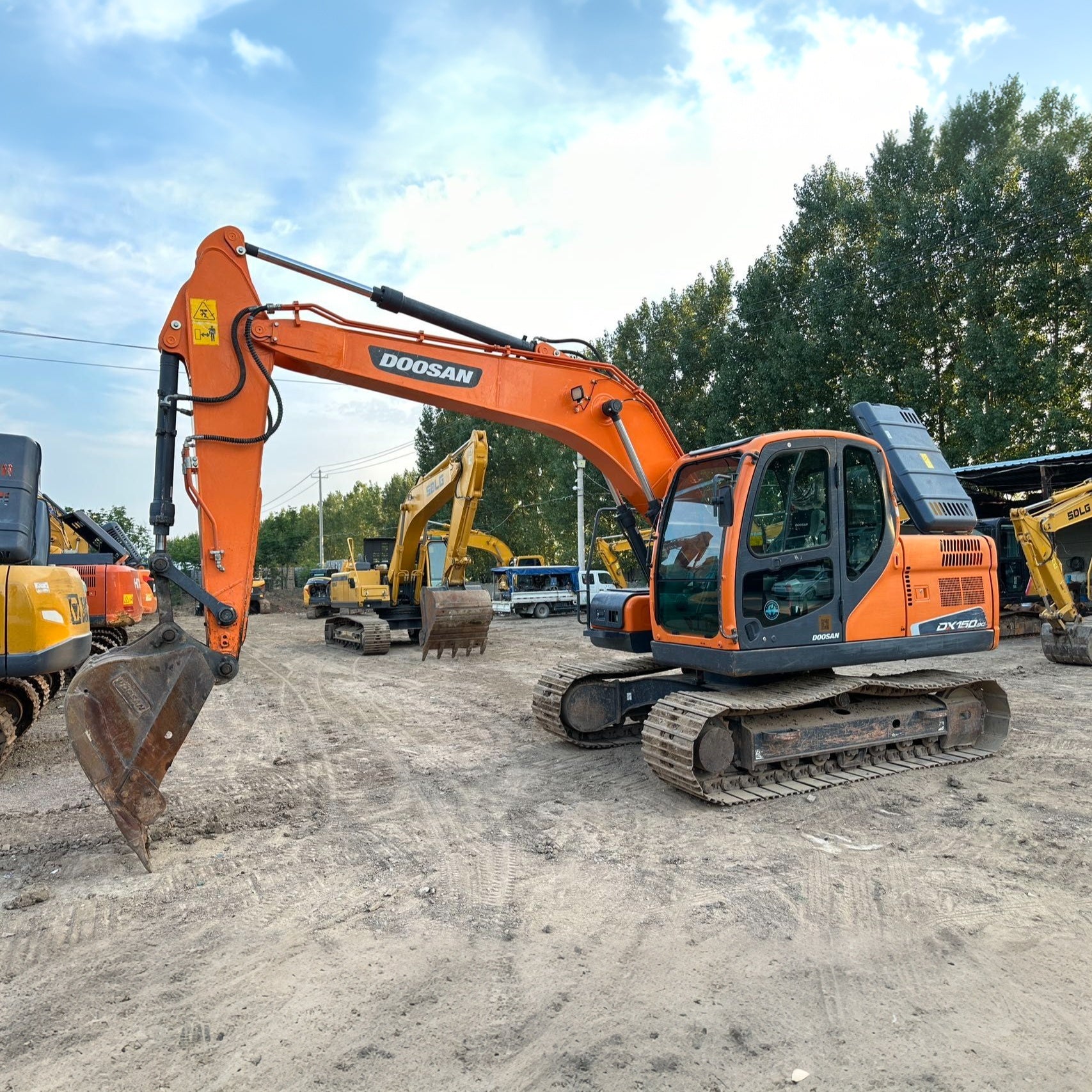

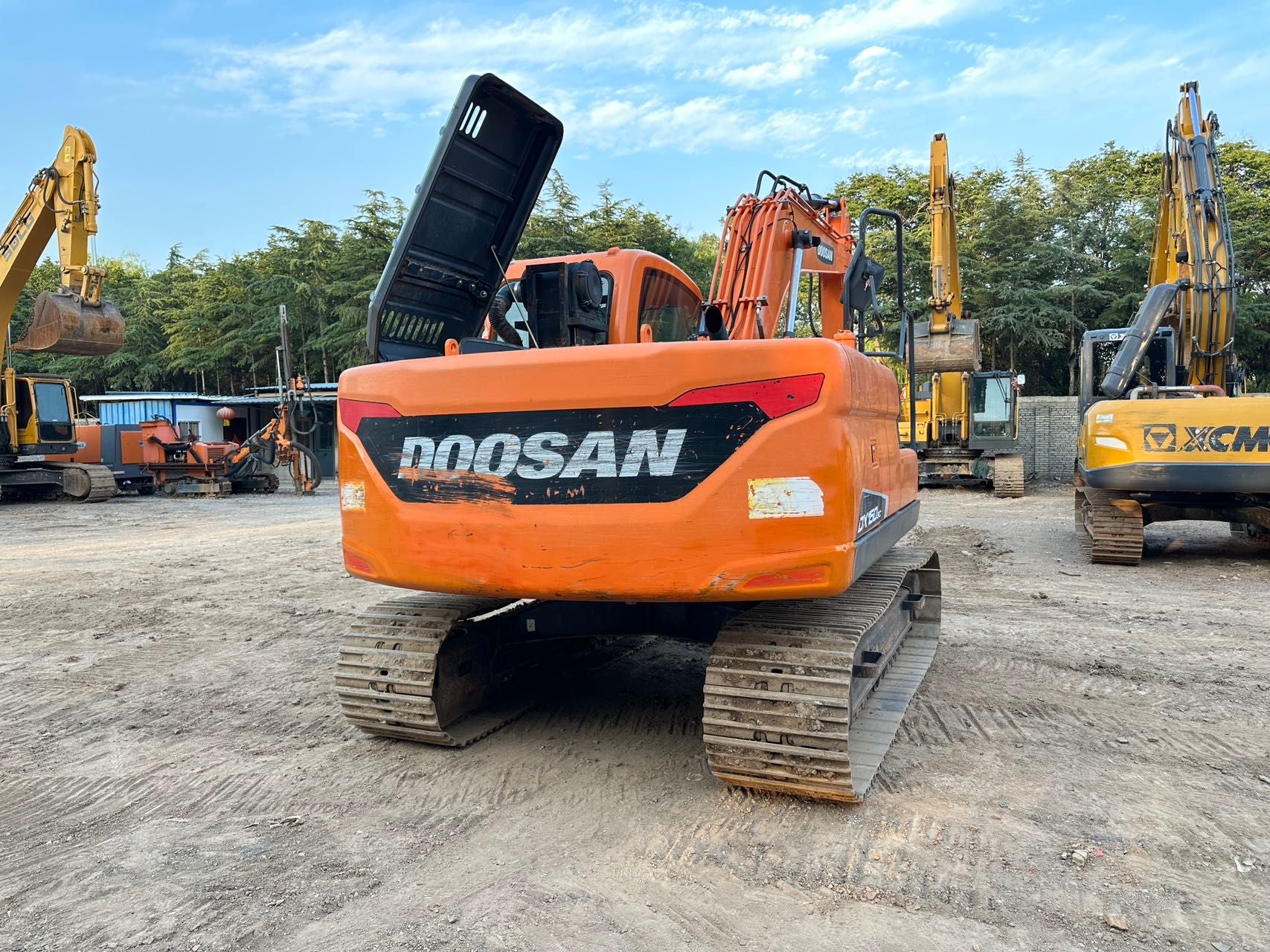

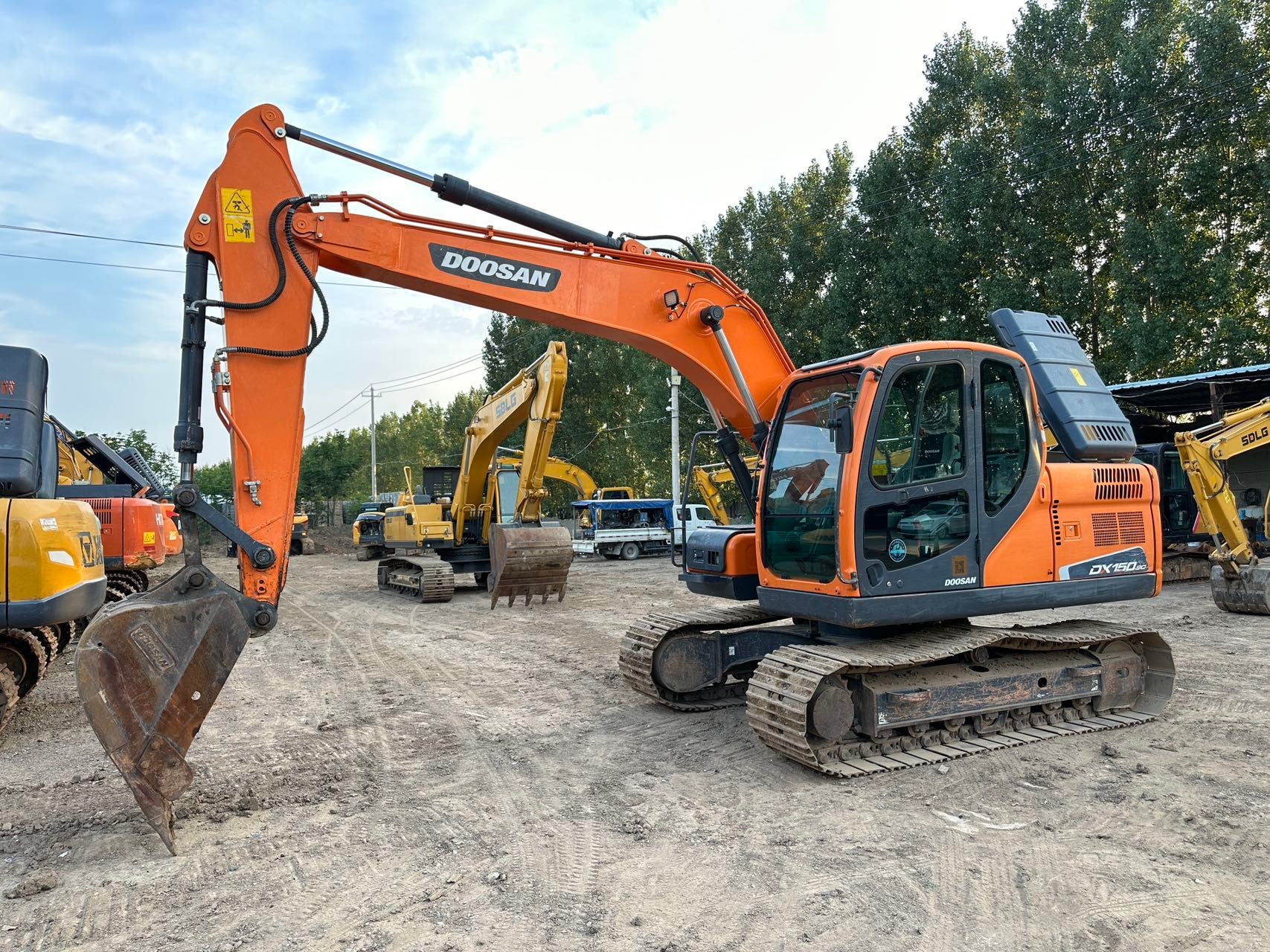

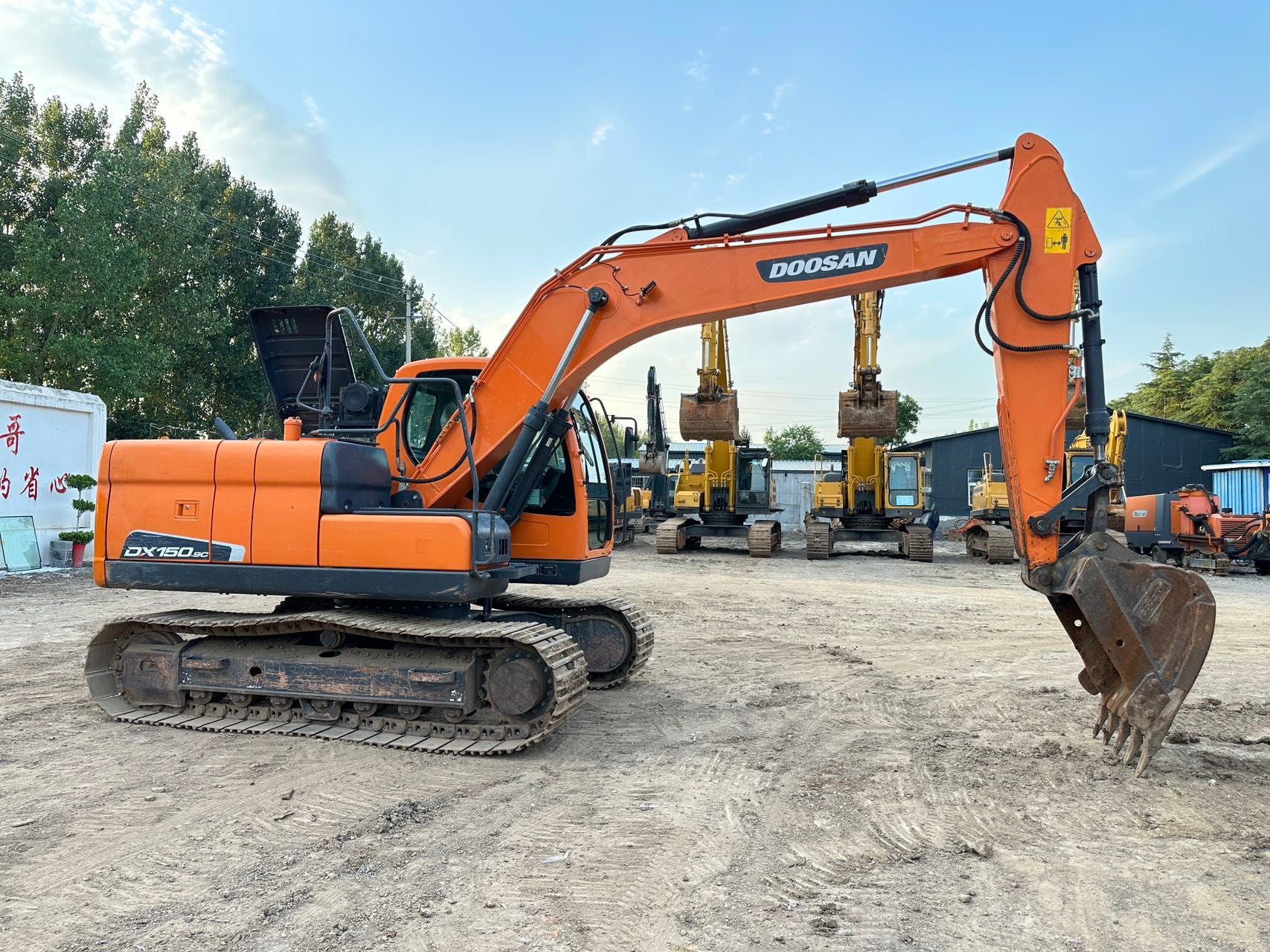

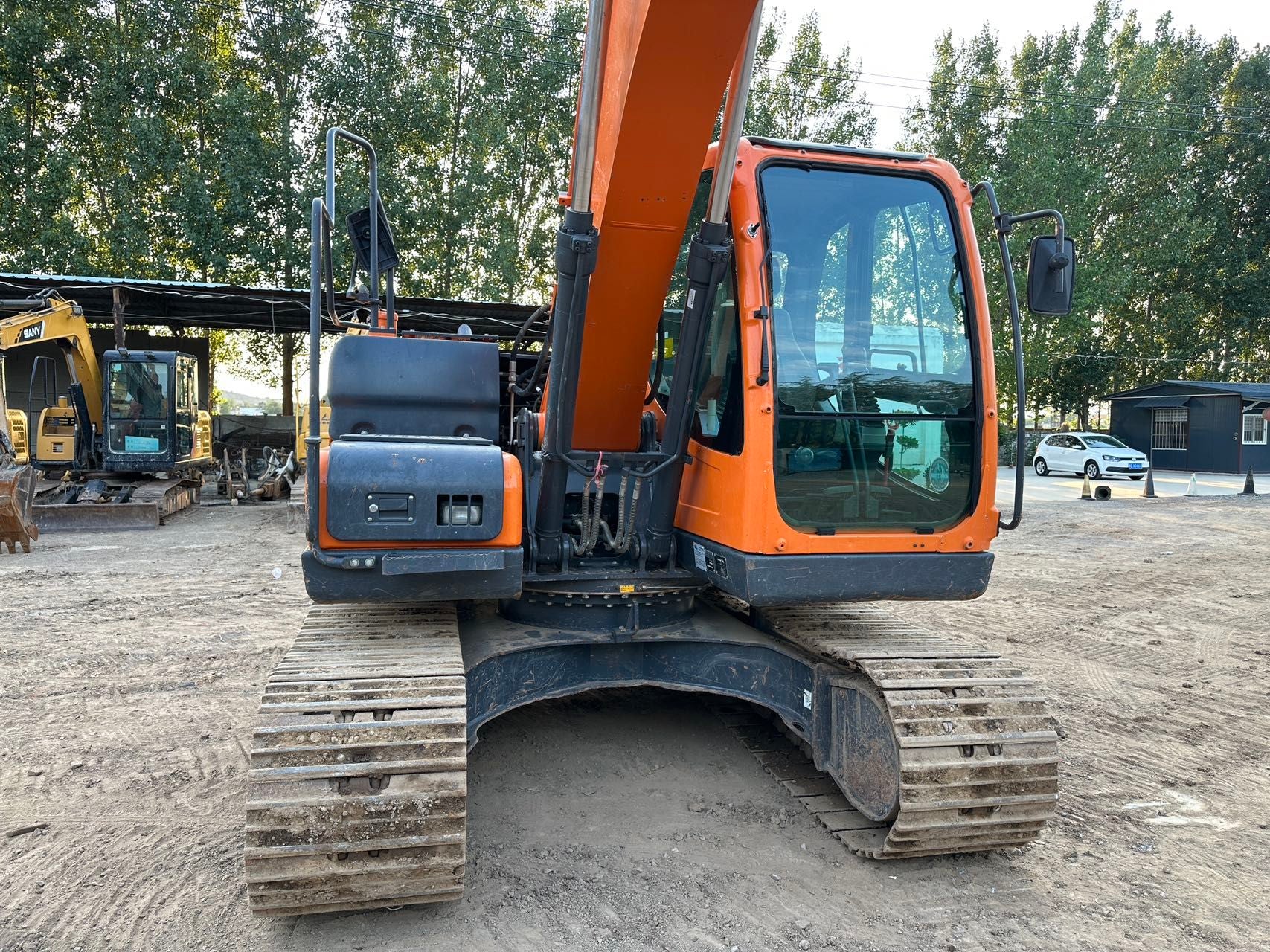

USED DOOSAN DX150-9C

$18,000.00 USD

Oferta Agotado

Category	Specification Item	Parameter Value
Basic Machine Info	Model	DX150-9C
	Operating Weight	13850 kg
	Standard Bucket Capacity	0.58 m³

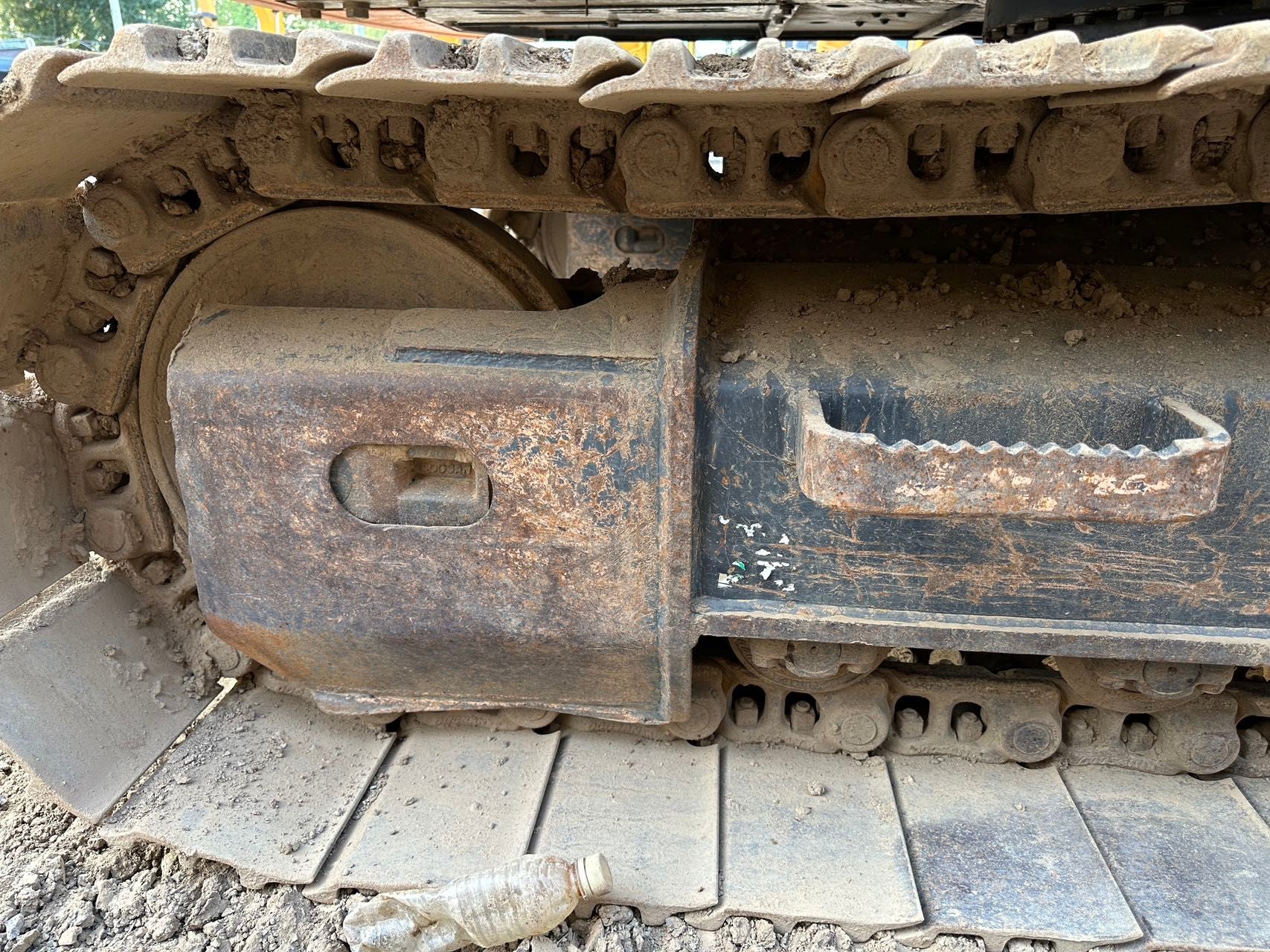

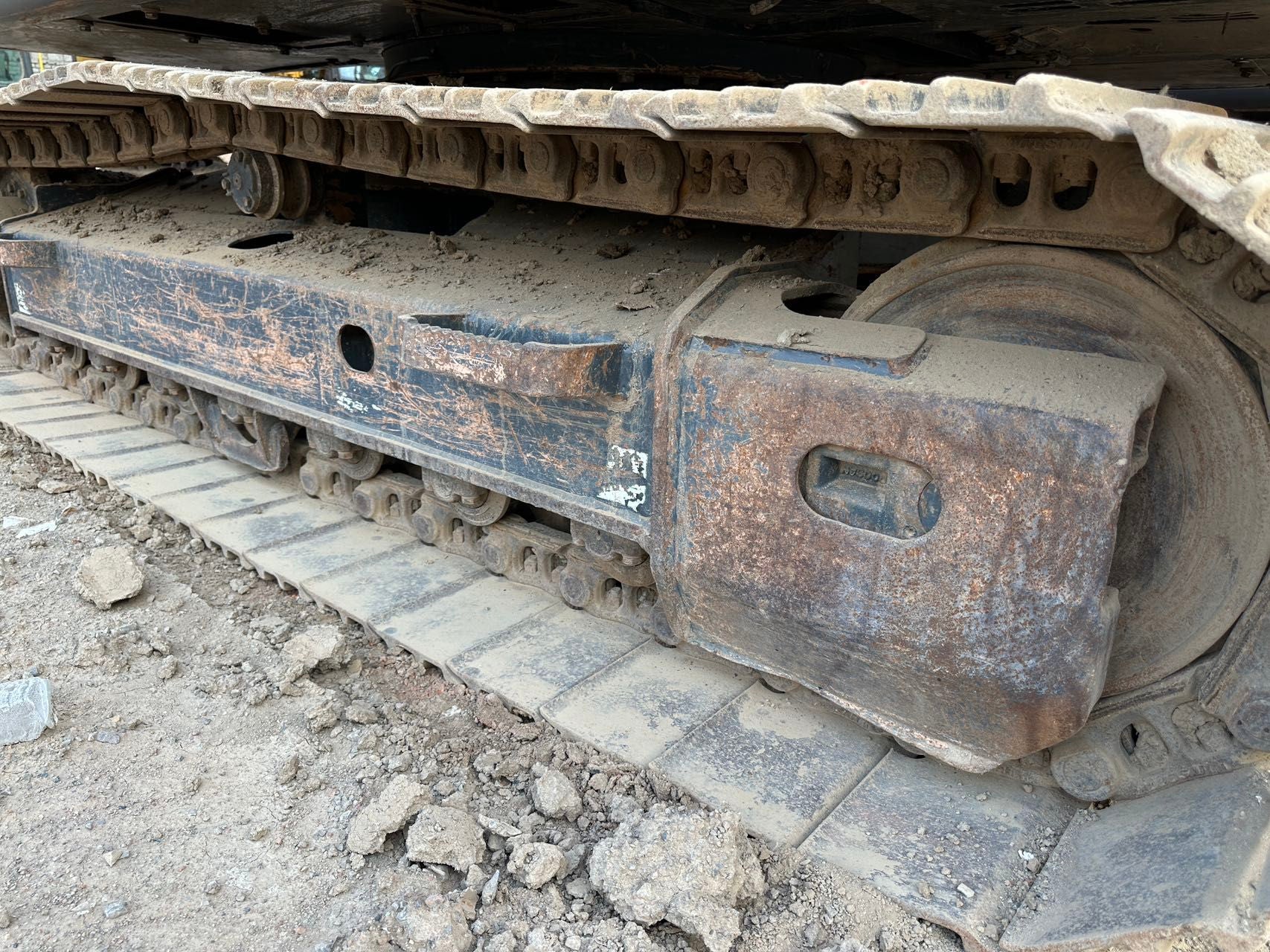

	Track Shoe Width	500 mm
	Ground Contact Pressure	36.5 kPa
	Standard Boom / Arm Length	4600 mm / 2250 mm
Engine System	Engine Model	Doosan DL06, 6-cylinder Inline Diesel
	Rated Output	74 kW @1900 rpm
	Displacement	4933 cc
	Bore × Stroke	100 mm × 125 mm
Hydraulic Performance	Bucket Breakout Force (Standard/Boost)	101 kN / 107 kN
	Arm Breakout Force (Standard/Boost)	59.8 kN / 63.7 kN
	Main Working Pressure	310 bar
Travel & Swing	High Travel Speed	5.04 km/h
	Low Travel Speed	3.02 km/h
	Swing Speed	10.2 rpm
	Max Gradeability	70%
Overall Dimension	Overall Length	7662 mm
	Overall Width	2530 mm
	Cab Top Height	2773 mm
Working Range	Max Digging Depth	5625 mm
	Max Vertical Digging Depth	4650 mm
	Max Digging Radius	8305 mm
	Max Digging Height	8750 mm
	Max Dumping Height	6300 mm
Tank Capacity	Fuel Tank Volume	230 L
	Hydraulic Oil Tank Volume	145 L

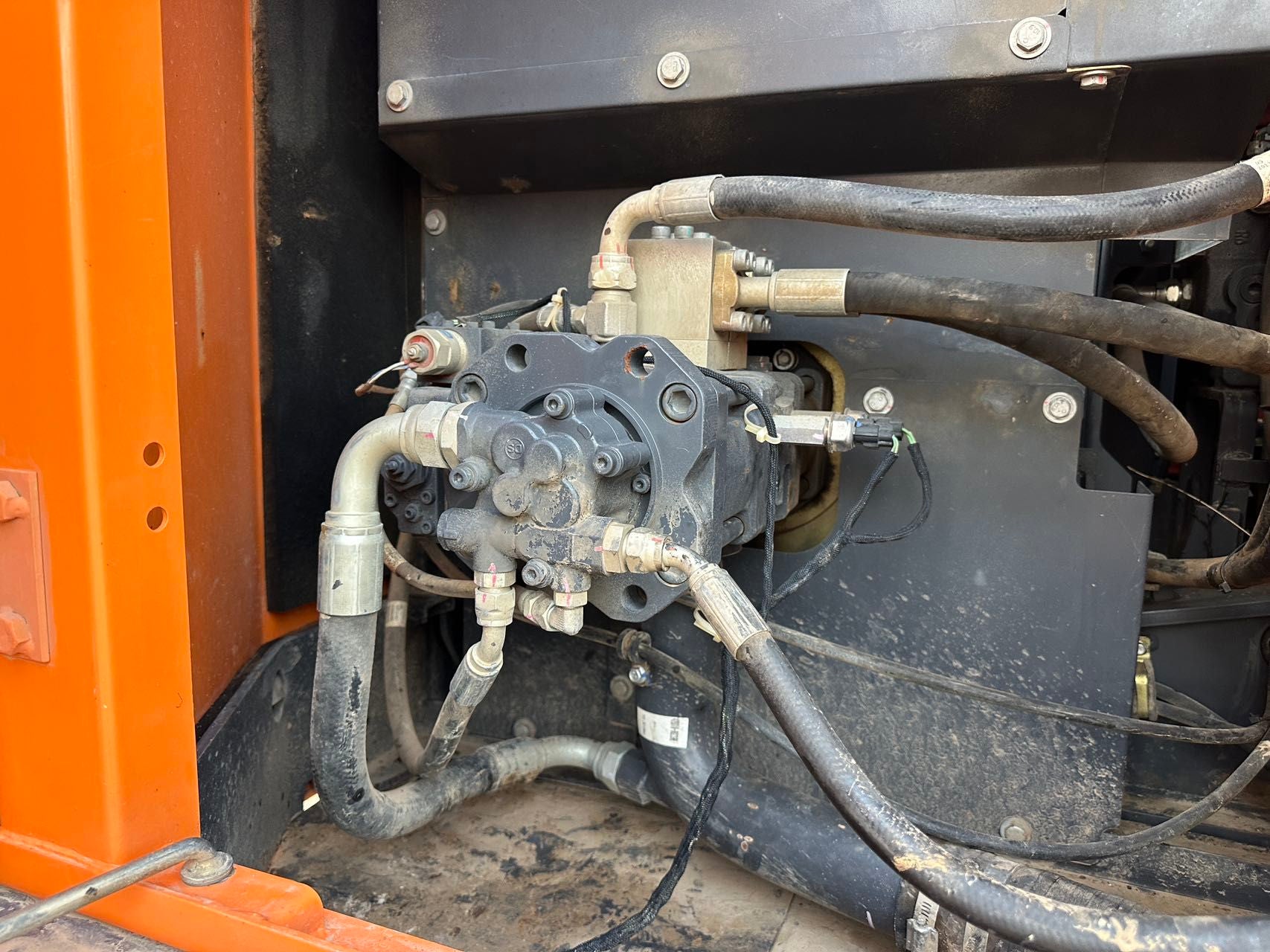

Standard Accessory	Factory Fitting	Pre-installed breaker hydraulic piping
