DOOSAN

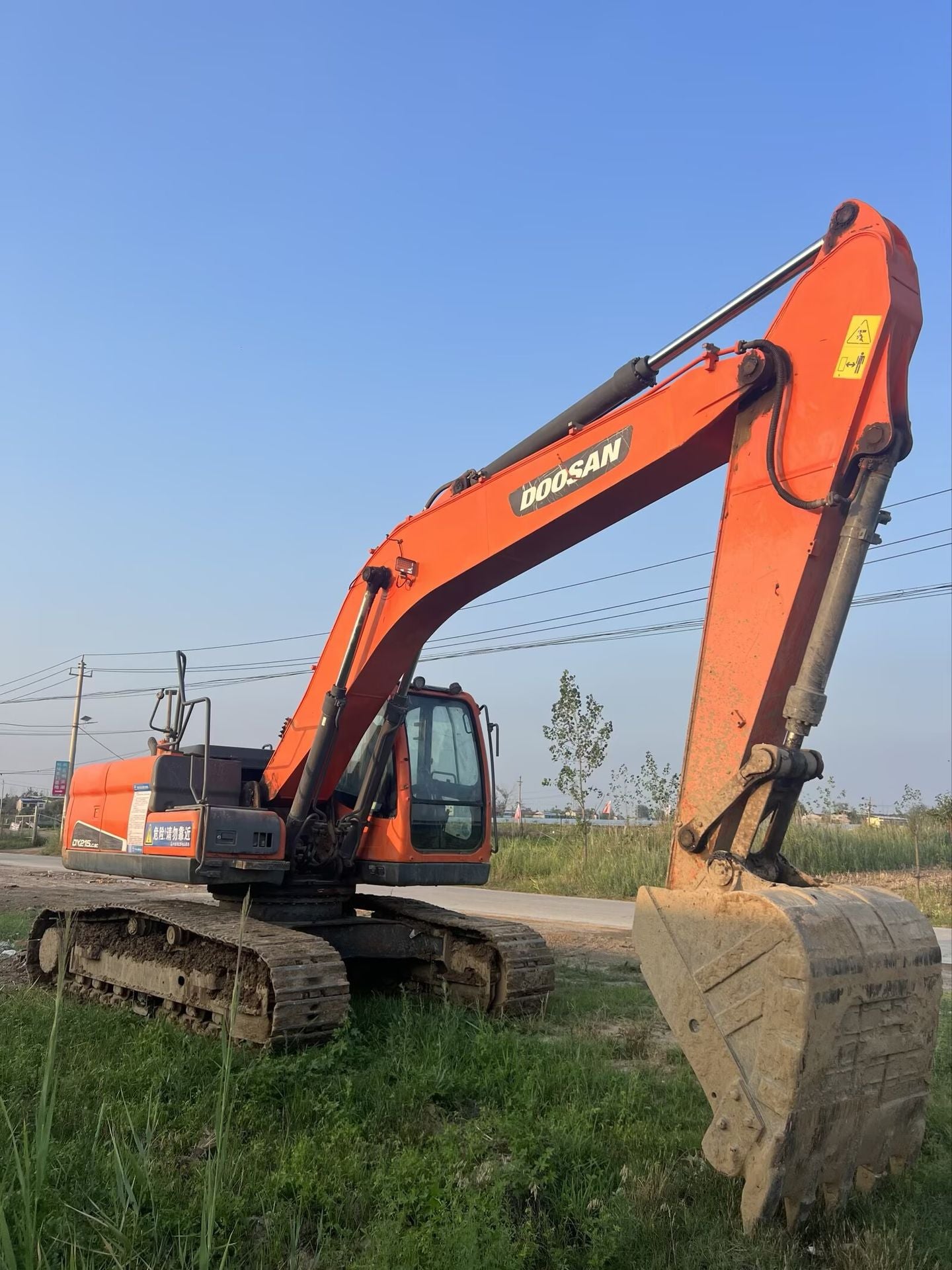

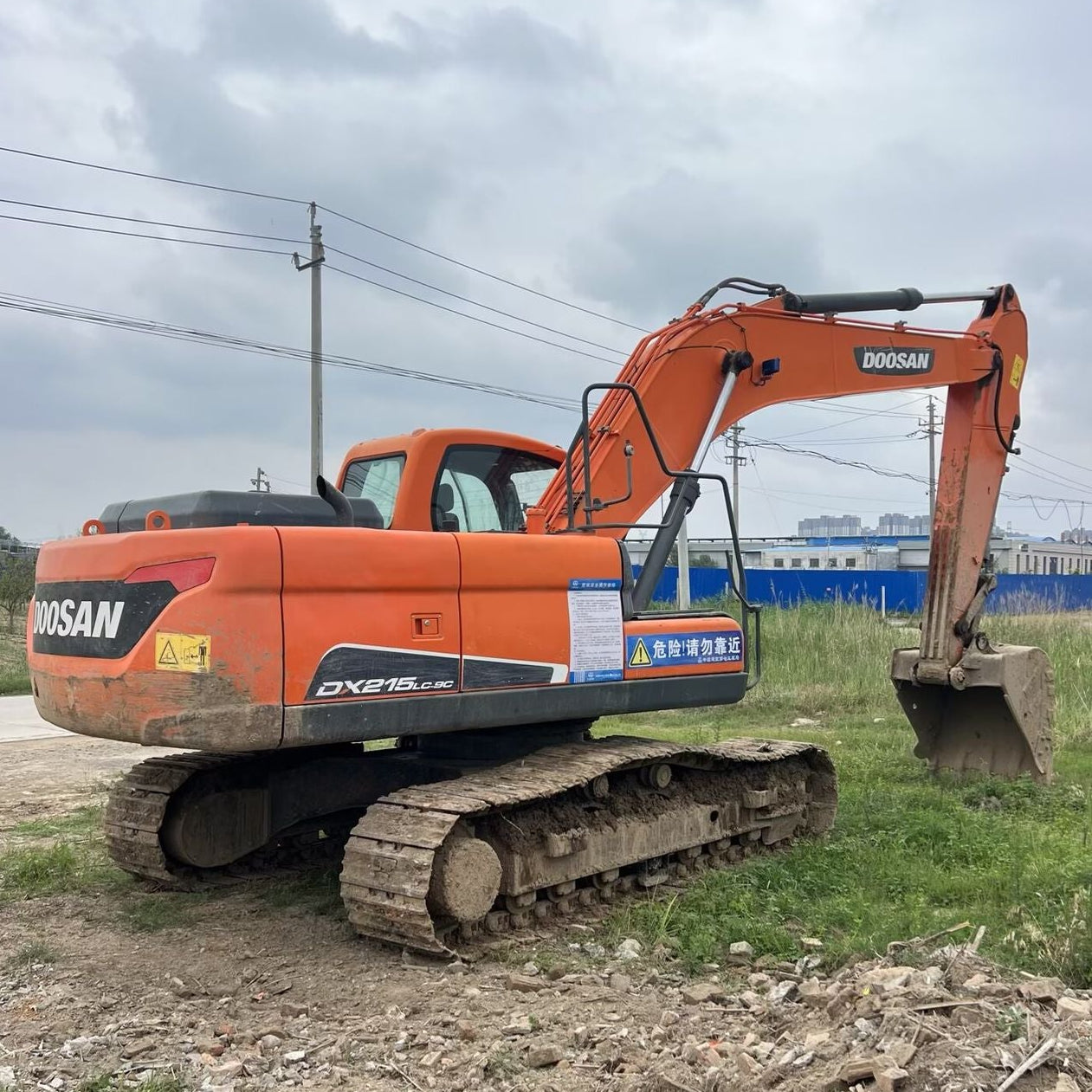

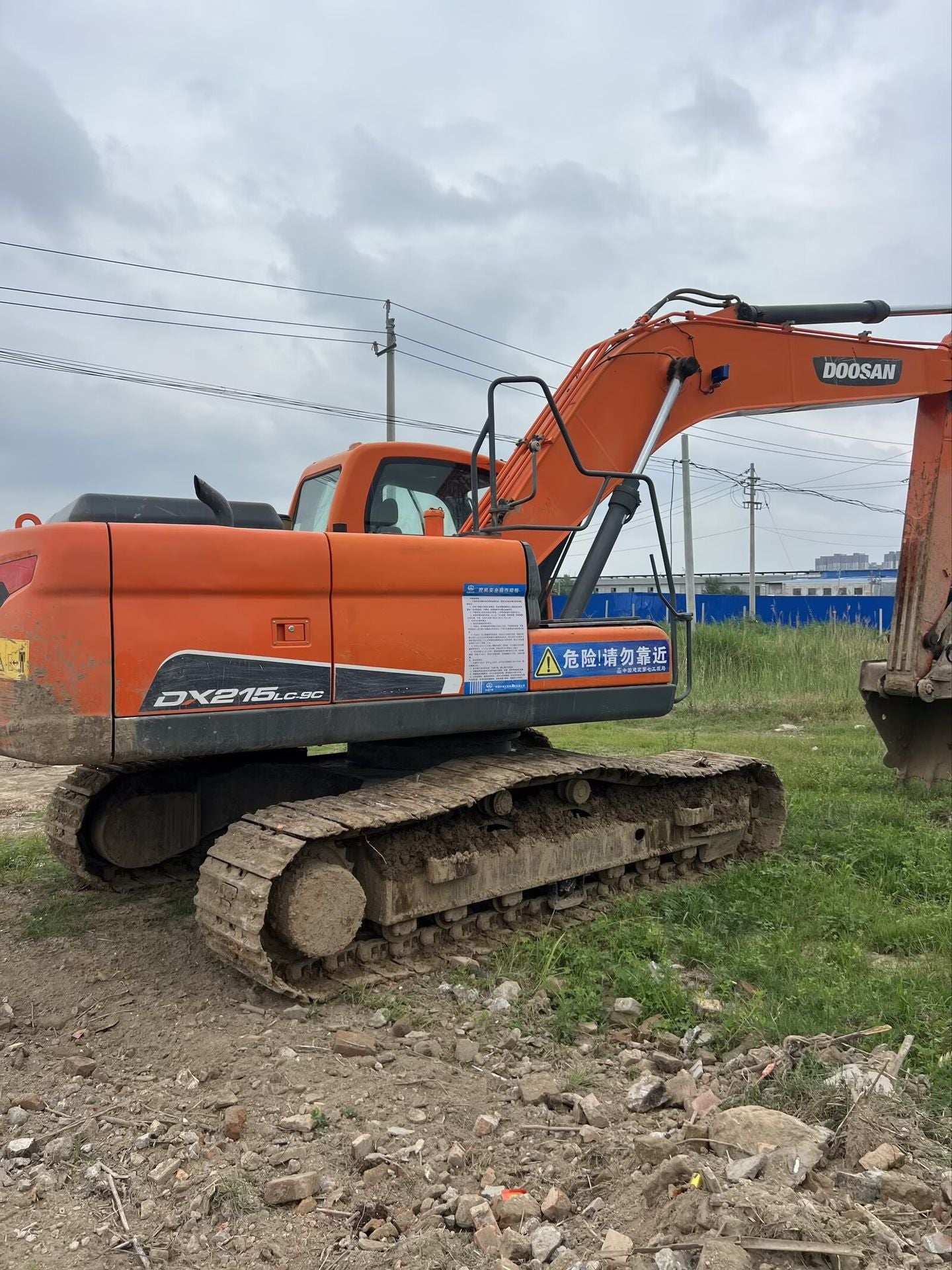

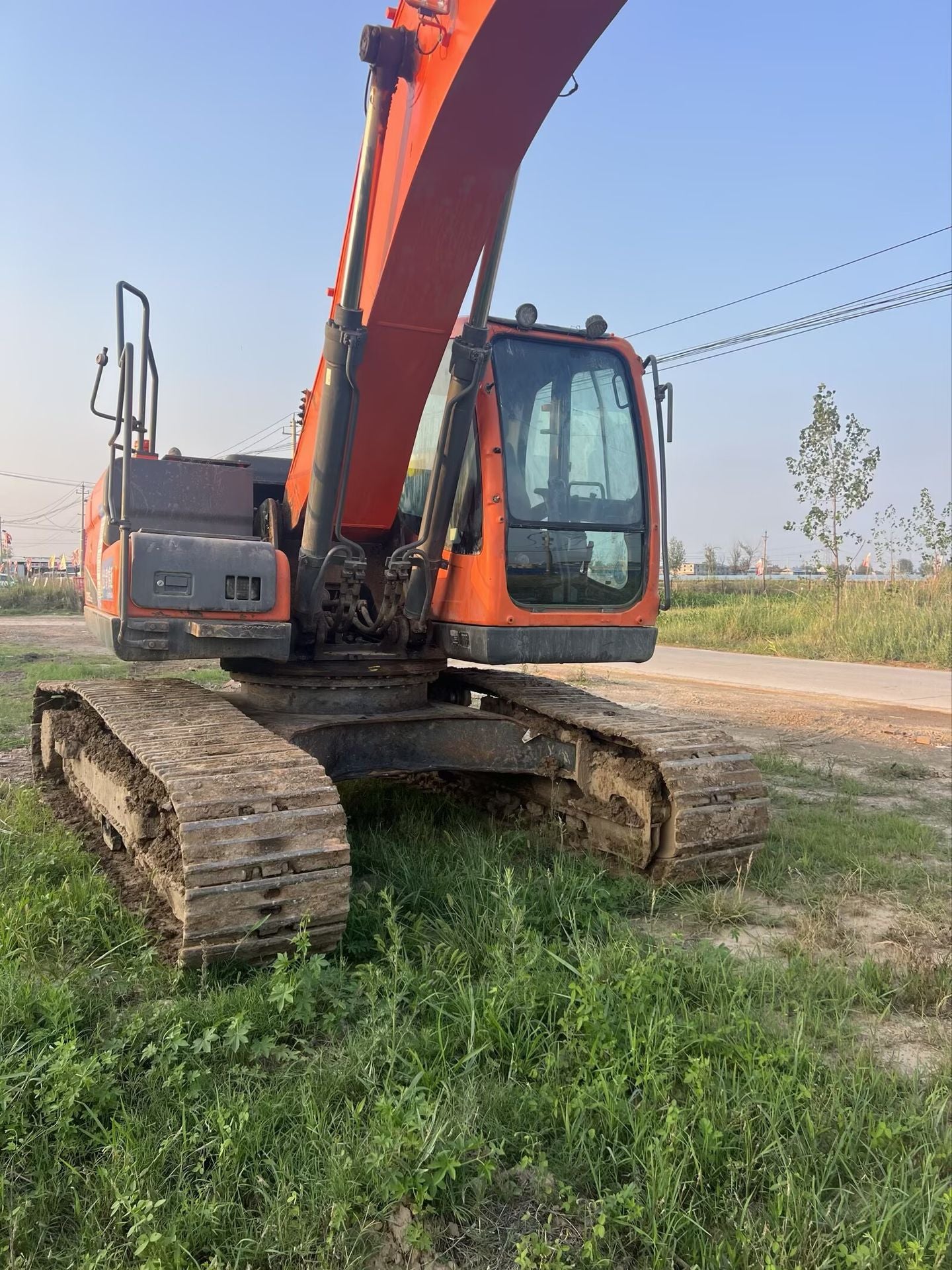

USED DOOSAN DX215LC-9C

$21,000.00 USD

Oferta Agotado

Category	Specification Item	Parameter Value
Basic Parameter	Model	DX215LC-9C
	Operating Weight	21400 kg
	Standard Bucket Capacity	0.92 m³
	Standard Boom Length	5700 mm
	Standard Arm Length	2900 mm
	Track Shoe Width	600 mm
	Ground Contact Pressure	45.8 kPa

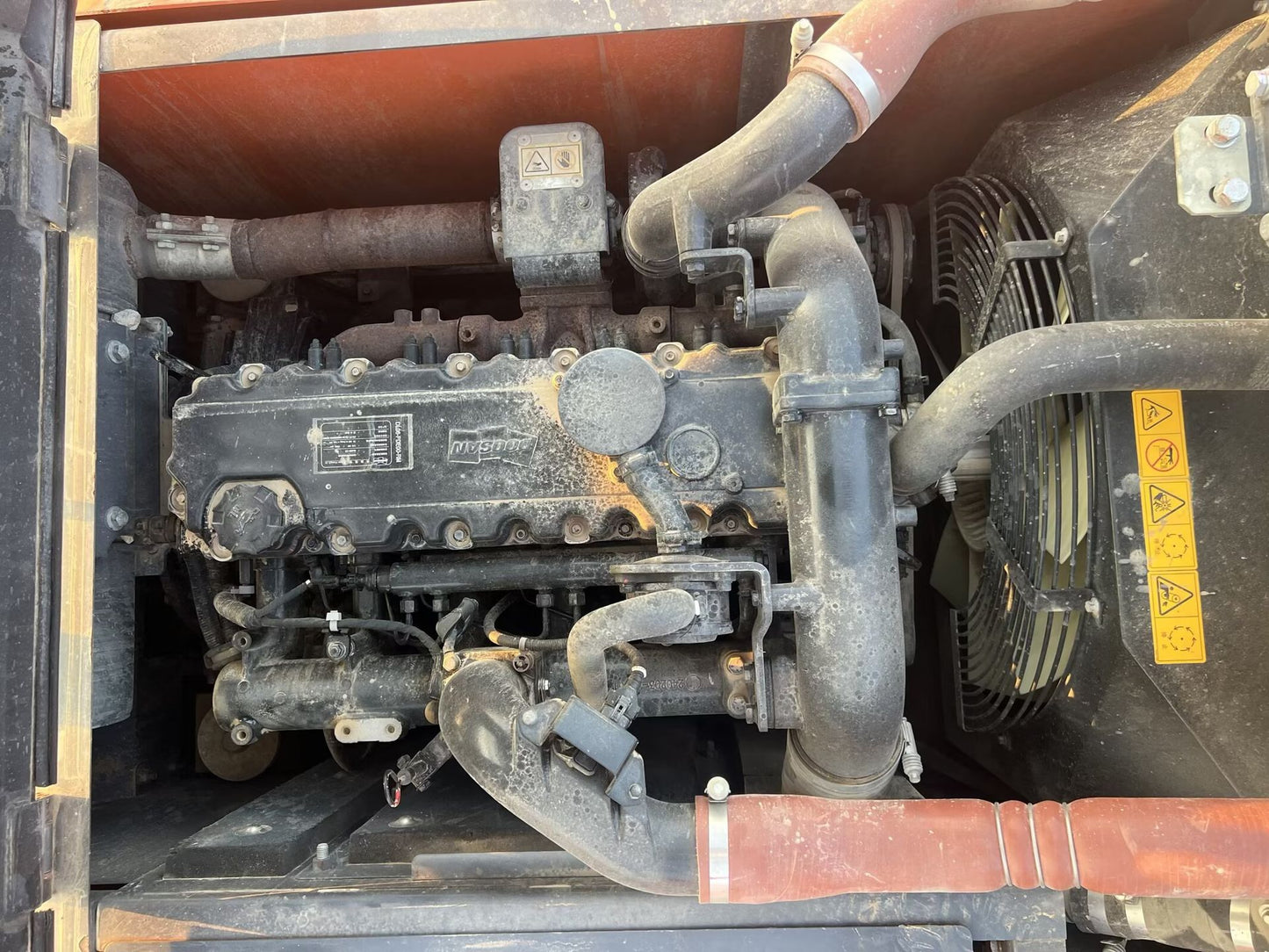

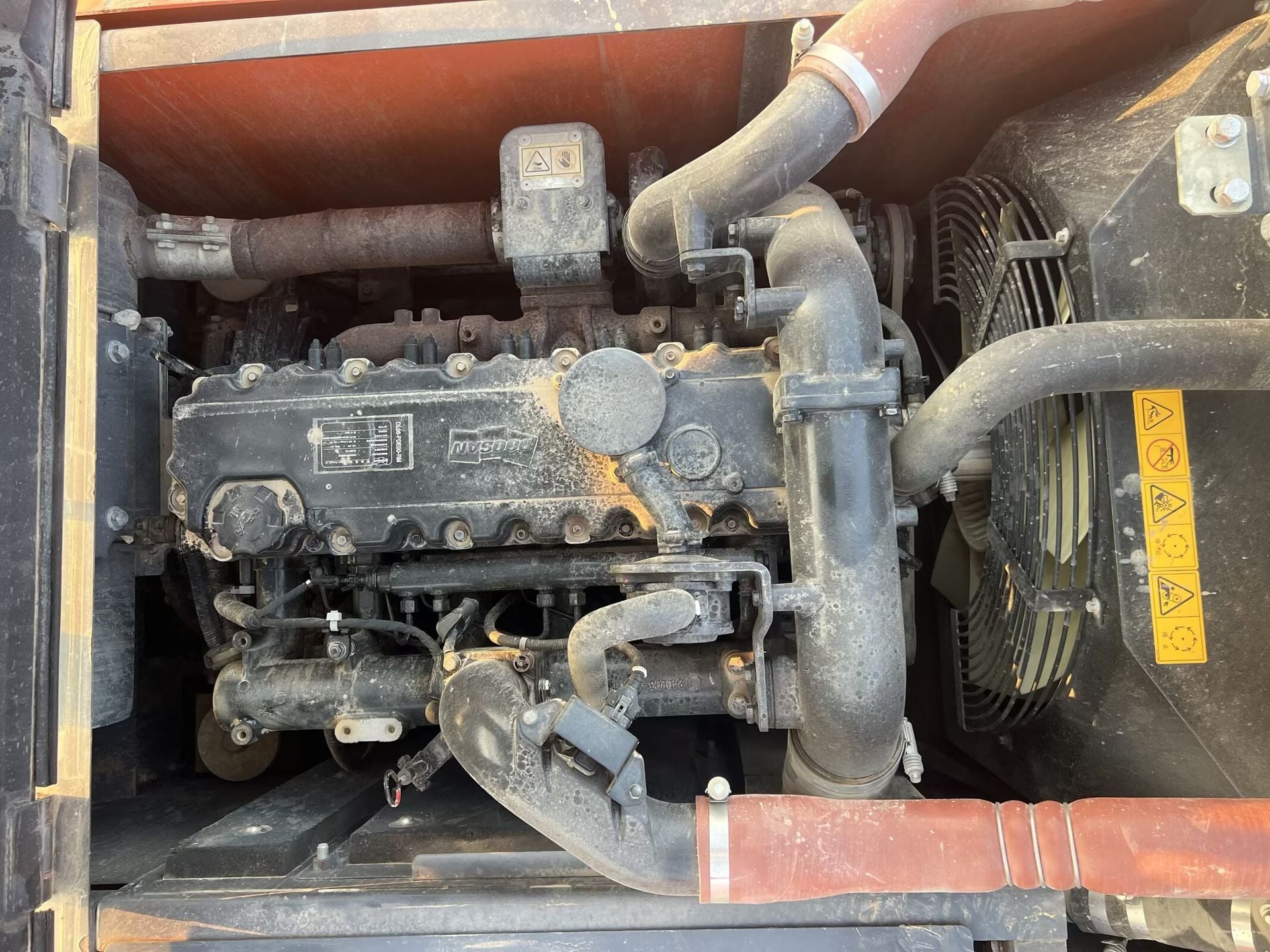

Engine System	Engine Model	Doosan DL06, 6-cylinder Inline Turbo Diesel
	Rated Power	115 kW @1900 rpm
	Displacement	5890 cc
	Bore × Stroke	100 mm × 125 mm
	Emission Standard	China III / Euro III
Hydraulic Performance	Bucket Breakout Force	136.2 kN
	Arm Breakout Force	98.0 kN

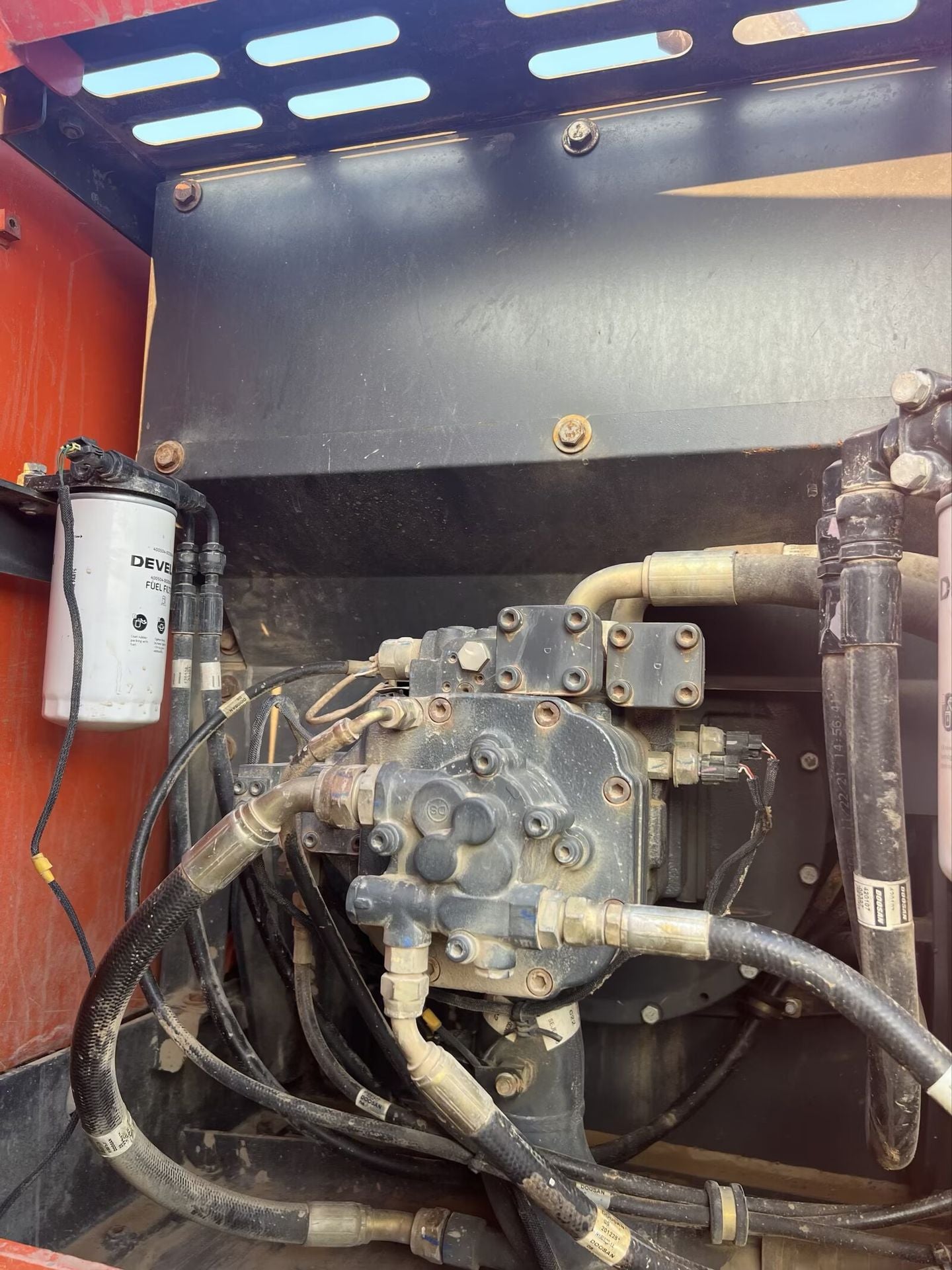

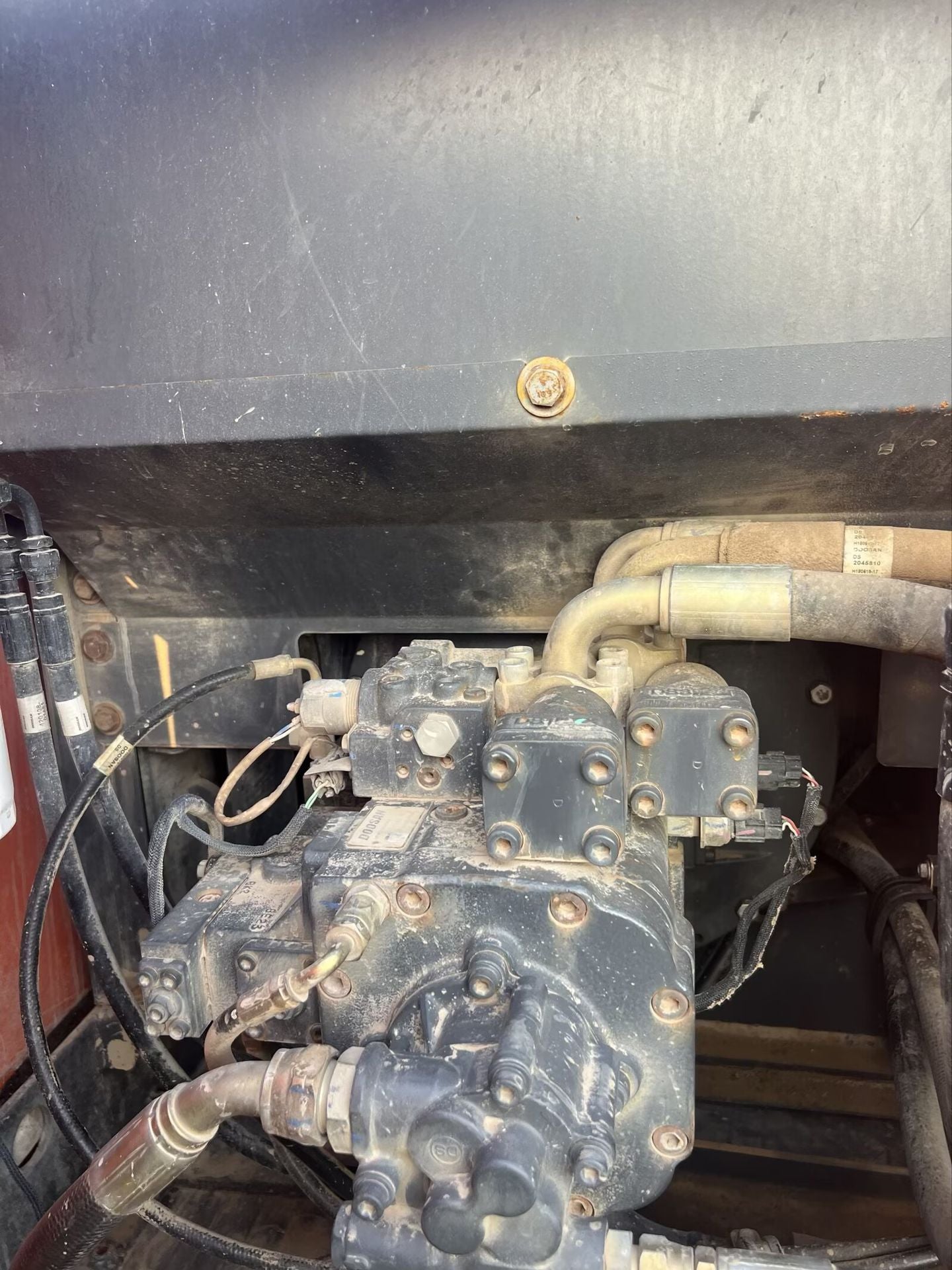

	Main Pump Displacement	2×103 L/min
	Max System Working Pressure	320 bar
Travel & Swing	High Travel Speed	5.5 km/h
	Low Travel Speed	3.4 km/h
	Swing Speed	10.1 rpm
	Max Gradeability	70%
Overall Dimension	Overall Length	9506 mm
	Overall Width	2800 mm
	Cab Top Height	2985 mm
Working Range	Max Digging Depth	6592 mm
	Max Digging Radius	9873 mm
	Max Digging Height	9616 mm
	Max Dumping Height	6830 mm
Tank Volume	Fuel Tank Capacity	400 L
	Hydraulic Oil Tank Capacity	195 L
	Engine Oil Volume	27 L
Standard Accessory	Factory Configuration	Pre-installed hydraulic breaker piping
