DOOSAN

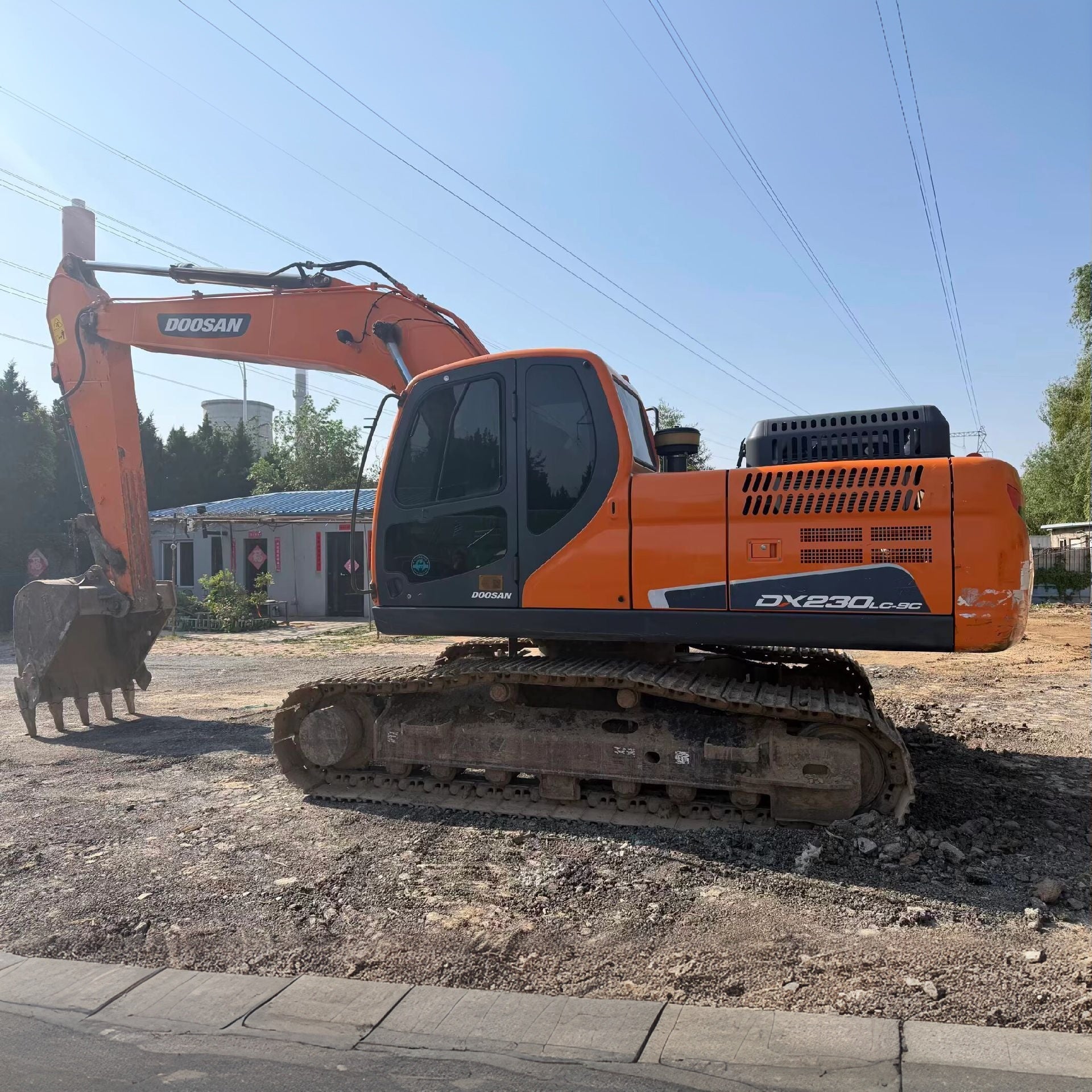

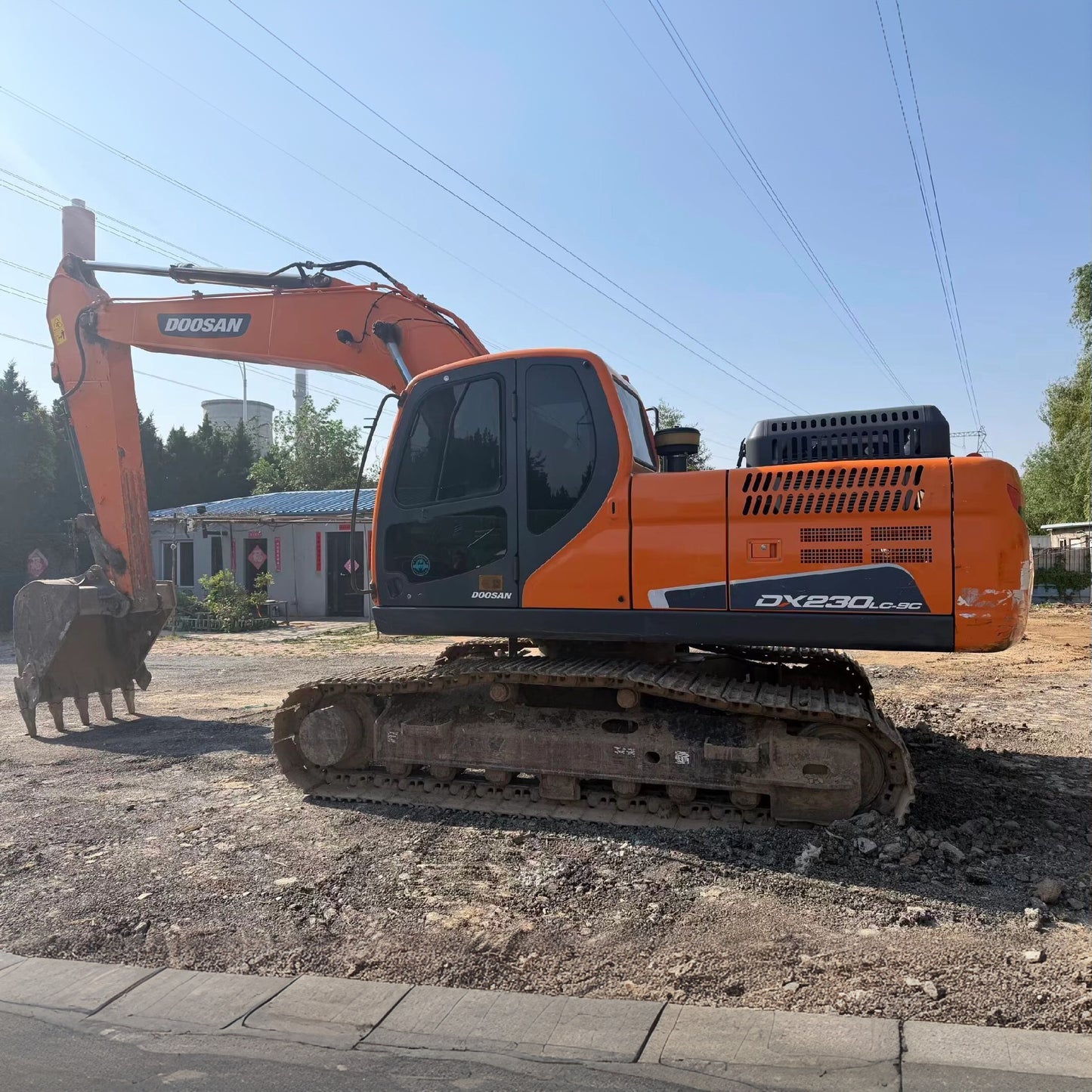

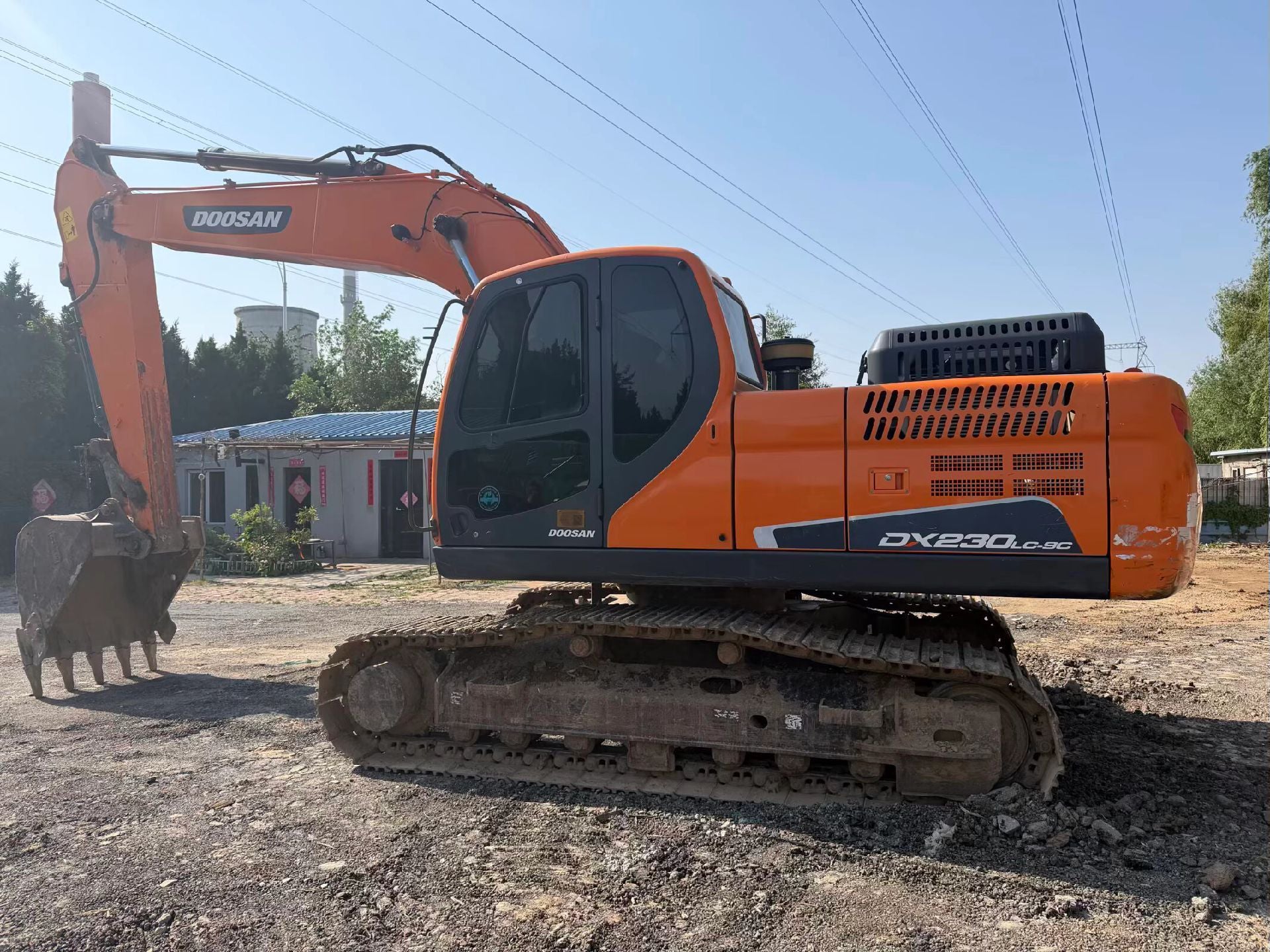

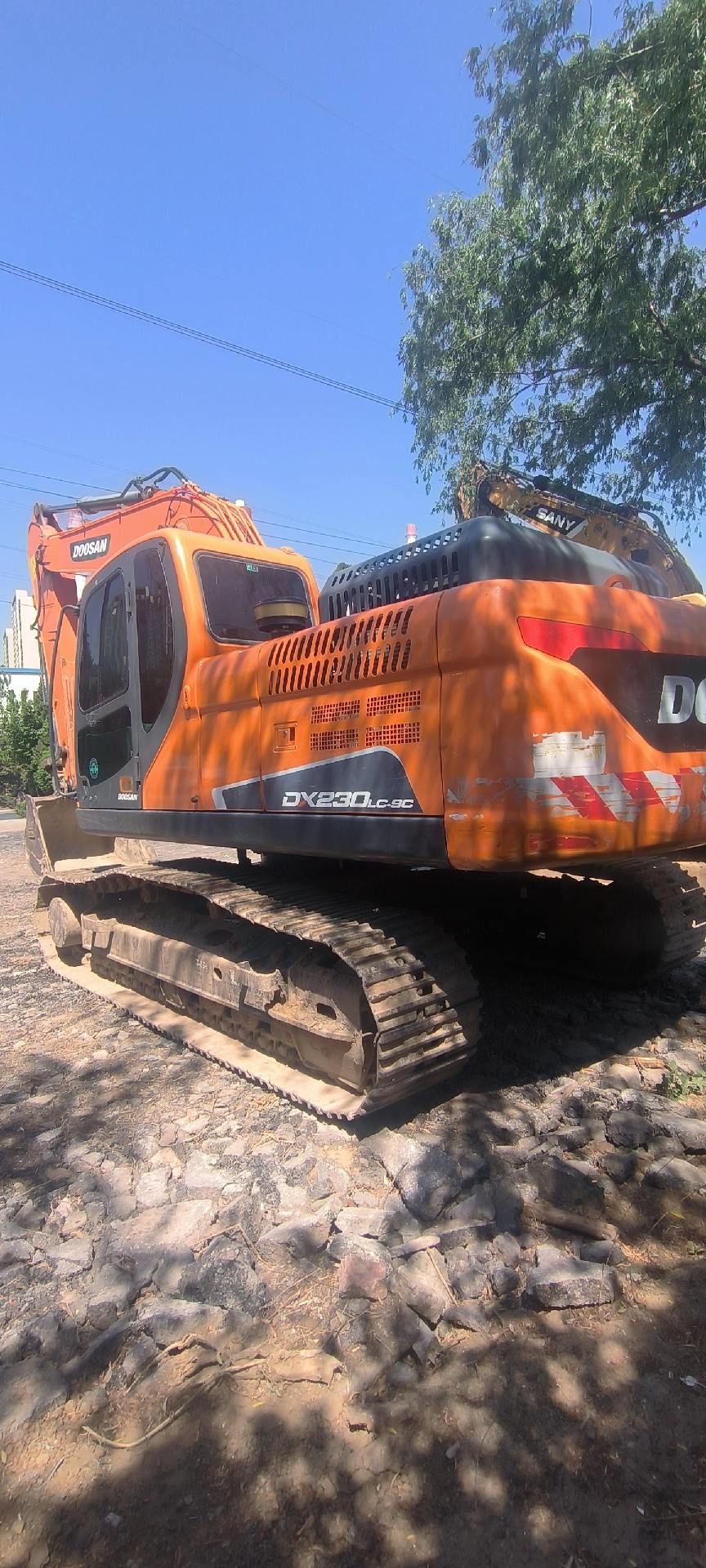

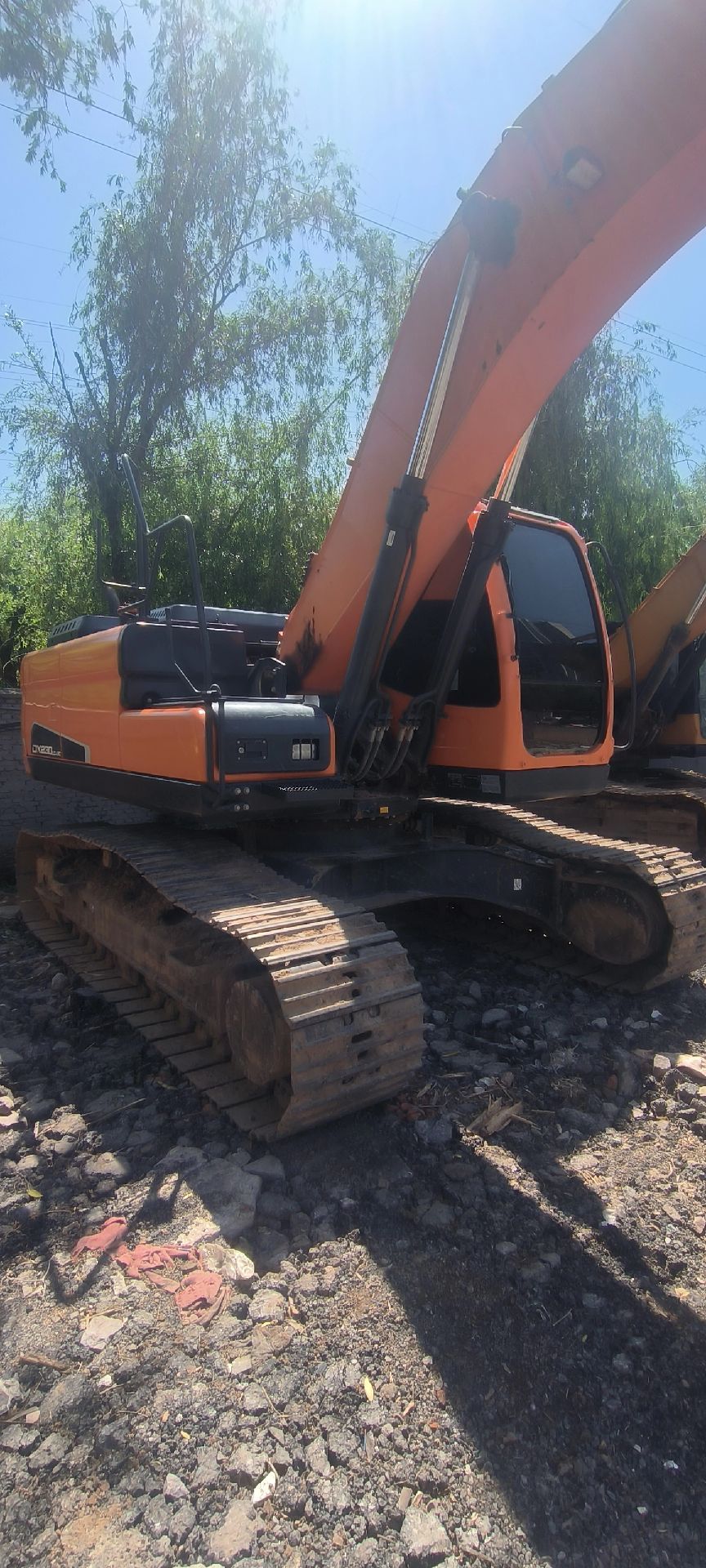

USED DOOSAN DX230LC-9C

USED DOOSAN DX230LC-9C

$22,000.00 USD
$22,000.00 USD
Oferta Agotado
Category Specification Item Parameter Value
Basic Machine Data Model DX230LC-9C
Operating Weight 22260 kg
Standard Bucket Capacity 1.2 m³ (Optional:1.3 m³)
Standard Boom Length 5700 mm
Standard Arm Length 2900 mm
Track Shoe Width 600 mm
Ground Contact Pressure 45 kPa
Engine System Engine Model Doosan DL06, 6-Cylinder Inline Turbo Diesel
Rated Power 115 kW @1900 rpm
Bore × Stroke 100 mm × 125 mm
Emission Standard China Stage III / Tier 3
Hydraulic Performance Bucket Breakout Force 149 kN
Arm Breakout Force 105 kN
Main Pump Total Flow 2×212 L/min
Working System Pressure 34.3 MPa (343 bar)
Travel & Swing High Travel Speed 5.7 km/h
Low Travel Speed 3.1 km/h
Swing Speed 10.5 rpm
Max Gradeability 70%
Overall Dimension Overall Length 9506 mm
Overall Width 2990 mm
Cab Top Height 2985 mm
Working Range Max Digging Depth 6620 mm
Max Vertical Digging Depth 5980 mm
Max Digging Radius 9875 mm
Max Digging Height 9616 mm
Max Dumping Height 6830 mm
Tank Capacity Fuel Tank Volume 400 L
Hydraulic Oil Tank Volume 195 L
Standard Accessory Factory Configuration Pre-installed hydraulic breaker piping
