DOOSAN

USED DOOSAN DX260LC-9C

$24,000.00 USD

Oferta Agotado

Category	Specification Item	Parameter Value
Basic Specification	Model	DX260LC-9C
	Operating Weight	25060 kg
	Standard Bucket Capacity	1.4 m³
	Standard Boom Length	5900 mm
	Standard Arm Length	3000 mm
	Track Shoe Width	600 mm
	Ground Contact Pressure	49.2 kPa

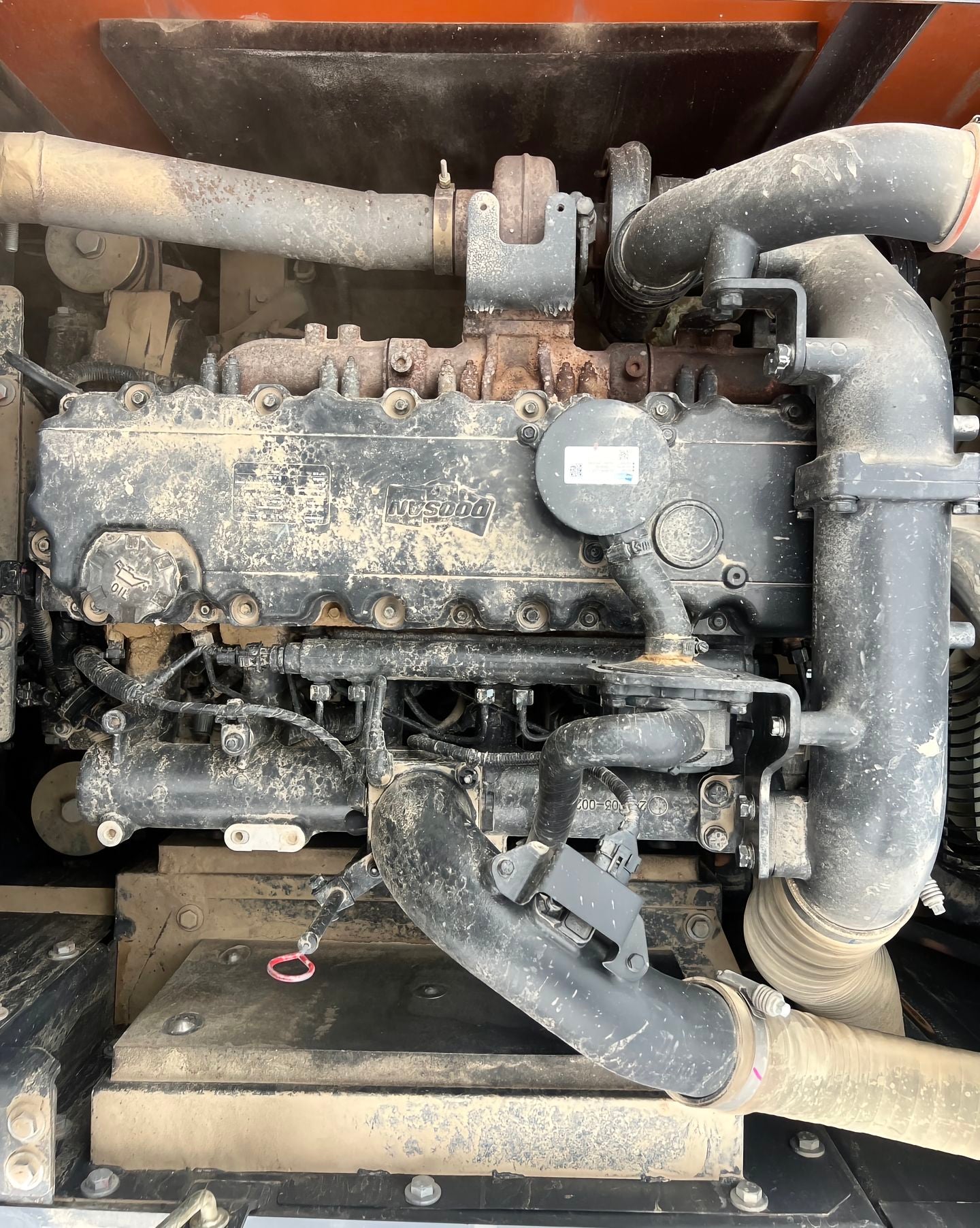

Engine System	Engine Model	Doosan DL06A-C3, 6-Cylinder Inline Turbo Diesel
	Rated Power	140 kW @2200 rpm
	Bore × Stroke	100 mm × 125 mm
	Emission Standard	China Stage III
Hydraulic Performance	Bucket Breakout Force	166.6 kN
	Arm Breakout Force	114.7 kN
	Total Main Pump Flow	2×219 L/min
	Max System Working Pressure	34.3 MPa (343 bar)
Travel & Swing	High Travel Speed	5.8 km/h
	Low Travel Speed	3.4 km/h
	Swing Speed	10.0 rpm
	Max Swing Torque	8140 N·m
	Max Gradeability	70%
Overall Dimension	Overall Transport Length	10055 mm
	Overall Width	3200 mm
	Cab Top Height	2960 mm
Working Range	Max Digging Depth	6810 mm
	Max Digging Radius	10180 mm
	Max Digging Height	9920 mm
	Max Dumping Height	7090 mm
Tank Capacity	Fuel Tank Volume	410 L
	Hydraulic Oil Tank Volume	240 L
Standard Accessory	Factory Configuration	Pre-installed hydraulic breaker piping
