DYNAPAC

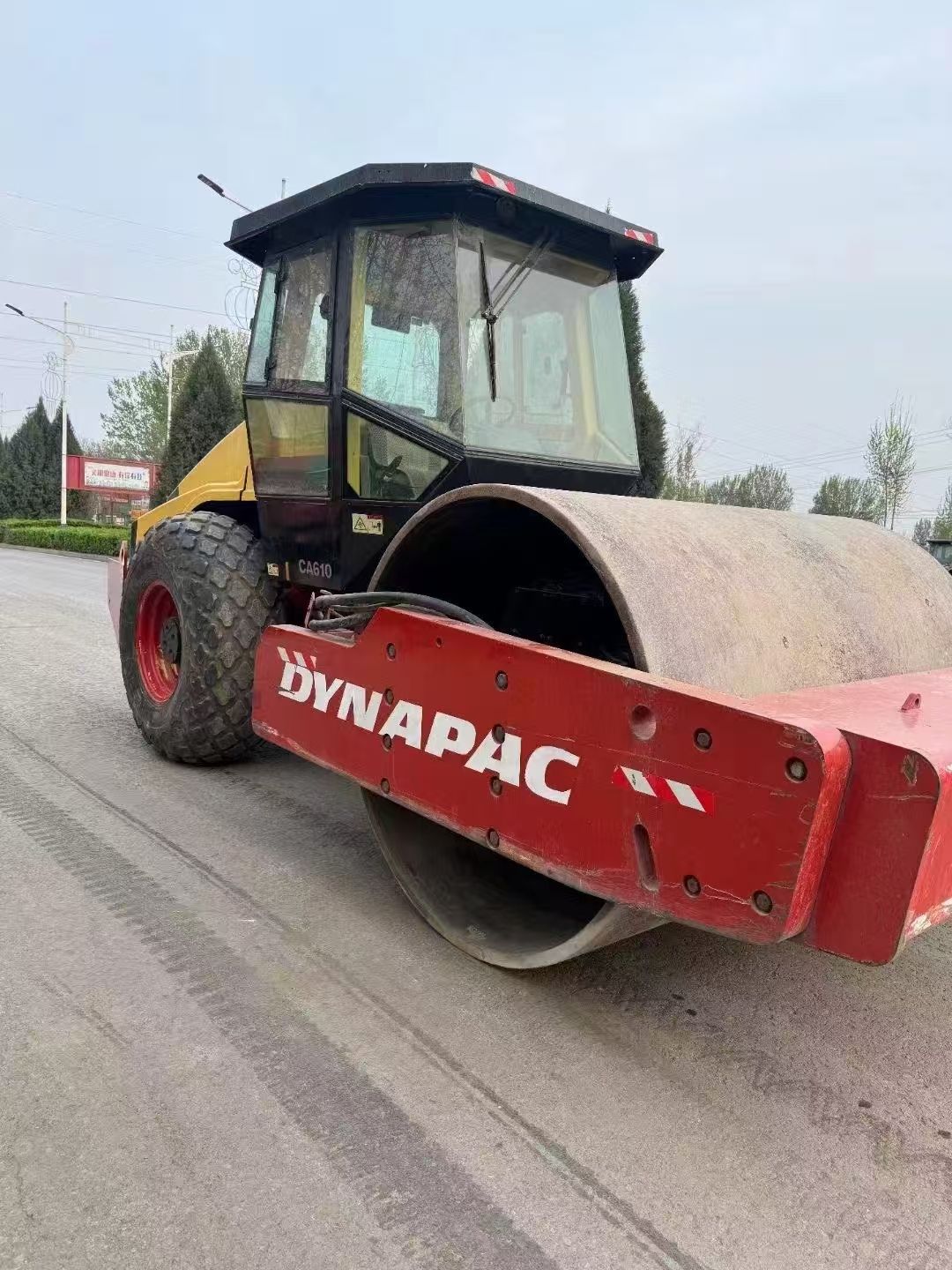

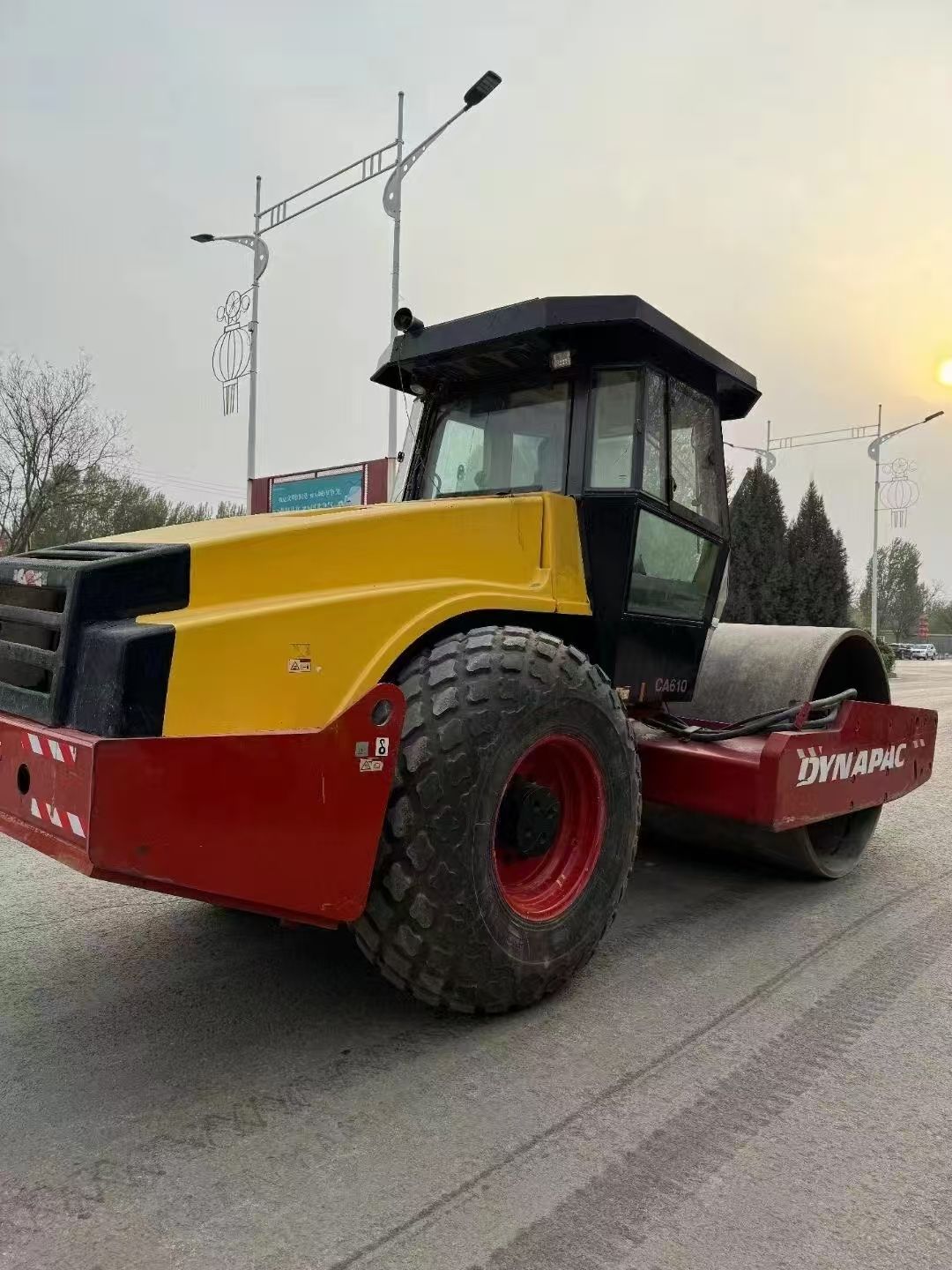

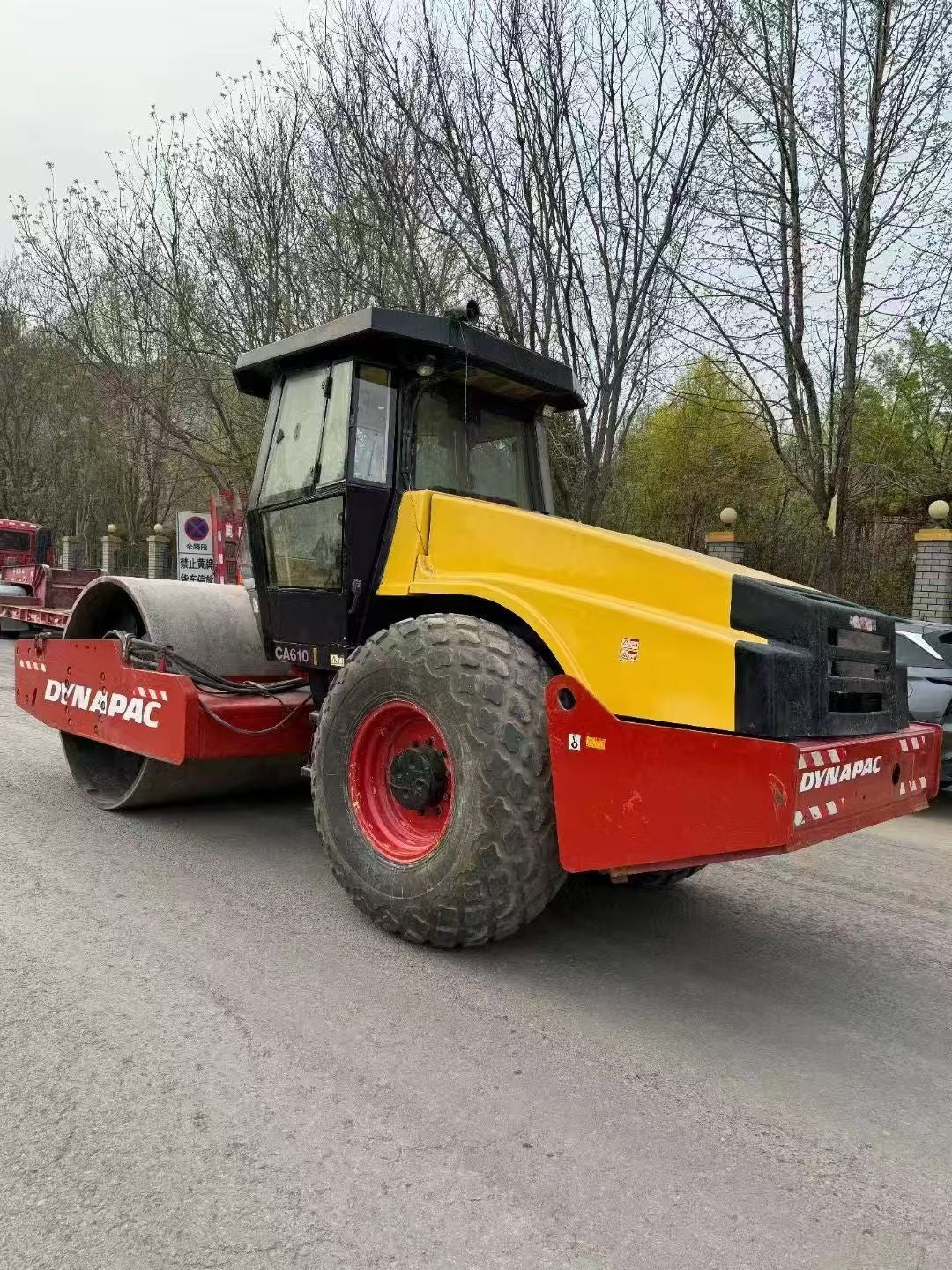

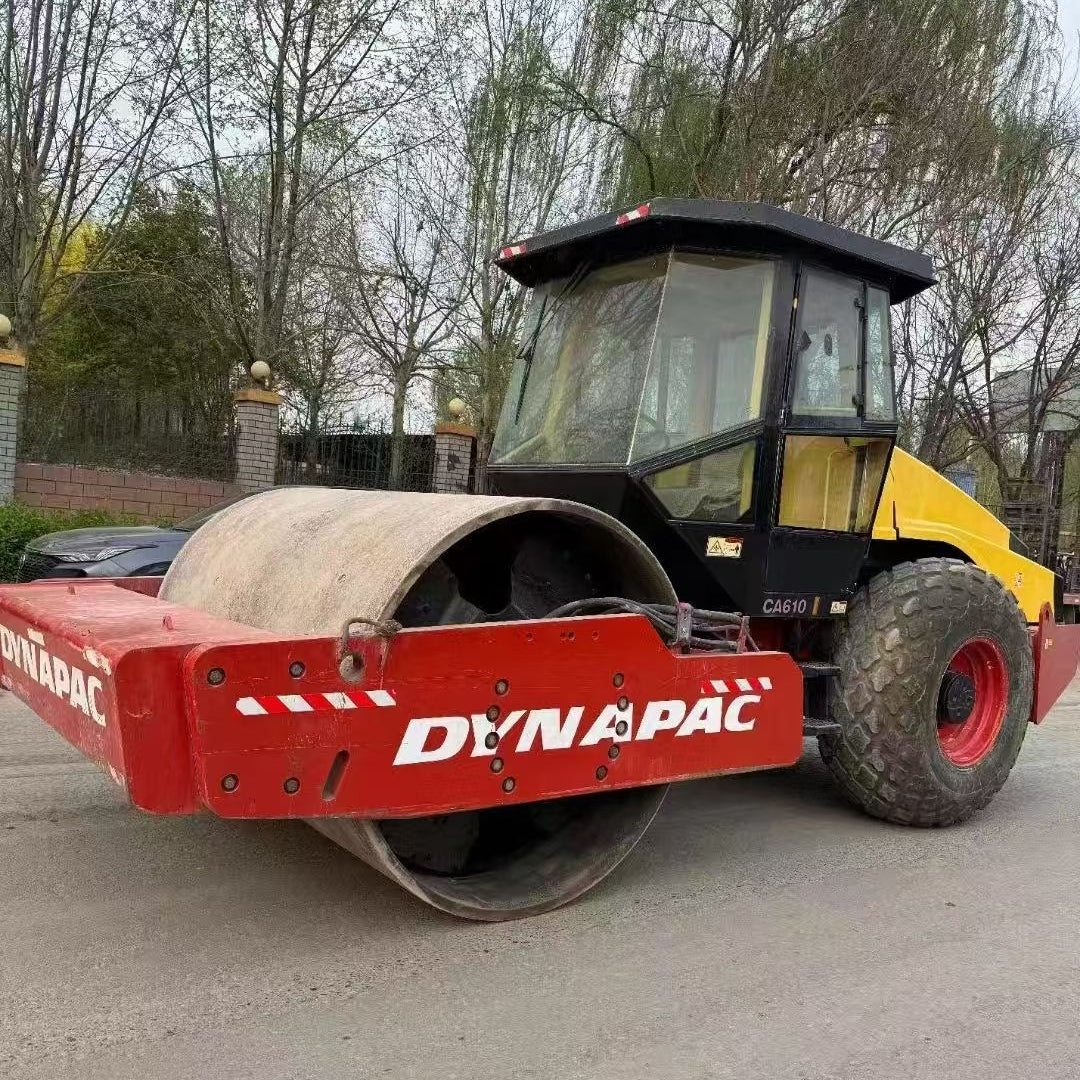

USED DYNAPAC CA610

$12,000.00 USD

Oferta Agotado

ITEM	SPECIFICATION
Model	DYNAPAC CA610 (D / PD)
Operating Weight (ROPS)	20,700 kg (45,636 lb)
Max Operating Weight	21,000 kg (46,297 lb)

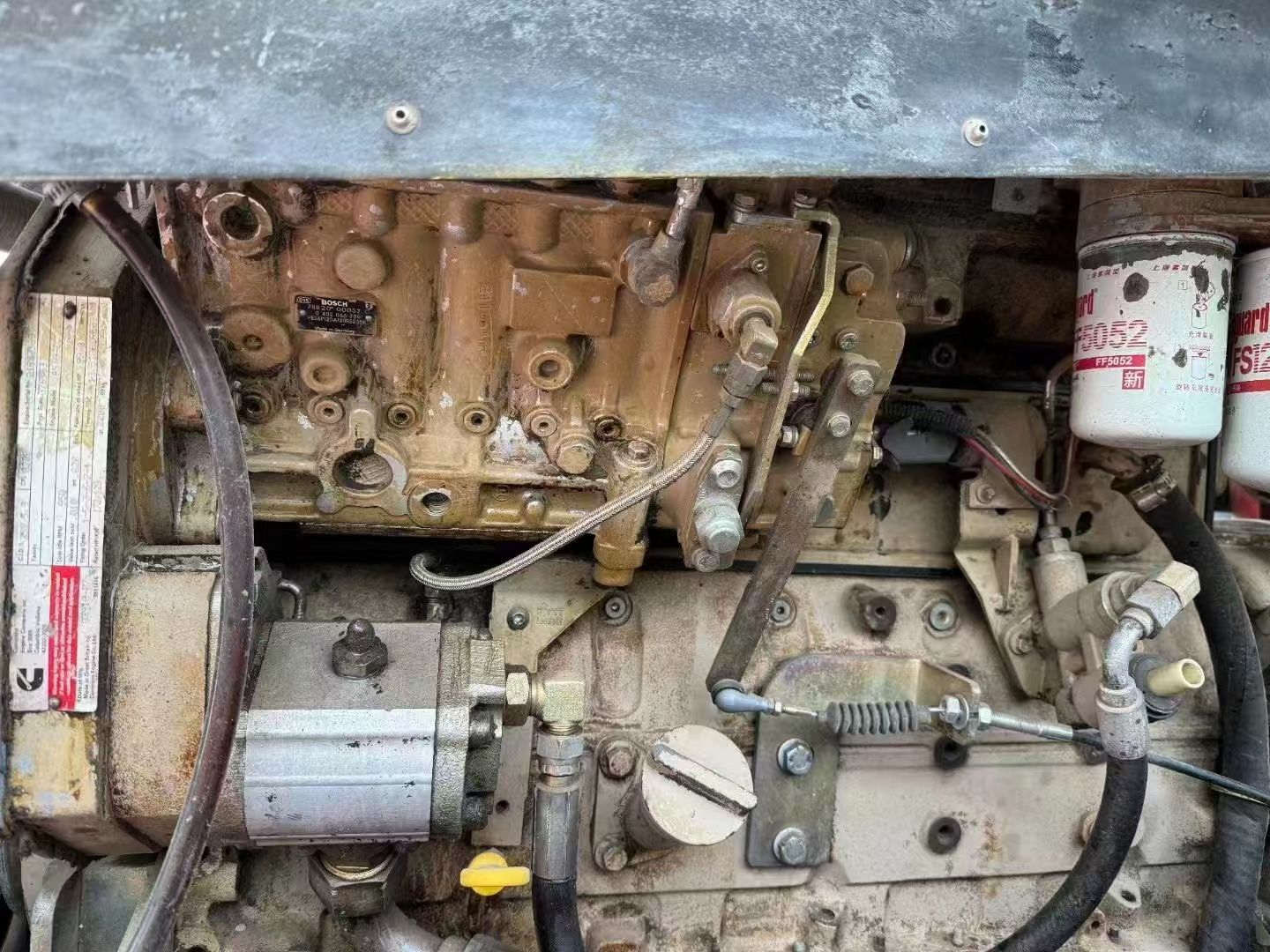

Engine Model	Cummins 6BTA5.9-C170 / QSB6.7-C173 (Tier 3)
Rated Power	129 kW / 173 HP @ 2,200 rpm
Emission Standard	Tier 3 / China Stage III（No DPF）
Vibration Frequency (High/Low)	31 / 29 Hz
Nominal Amplitude (High/Low)	1.8 / 1.1 mm
Centrifugal Force (High/Low)	317 / 231 kN
Drum Width	2,130 mm
Drum Diameter	1,543 mm
Static Linear Load	660 N/cm (66 kg/cm)
Travel Speed	11 km/h (6.9 mph)
Gradeability	43% (≈23°)
Fuel Tank Capacity	320 L (84.6 gal)
Dimensions (L × W × H)	6,180 × 2,400 × 3,000 mm
Wheelbase	2,992 mm
Ground Clearance	450 mm
Tire Size	23.1×26
Key Features	20t class heavy compaction, 317kN max force, 1.8mm large amplitude, Cummins power, ROPS cabin, D/PD interchangeable drum
