| Model |
DYNAPAC CC1200 (Double Smooth Drum, ROPS) |
| Operating Weight |
2,600 kg (5,732 lb)；Max 2,710 kg (5,975 lb)Dynapac
|
| Engine Model |

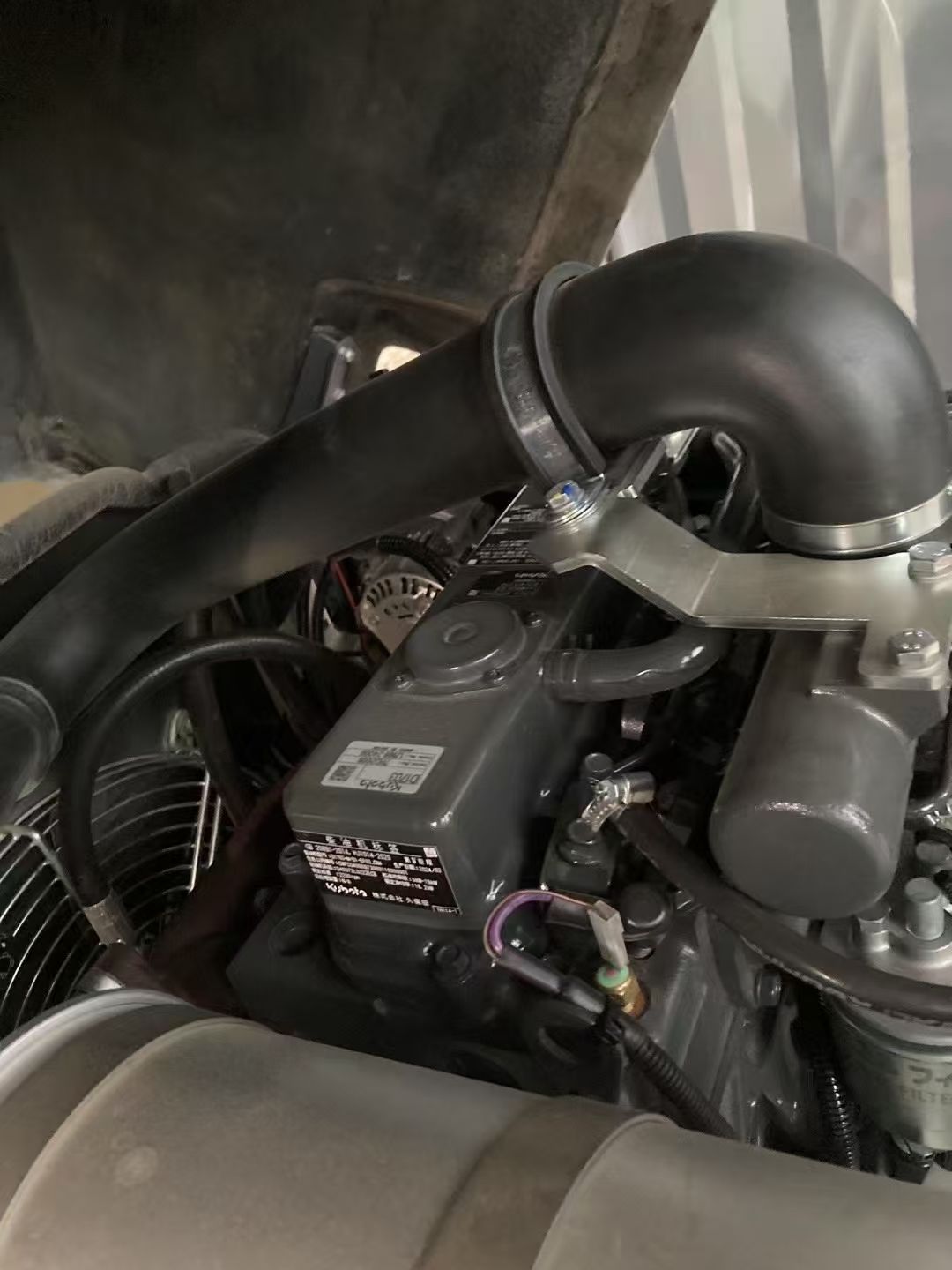

Kubota D1703‑M（Water‑cooled, 3‑cyl diesel） |
| Rated Power |
26 kW / 35 HP @ 2,800 rpm |
| Emission |
Stage IIIA / Tier 4i |
| Vibration Frequency |
58–66 Hz（Dual freq: 66 / 61 Hz） |
| Centrifugal Force |
27–34 kN（Front 34 kN / Rear 29 kN） |
| Drum Width |
1,200 mm (47 in)Dynapac
|
| Drum Diameter |
≈800 mm |
| Static Linear Load (F/R) |
10.5 / 11.3 kg/cm (103 / 111 N/cm)Dynapac
|
| Travel Speed |
0–10 km/h (6.2 mph) |
| Gradeability |
42–45% (≈23°–24°) |
| Fuel Tank Capacity |
50 L (13.2 gal) |
| Water Tank Capacity |
160–205 L (42–54 gal) |
| Dimensions (L×W×H, ROPS) |
2,395 × 1,310 × 2,640 mm |
| Wheelbase |
≈1,700 mm |
| Ground Clearance |
175 mm |
| Min. Turning Radius (Outer) |
3,800 mmDynapac
|
| Key Features |
Ultra‑compact 2.6t, Kubota 3‑cyl water‑cooled, dual vibration, 1.2m width, excellent maneuverability, Sweden original |
