| Model |

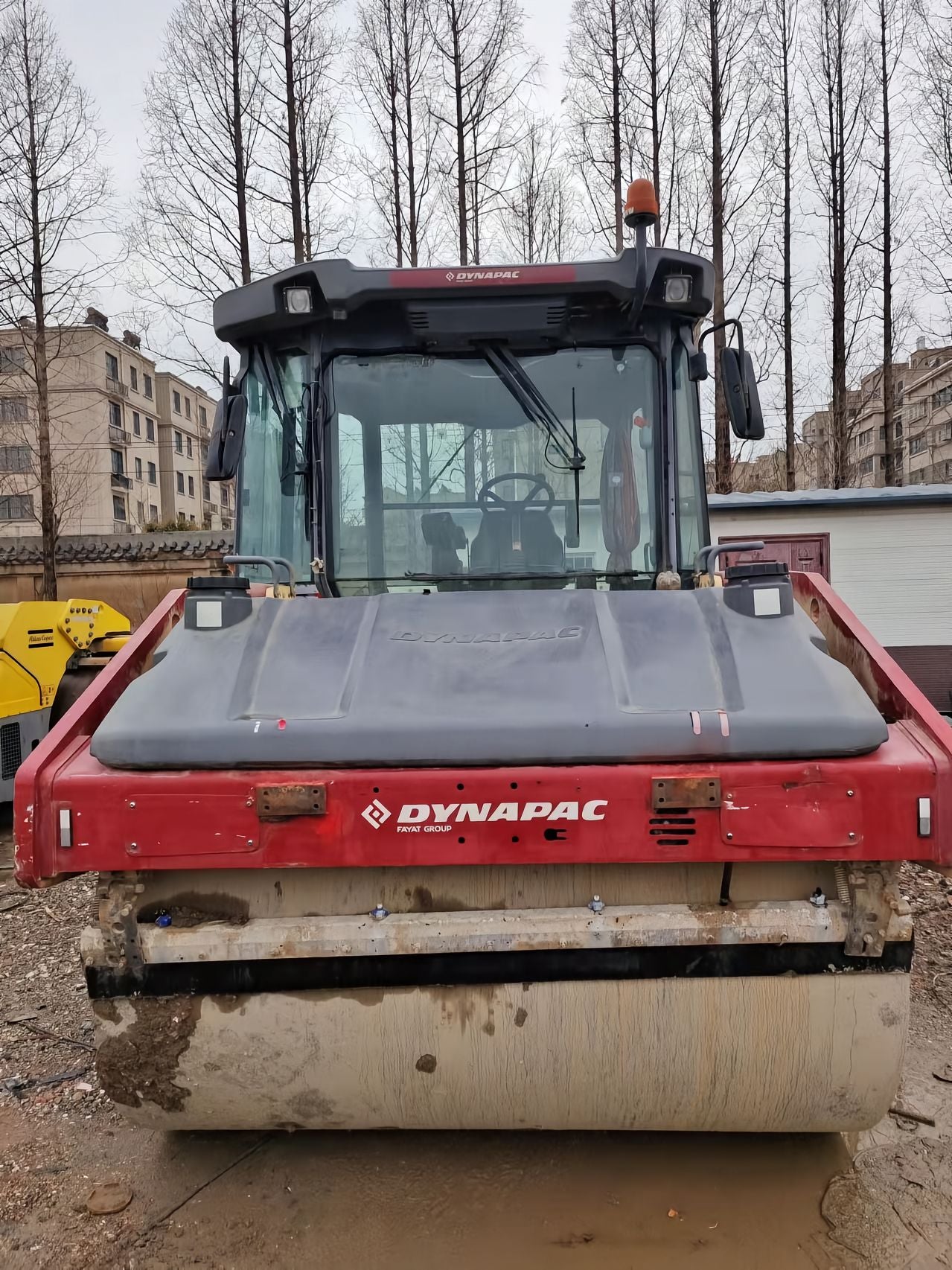

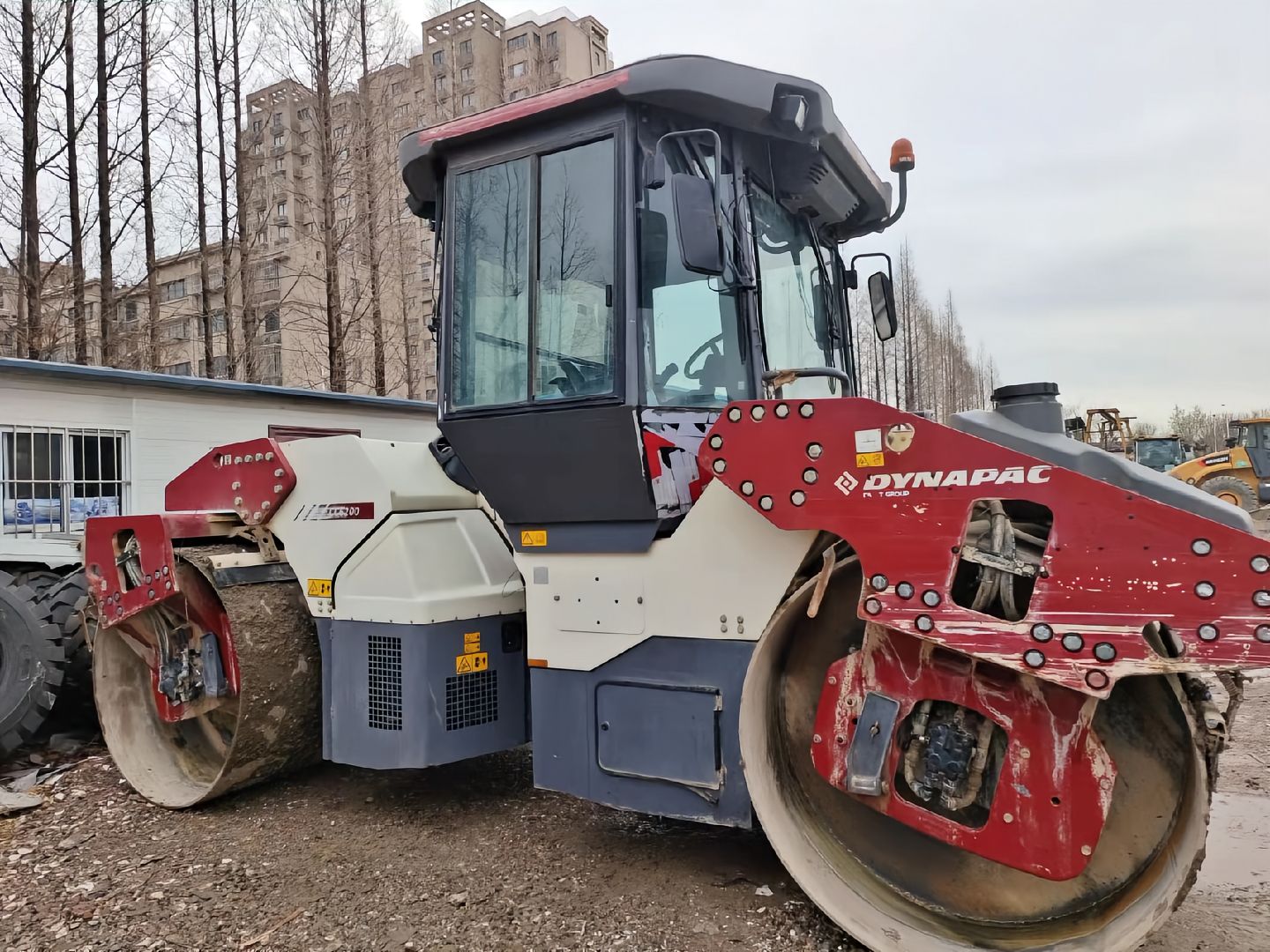

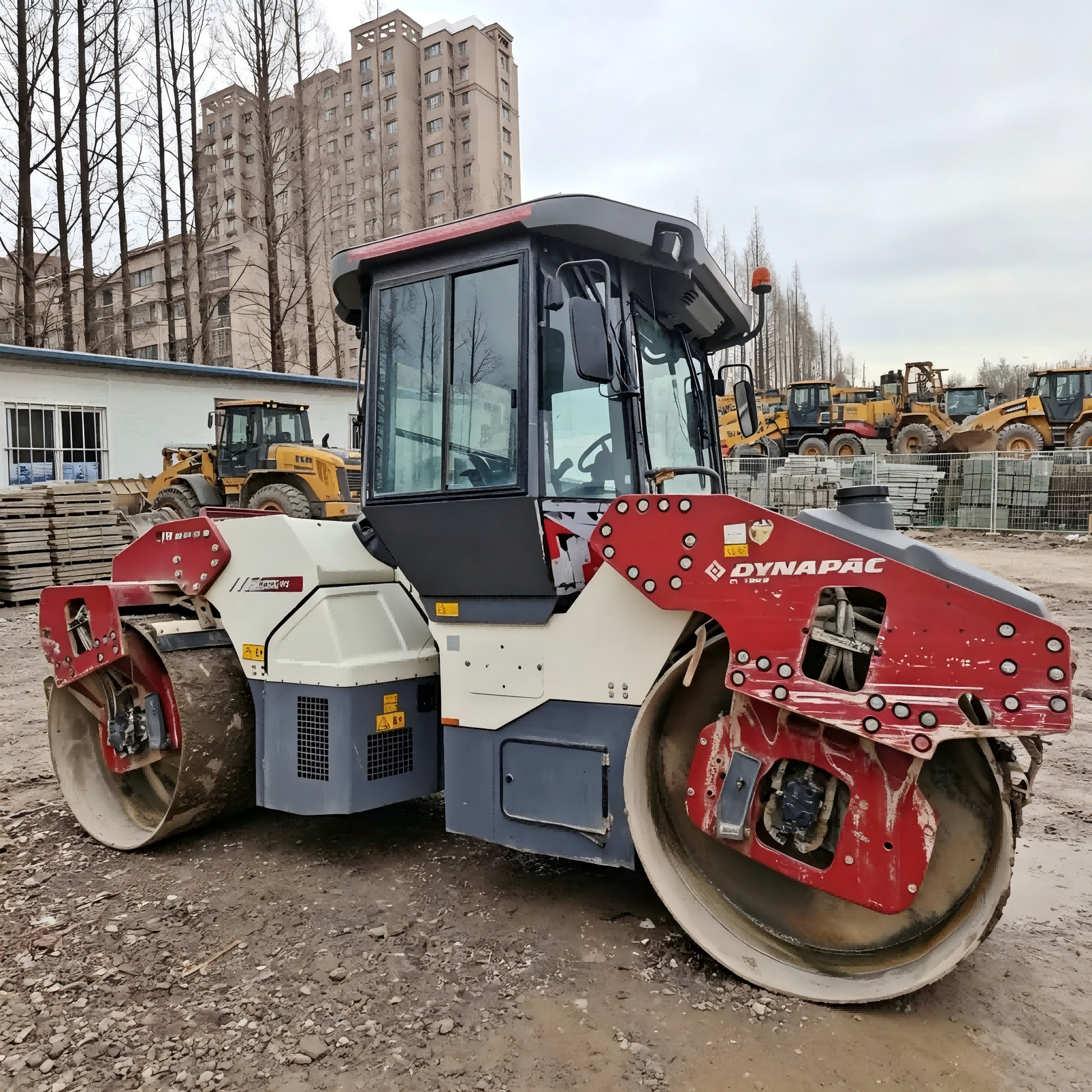

DYNAPAC CC6200 (Articulated Tandem Roller, Oscillating) |
| Operating Weight |
12,700 kg (27,999 lb)；Max 13,600 kg (29,983 lb) |
| Engine Model |

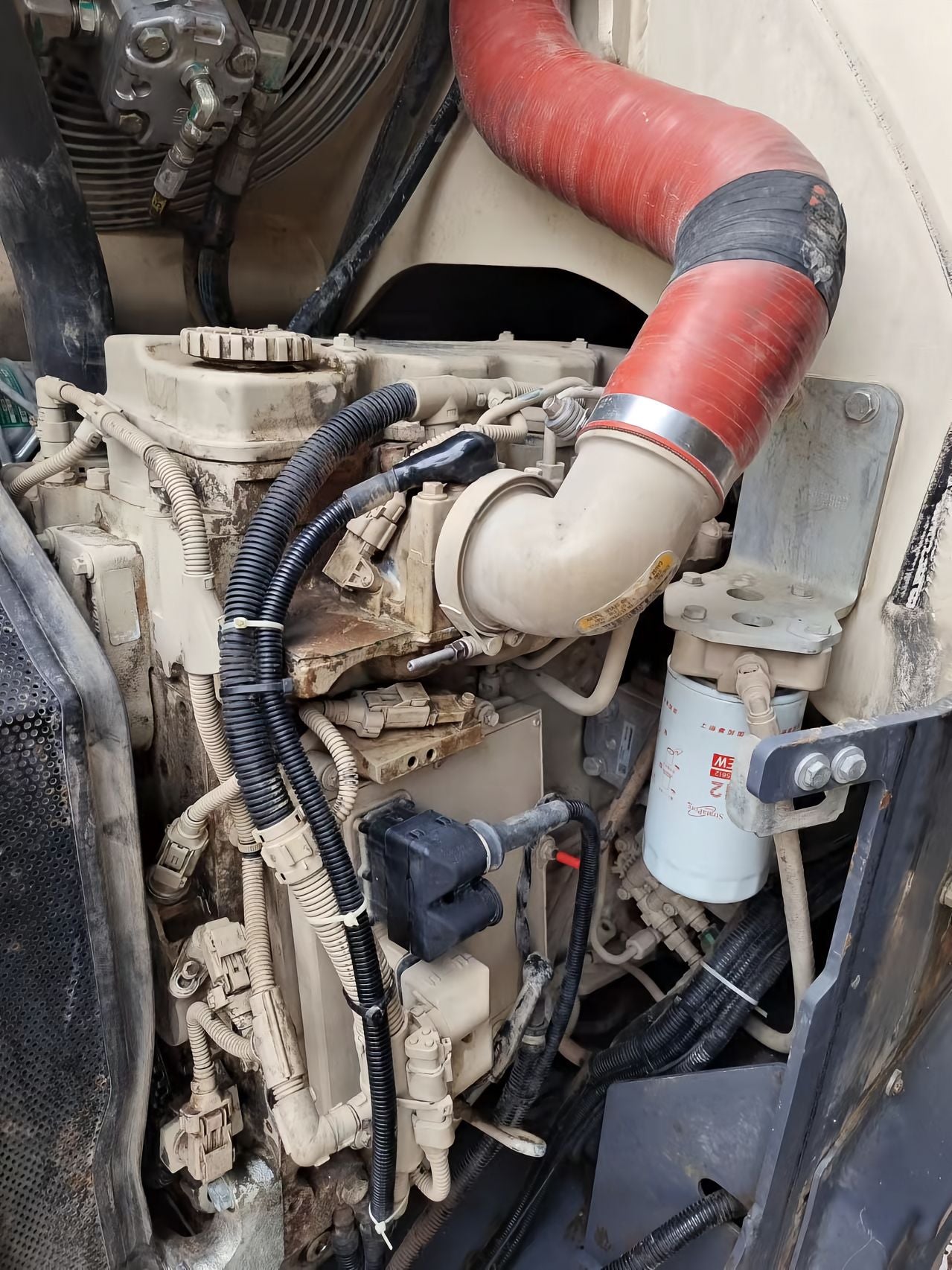

Cummins QSB 4.5 IIIB / T4i（4‑cyl turbo diesel, water‑cooled） |
| Rated Power |
119 kW / 160 HP @ 2,200 rpm |
| Emission |
Tier 4i / Stage IIIB / China Stage III |
| Vibration Frequency (High/Low) |
67 Hz / 51 Hz |
| Nominal Amplitude (High/Low) |
0.8 mm / 0.3 mm |
| Centrifugal Force (High/Low) |
166 kN / 106 kN |
| Drum Width |
2,130 mm (84 in)Dynapac
|
| Drum Diameter |
1,300 mm (51.2 in)Dynapac
|
| Drum Thickness |
18 mmDynapac
|
| Static Linear Load (F/R) |
30.0 / 30.0 kg/cm (294 / 294 N/cm)Dynapac
|
| Travel Speed |
0–12 km/h (7.5 mph) |
| Gradeability |
38% (≈21°) |
| Fuel Tank Capacity |
240 L (63.5 gal) |
| Water Tank Capacity |
900 / 1,150 / 1,400 L (238 / 304 / 370 gal) |
| Dimensions (L×W×H, Cab) |
4,990 × 2,290 × 2,990 mmDynapac
|
| Wheelbase |
3,690 mmDynapac
|
| Ground Clearance |
310 mm |
| Min. Turning Radius (Outer) |
6,160 mmDynapac
|
| Oscillating Angle |
±7° |
| Steering Angle |
±32°Dynapac
|
| Key Features |
13t high‑frequency, 67Hz/166kN, 2.13m wide drum, Cummins 160HP, oscillating drum, Dyn@Link, EcoMode, Sweden original |
