| Model |

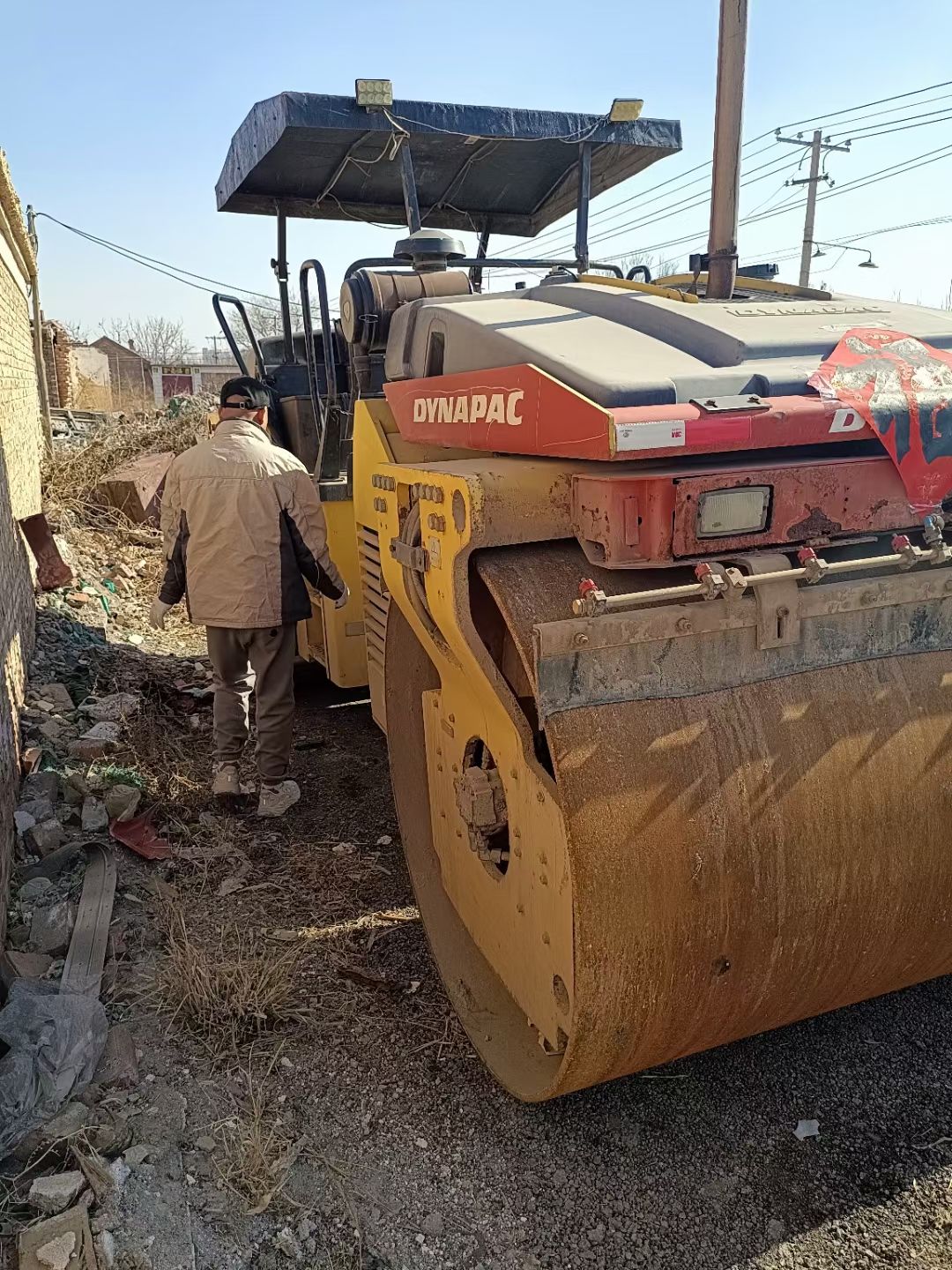

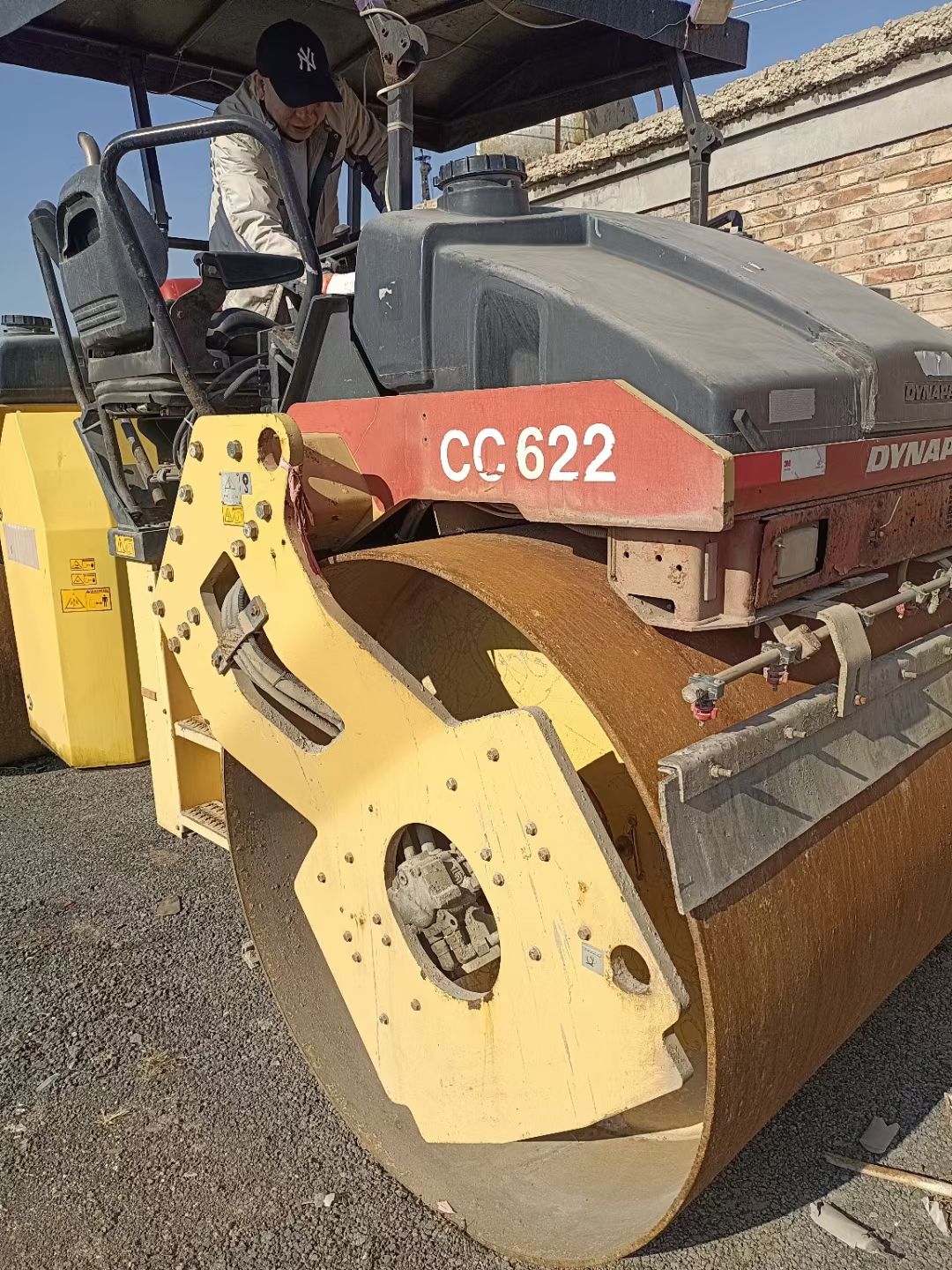

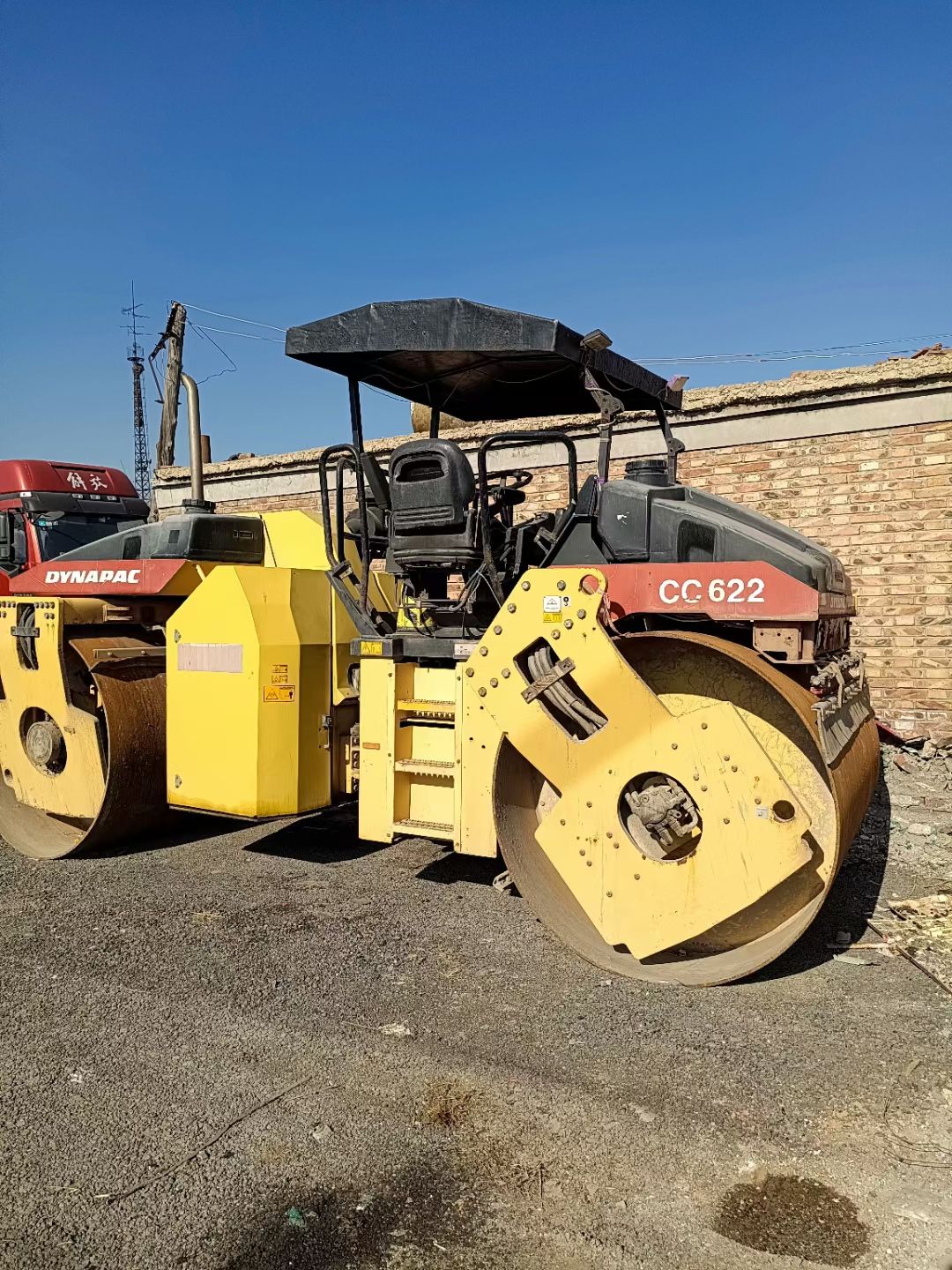

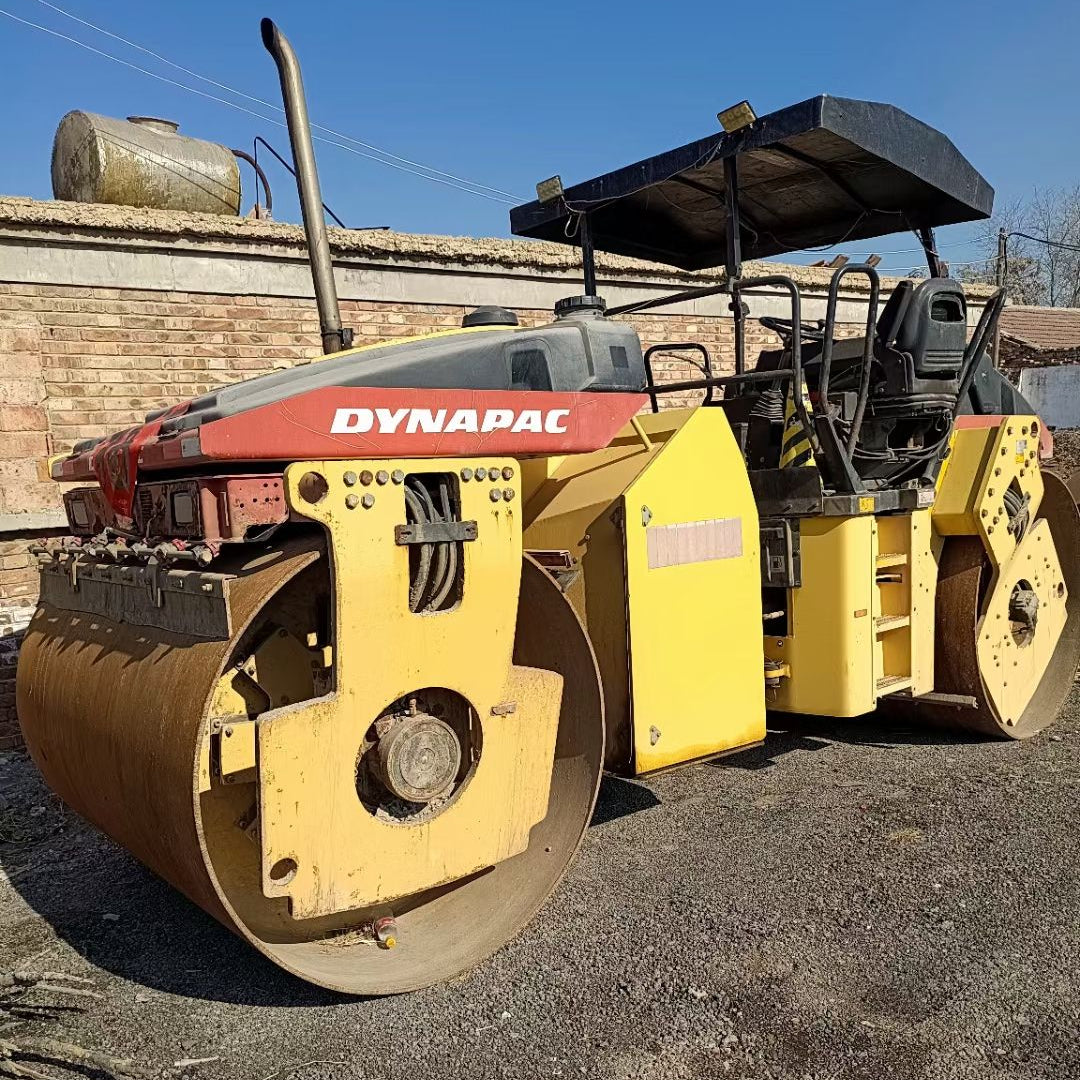

DYNAPAC CC622 / CC622HF (HF = High Frequency) |
| Operating Weight |
12,000–13,200 kg (26,455–29,101 lb) |
| Engine Model |

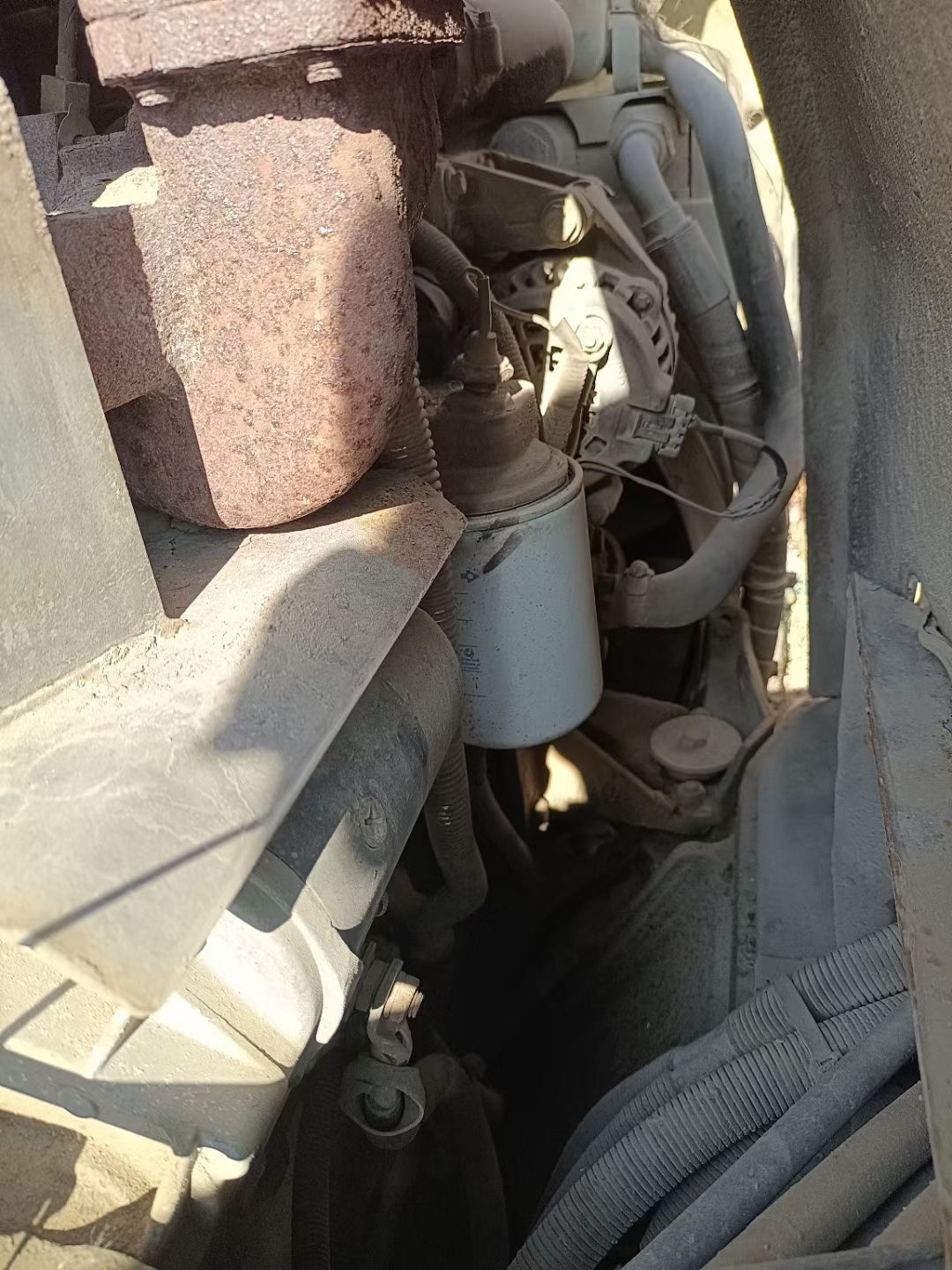

Cummins 4BTAA3.9‑C (4‑cyl diesel, turbo) |
| Rated Power |
93 kW / 125 HP @ 2,200 rpm |
| Emission |
Tier 2 / China Stage II |
| Vibration Frequency (High / Low) |
50 Hz / 62 Hz |
| Nominal Amplitude (High / Low) |
0.6 mm / 0.2 mm |
| Centrifugal Force (High / Low) |
131 kN / 79 kN |
| Drum Width |
2,130 mm |
| Drum Diameter |
1,400 mm |
| Static Linear Load (Front/Rear) |
≈30 kg/cm (294 N/cm) |
| Travel Speed |
0–11 km/h (6.8 mph) |
| Gradeability |
35% (≈19°) |
| Fuel Tank Capacity |
200 L (52.8 gal) |
| Water Tank Capacity |
485 L (128 gal) |
| Dimensions (L×W×H, Cab) |
5,090 × 2,270 × 3,040 mmDynapac
|
| Wheelbase |
≈3,500 mm |
| Ground Clearance |
≈450 mm |
| Min. Turning Radius |
≈6,000 mm |
| Key Features |
12t class, high frequency (HF) for thin asphalt layers, Cummins turbo diesel, dual vibration, large water tank, Sweden original |
