HELI

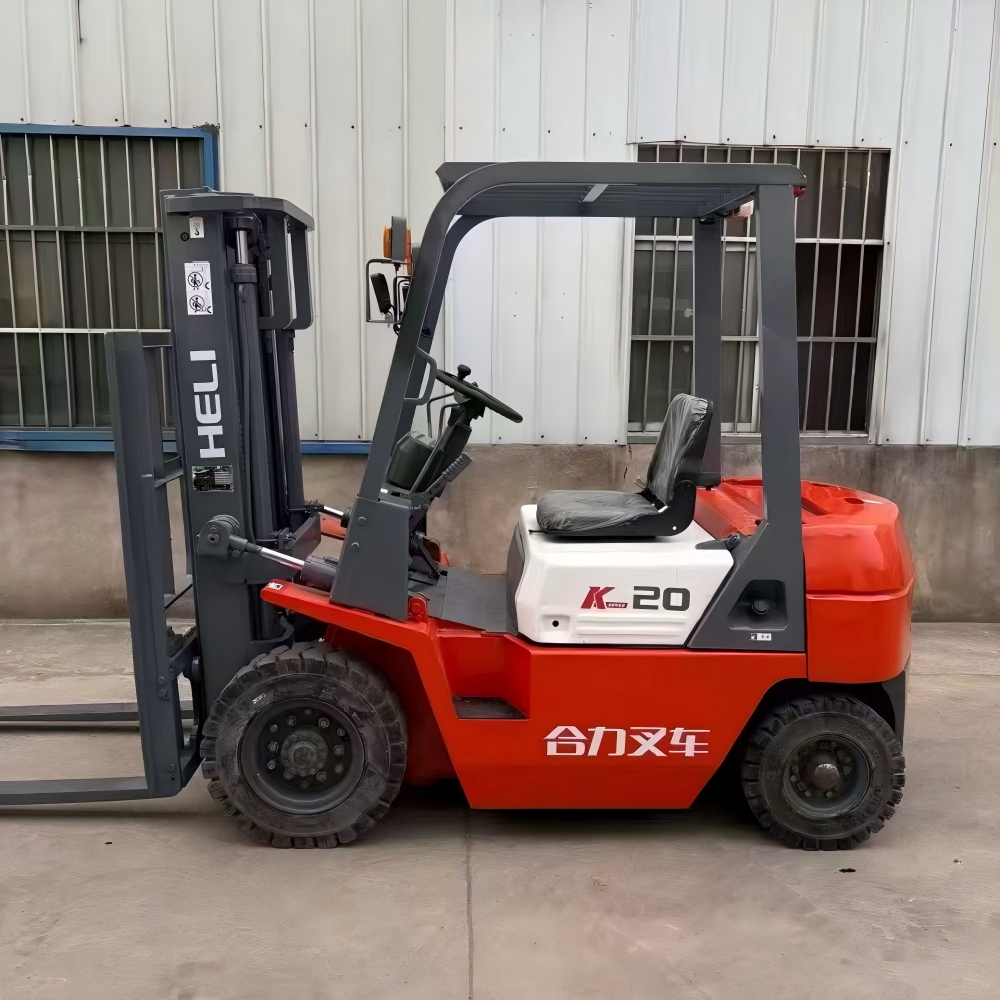

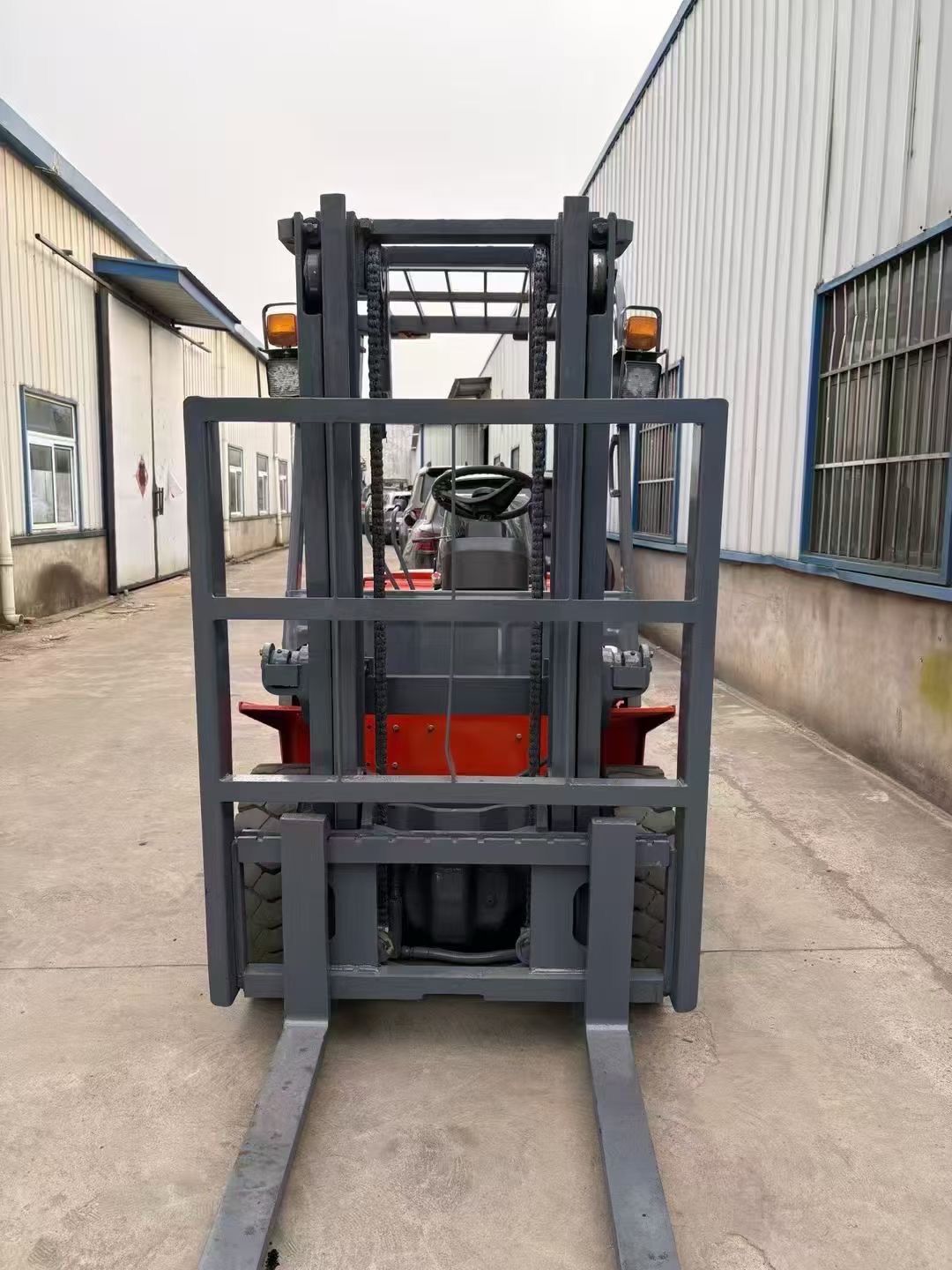

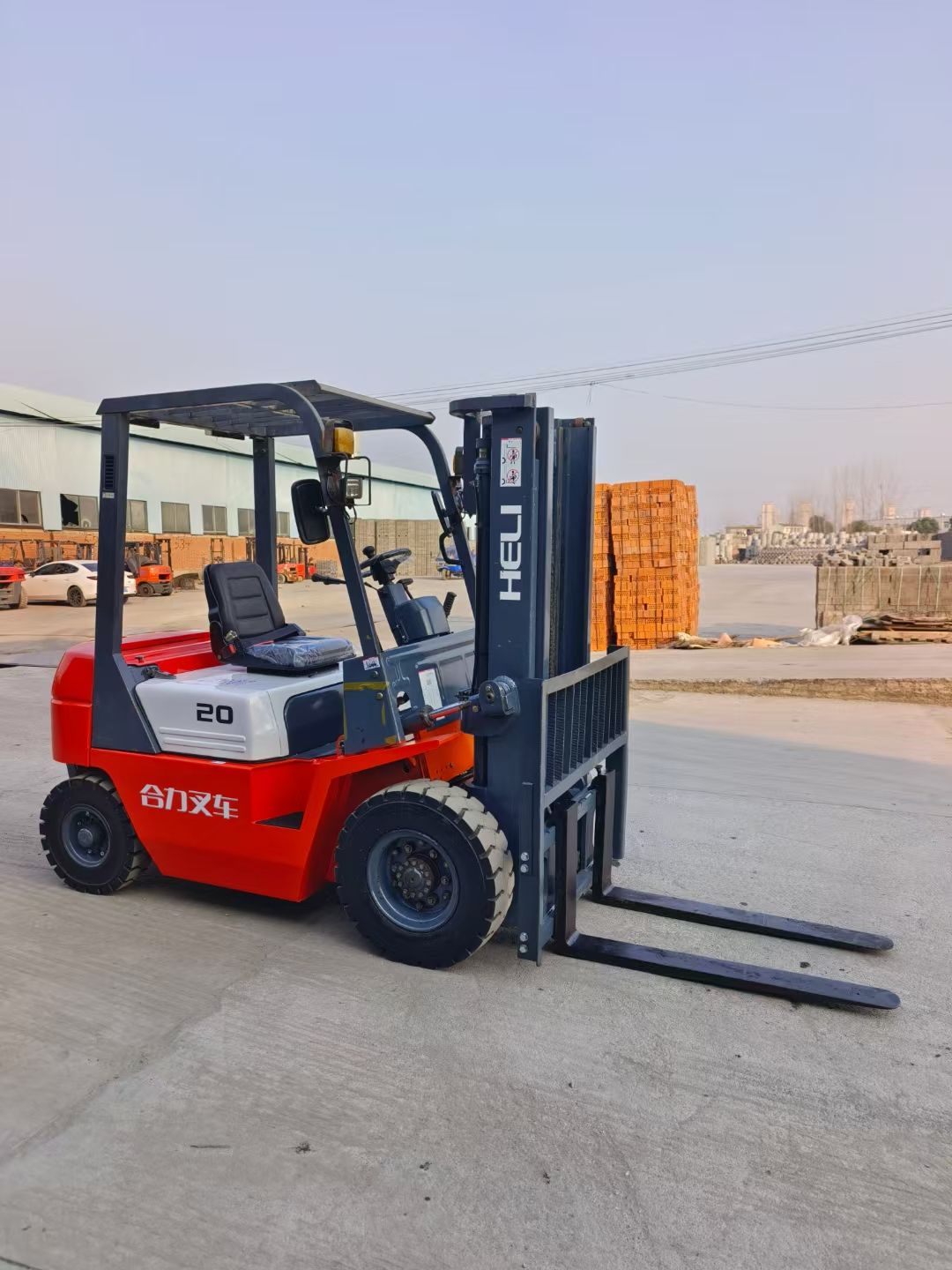

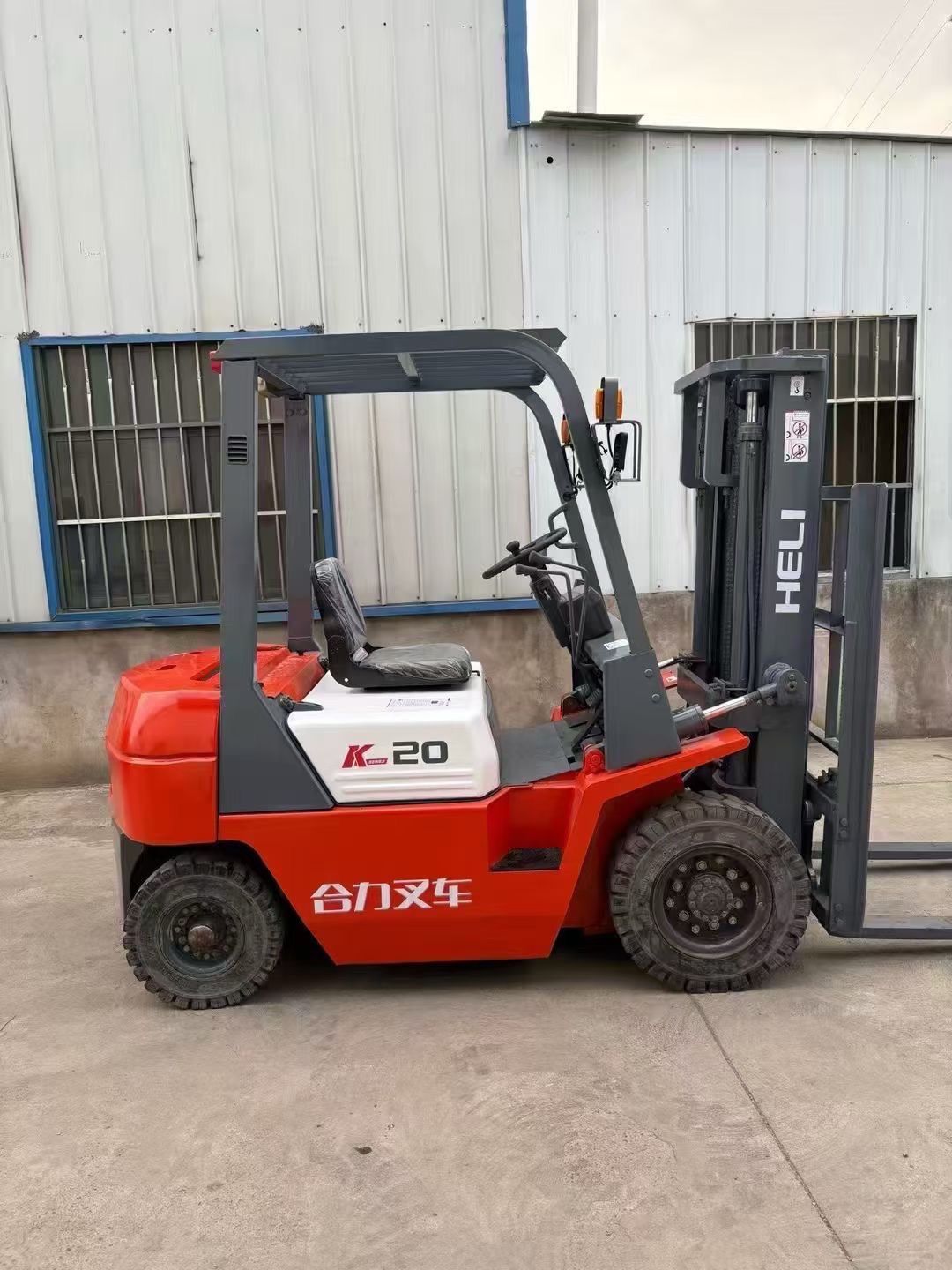

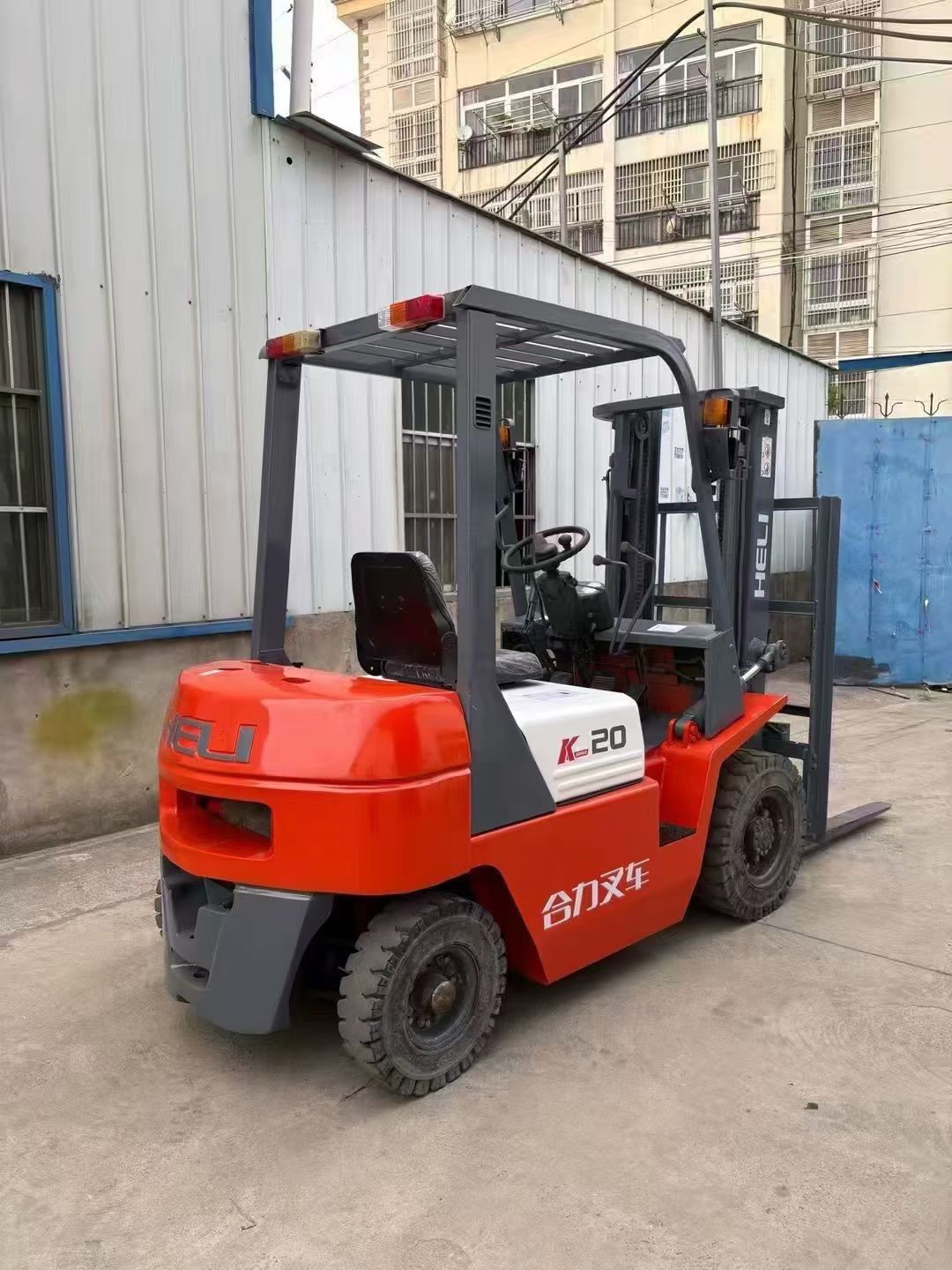

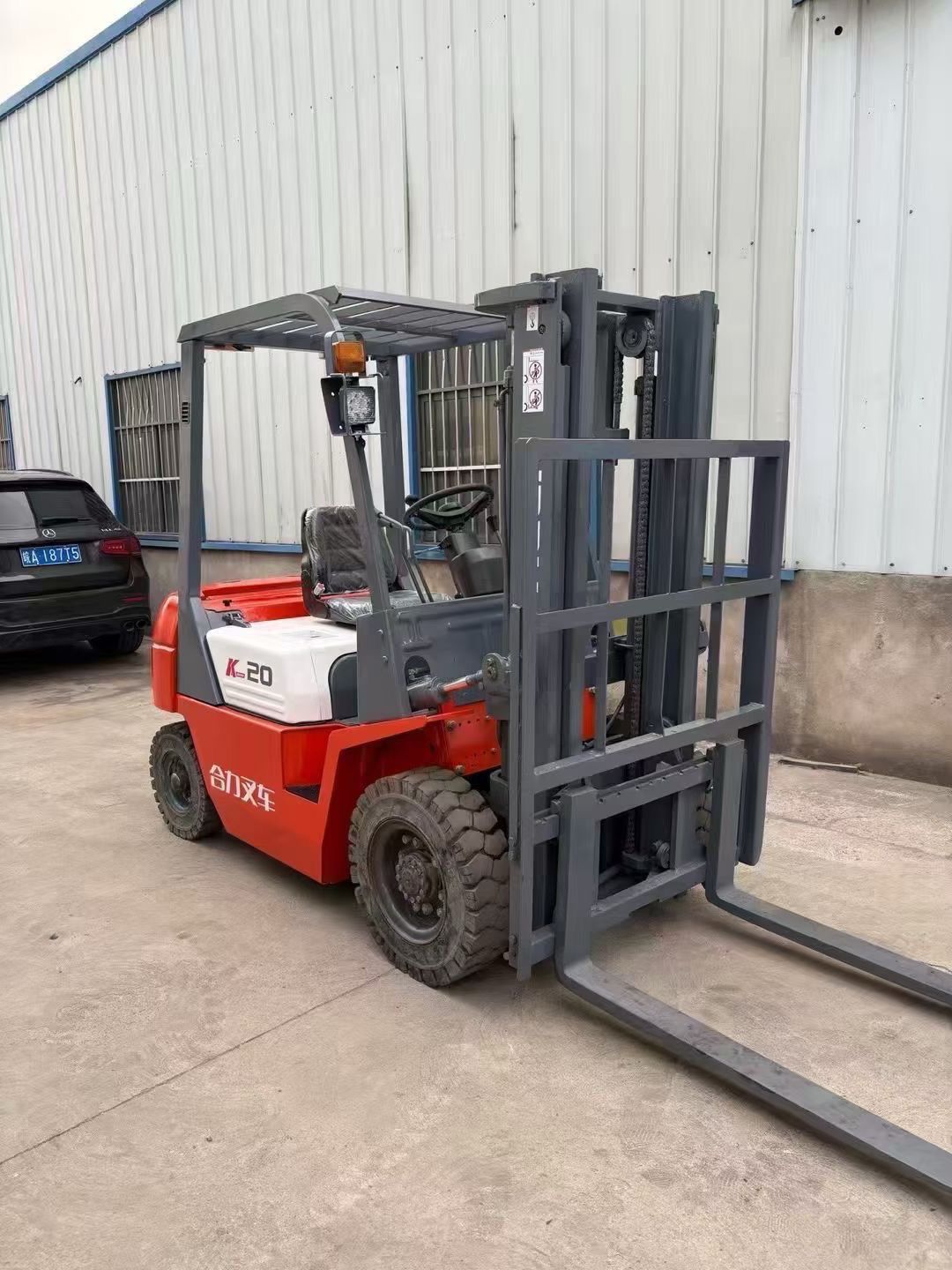

USED HELI FORKLIFT CPC20

$3,000.00 USD

Oferta Agotado

Item	Specification
Model	HELI CPC20
Rated Load Capacity	2000 kg
Load Center Distance	500 mm
Overall Length (Without Fork)	2480 mm
Overall Width	1120 mm
Overall Height (Mast Lowered)	2080 mm
Max Lifting Height	3000 mm
Free Lift Height	140 mm
Fork Size	1070×100×35 mm
Front Wheel Tread	880 mm
Rear Wheel Tread	890 mm
Wheelbase	1420 mm
Minimum Turning Radius	2100 mm
Minimum Ground Clearance	120 mm
Max Travel Speed (Full Load)	16.5 km/h
Max Gradeability (Full Load)	17%
Mast Tilt Angle (Forward/Backward)	6° / 12°
Front Tire Specification	6.00-9
Rear Tire Specification	5.00-8
Engine Model	Quanchai QC490GP
Engine Type	4-cylinder Water-cooled Diesel Engine
Rated Power	28 kW / 38 HP
Rated Speed	2600 rpm
Fuel Tank Capacity	50 L
Hydraulic Oil Tank Capacity	38 L
Transmission Type	Mechanical / Hydraulic Automatic
Service Weight	3850 kg
Brake System	Hydraulic Foot Brake + Hand Parking Brake
Operation Mode	Seated Driving Type
