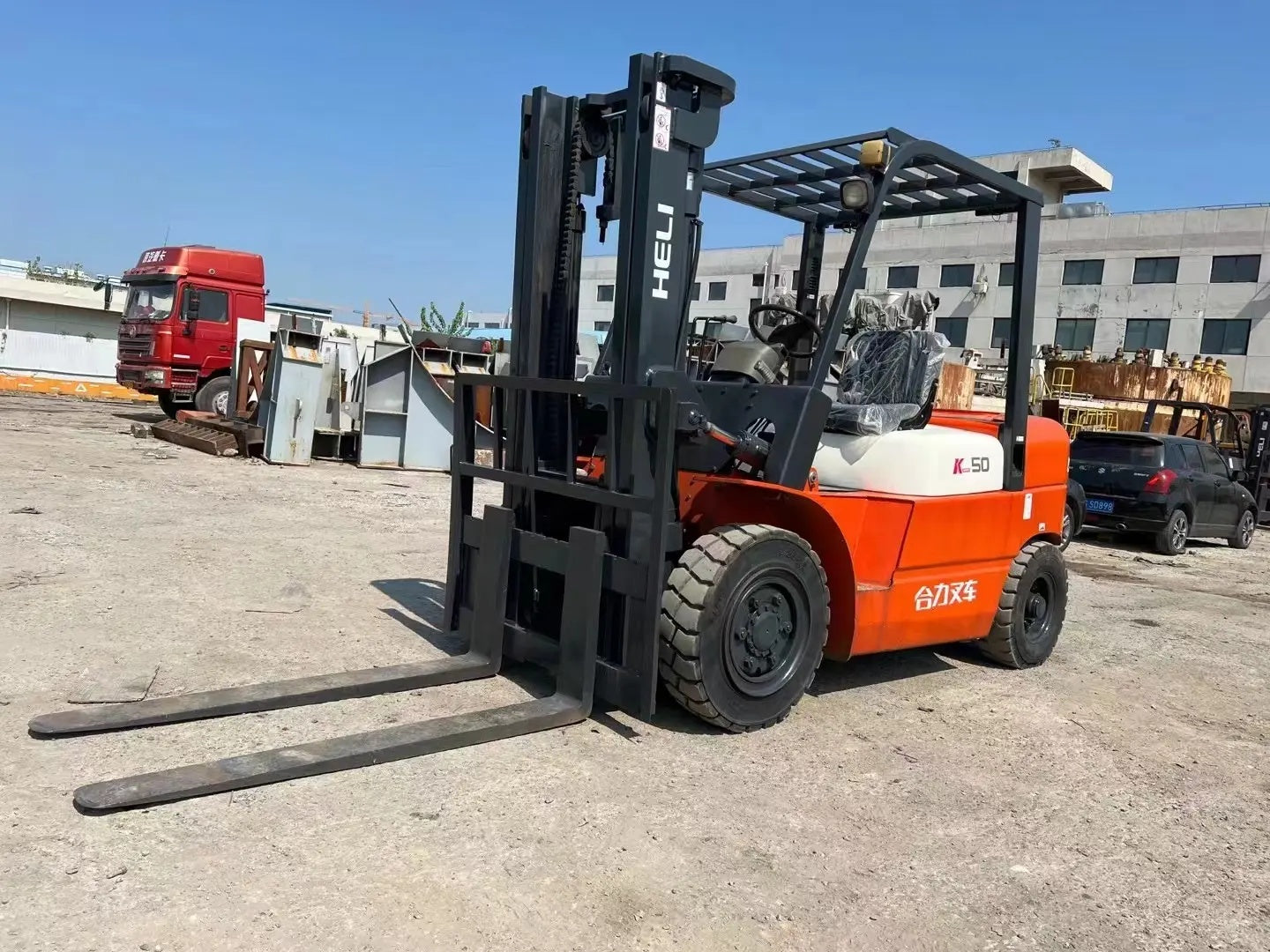

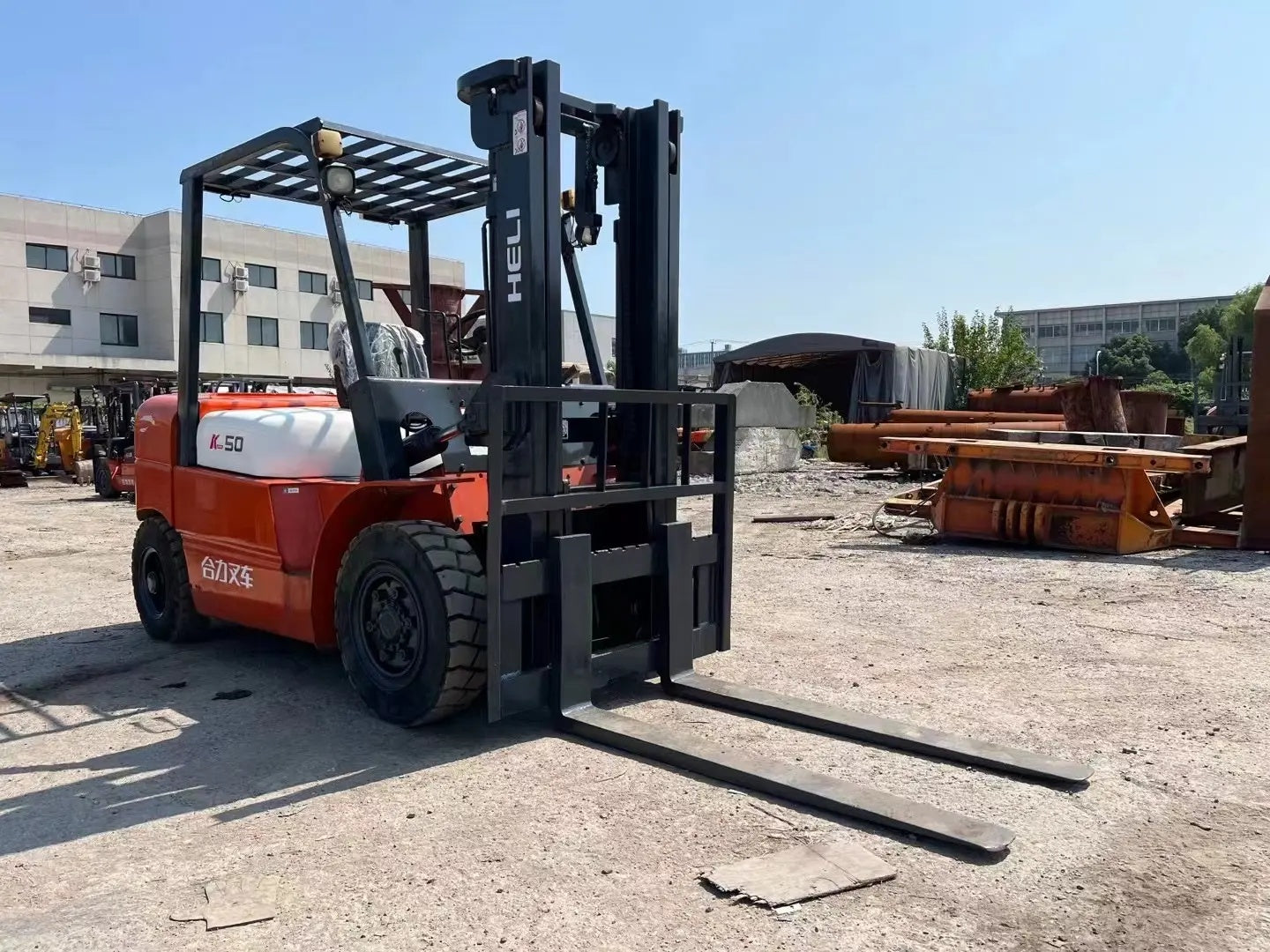

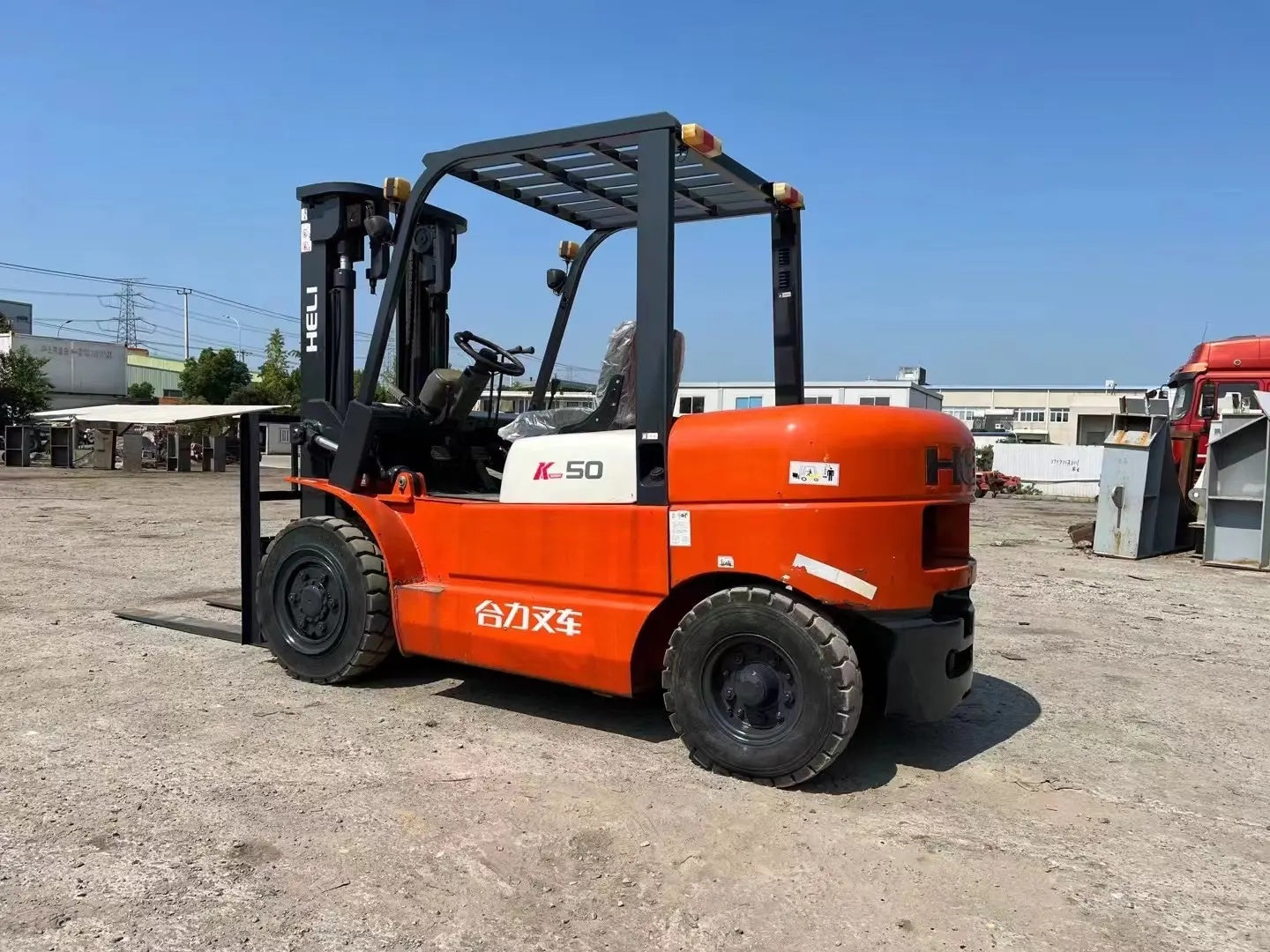

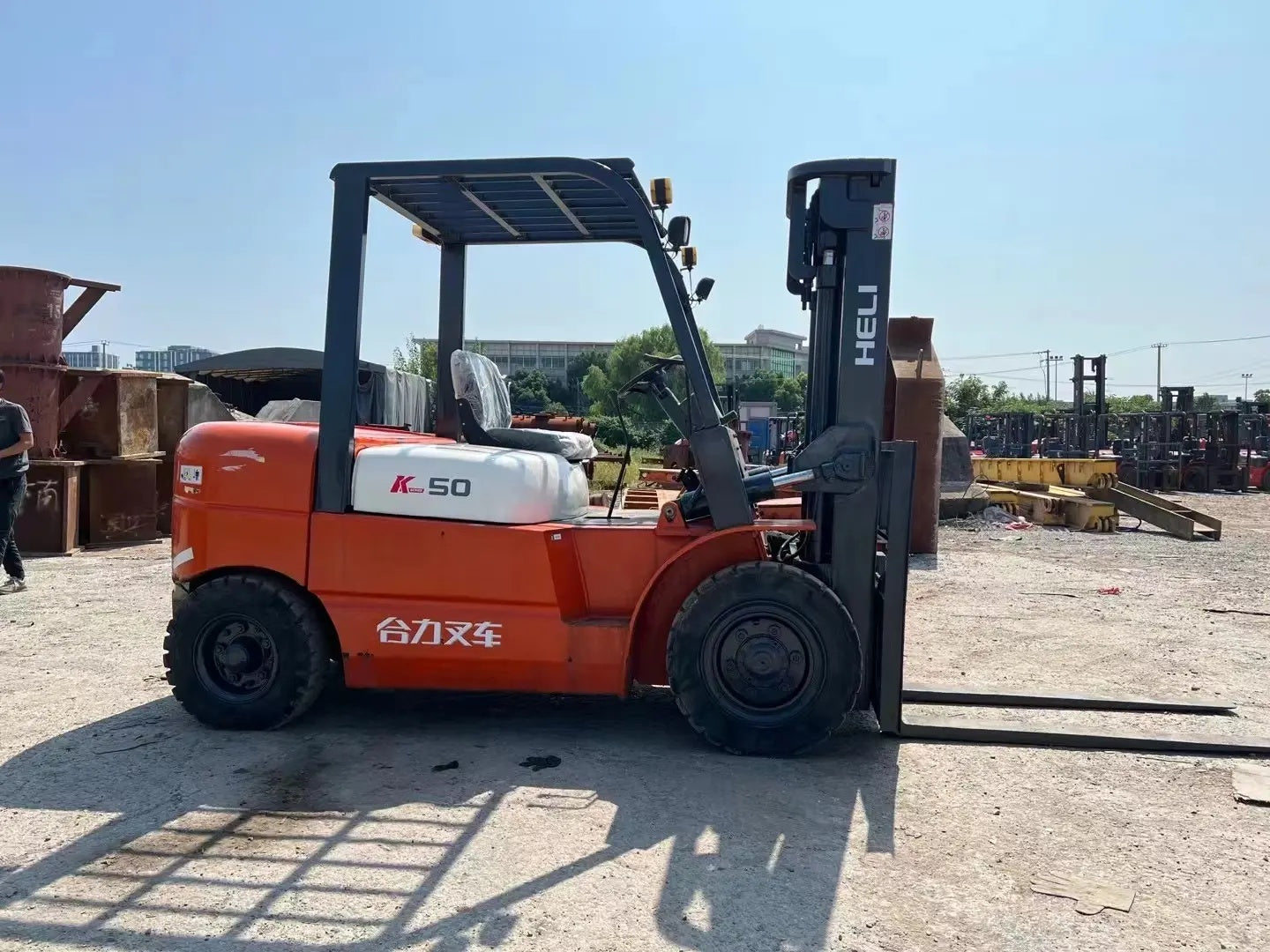

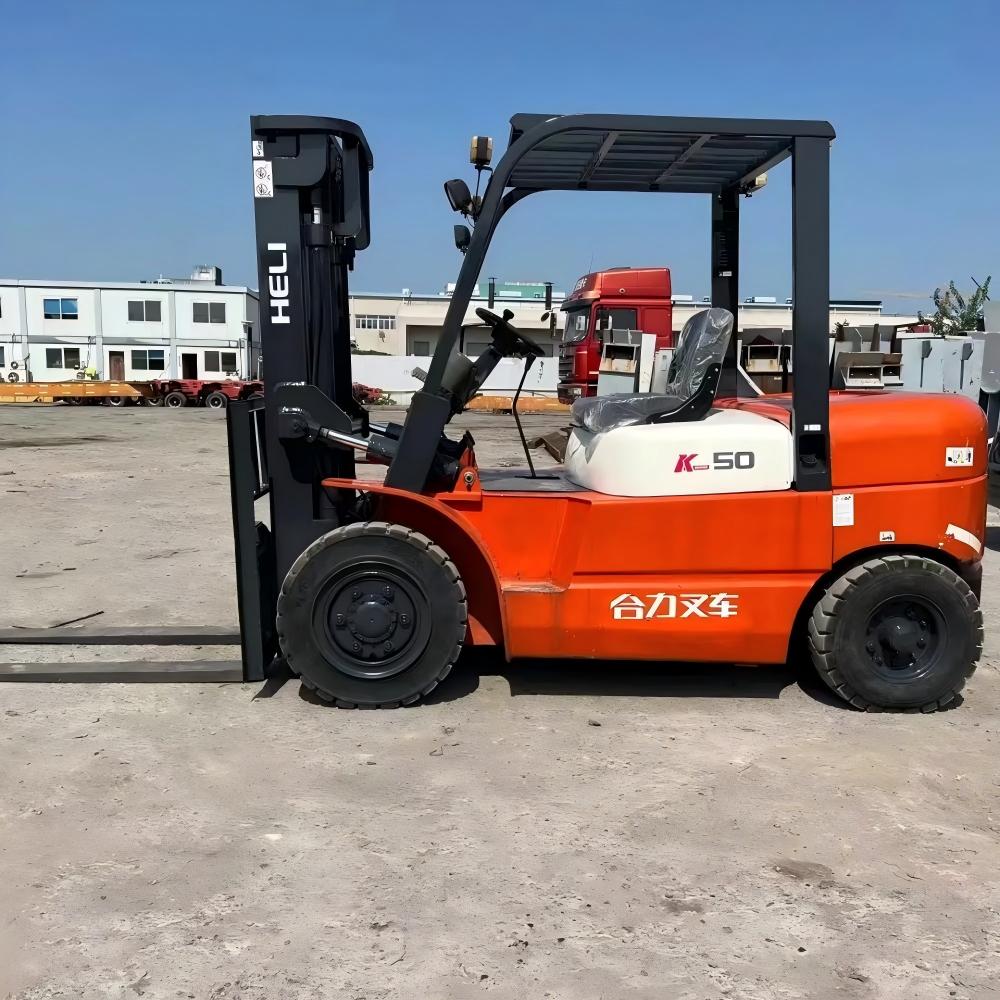

USED HELI FORKLIFT CPC50

USED HELI FORKLIFT CPC50

$6,500.00 USD
$6,500.00 USD
Oferta Agotado
Item Specification
Model HELI CPC50
Rated Load Capacity 5000 kg
Load Center Distance 500 mm
Overall Length (Without Fork) 3160 mm
Overall Width 1455 mm
Overall Height (Mast Lowered) 2240 mm
Maximum Lifting Height 3000 mm
Free Lift Height 160 mm
Fork Dimension 1220×150×50 mm
Front Wheel Tread 1125 mm
Rear Wheel Tread 1135 mm
Wheelbase 1710 mm
Minimum Turning Radius 2760 mm
Minimum Ground Clearance 150 mm
Max Travel Speed (Full Load) 19 km/h
Max Gradeability (Full Load) 22%
Mast Tilt Angle (Forward/Backward) 6° / 12°
Front Tire Size 7.00-12
Rear Tire Size 6.00-9
Engine Model YC4108G
Engine Type 4-cylinder Water-cooled Diesel Engine
Rated Power 58 kW / 78 HP
Rated Rotational Speed 2200 rpm
Fuel Tank Capacity 75 L
Hydraulic Oil Tank Capacity 58 L
Transmission Type Mechanical / Hydraulic Automatic
Service Weight 6850 kg
Brake System Hydraulic Service Brake + Mechanical Parking Brake
Operation Mode Seated Driving Type
