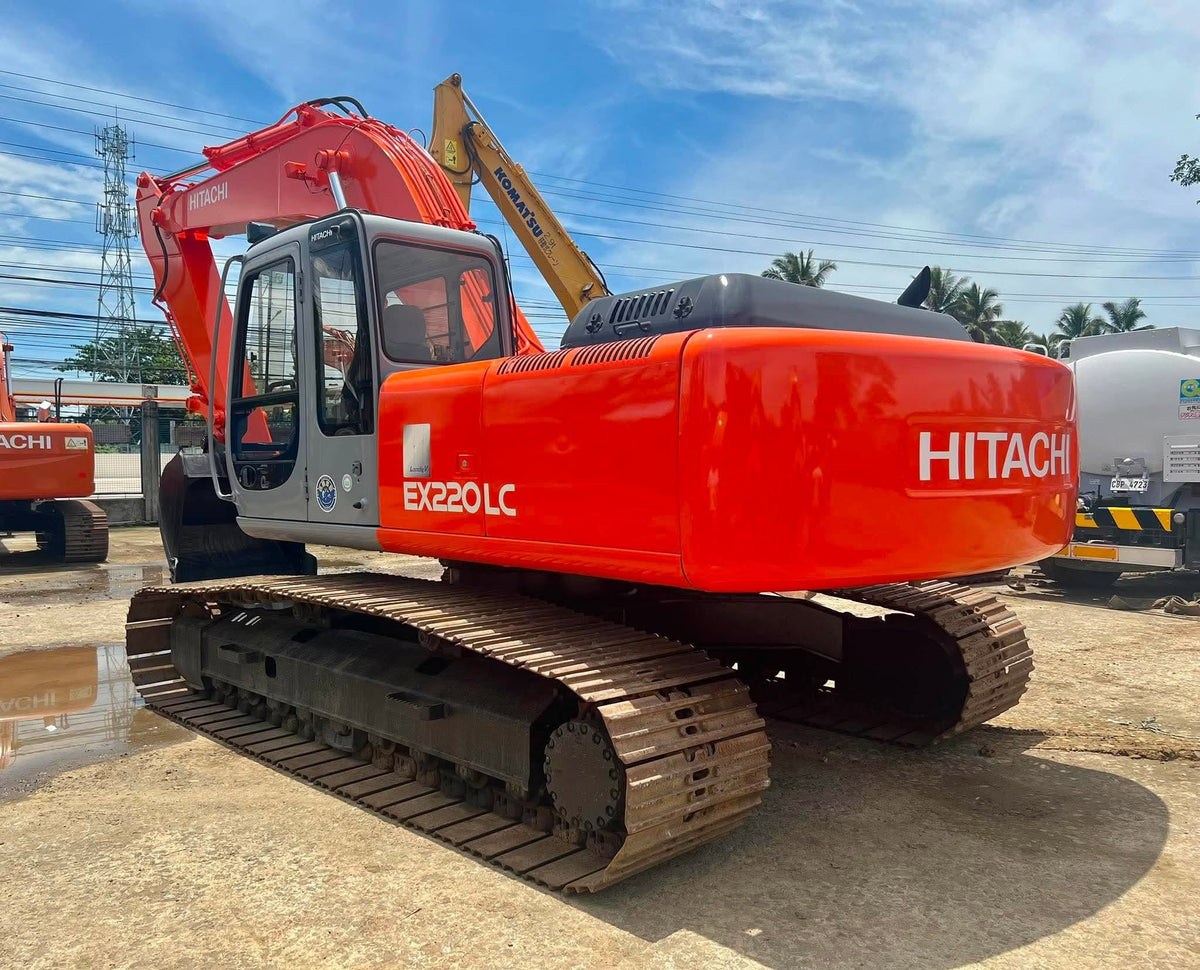

Used Hitachi EX220LC Excavator for Sale
Used Hitachi EX220LC Excavator for Sale
No se pudo cargar la disponibilidad de retiro
Used Hitachi EX220LC Excavator for Sale
This Hitachi EX220LC Excavator is available from CN Used Machinery for international buyers looking for reliable construction equipment. It is suitable for contractors, equipment dealers, rental companies, and project buyers who need practical performance and export support.
Key Specifications
| Brand | Hitachi |
| Model | EX220LC |
| Machine Type | Excavator |
| Condition | Used |
| Parameter | Details |
| Engine | Model: Hino H07C-TD (6-cylinder, water-cooled, turbocharged diesel) Rated Net Power: 118 kW (158 hp) @ 2000 rpm Displacement: 6.69 L (408 cu in) Bore × Stroke: 108 mm × 125 mm Max Torque: 530 N·m (391 lb·ft) @ 1600 rpm Aspiration: Turbocharged |
| Hydraulic System | Type: Open-center, two variable-displacement axial-piston pumps Main Pump Flow: 2×185 L/min (2×48.9 US gal/min), total 370 L/min (97.8 US gal/min) Relief Valve Pressure: 34.3 MPa (4980 psi) Hydraulic Fluid Capacity: 239 L (63 US gal) |
| Operating Weight | 23,814 kg (52,500 lbs) (standard configuration with bucket and boom) |

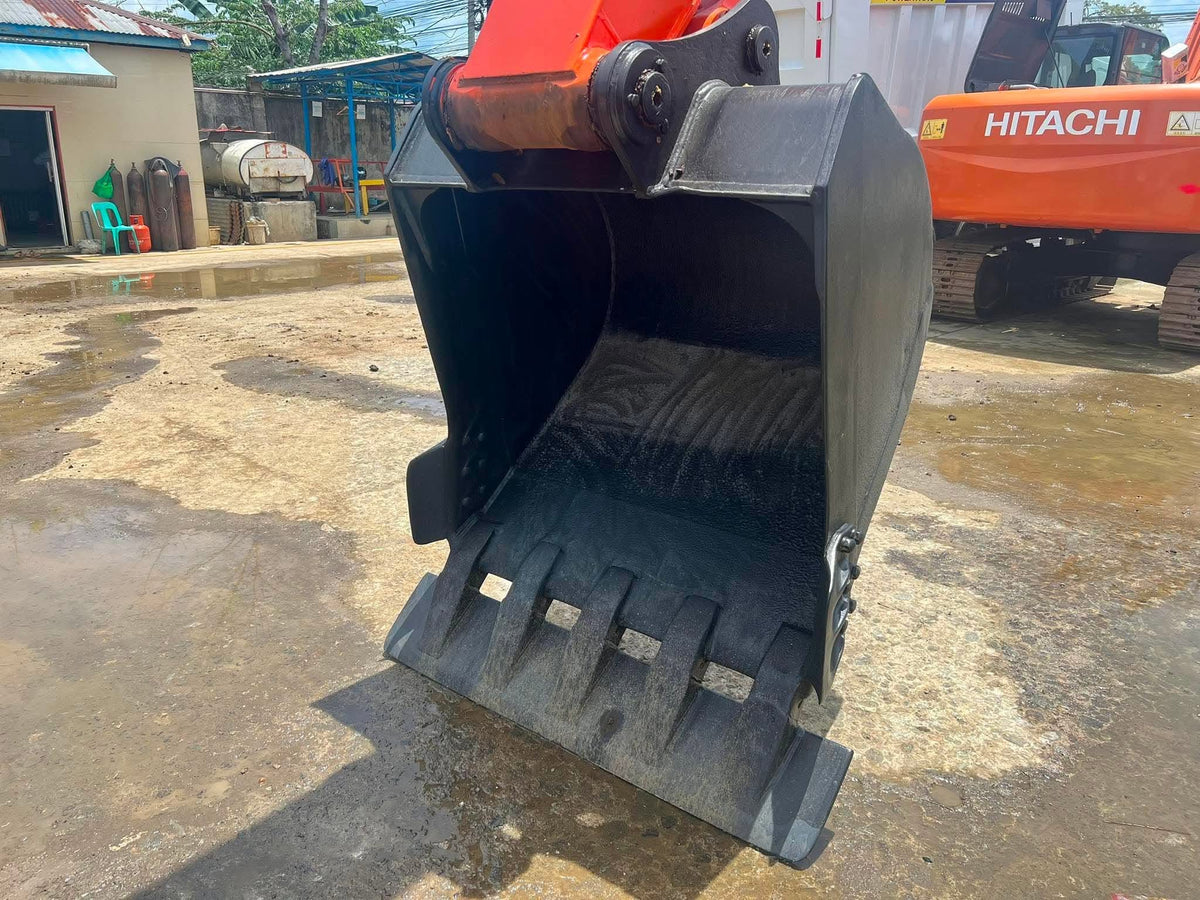

| Bucket (Standard) | Capacity: 1.0 m³ (1.31 yd³) (heaped); Optional: 0.8-1.4 m³ Max Digging Depth: 6,000 mm (19.7 ft) Max Loading Height: 6,650 mm (21.8 ft) Max Reach Along Ground: 9,140 mm (30.0 ft) Max Digging Height: 9,200 mm (30.2 ft) |
| Dimensions | Overall Length: 9,620 mm (31.6 ft) Overall Width (over tracks): 2,990 mm (9.8 ft) Height (top of cab): 3,090 mm (10.1 ft) Rear Swing Radius: 2,750 mm (9.0 ft) Track Gauge: 2,200 mm (7.2 ft) Ground Clearance: 450 mm (1.5 ft) |

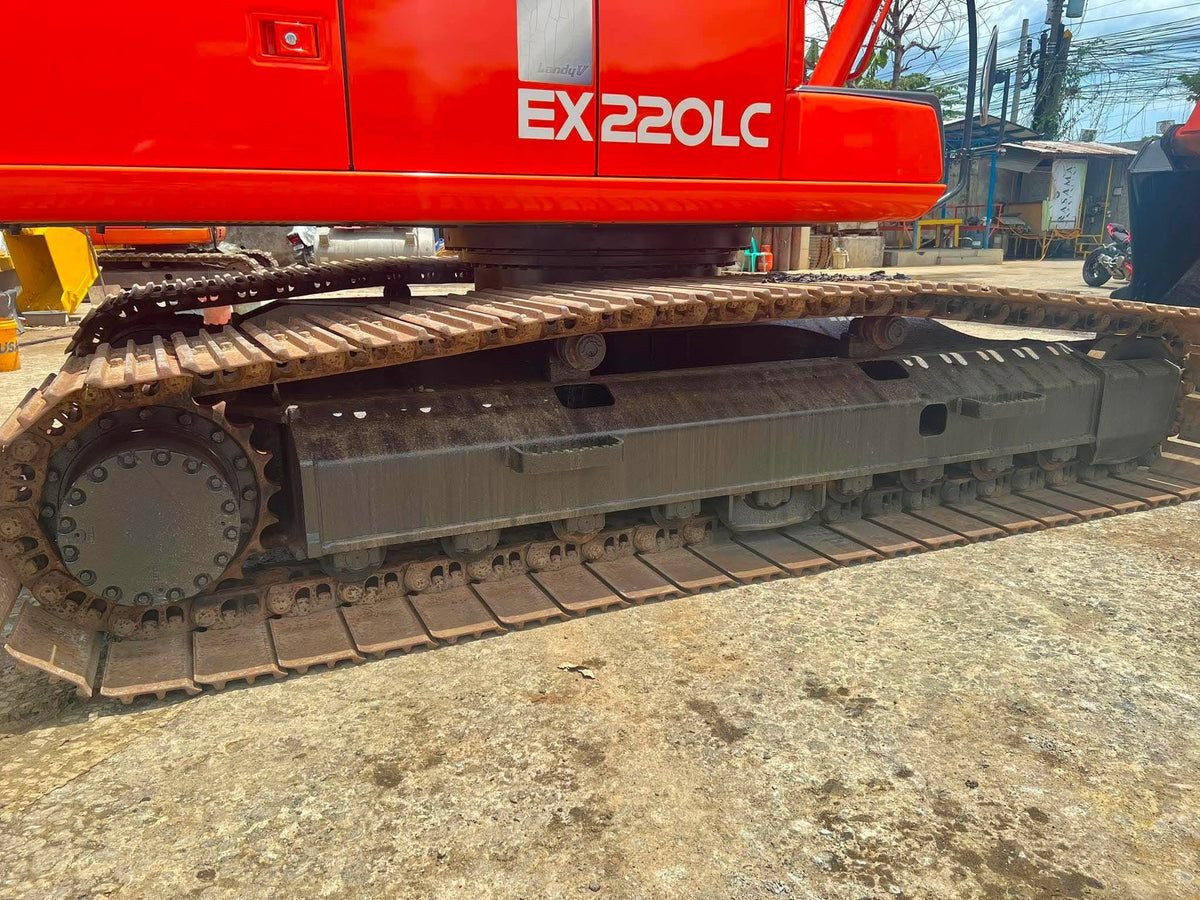

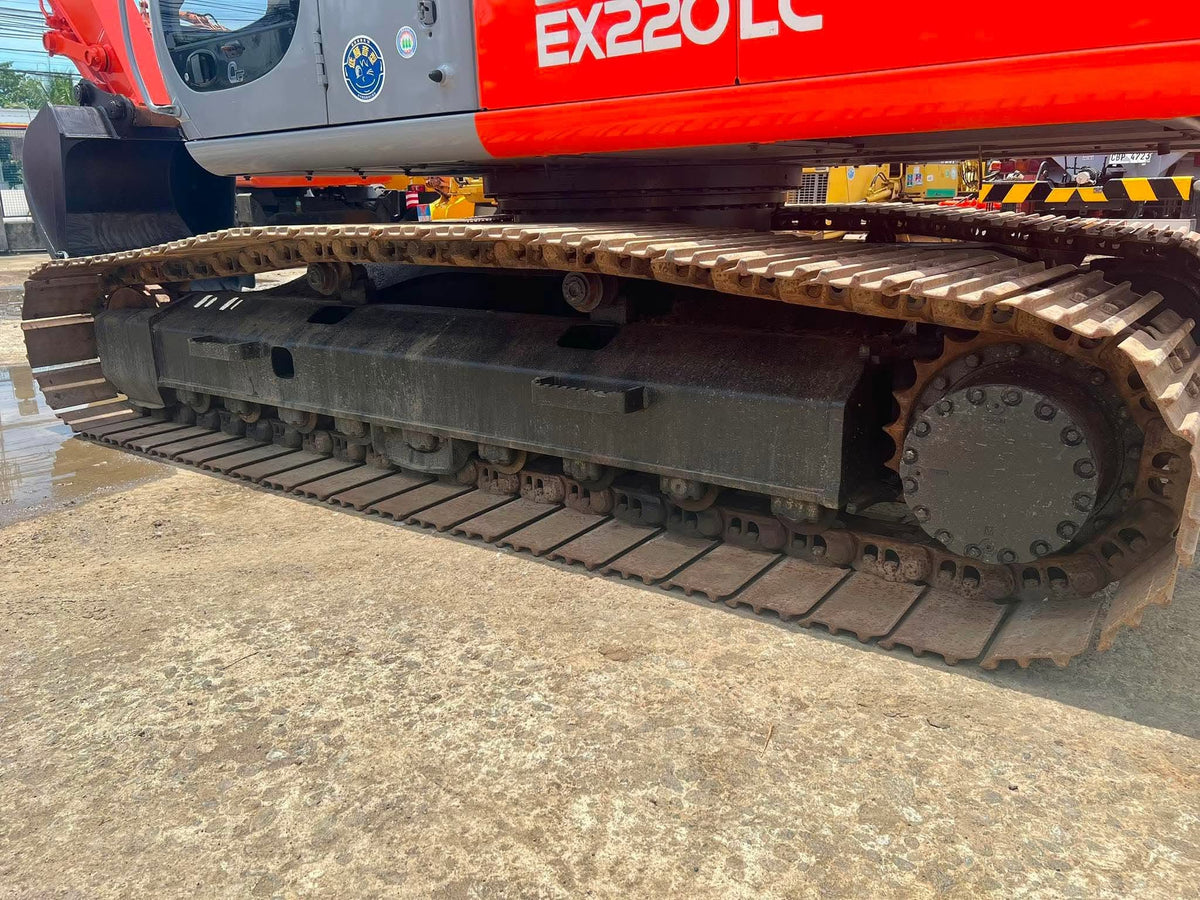

| Undercarriage & Travel | Track Shoe Width: 600 mm (23.6 in) Ground Contact Length: 4,140 mm (13.6 ft) Ground Pressure: 42.1 kPa (6.1 psi) Max Travel Speed: 5.5 kph (3.4 mph) (high); 3.4 kph (2.1 mph) (low) |
| Capacities | Fuel Tank: 380 L (100.4 US gal) Engine Oil: 26 L (6.9 US gal) Coolant: 23 L (6.1 US gal) |

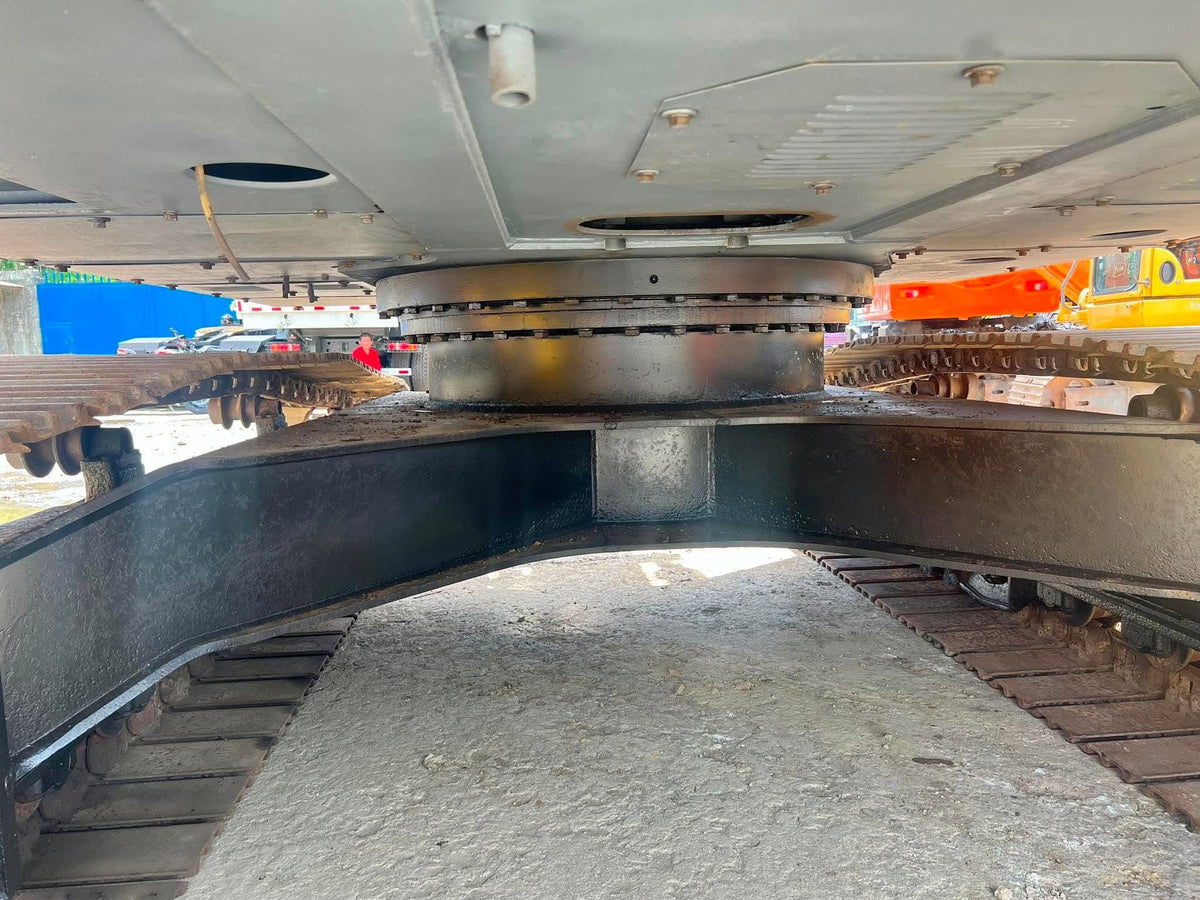

| Swing Mechanism | Swing Speed: 13.5 rpm Swing Drive Fluid Capacity: 13 L (3.5 US gal) |
| Rated Net Power | 118 kW (158 hp) @ 2000 rpm |
| Hydraulic Fluid Capacity | 239 L (63 US gal) |
| Capacity | 1.0 m³ (1.31 yd³) (heaped); Optional: 0.8-1.4 m³ |
| Engine Oil | 26 L (6.9 US gal) |
| Swing Drive Fluid Capacity | 13 L (3.5 US gal) |
Machine Highlights
- Used excavator suitable for construction and earthmoving work
- Practical option for road work, foundation jobs, land development, and general site projects
- Inspection photos, working video, and machine condition details can be provided before purchase
- Export support, loading assistance, and shipping coordination available for overseas buyers
Why Choose This Machine
A well-selected used machine can help reduce equipment costs while still meeting job site requirements. Before shipment, buyers can review key points such as engine condition, hydraulic performance, undercarriage condition, cab condition, working hours, and service details.
Contact Us
Contact CN Used Machinery for the latest price, more photos, working video, inspection details, and shipping information for this used hitachi ex220lc excavator for sale.
