HITACHI

USED HITACHI ZX690LCH-7

$69,000.00 USD

Oferta Agotado

Item	Specification
Model	Hitachi ZX690LCH‑7
Operating Weight	69,400–71,400 kg
Standard Bucket Capacity (ISO Heaped)	2.9–4.0 m³
Transport Length	13,400 mm
Transport Width	4,360 mm
Transport Height	3,150 mm
Track Shoe Width	650 mm
Track Gauge	3,950–4,200 mm
Length of Track on Ground	5,840 mm
Ground Clearance	860 mm
Tail Swing Radius	4,090 mm

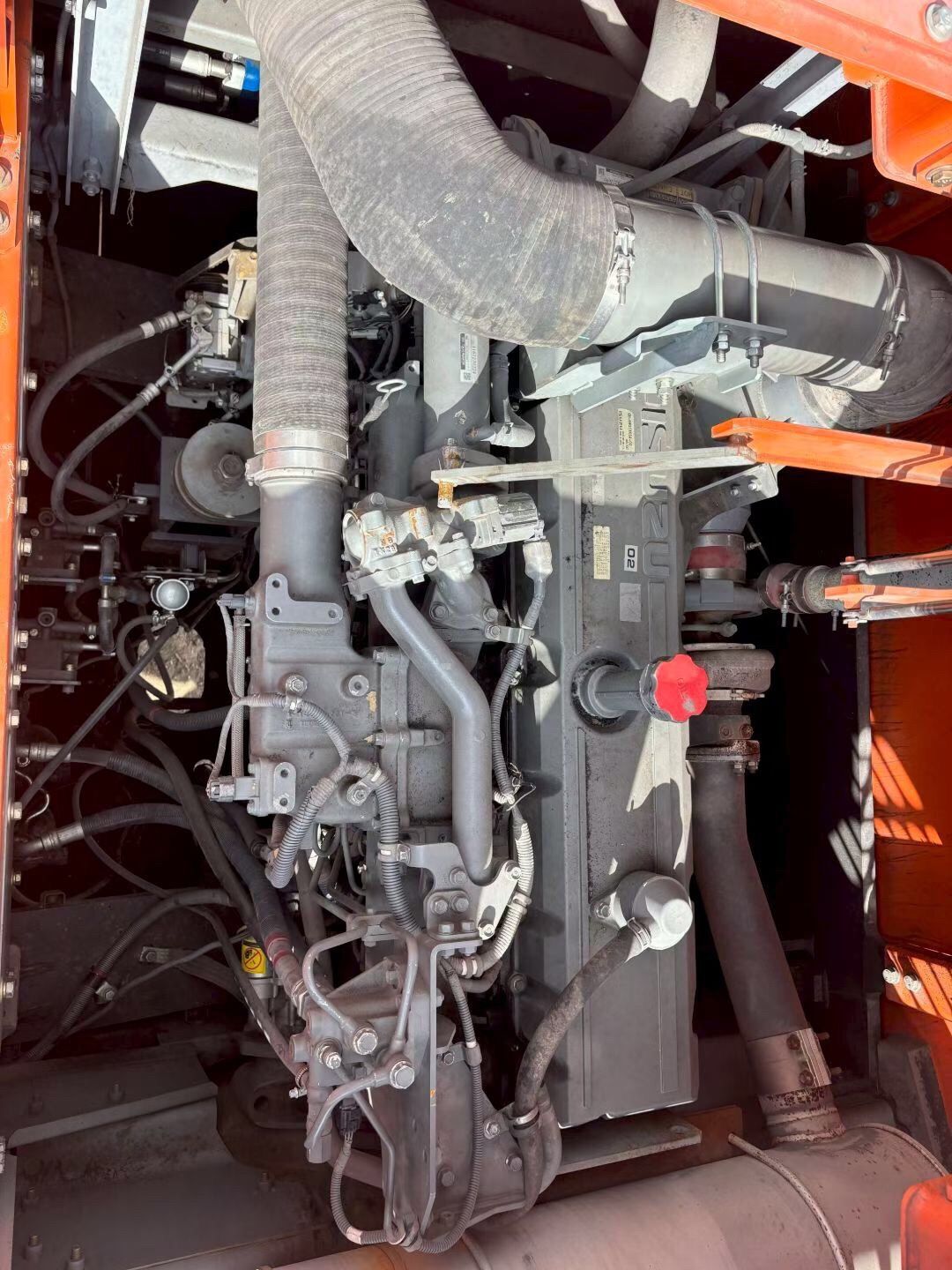

Engine Model	Isuzu 6WG1
Engine Type	4‑stroke, water‑cooled, turbocharged, intercooled
Rated Gross Power	348 kW (473 PS) @ 1,800 rpm
Rated Net Power	345 kW (469 PS) @ 1,800 rpm
Displacement	15.681 L
Max Torque	2,050 N·m @ 1,300 rpm
Fuel Tank Capacity	900 L
Hydraulic Tank Capacity	680 L
Main Pump Flow	2 × 489 L/min
Hydraulic System Pressure	34.3 MPa
Max Digging Reach (Ground Level)	11,800–13,280 mm
Max Digging Depth	7,120–8,560 mm
Max Digging Height	11,190 mm
Max Dumping Height	7,330–8,020 mm
Bucket Digging Force (ISO)	324 / 369 kN
Arm Digging Force (ISO)	255 / 306 kN
Swing Speed	9.0 rpm
Travel Speed (Low/High)	3.3 / 4.8 km/h
Gradeability	35° (70%)
Ground Pressure	77–106 kPa
