| Model |

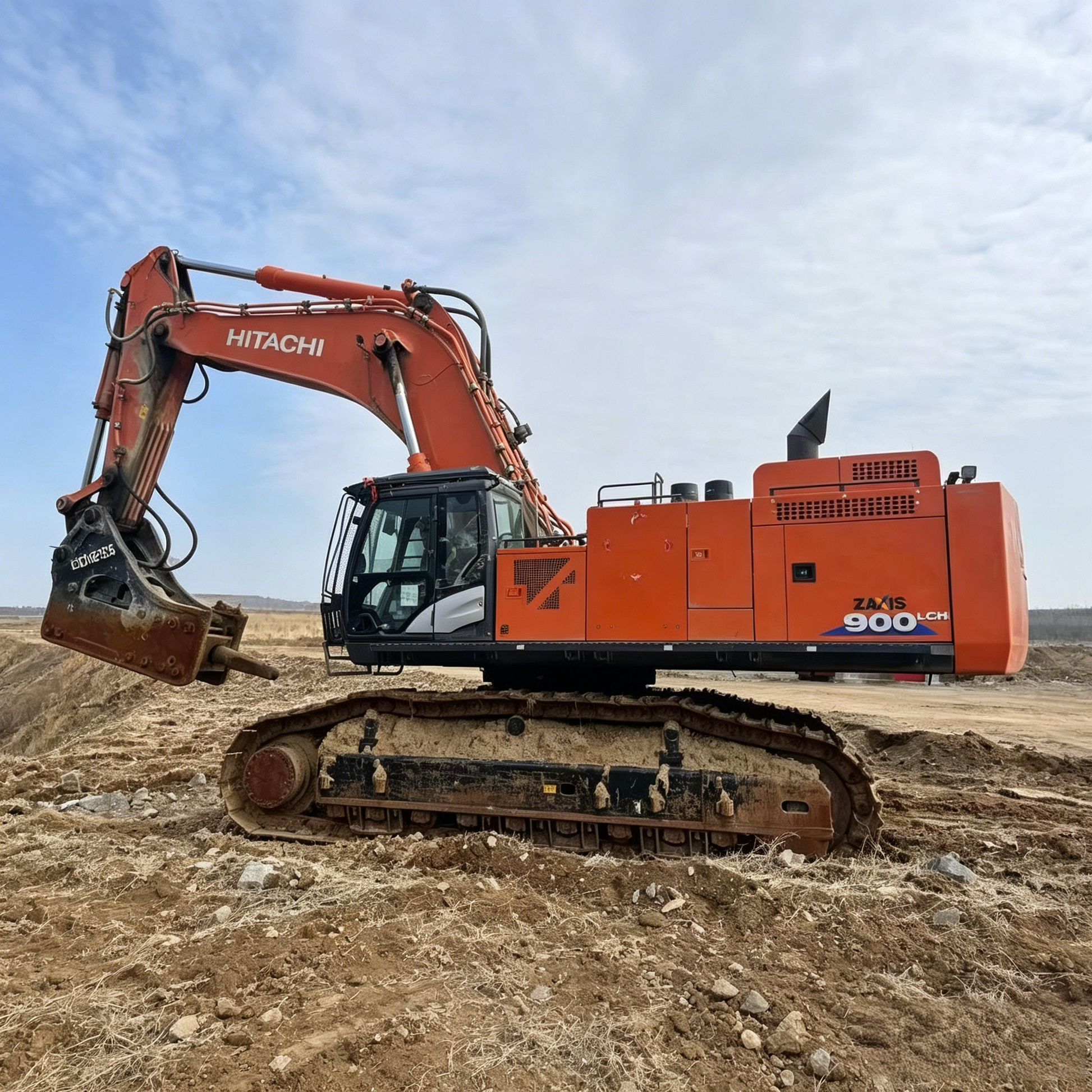

Hitachi ZX900LCH‑6A |
| Operating Weight |
85,400–85,890 kg |

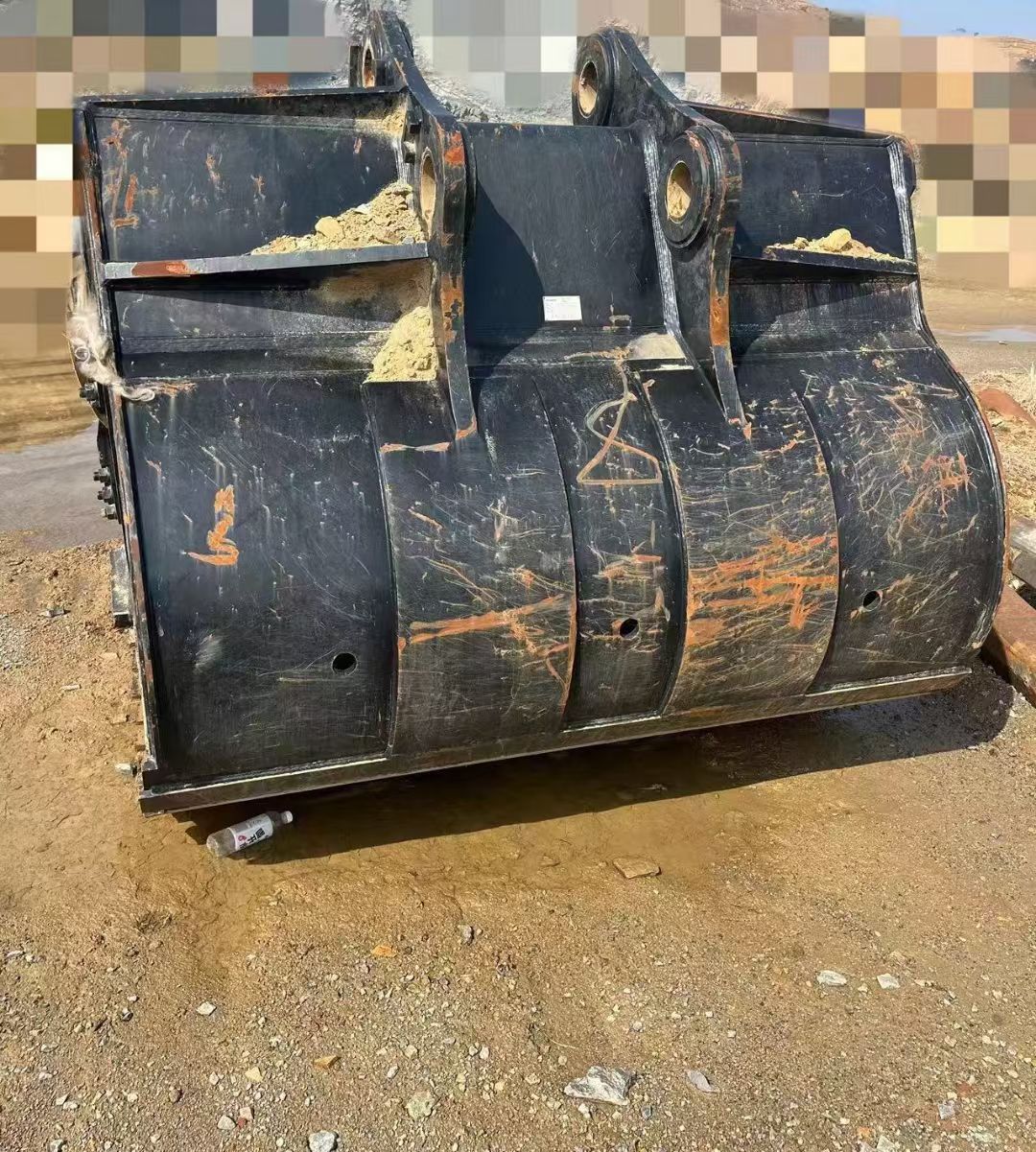

| Standard Bucket Capacity (ISO Heaped) |
5.0–7.0 m³ |
| Transport Length |
13,680 mm |
| Transport Width |
4,450 mm |
| Transport Height |
5,250 mm |
| Track Shoe Width |
650 mm |
| Track Gauge (Extended/Retracted) |
3,450 / 2,830 mm |
| Length of Track on Ground |
5,110 mm |
| Ground Clearance |
890 mm |
| Tail Swing Radius |
4,600 mm |

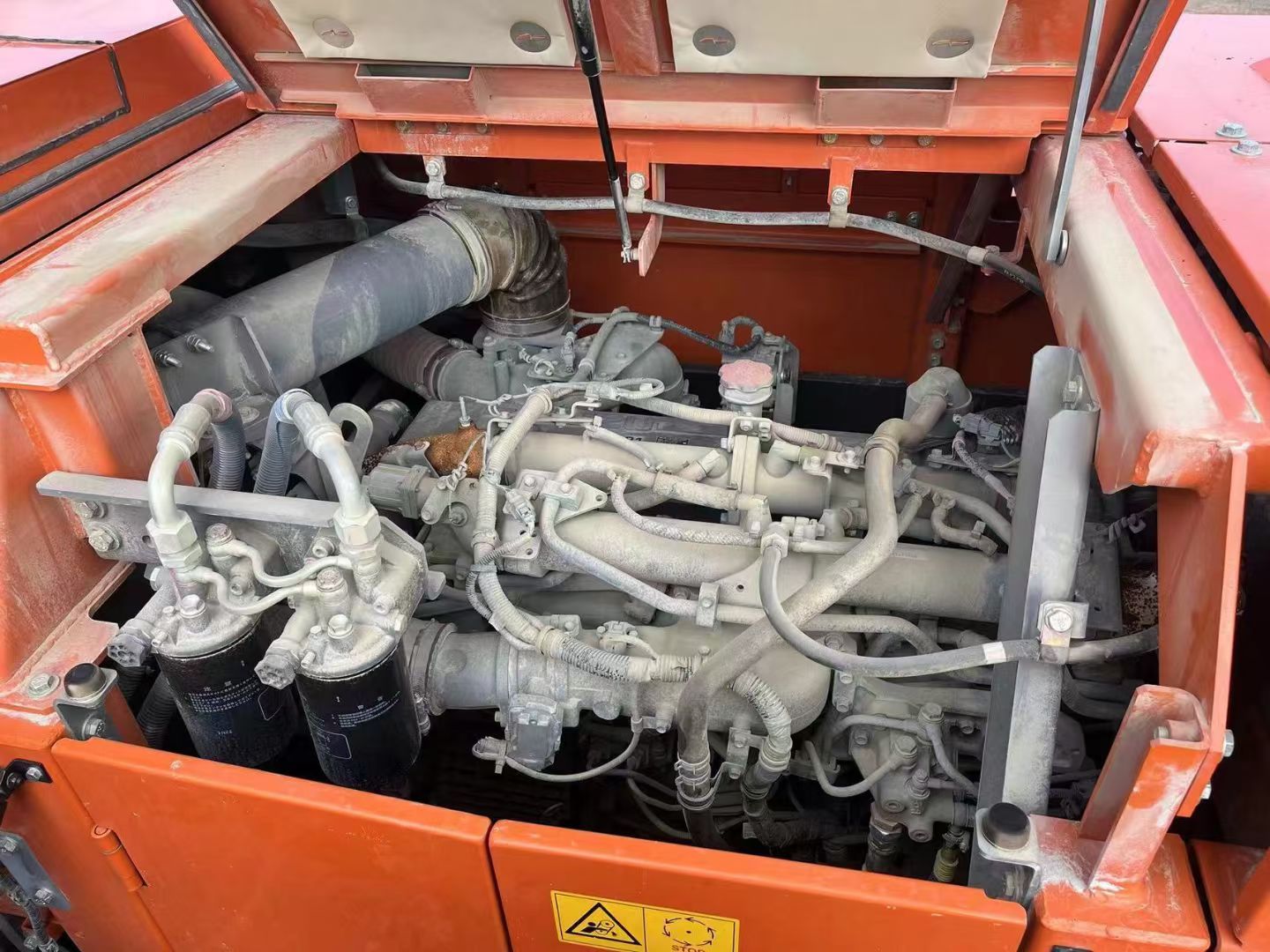

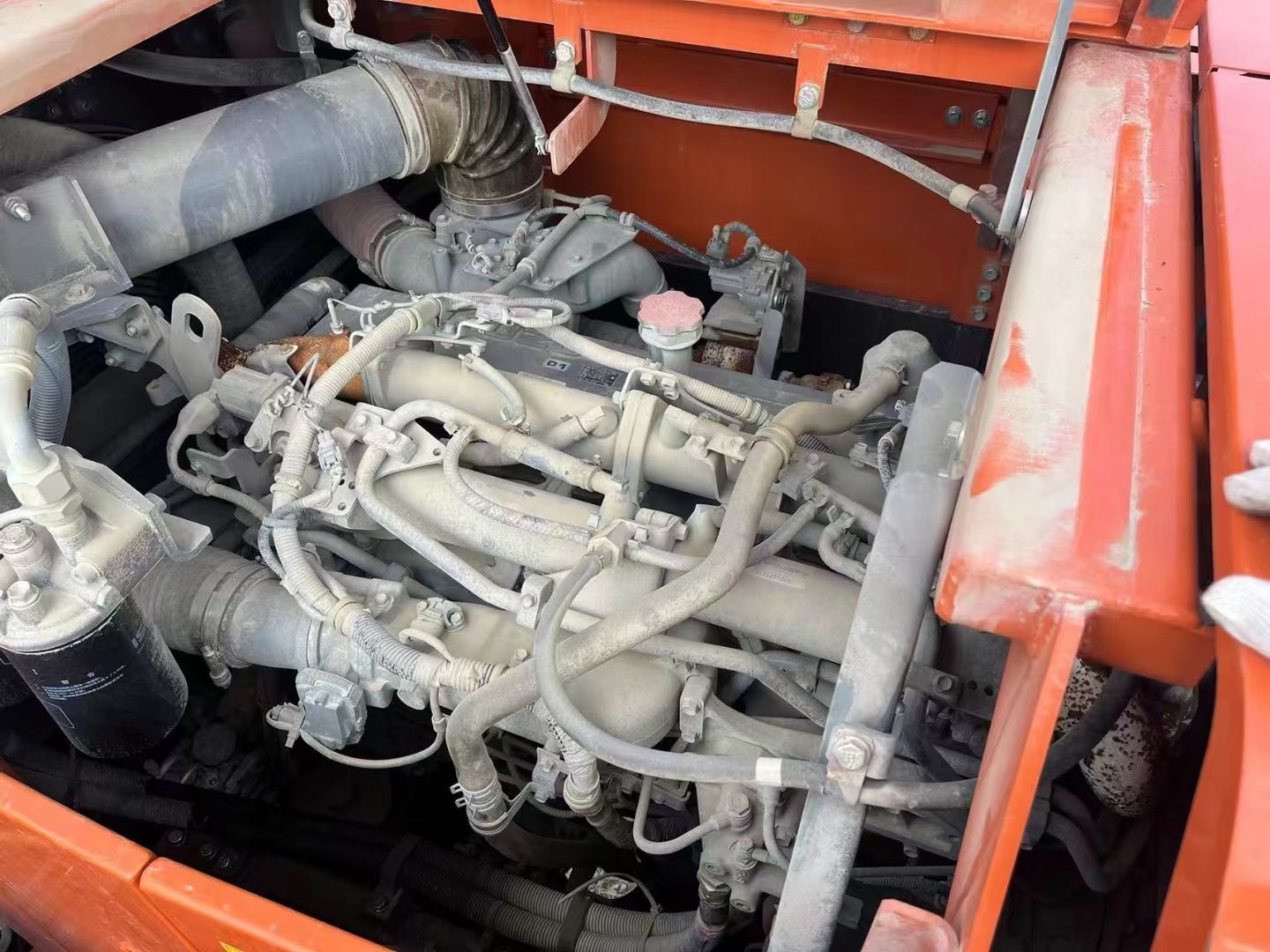

| Engine Model |
Isuzu 6WG1‑XDQAG‑01B‑C4 |
| Engine Type |
4‑stroke, water‑cooled, common rail direct injection, turbocharged, intercooled |
| Rated Gross Power |
382 kW (519 PS) @ 1,800 rpm |
| Rated Net Power |
380 kW (516 PS) @ 1,800 rpm |
| Displacement |
15.681 L |
| Max Torque |
2,250 N·m @ 1,300 rpm |
| Fuel Tank Capacity |
1,110 L |
| Hydraulic Tank Capacity |
515 L |
| Hydraulic System Capacity |
1,042 L |

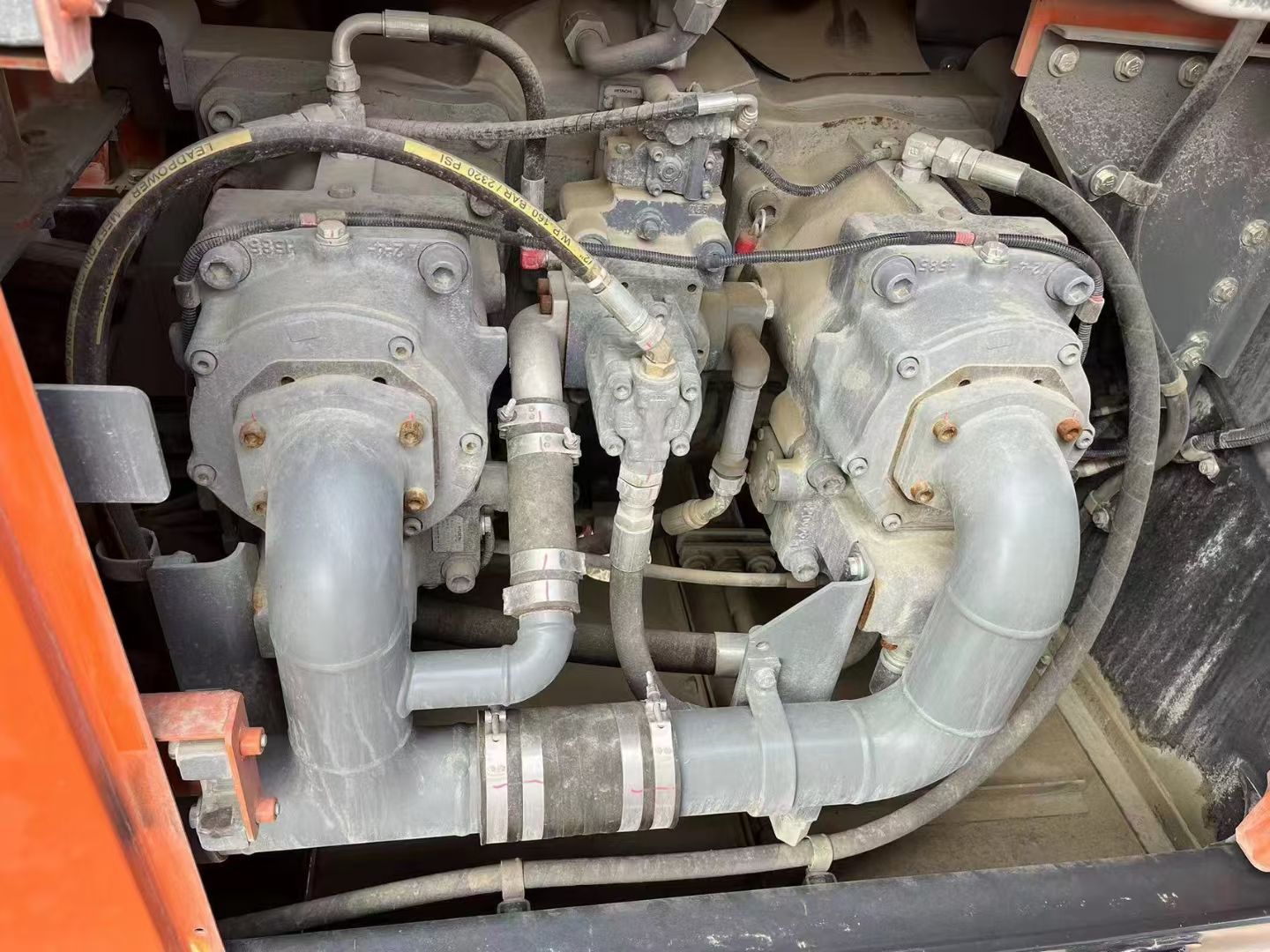

| Main Pump Flow |
2 × 556 L/min |
| Hydraulic System Pressure |
31.9 MPa |
| Max Digging Reach (Ground Level) |
12,020–12,228 mm |
| Max Digging Depth |
7,055–7,384 mm |
| Max Digging Height |
11,981–12,094 mm |
| Max Dumping Height |
7,885–8,130 mm |
| Max Vertical Wall Digging Depth |
3,858–4,185 mm |
| Bucket Digging Force (ISO) |
472 kN |
| Arm Digging Force (ISO) |
394 kN |
| Swing Speed |
7.8 rpm |
| Travel Speed (Low/High) |
0–3.2 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
116 kPa |
