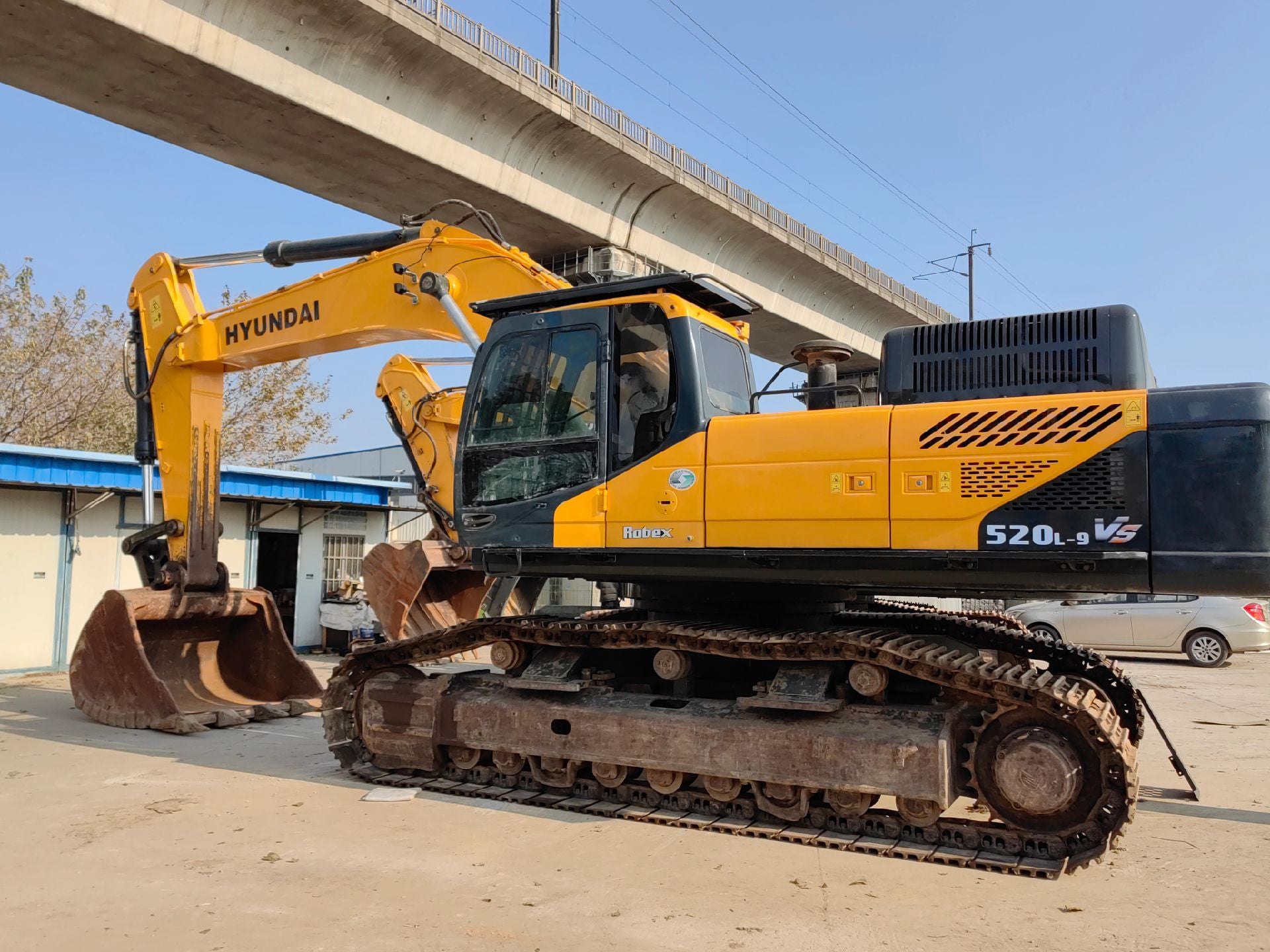

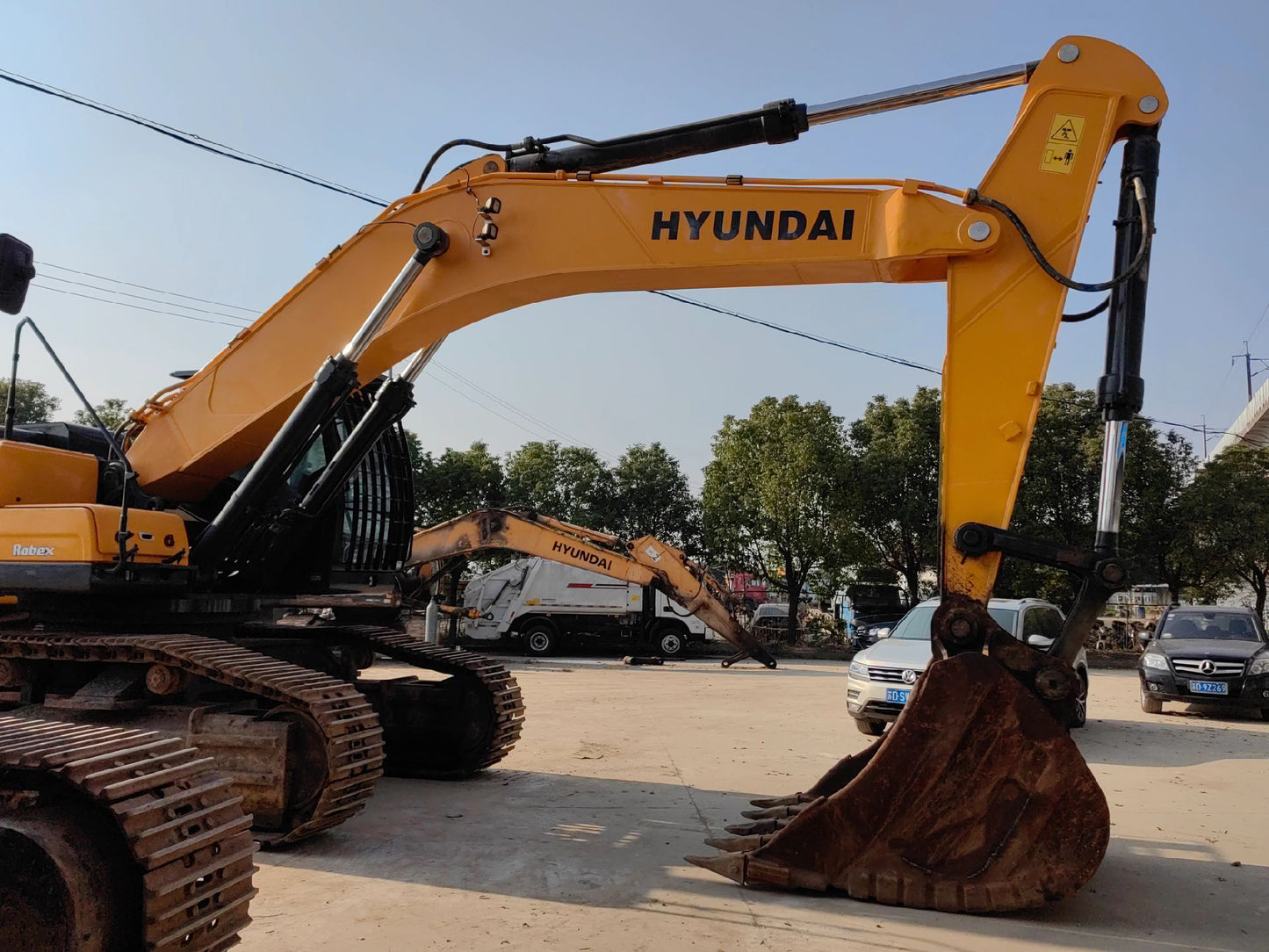

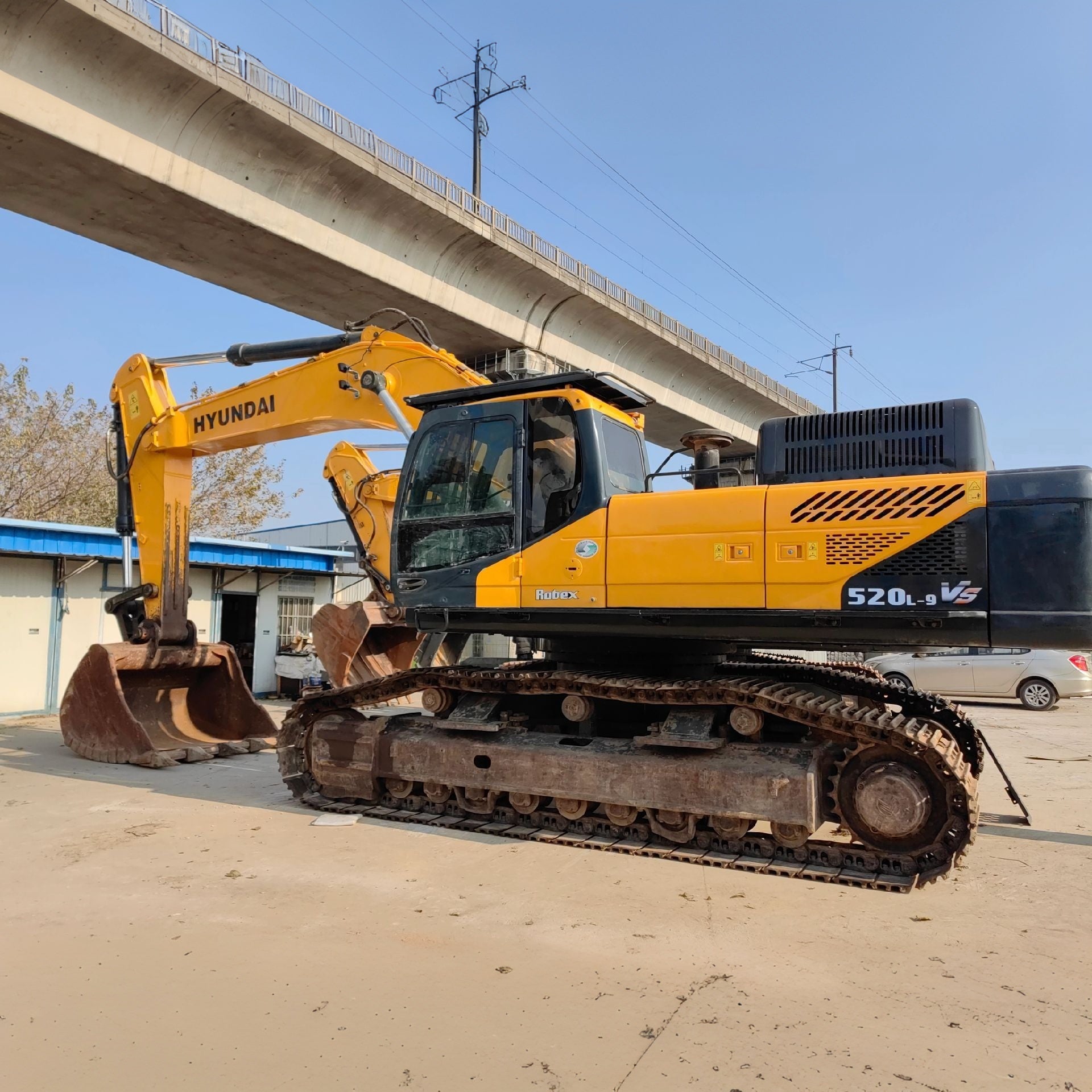

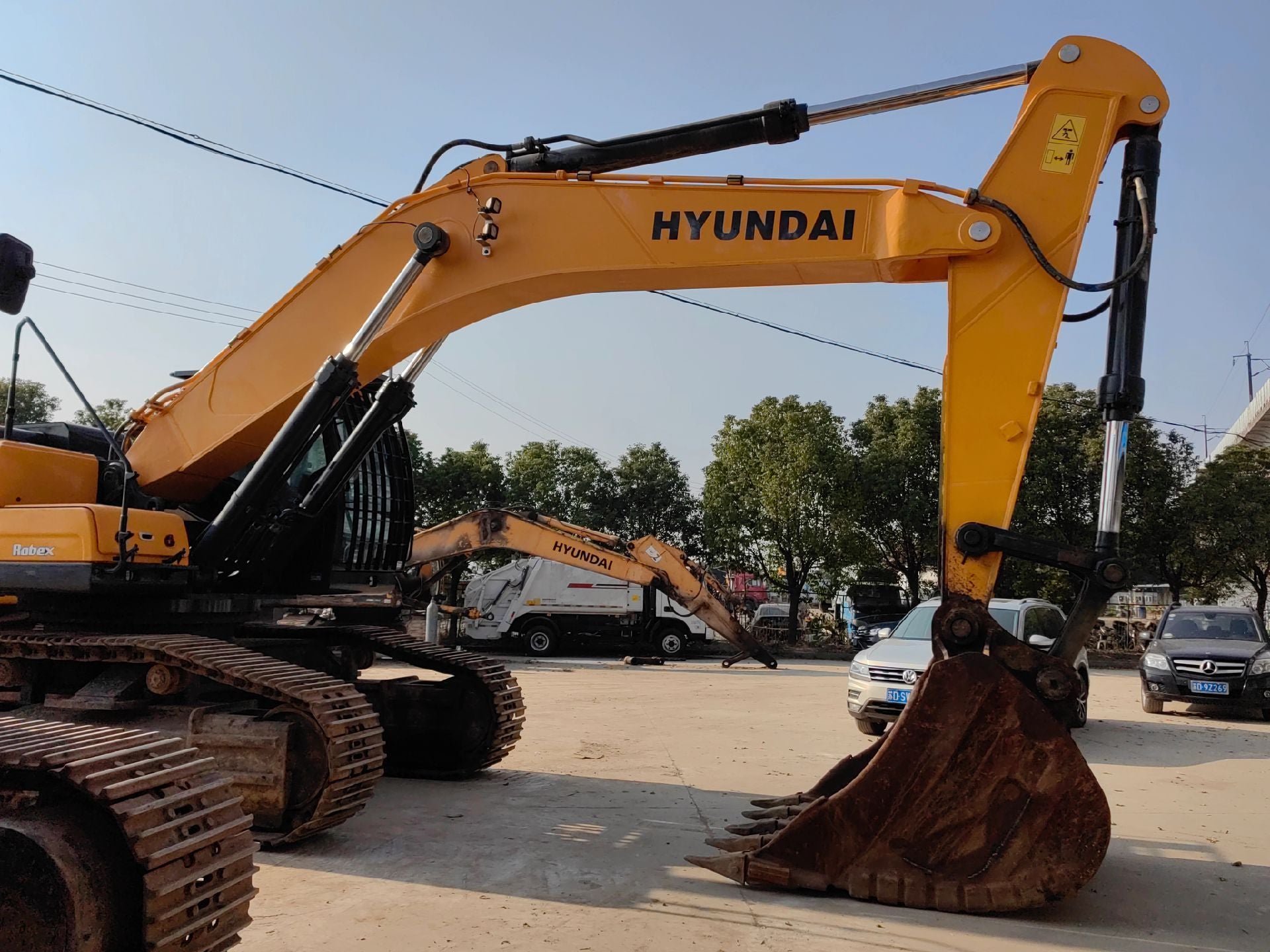

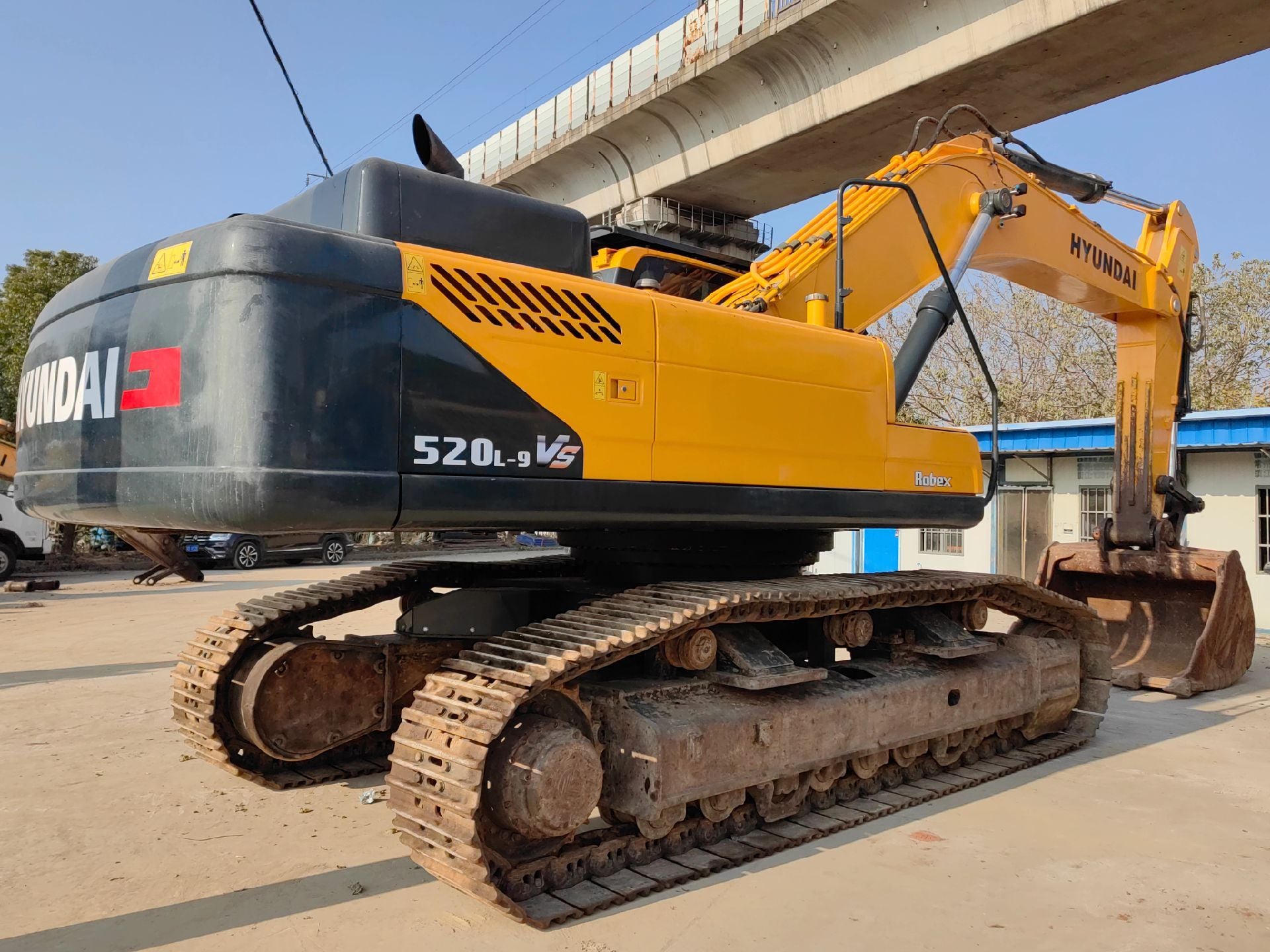

USED HYUNDAI 520L-9VS

Name: USED HYUNDAI 520L-9VS
Brand: HYUNDAI
Price: 52000.00 USD
Availability: InStock

$52,000.00 USD

Oferta Agotado

HYUNDAI 520L-9VS (R520L-9VS) Core Specifications（English）

Parameter	Details
Model	HYUNDAI 520L-9VS (R520L-9VS)
Operating Weight	52,200 kg
Bucket Capacity	3.0 m³ (SAE heaped, standard)

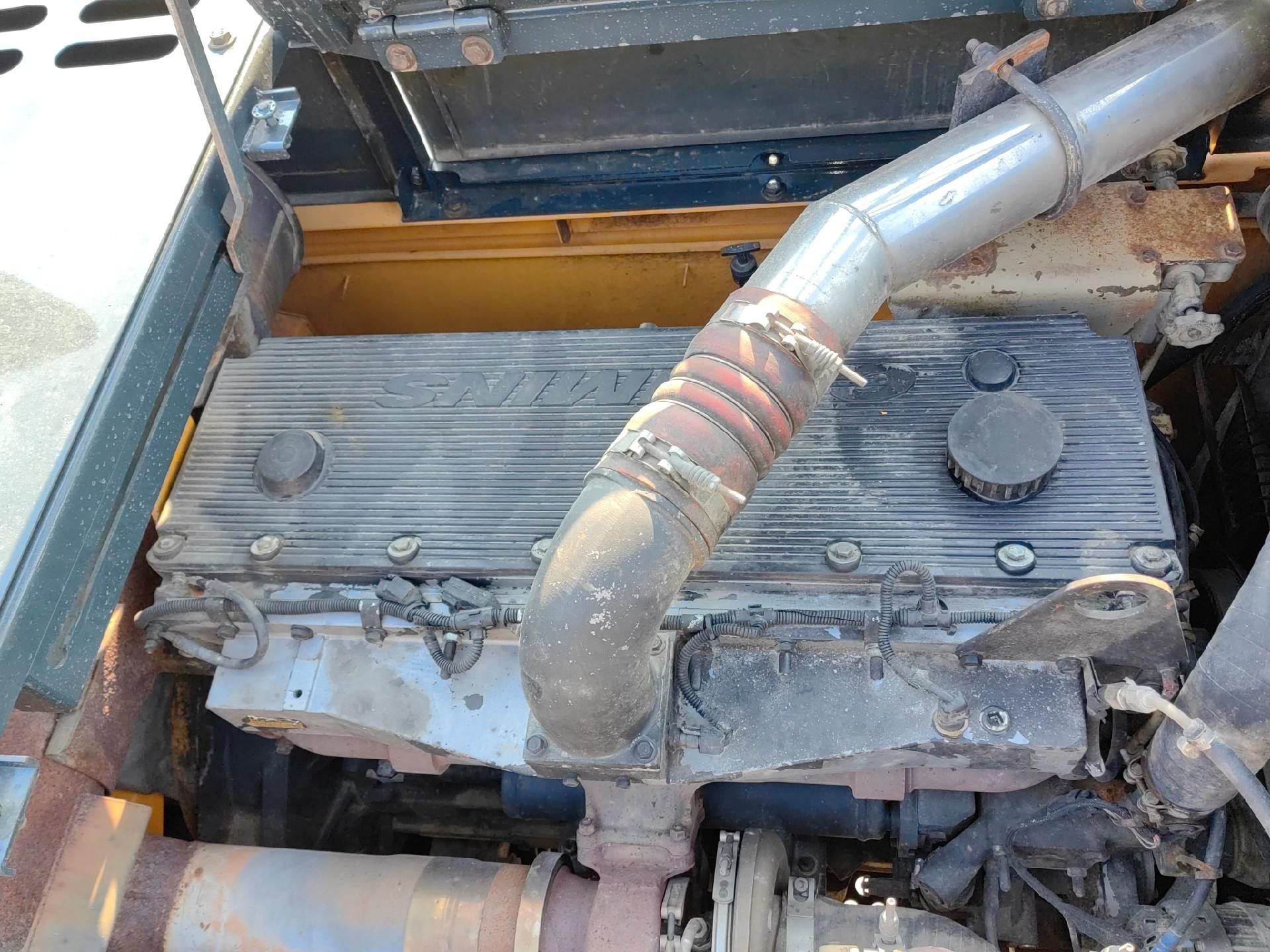

Engine Model	Cummins QSM11
Rated Power	266 kW (357 hp) / 1900 rpm
Displacement	10.8 L
Cooling Method	Water - cooled
Max. Travel Speed	5.0 km/h (high) / 3.2 km/h (low)
Swing Speed	9 rpm
Max. Digging Depth	6,130 mm
Max. Digging Reach (Ground Level)	10,260 mm
Max. Dump Height	6,920 mm
Bucket Digging Force	286.4 kN
Arm Digging Force	291.3 kN

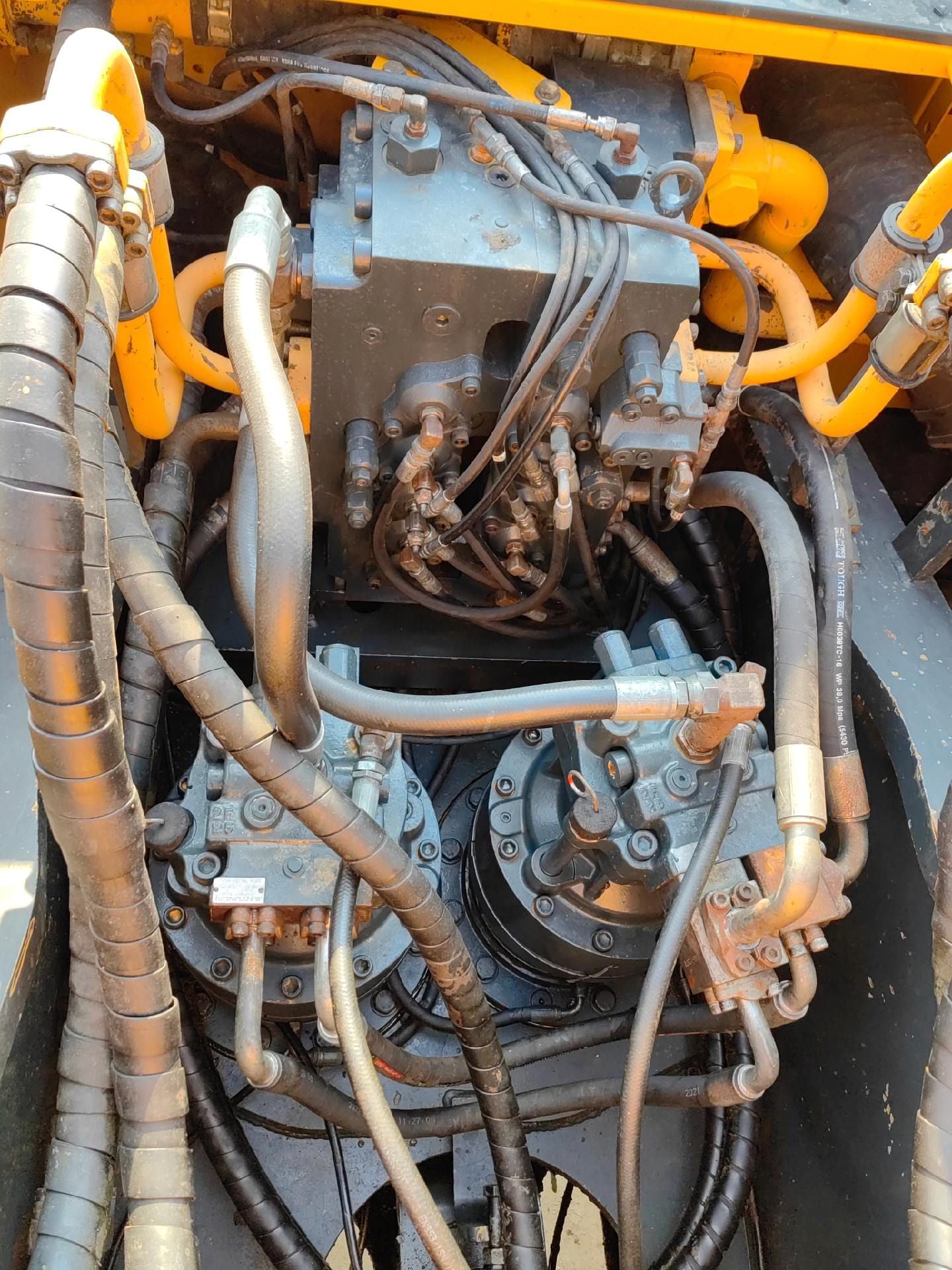

Main Pump Max. Flow	2×360 L/min
Main Relief Pressure	34.3 MPa
Fuel Tank Capacity	650 L
Hydraulic Oil Tank Capacity	260 L
Transport Dimensions (L×W×H)	11,810×3,540×4,090 mm
Ground Pressure	82 kPa
