| Basic Info |

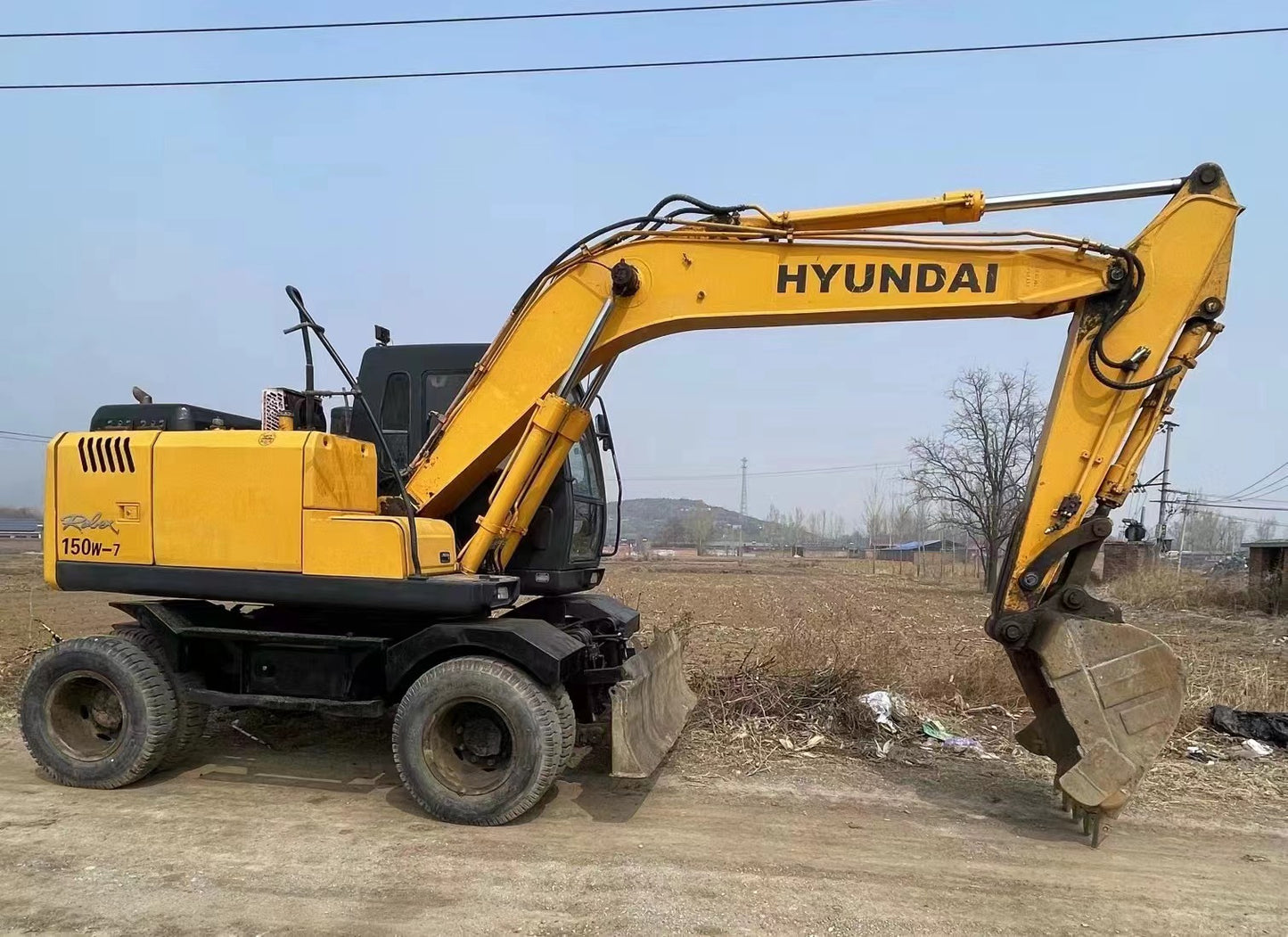

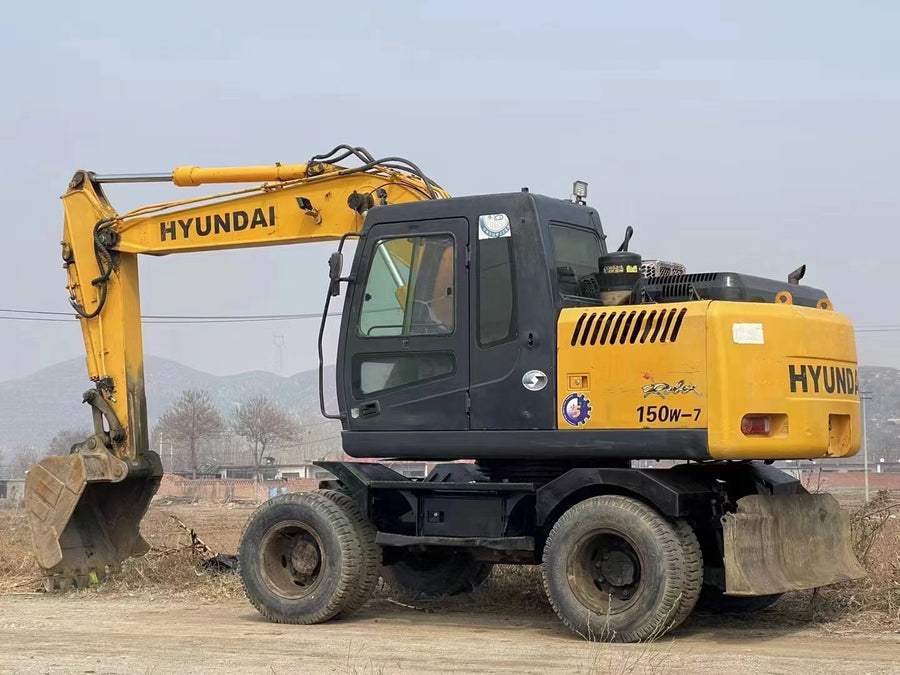

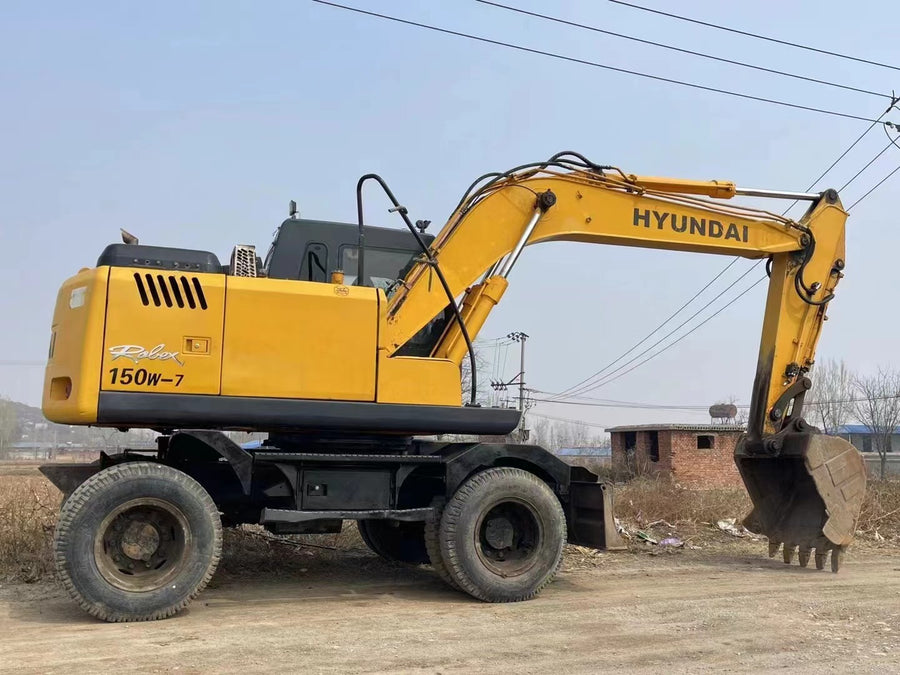

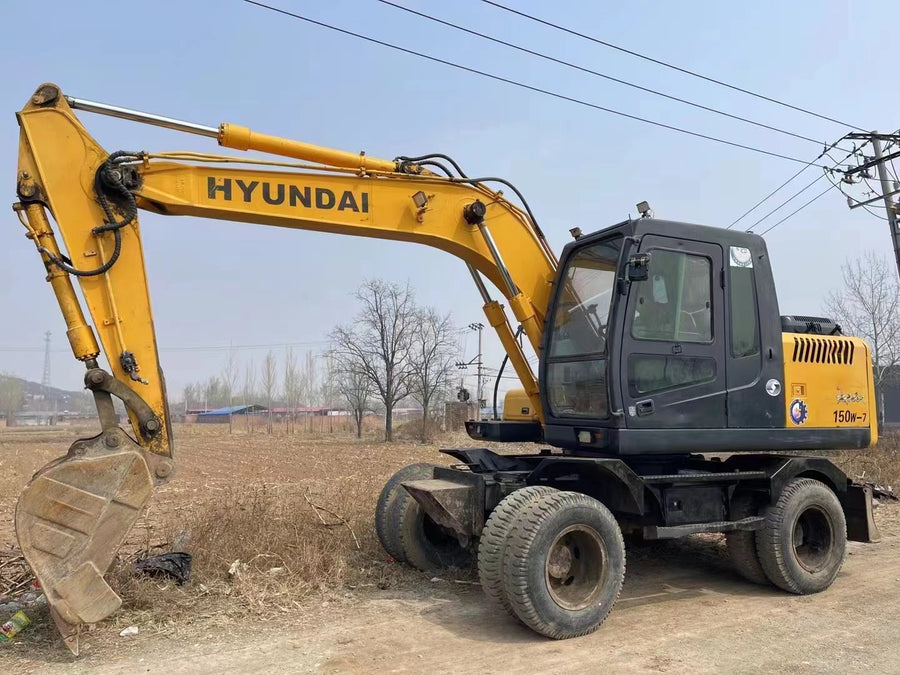

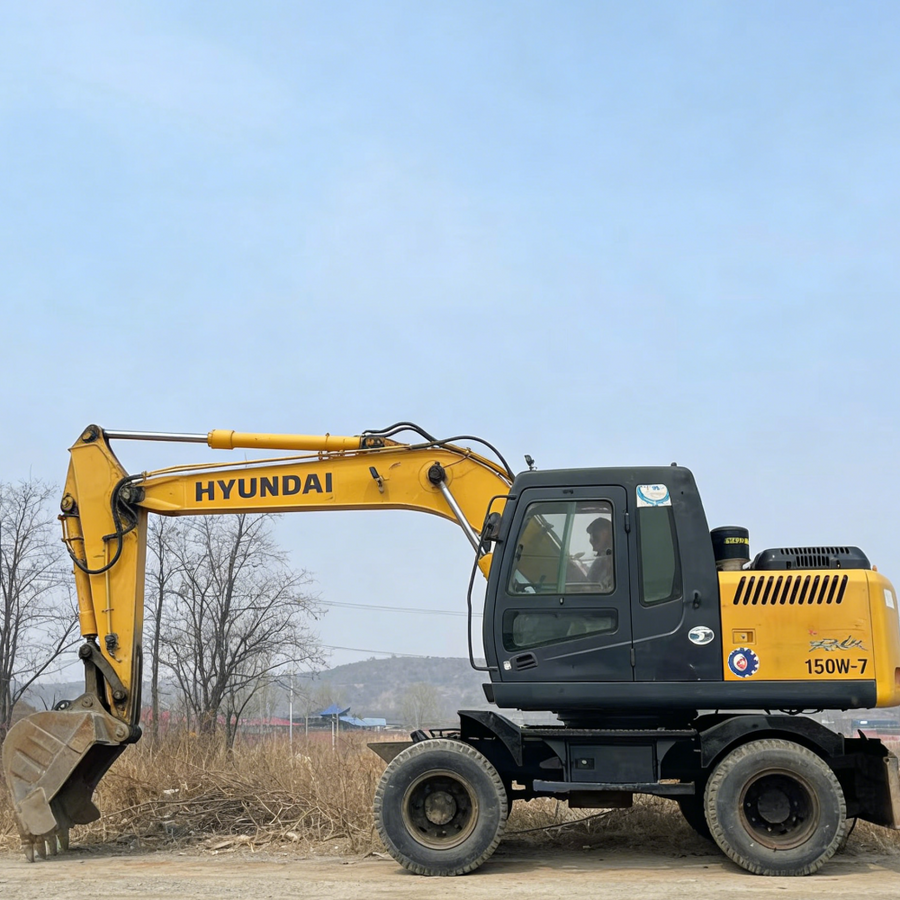

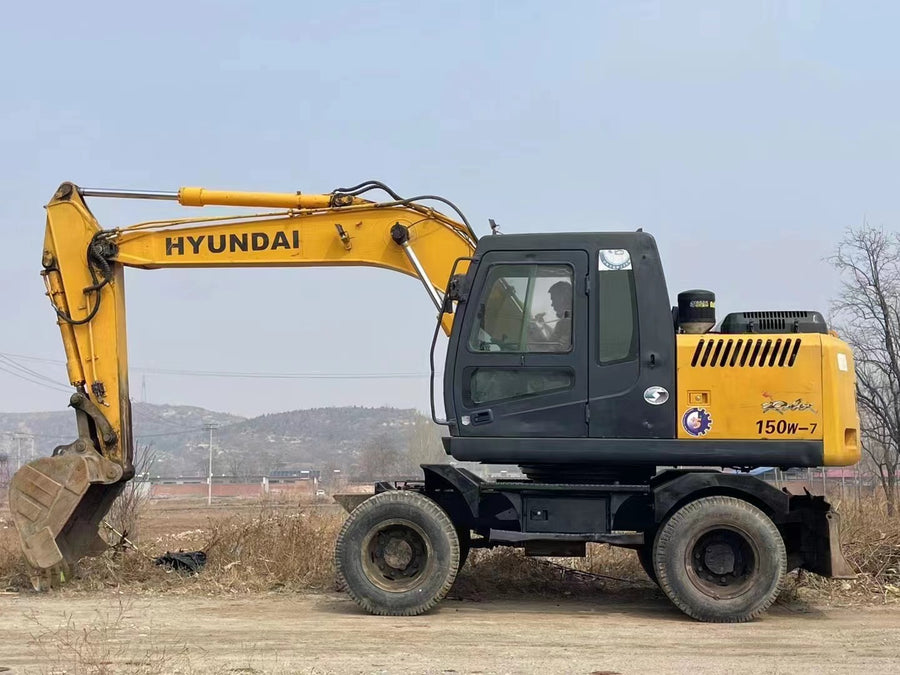

Model: Hyundai R150W-7
Type: Hydraulic Wheel Excavator
Operating Weight: 29,762 lb (13,500 kg)
Standard Bucket Capacity: 0.55 m³ (0.72 yd³); Range: 0.23-0.71 m³ (0.30-0.93 yd³)
Boom Length: 15.09 ft (4,600 mm)
Stick Length: 6.89 ft (2,100 mm) |
| Engine |
Model: Cummins B3.9-C
Type: 4-cylinder, water - cooled diesel
Displacement: 3.9 L (237.9 cu in)
Rated Power: 113 hp (84 kW) @ 2,100 rpm |
| Hydraulics |
System Relief Pressure: 3,046 psi (21 MPa)
Main Pump Type: 2×Variable Displacement Axial Piston Pump
Main Pump Flow: 69.7 gal/min (264 L/min) (2×132 L/min)
Hydraulic Fluid Capacity: 32.8 gal (124 L) |
| Performance |
Max Travel Speed: 18.6 mph (30 km/h) (High gear); 4.9 mph (7.9 km/h) (Low gear)
Swing Speed: 14.5 rpm
Bucket Digging Force: 83.4 kN (18,750 lbf)
Stick Digging Force: 71.6 kN (16,090 lbf)
Max Digging Depth: 15.75 ft (4,800 mm)
Max Digging Reach (Ground Level): 25.59 ft (7,800 mm)
Max Loading Height: 17.72 ft (5,400 mm)
Gradeability: 55% (28.8°) |
| Capacities |
Fuel Tank: 71.3 gal (270 L)
Engine Oil Capacity: 4.0 gal (15.3 L)
Cooling System Fluid Capacity: 6.6 gal (25 L) |
| Dimensions |
Transport Length×Width×Height: 25.59 ft×8.20 ft×11.48 ft (7,800×2,500×3,500 mm)
Wheelbase: 8.53 ft (2,600 mm)
Tire Size: 12.00-20-16PR
Tail Swing Radius: 7.58 ft (2,310 mm)
Min Ground Clearance: 1.43 ft (435 mm) |
| Electrical System |
Voltage: 24 V
Alternator Output: 50 A |
