HYUNDAI

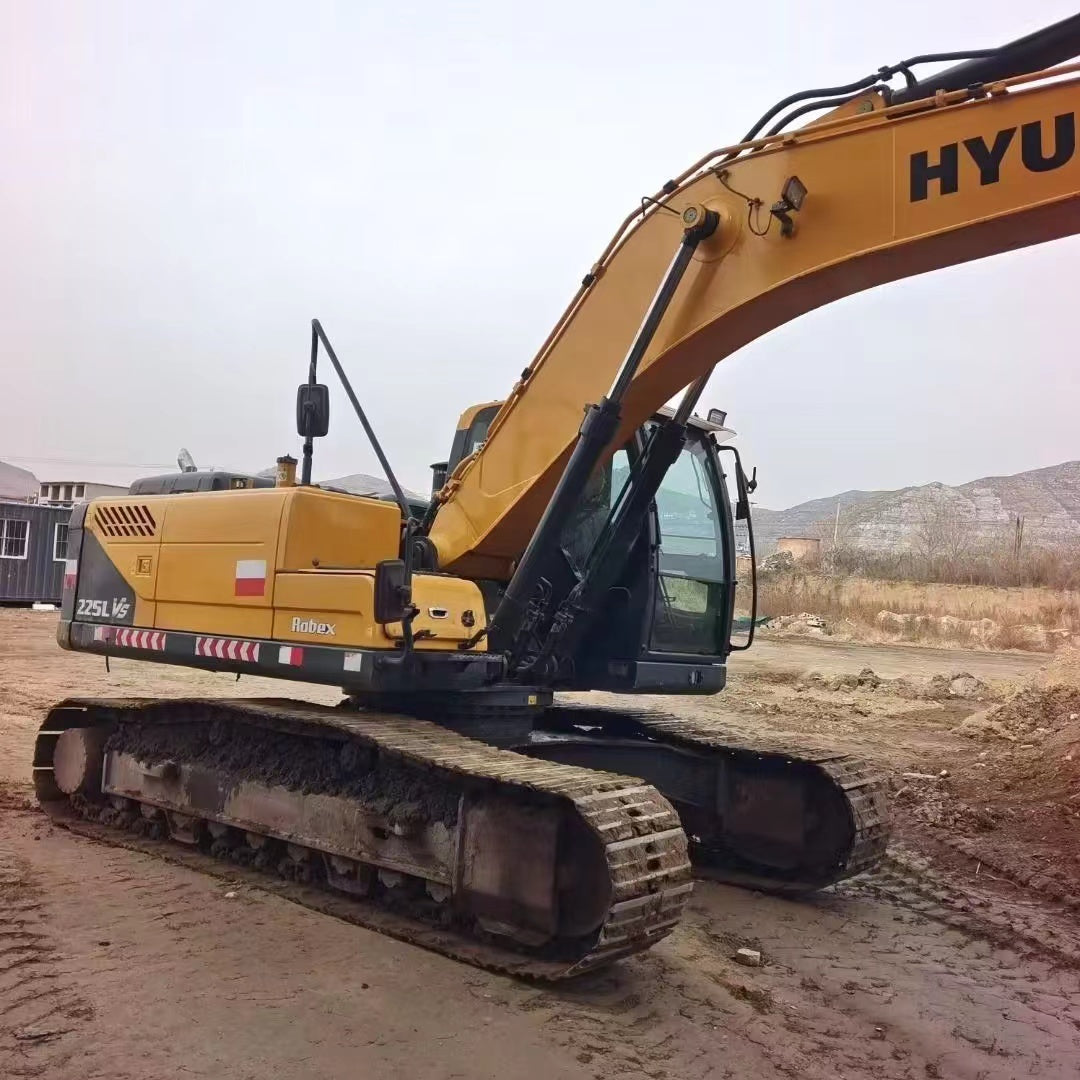

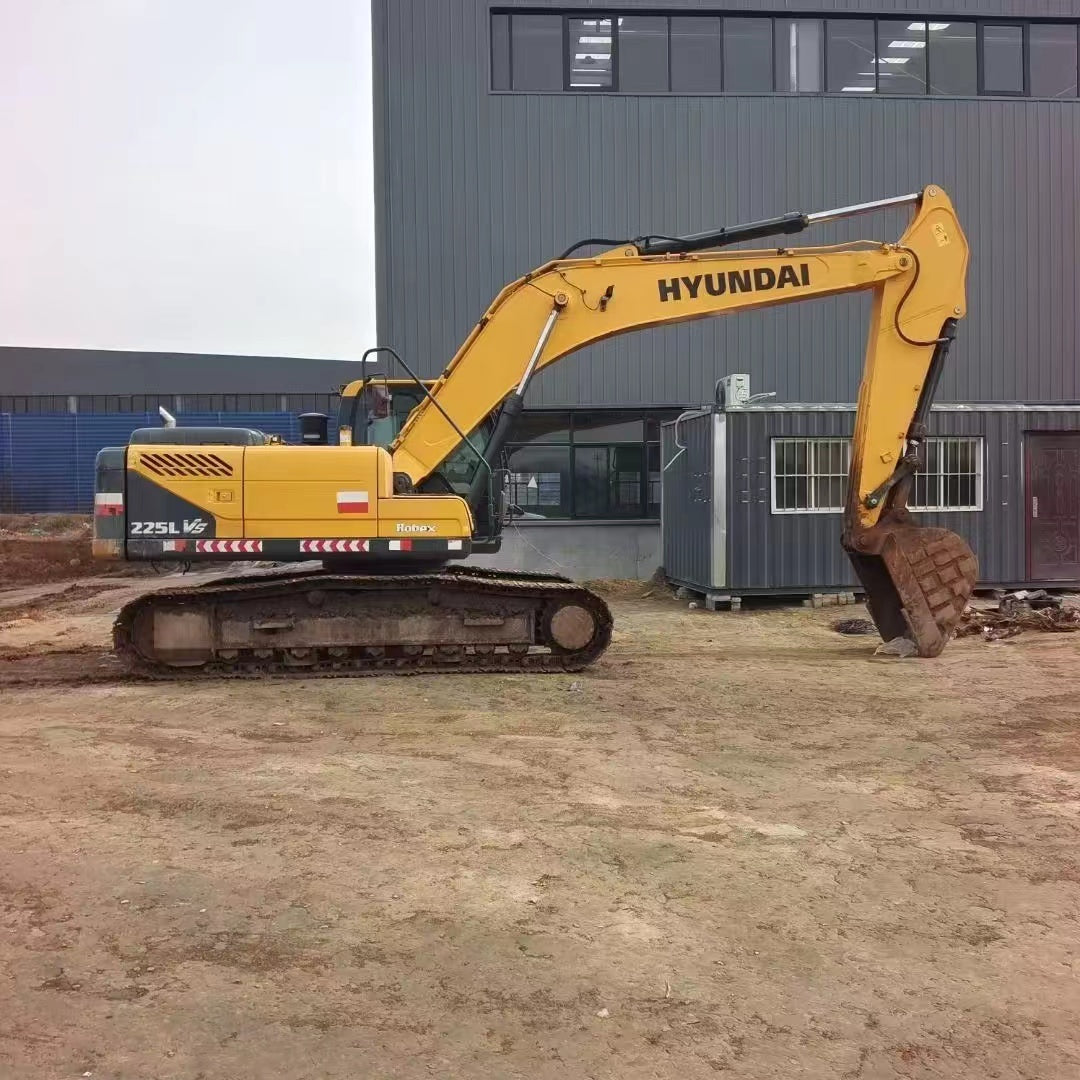

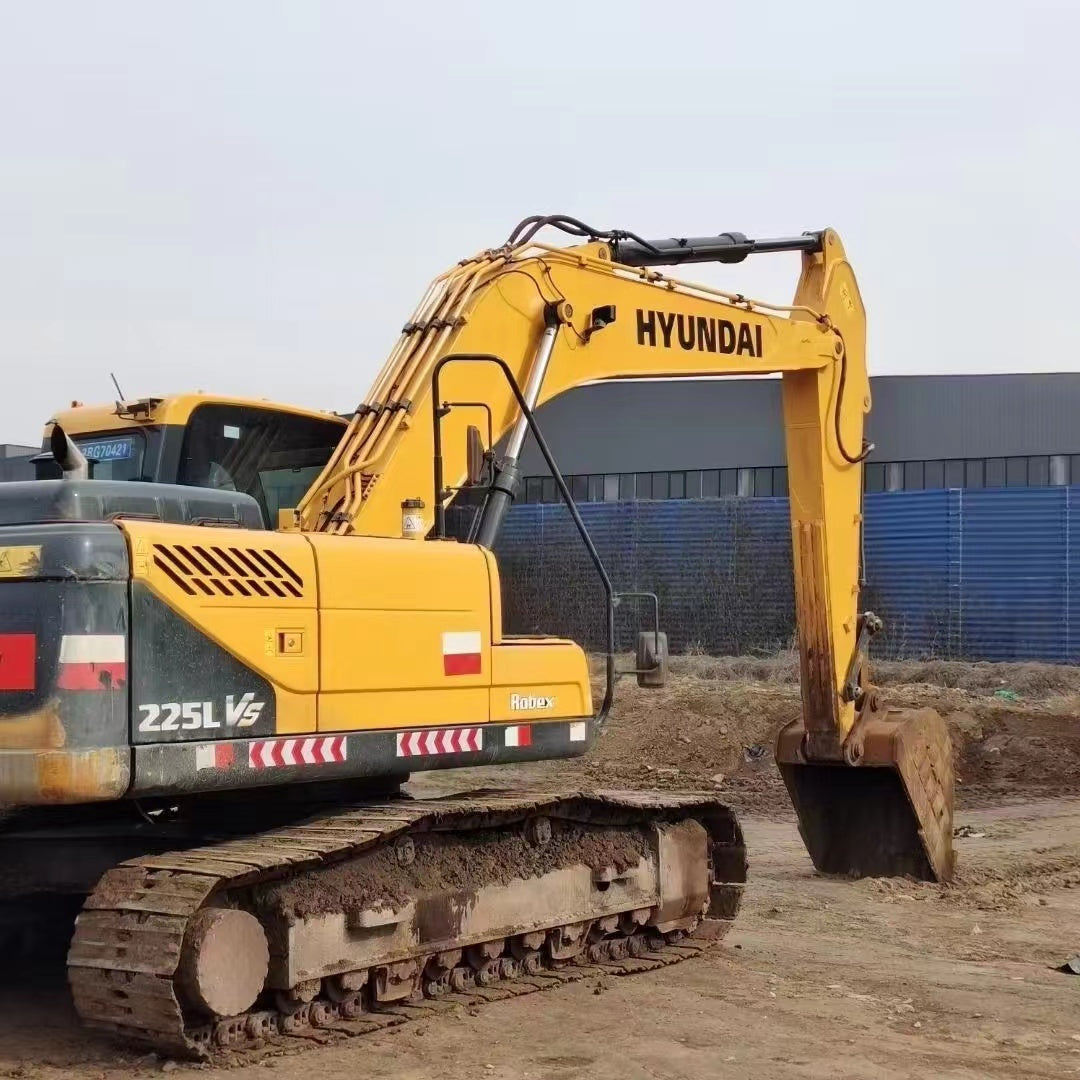

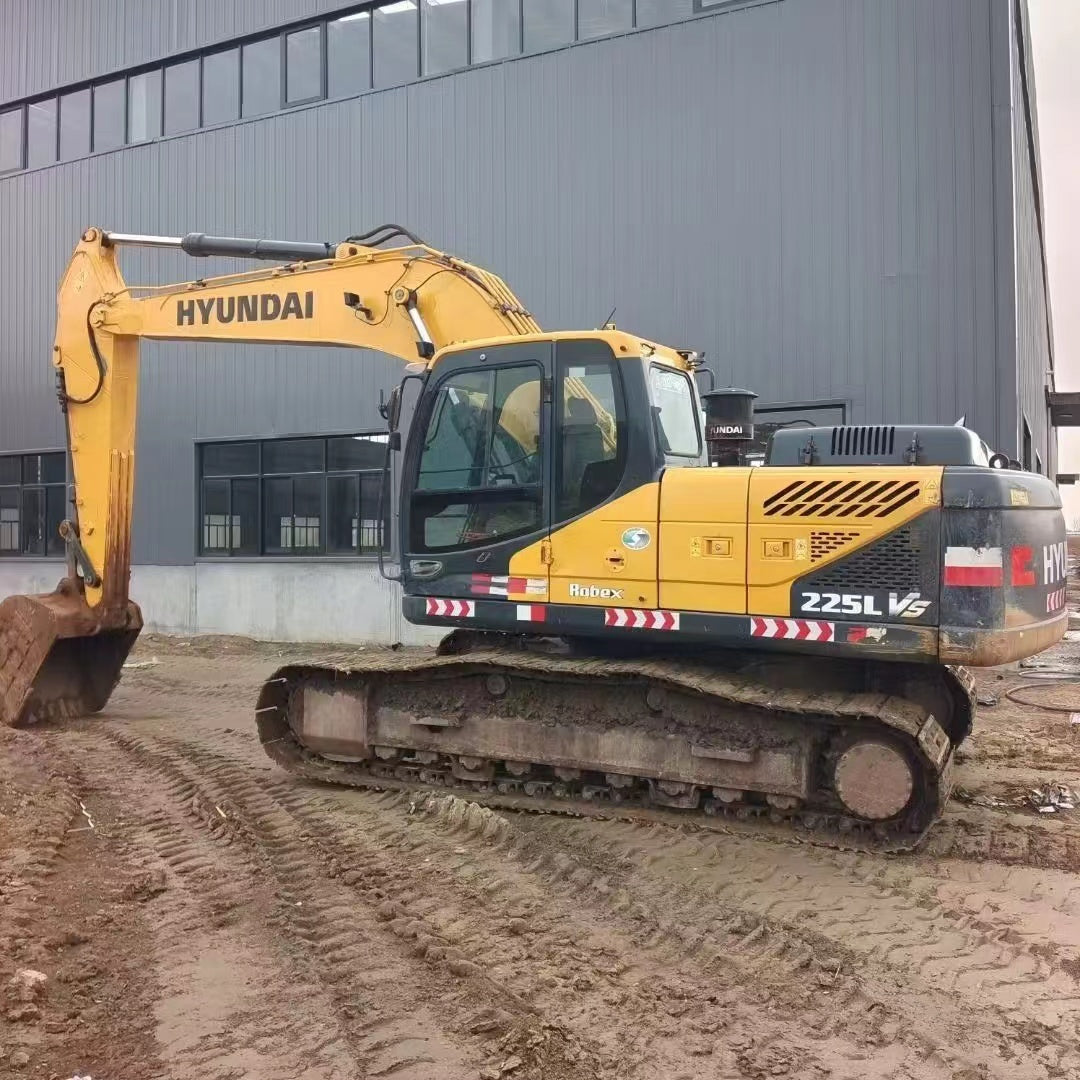

USED HYUNDAI R225LVS

USED HYUNDAI R225LVS

$22,000.00 USD
$22,000.00 USD
Oferta Agotado

HYUNDAI R225LVS Core Specifications (English)

Category Parameter Details
Model Identification Model Name HYUNDAI R225LVS (Crawler Excavator)
Basic Specifications Operating Weight 22,570 kg
Bucket Capacity 1.05 m³
Boom Length 5,680 mm
Stick Length 2,920 mm
Transport Dimensions (L×W×H) 9,550×2,990×3,080 mm
Engine System Engine Model HYUNDAI HE6.7 / CUMMINS QSB7 (varies by region)
Rated Power 113 kW (151.4 HP) / 1,900 rpm
Displacement 6.7 L
Max. Torque 630 N·m / 1,500 rpm (corrected from original data)
Cooling Method Water - cooled
Performance Travel Speed (High/Low) 5.3/3.4 km/h
Gradeability 35° (70%)
Bucket Digging Force 152.0 kN
Stick Digging Force 109.8 kN
Hydraulic System Main Pump Type Variable displacement piston pump (2 units)
Main Pump Max. Flow 222 L/min × 2
Main Relief Valve Pressure 35 MPa
Swing Circuit Pressure 26.5 MPa
Fuel & Hydraulic Tank Fuel Tank Capacity 400 L
Hydraulic Oil Tank Capacity 160 L
Ver todos los detalles
