| Model |
HYUNDAI ROBEX R385LVS (38.9t Crawler Excavator) |
| Operating Weight |
38,900 kg (85,760 lb) |
| Bucket Capacity (Std) |
1.90 m³ (2.49 yd³) |

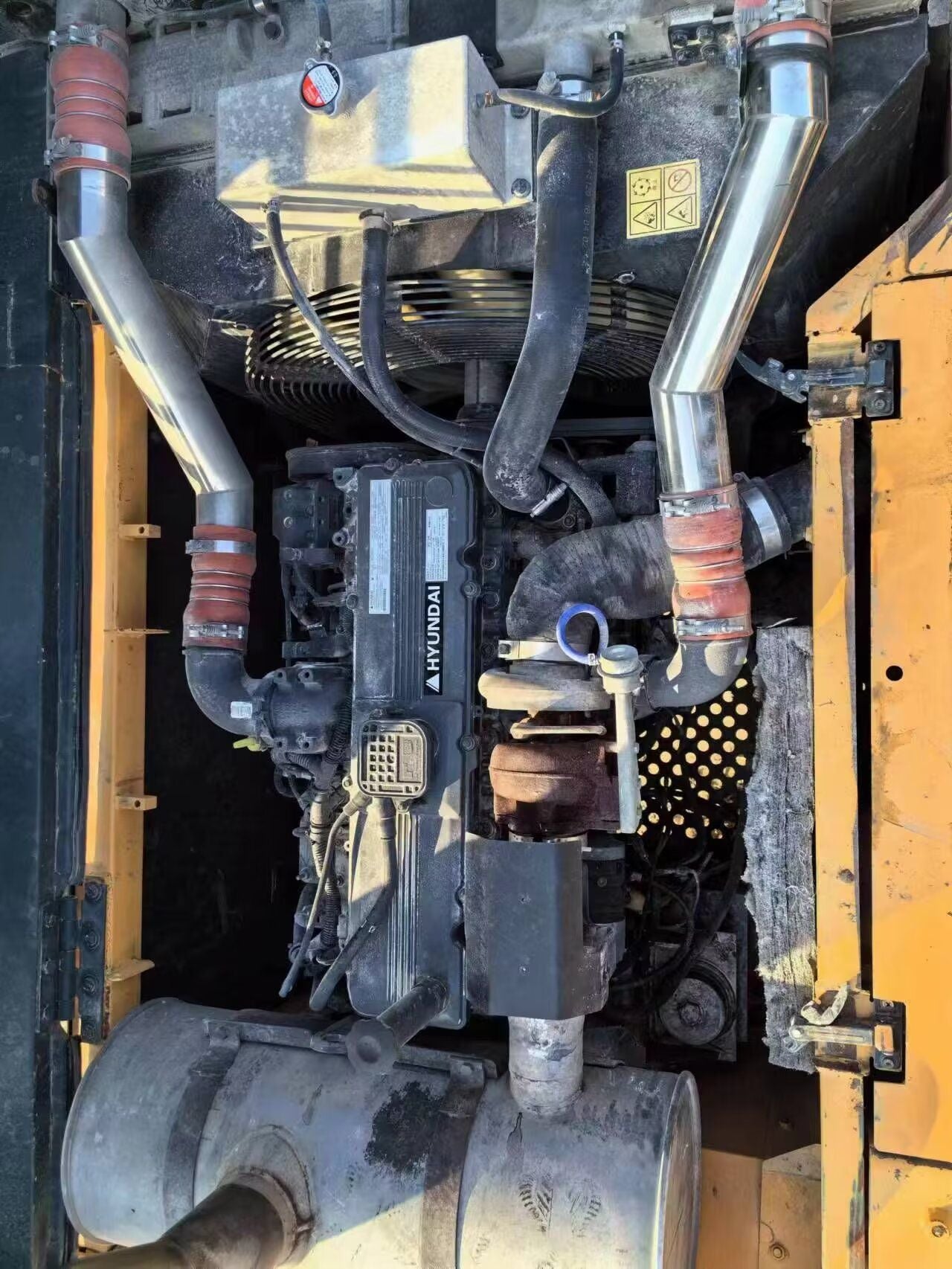

| Engine Model |
HYUNDAI HE8.9（6‑cyl turbo diesel, 8.9L） |
| Rated Power |
221 kW / 296 HP @ 1,850 rpm |
| Max Torque |
1,450 N·m @ 1,400 rpm |
| Emission |
Euro 3 / Tier 3 / 国三 |
| Max Digging Depth |
6,750 mm (22.1 ft) |
| Max Reach (Ground) |
10,520 mm (34.5 ft) |
| Max Dump Height |
7,030 mm (23.1 ft) |
| Max Digging Height |
10,150 mm (33.3 ft) |
| Bucket Digging Force |
228.5 kN (23.3 tf) |
| Arm Digging Force |
158 kN (16.1 tf) |
| Travel Speed (High/Low) |
5.0 / 3.2 km/h (3.1 / 2.0 mph) |
| Swing Speed |
9.5 rpm |
| Gradeability |
35° (70%) |
| Ground Pressure |
68 kPa |
| Main Pump Flow |
2 × 315 L/min |
| Relief Pressure |
35 MPa (5,075 psi) |
| Fuel Tank |
610 L (161 gal) |
| Hydraulic Tank |
210 L (55 gal) |
| Dimensions (L×W×H) |
10,830 × 3,340 × 3,680 mm |
| Track Width |
600 mm |
| Key Features |
38.9t heavy mining, 296HP Hyundai HE8.9, 1.9m³ HD bucket, IPC+VPC, heavy‑duty undercarriage, quarry/rock/overburden |
