| Model |

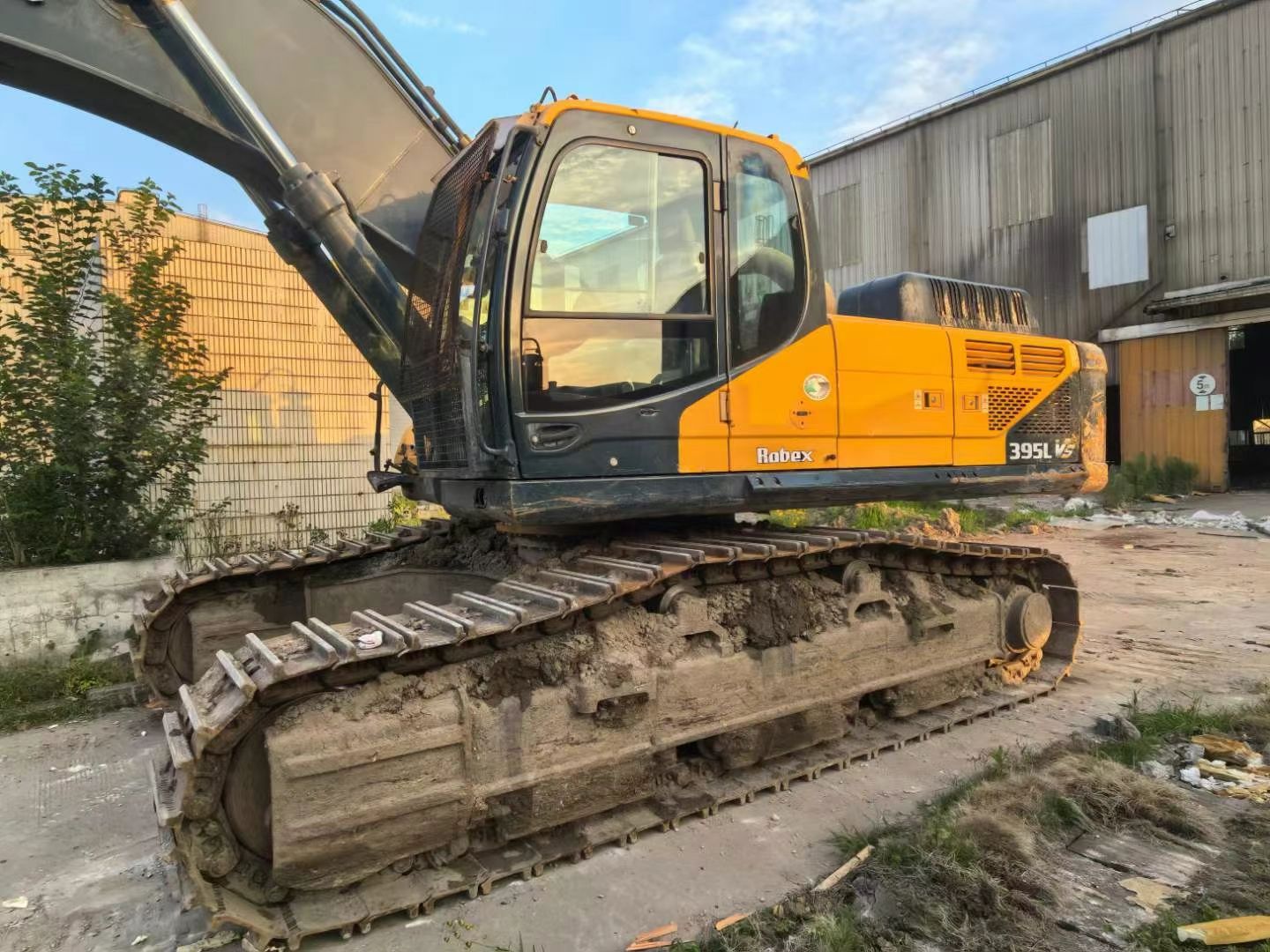

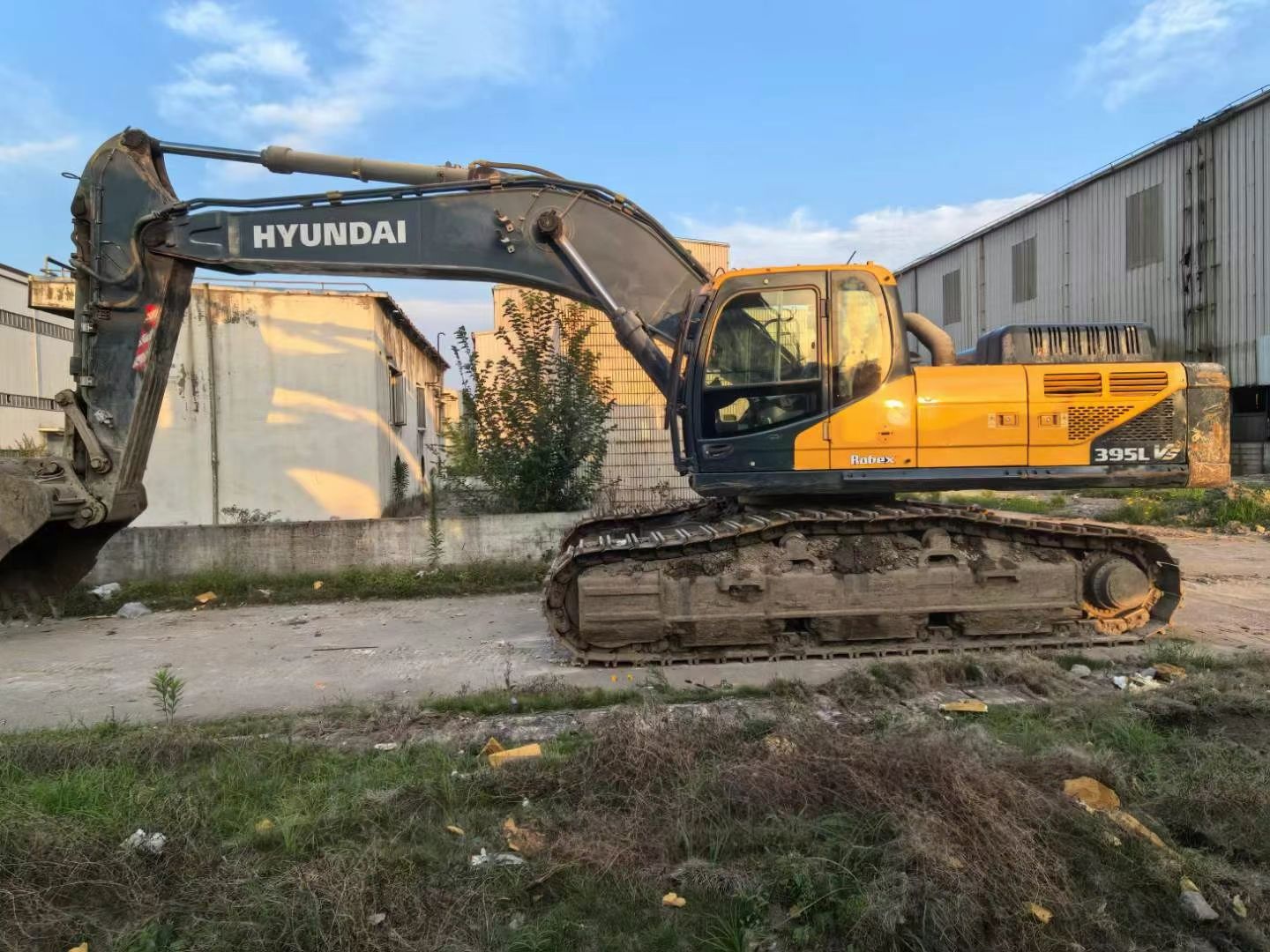

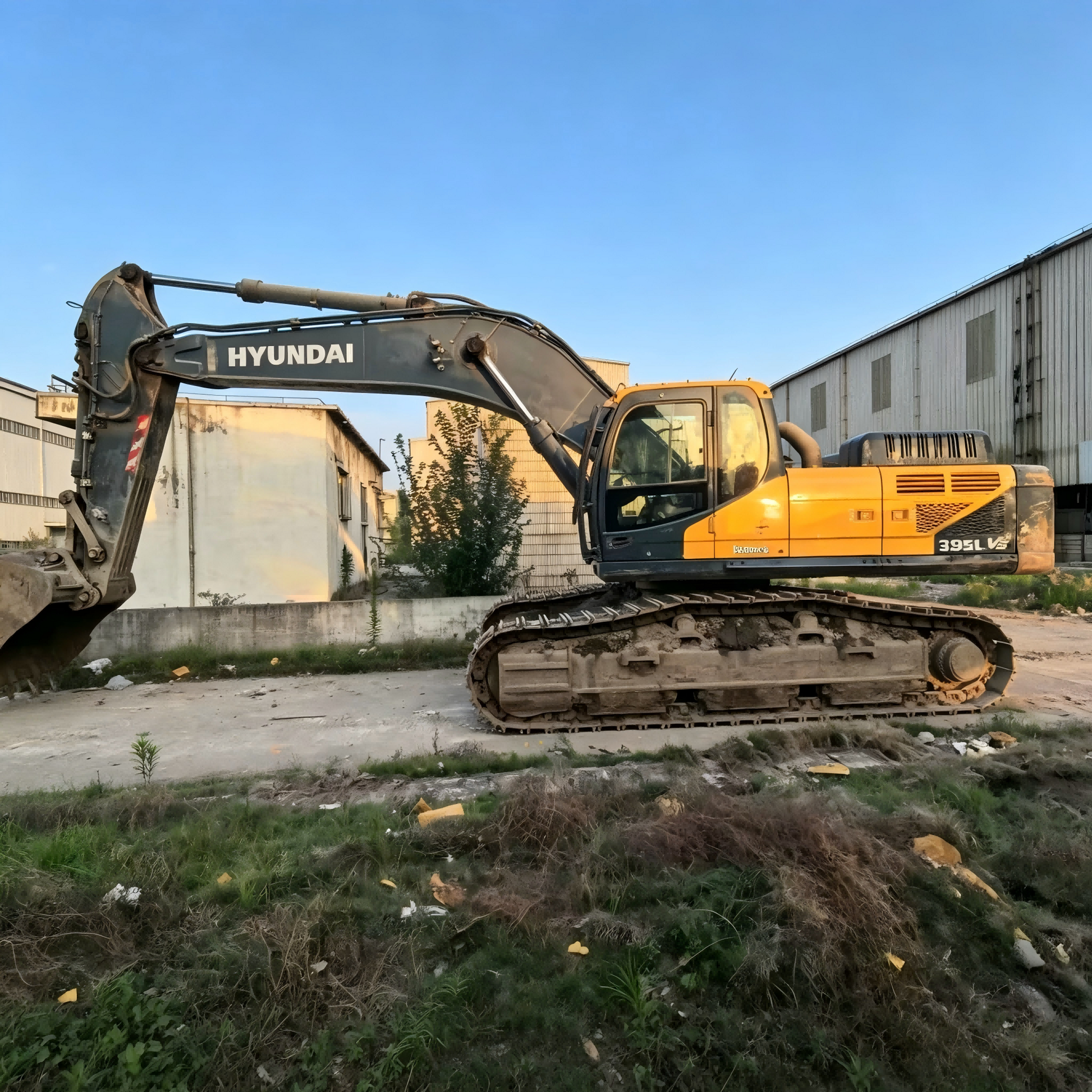

HYUNDAI ROBEX R395LVS (40.5t Crawler Excavator) |
| Operating Weight |
40,500 kg (89,287 lb)现代重工
|
| Bucket Capacity (Std) |
1.90 m³ (2.49 yd³) rock bucket |
| Engine Model |
HYUNDAI HE8.9 (6‑cyl turbo diesel, 8.9L)现代重工
|
| Rated Power |
232 kW / 311 HP @ 1,700 rpm现代重工
|
| Max Torque |
1,500 N·m @ 1,400 rpm |
| Emission |
Euro 3 / Tier 3 / 国三 |
| Max Digging Depth |
6,840 mm (22.4 ft)现代重工
|
| Max Reach (Ground) |
10,950 mm (35.9 ft) |
| Max Dump Height |
7,740 mm (25.4 ft) |
| Max Digging Height |
10,880 mm (35.7 ft)现代重工
|
| Bucket Digging Force |
211 kN |
| Arm Digging Force |
209 kN |
| Travel Speed (High/Low) |
5.0 / 3.1 km/h (3.1 / 1.9 mph) |
| Swing Speed |
9.5 rpm |
| Gradeability |
35° (70%) |
| Ground Pressure |
72 kPa |
| Main Pump Flow |
2 × 330 L/min |
| Relief Pressure |
35 MPa (5,075 psi) |
| Fuel Tank |
650 L (171.7 gal) |
| Hydraulic Tank |
220 L (58.1 gal) |
| Dimensions (L×W×H) |
11,250 × 3,340 × 3,500 mm现代重工
|
| Track Width |
600 mm (800 mm optional) |
| Key Features |
40.5t heavy mining, 311HP Hyundai HE8.9, 1.9m³ HD rock bucket, heavy‑duty undercarriage, quarry/rock/overburden |
