| Model |

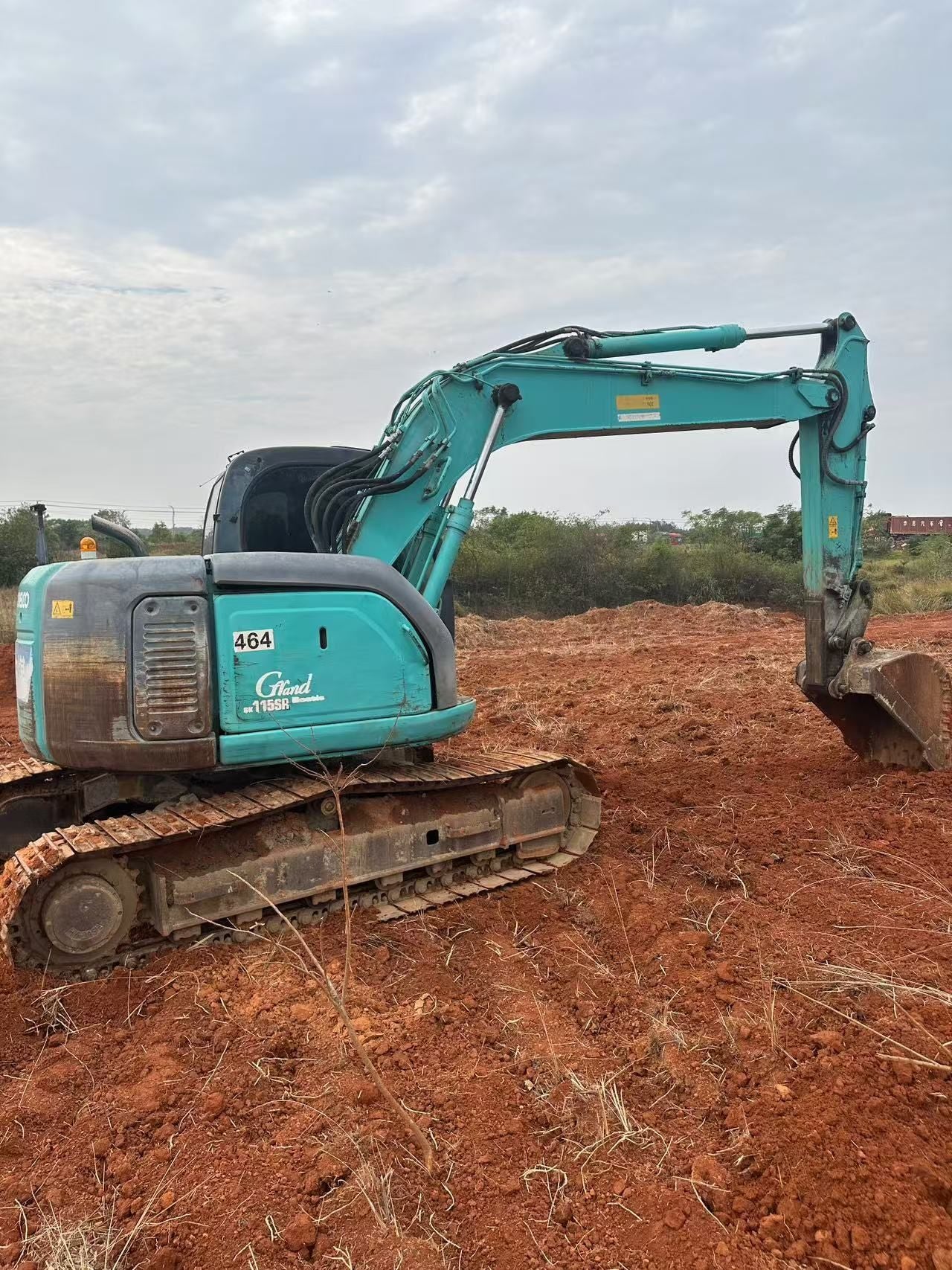

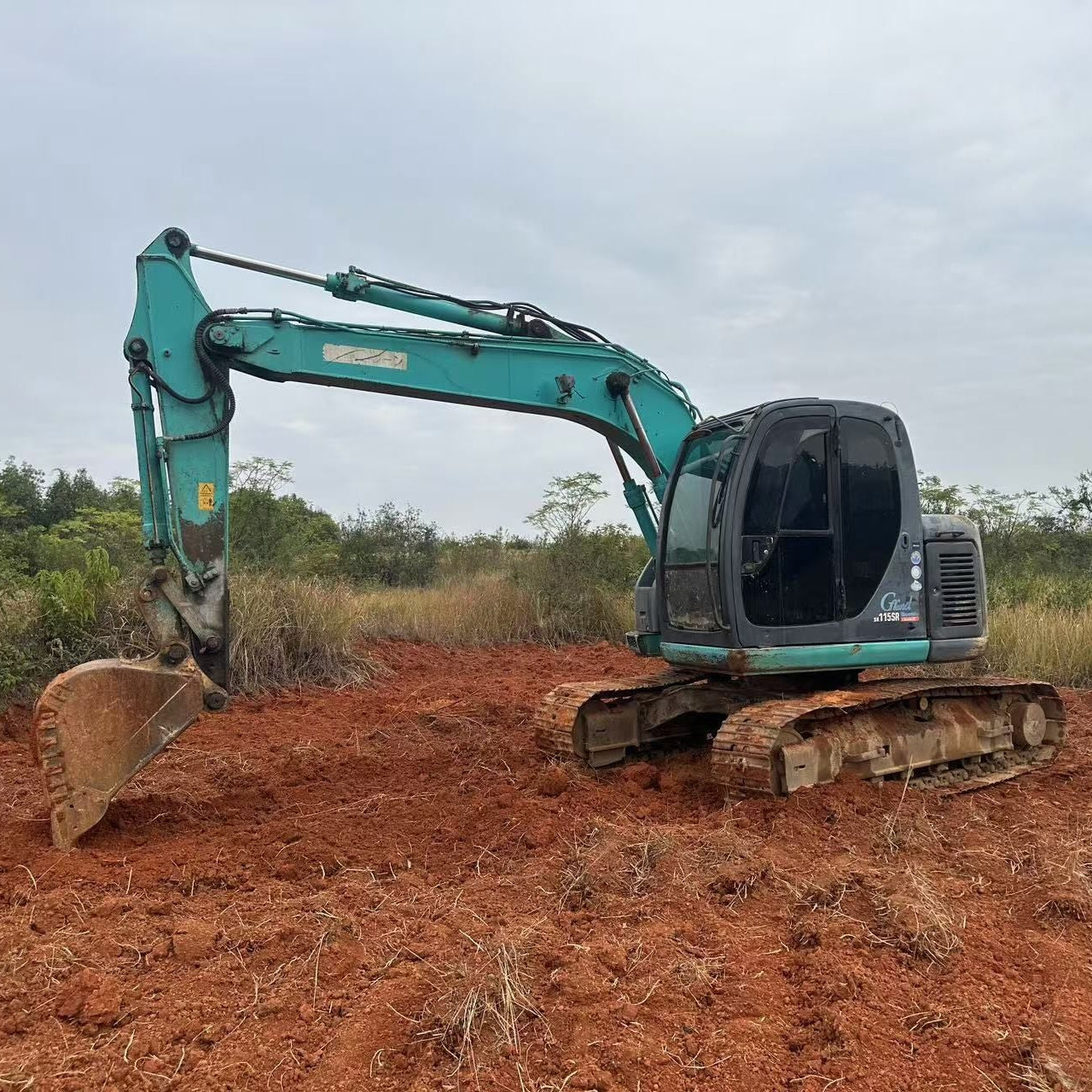

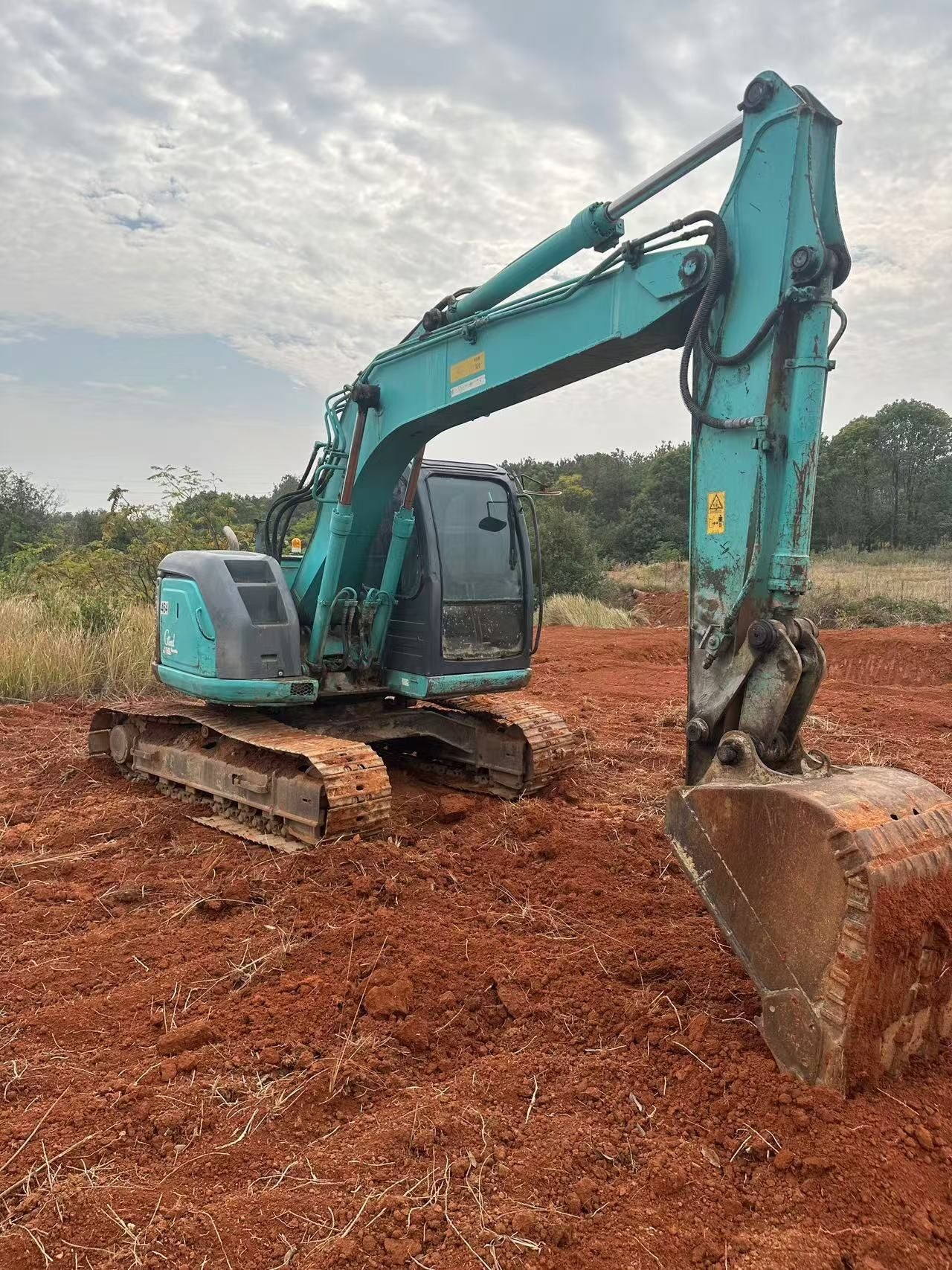

KOBELCO SK115SR-DZ Short Tail Swing Hydraulic Crawler Excavator |
| Operating Weight(Standard Steel Track) |
14402 kg |
| Standard Heaped Bucket Capacity |
0.50 m³ (Optional:0.23~0.78 m³) |
| Overall Transport Length |
7880 mm |
| Overall Transport Width |
2590 mm |
| Overall Transport Height(Cab Top) |
2810 mm |
| Standard Track Shoe Width |
500 mm |
| Track Gauge |
2090 mm |
| Track Length on Ground |
2870 mm |
| Ground Clearance |
460 mm |
| Minimum Rear Swing Radius |
1430 mm(Short Radius Design) |
| Engine Model |
ISUZU BB-4BG1T 4-Cylinder Turbocharged Diesel Engine |
| Engine Type |
Water-cooled,4-stroke,direct injection,turbocharged with intercooler |
| Rated Net Power |
62.6 kW @2050 rpm |
| Fuel Tank Capacity |
168.1 L |
| Total Hydraulic System Oil Volume |
140.1 L |
| Main Hydraulic Relief Pressure |
31.4 MPa |
| Max Digging Reach(Ground Level) |
8230 mm |
| Max Total Digging Reach |
8630 mm |
| Max Digging Depth |
5550 mm |
| Max Vertical Wall Digging Depth |
4970 mm |
| Max Digging Height |
6920 mm |
| Max Dumping Height |
6220 mm |
| Bucket Digging Force(ISO) |
126.8 kN |
| Arm Digging Force(ISO) |
82.5 kN |
| Swing Speed |
11.7 rpm |
| Travel Speed(Low/High) |
3.5 km/h / 6.0 km/h |
| Gradeability |
35°(70%) |
| Ground Pressure(Standard Config) |
37.9 kPa |
| Standard Boom Length |
3450 mm |
| Standard Stick Length |
2200 mm |
