KOBELCO

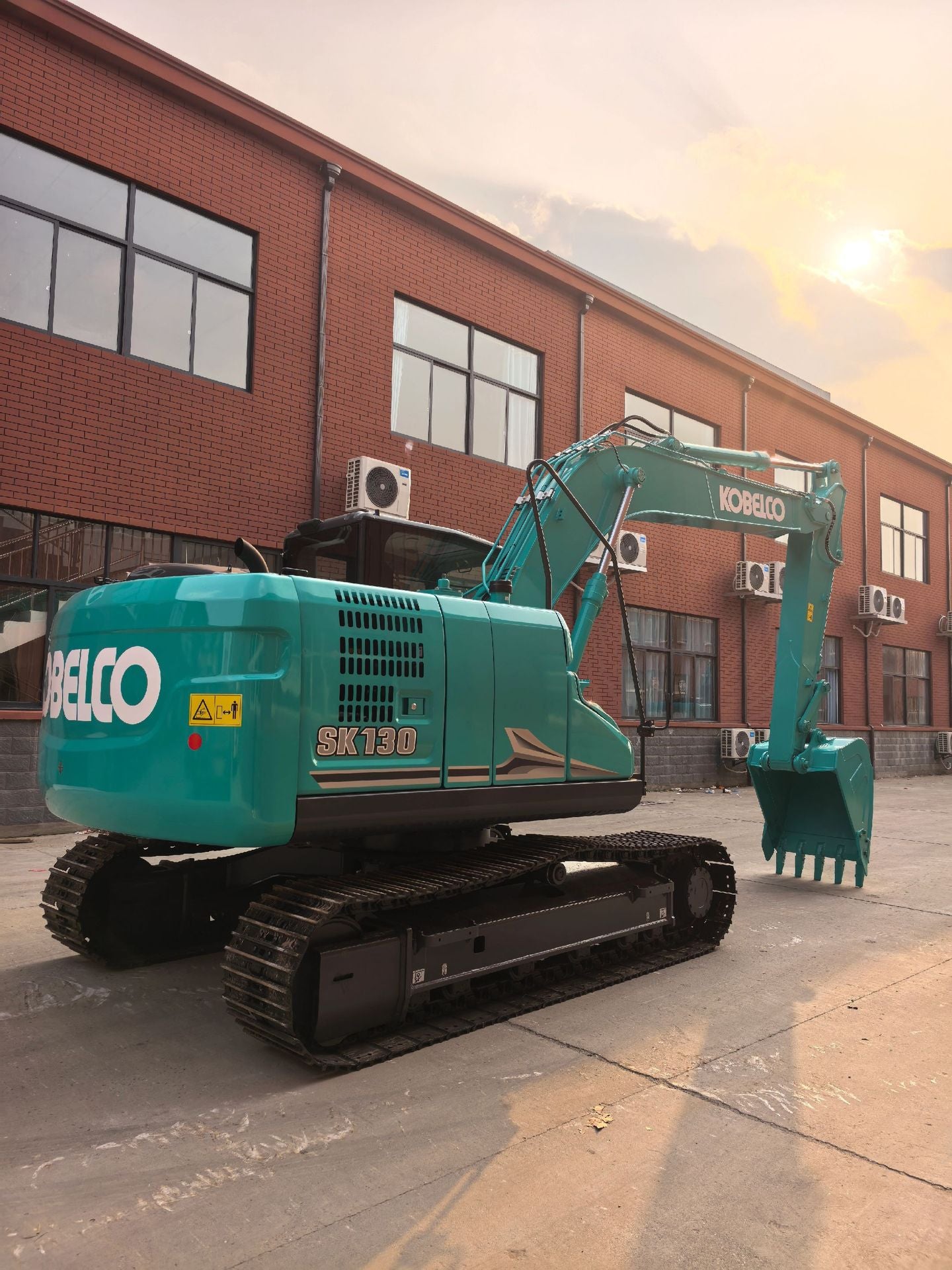

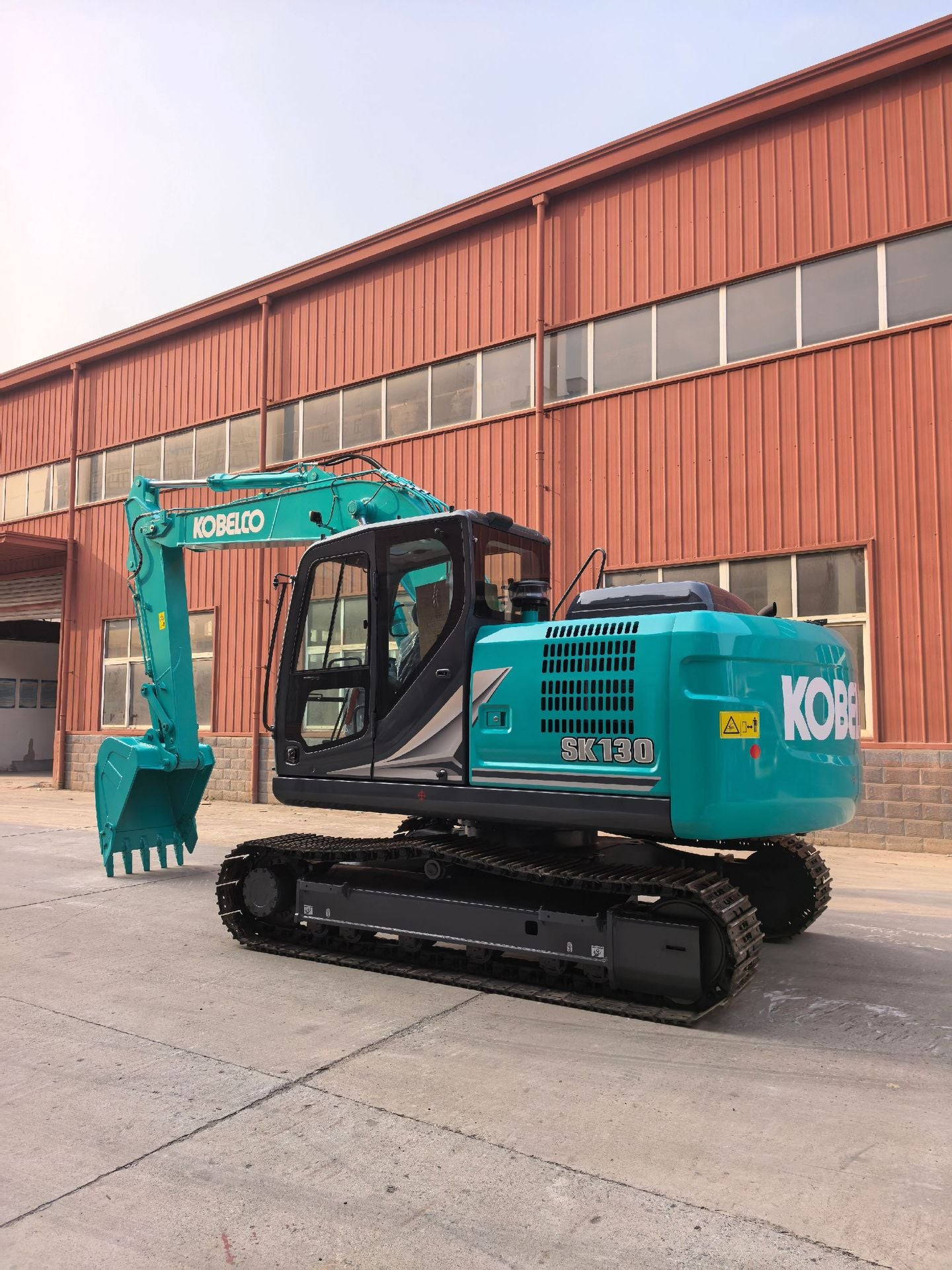

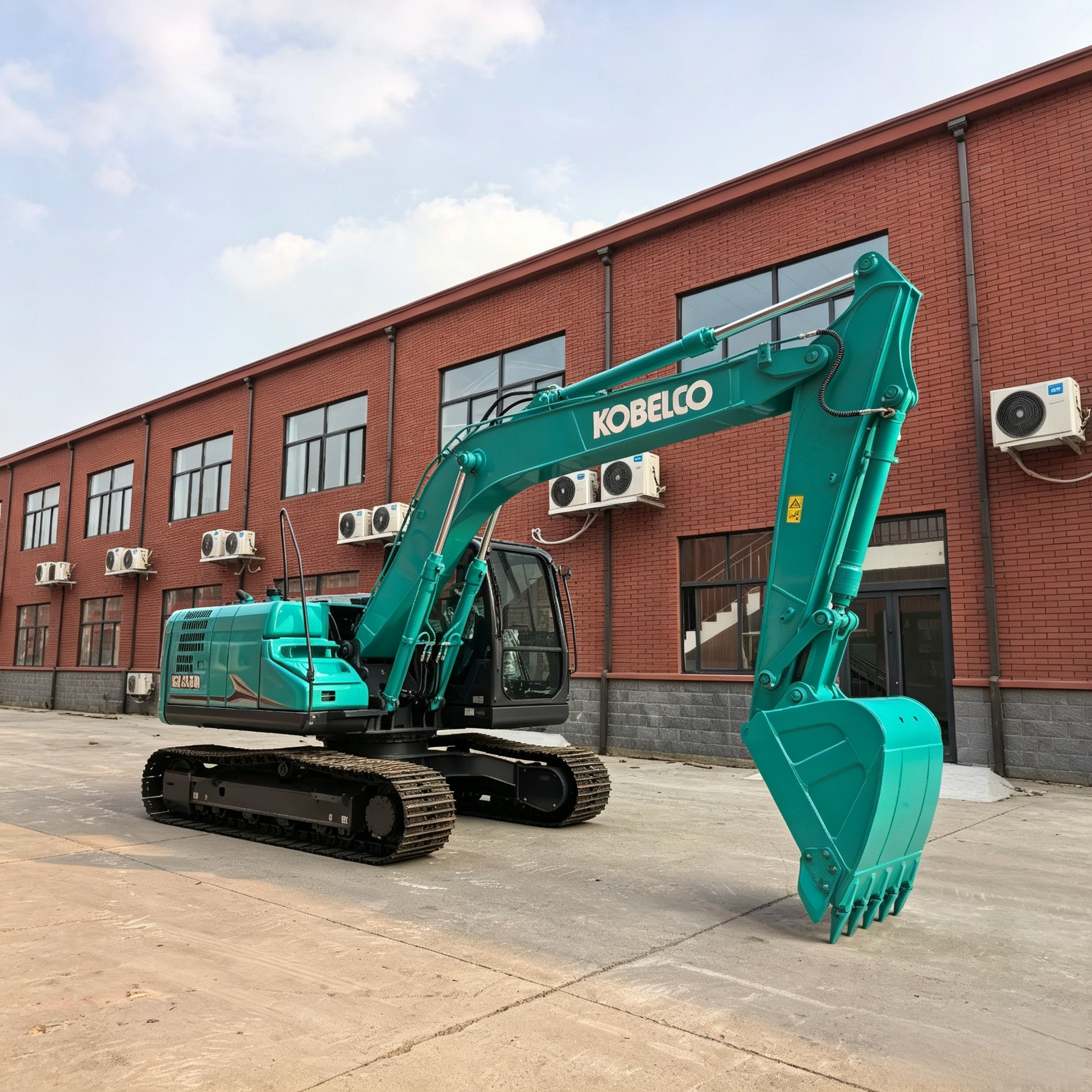

USED KOBELCO SK130-8
USED KOBELCO SK130-8
Precio habitual
$15,000.00 USD
Precio habitual
Precio de oferta
$15,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specifications of KOBELCO SK130-8 (Standard Configuration)
| Category | Specifications |
|---|---|
| Basic Information | |
| Model | KOBELCO SK130-8 |
| Engine Model | Mitsubishi D04FR-KDP2TAAC (4-cylinder, water-cooled, turbocharged with intercooler, direct-injection diesel) |
| Displacement | 4.249 L (259.3 cu in) |
| Net Power | 74 kW (100 HP) @ 2000 rpm (ISO 9249/SAE J1349) |
| Max Torque | 375 N·m (276.6 lb·ft) @ 1600 rpm |
| Operating Weight | 12,800 kg (28,219 lbs) |
| Standard Bucket Capacity | 0.52 m³ (heaped); 0.41 m³ (struck) |
| Performance | |
| Max Travel Speed | 5.6 km/h (3.5 mph) (high); 3.4 km/h (2.1 mph) (low) |
| Max Digging Depth | 5,520 mm (18.11 ft) |
| Max Digging Height | 9,540 mm (31.30 ft) |
| Max Dumping Height | 6,090 mm (19.98 ft) |
| Swing Speed | 11 rpm |
| Bucket Digging Force | 91.2 kN (9,300 kgf) |
| Arm Crowding Force | 65.7 kN (6,700 kgf) |
| Climbing Ability | 35° (70%) |
| Dimensions | |
| Track Width | 500 mm (19.69 in) |
| Track Gauge | 2,040 mm (6.69 ft) |
| Overall Length (with bucket on ground) | 7,790 mm (25.56 ft) |
| Overall Width | 2,490 mm (8.17 ft) |
| Overall Height (top of cab) | 2,710 mm (8.89 ft) |
| Min Ground Clearance | 440 mm (17.32 in) |
| Rear Swing Radius | 1,740 mm (5.71 ft) |
| Capacities | |
| Fuel Tank | 275 L (72.6 US gal) |
| Hydraulic System Fluid Capacity | Approx. 160 L (42.3 US gal) |
| Hydraulic Tank Capacity | Approx. 90 L (23.8 US gal) |
| Hydraulic System | |
| Main Relief Pressure | 34.3 MPa (4,974 psi) (boom, arm, bucket, travel); 29.4 MPa (4,264 psi) (swing circuit) |
| Main Pump Flow | 2 × 130 L/min (2 × 34.34 gpm); pilot pump: 17 L/min (4.49 gpm) |
