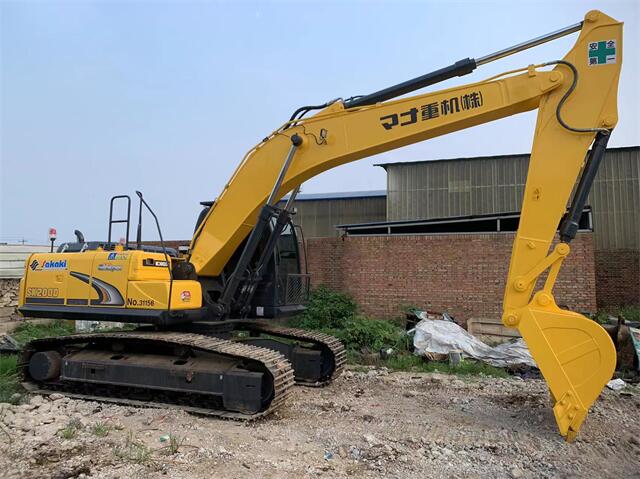

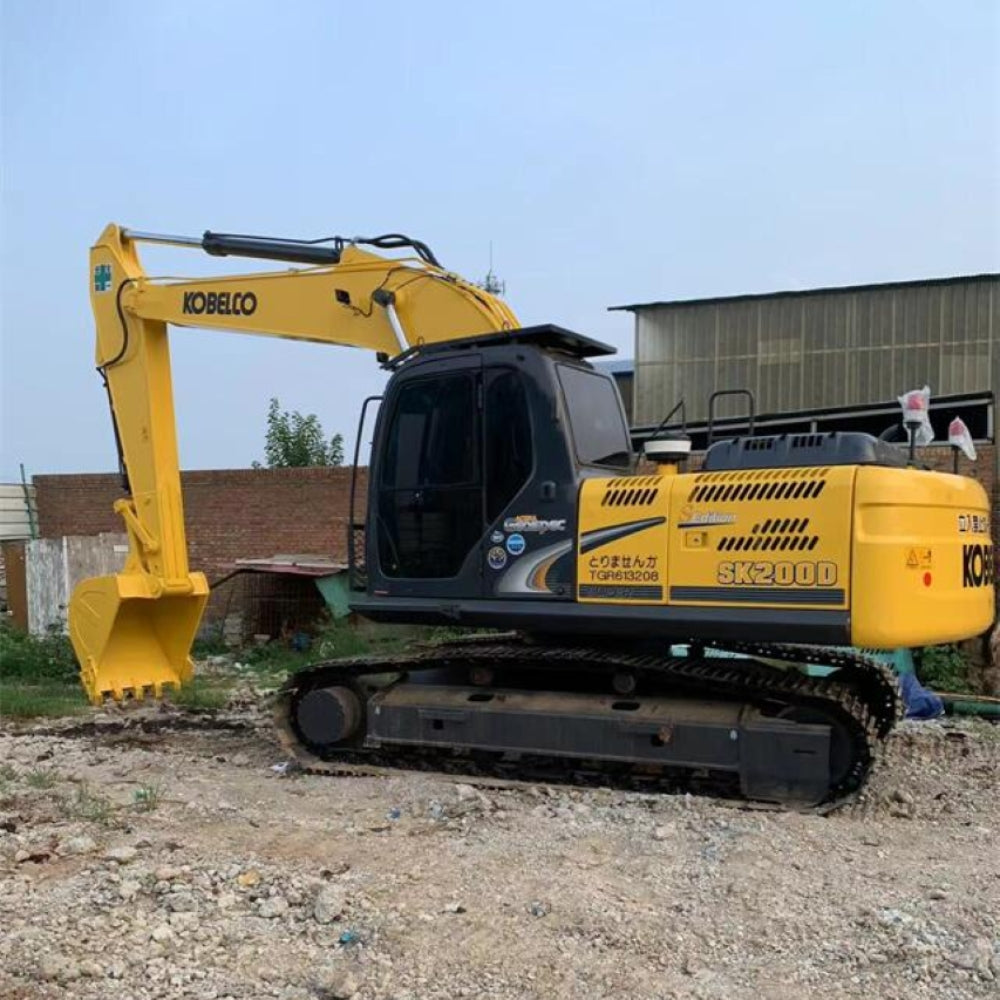

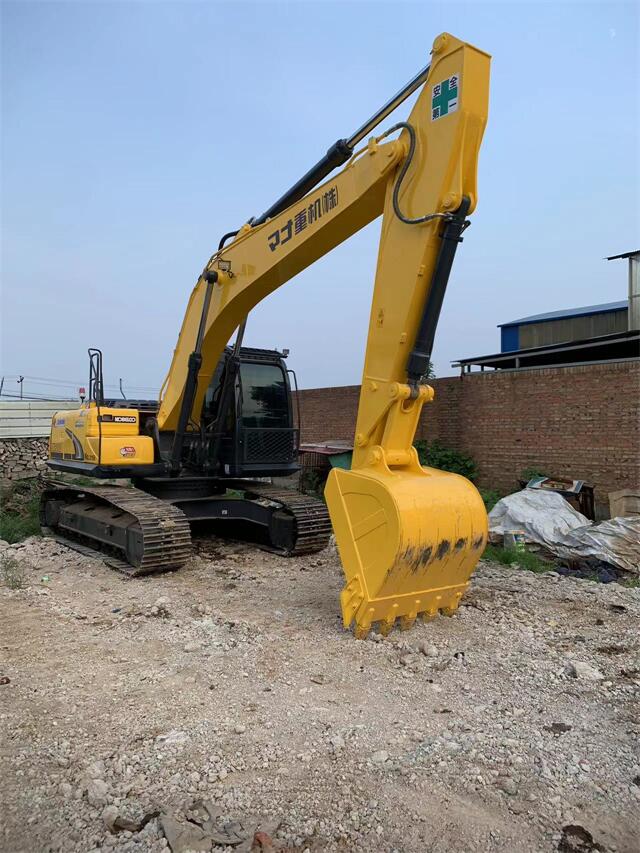

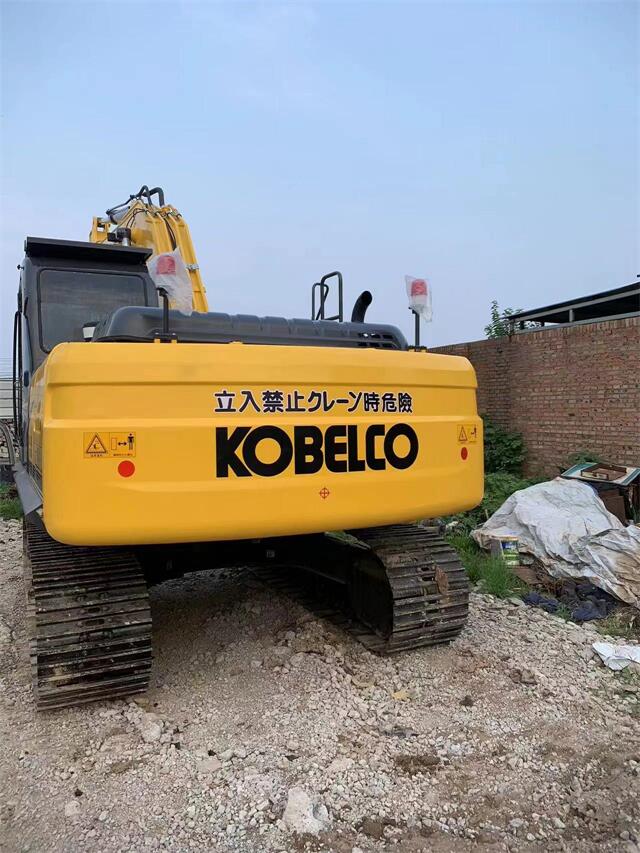

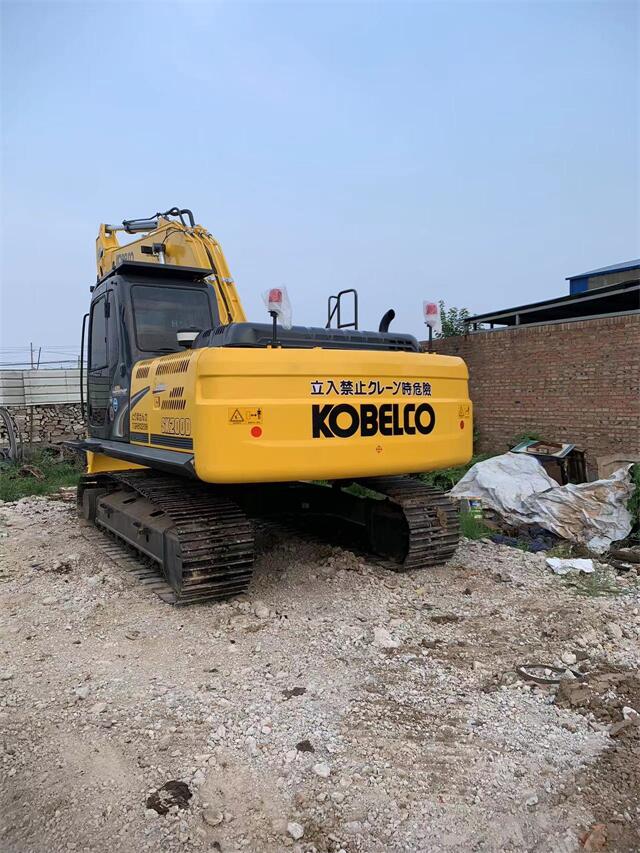

USED KOBELCO SK200

USED KOBELCO SK200

$20,000.00 USD
$20,000.00 USD
Oferta Agotado

Core Specifications of KOBELCO SK200 (Standard Configuration, SK200-10)Kobelco Eu...


Category Specifications
Basic Information
Model KOBELCO SK200 (SK200-10 Standard Edition)
Engine Model HINO J05ETA-KSSE (direct injection, water-cooled, 4-cycle diesel, turbocharged with intercooler)
Displacement 5.123 L (312.6 cu in)
Net Power 114 kW (153 HP) @ 2000 rpm (ISO 9249); 118 kW (158 HP) @ 2000 rpm (ISO 14396)
Max Torque 592 N·m (436.6 lb·ft) @ 1600 rpm
Operating Weight 20,700 kg (45,636 lbs) (standard with dozer)
Standard Bucket Capacity 0.8 m³ (1.046 cu yd, heaped); 0.64 m³ (0.837 cu yd, struck)
Performance
Max Travel Speed 6.0 km/h (3.7 mph) (high); 3.6 km/h (2.2 mph) (low)
Max Digging Depth 6,700 mm (21.98 ft)
Max Digging Height 9,700 mm (31.82 ft)
Max Dumping Height 6,900 mm (22.64 ft)
Max Digging Reach 9,900 mm (32.48 ft)
Swing Speed 13.3 rpm
Bucket Digging Force 157 kN (15,999 kgf) (standard arm, power boost on)
Arm Crowding Force 112 kN (11,423 kgf) (standard arm, power boost on)
Climbing Ability 35° (70%)
Drawbar Pull 228 kN (23,246 kgf) (SAE)
Dimensions
Track Width 600 mm (23.62 in) (standard)
Track Gauge 2,700 mm (8.86 ft)
Overall Length (with bucket on ground) 9,600 mm (31.50 ft)
Overall Width 2,800 mm (9.19 ft)
Overall Height (top of cab) 3,060 mm (10.04 ft)
Min Ground Clearance 450 mm (17.72 in)
Rear Swing Radius 2,200 mm (7.22 ft)
Capacities
Fuel Tank 320 L (84.5 US gal)
Hydraulic System Fluid Capacity Approx. 244 L (64.5 US gal)
Hydraulic Tank Capacity 140 L (37.0 US gal)
Hydraulic System
Main Relief Pressure 34.3 MPa (4,974 psi) (boom, arm, bucket, travel); 29.0 MPa (4,206 psi) (swing circuit); 37.8 MPa (5,482 psi) (power boost)
Main Pump Flow 2 × 220 L/min (2 × 58.12 gpm); pilot pump: 20 L/min (5.28 gpm)
