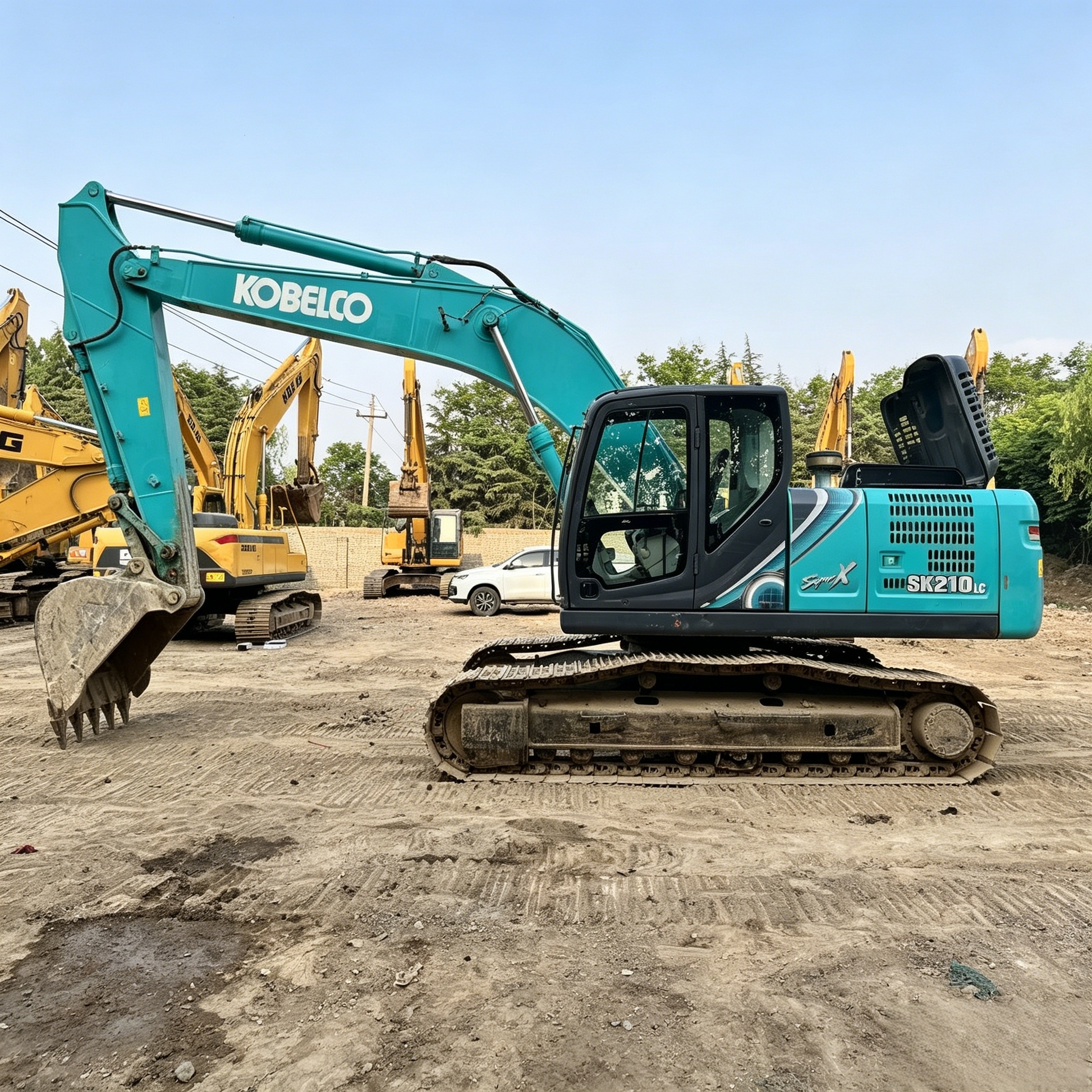

USED KOBELCO SK210-8

USED KOBELCO SK210-8

$21,000.00 USD
$21,000.00 USD
Oferta Agotado

Core Specifications of KOBELCO SK210-8 (Standard Configuration)


Category Specifications
Basic Information
Model KOBELCO SK210-8

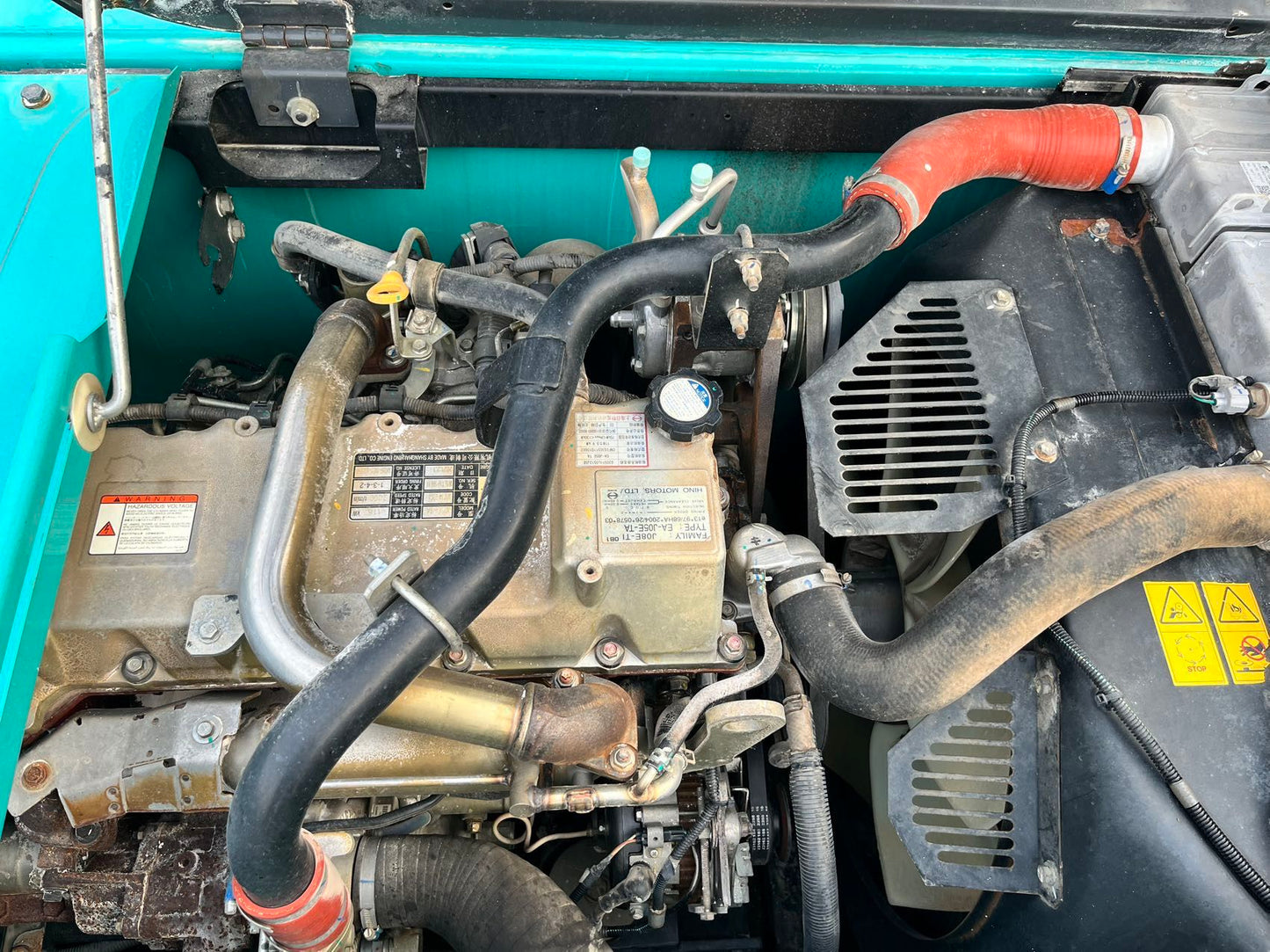

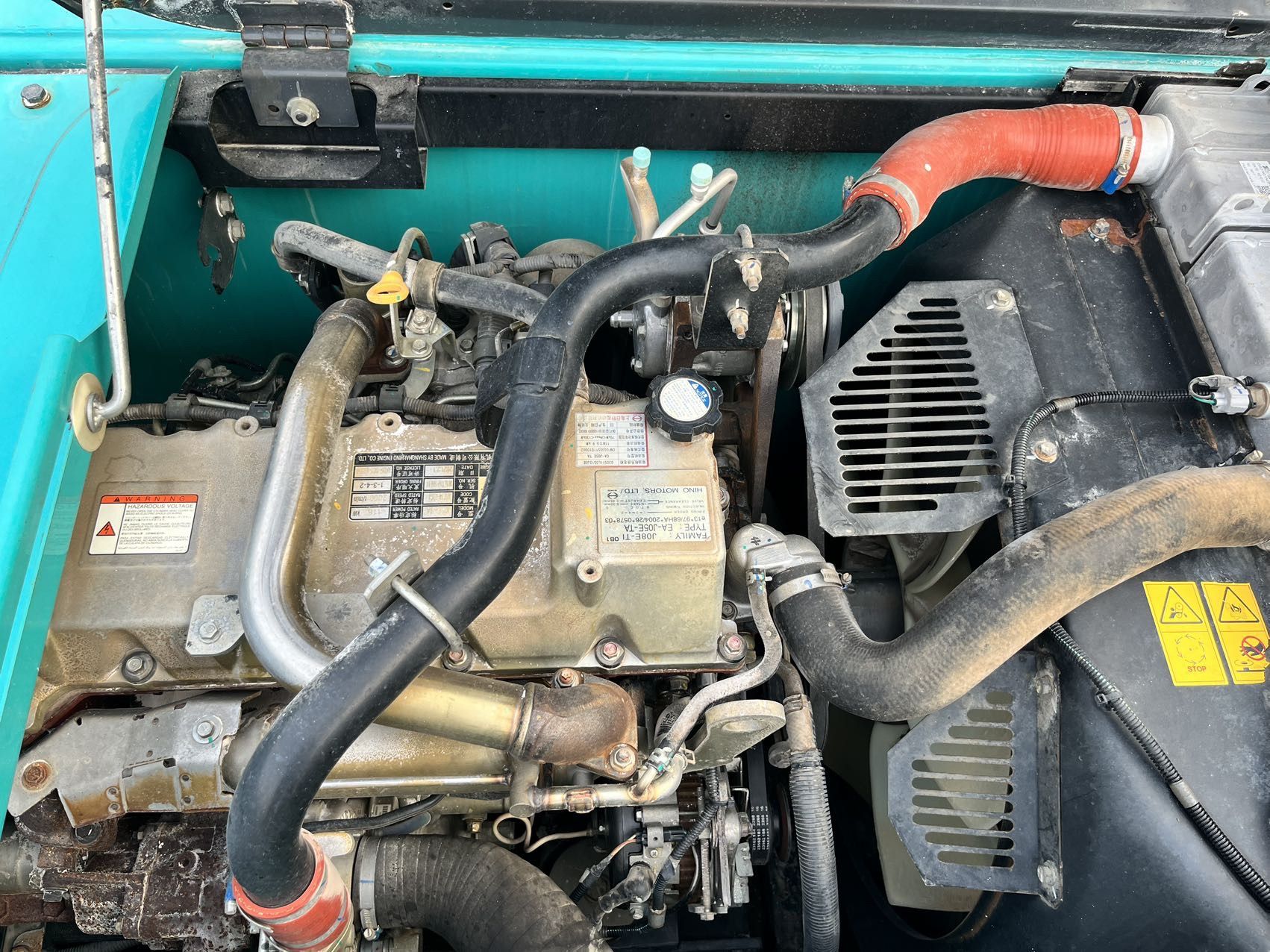

Engine Model Hino J05E (4-cylinder, water-cooled, turbocharged with intercooler, direct-injection diesel)
Displacement 5.123 L (312.6 cu in)
Net Power 114 kW (153 HP) @ 2000 rpm (ISO 14396)
Max Torque 575 N·m (424.1 lb·ft) @ 1600 rpm
Operating Weight 21,900 kg (48,281 lbs) (standard with dozer blade)
Standard Bucket Capacity 1.0 m³ (1.308 cu yd, heaped); 0.76 m³ (0.994 cu yd, struck)
Performance Parameters
Max Travel Speed 6.0 km/h (3.7 mph, high); 3.6 km/h (2.2 mph, low)
Max Digging Depth 6,700 mm (21.98 ft)
Max Digging Height 9,700 mm (31.82 ft)
Max Dumping Height 6,900 mm (22.64 ft)
Max Digging Reach 10,200 mm (33.46 ft)
Swing Speed 13.3 rpm
Bucket Digging Force 157 kN (15,999 kgf, power boost on); 143 kN (14,587 kgf, power boost off)
Arm Crowding Force 112 kN (11,423 kgf, power boost on); 102 kN (10,402 kgf, power boost off)
Climbing Ability 35° (70%)
Drawbar Pull 235 kN (23,970 kgf, SAE standard)
Dimensions
Track Width 600 mm (23.62 in, standard); optional 800 mm (31.50 in)
Track Gauge 2,790 mm (9.15 ft)
Overall Length (bucket on ground) 9,650 mm (31.66 ft)
Overall Width 2,990 mm (9.81 ft)
Overall Height (top of cab) 3,080 mm (10.10 ft)
Min Ground Clearance 450 mm (17.72 in)
Rear Swing Radius 2,550 mm (8.37 ft)
Capacities
Fuel Tank 370 L (97.7 US gal)
Hydraulic System Fluid Capacity Approx. 250 L (66.0 US gal)
Hydraulic Tank Capacity 146 L (38.6 US gal)
Engine Oil Capacity 22 L (5.8 US gal)
Hydraulic System
Main Relief Pressure 34.3 MPa (4,974 psi, boom/arm/bucket/travel); 29.0 MPa (4,206 psi, swing); 37.8 MPa (5,482 psi, power boost)
Main Pump Flow 2 × 220 L/min (2 × 58.12 gpm); pilot pump flow: 20 L/min (5.28 gpm)
