| Basic Information |
|
| Model |

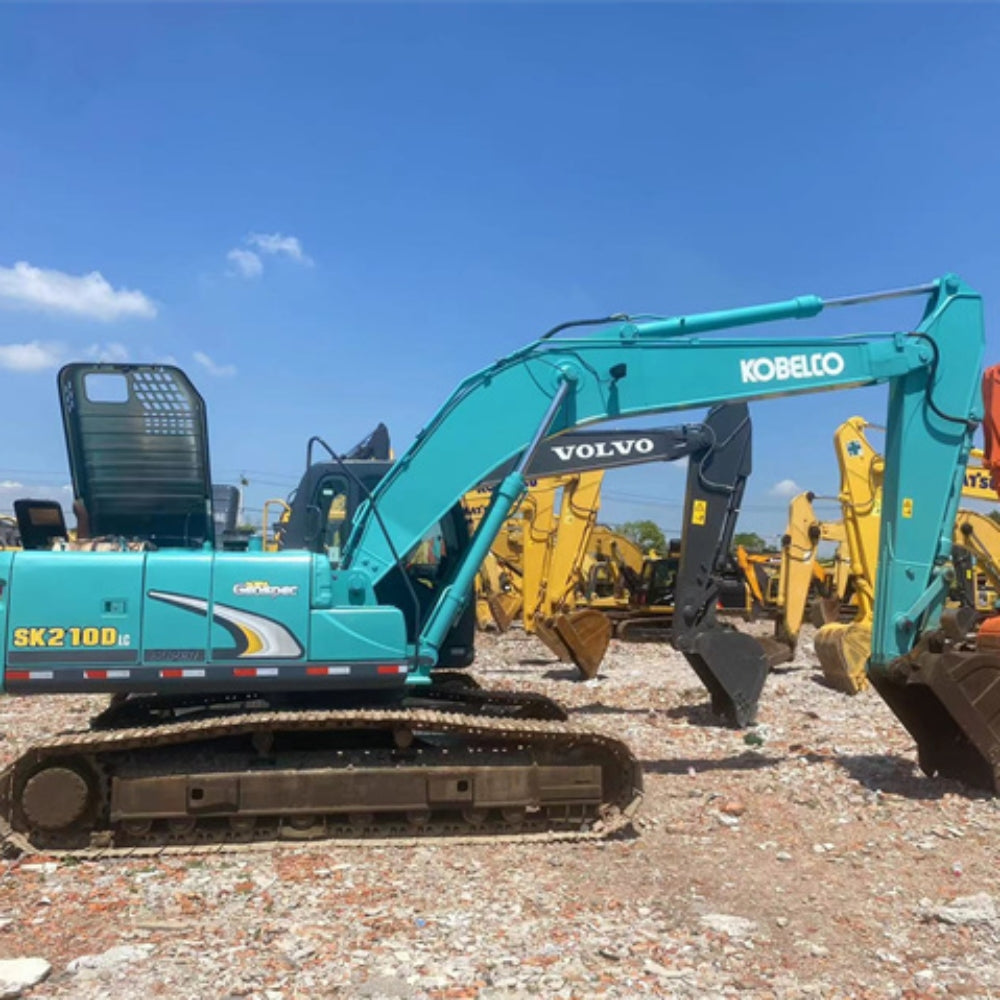

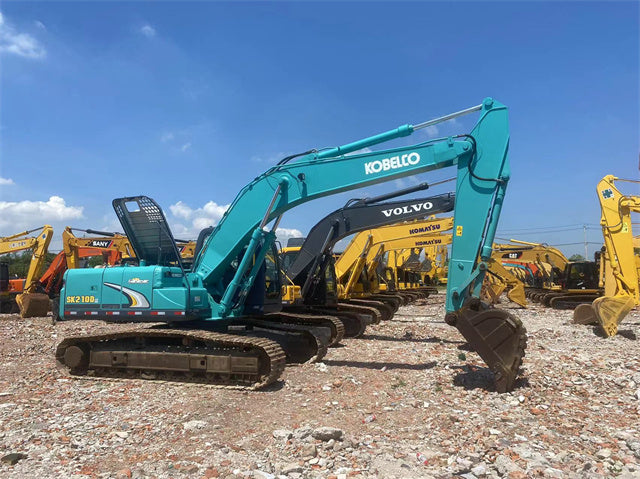

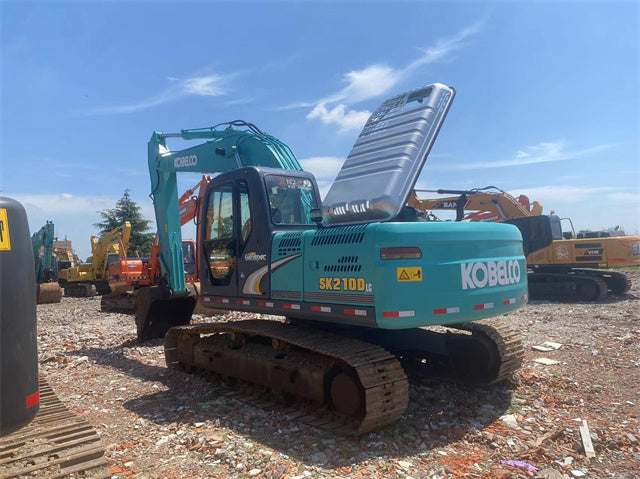

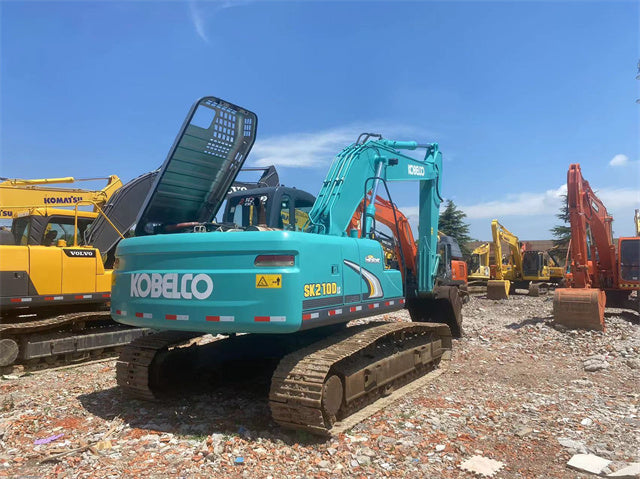

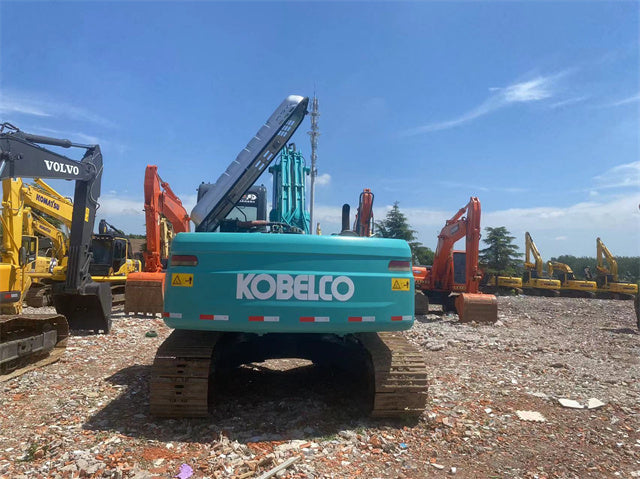

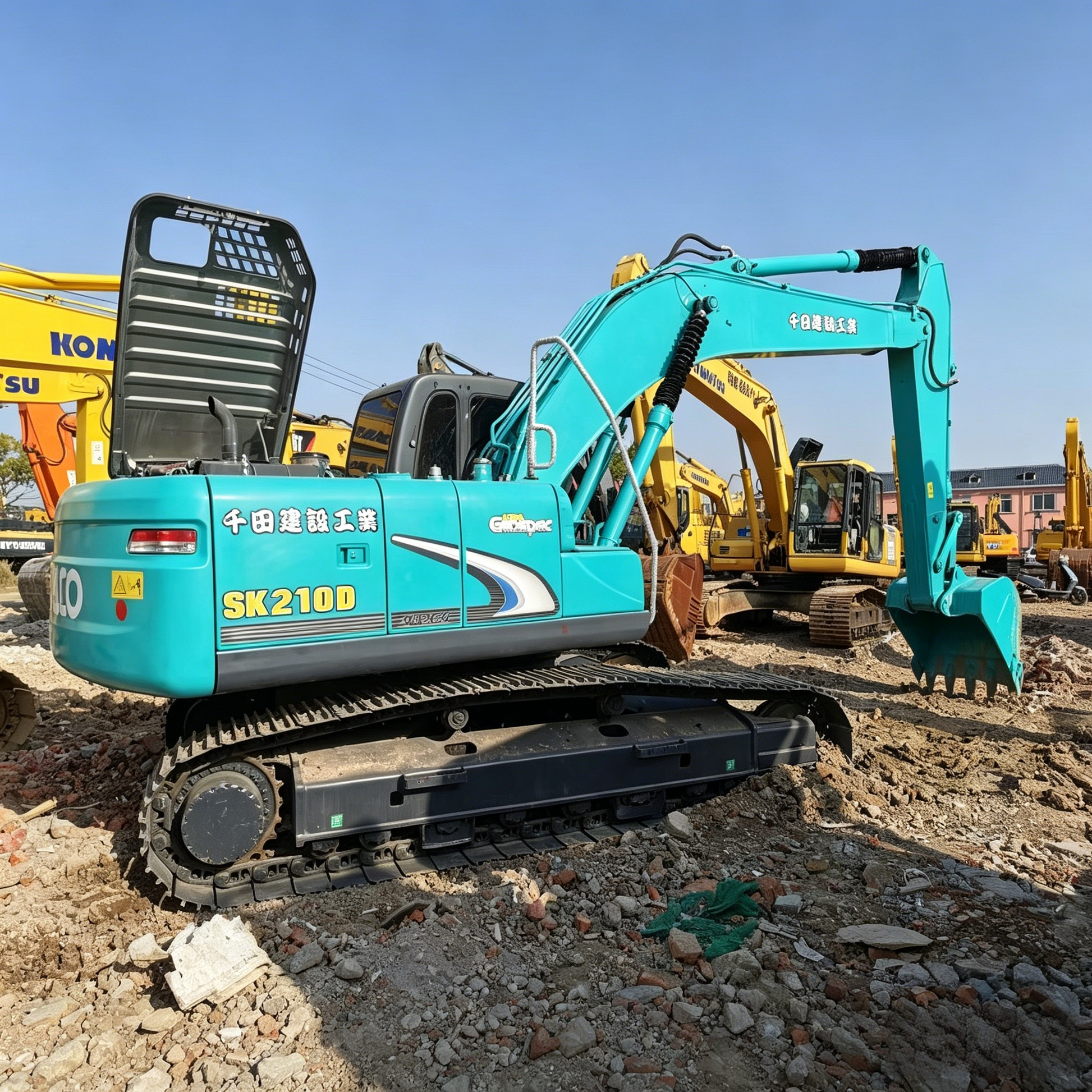

KOBELCO SK210D |
| Engine Model |
Hino J05EUM - KSSC (4-cylinder, water-cooled, turbocharged with intercooler, direct - injection diesel, Stage IV/Tier IV Final compliant) |
| Displacement |
5.123 L (312.6 cu in) |
| Net Power |
124 kW (166 HP) @ 2000 rpm (ISO 14396) |
| Operating Weight |
27,400 kg (60,407 lbs) (car - dismantling); 29,900 kg (65,918 lbs) (multi - dismantling) |
| Standard Attachment |
Customized clamp arm + rotating nibbler (car dismantling); reinforced boom/arm (multi - dismantling) |
| Performance Parameters |
|
| Max Travel Speed |
6.0 km/h (3.7 mph, high); 3.6 km/h (2.2 mph, low) |
| Max Working Reach |
9,960 mm (32.68 ft) |
| Max Working Height |
6,010 mm (19.72 ft, car - dismantling) |
| Swing Speed |
12.7 rpm |
| Drawbar Pull |
235 kN (23,970 kgf, SAE standard) |
| Climbing Ability |
35° (70%) |
| Dimensions |
|
| Track Width |
600 mm (23.62 in, standard) |
| Track Gauge |
2,790 mm (9.15 ft) |
| Overall Length |
12,980 mm (42.59 ft, with standard dismantling arm) |
| Overall Width |
2,800 mm (9.19 ft) |
| Overall Height (top of cab) |
3,680 mm (12.07 ft) |
| Rear Swing Radius |
2,900 mm (9.51 ft) |
| Capacities |
|
| Fuel Tank |
320 L (84.5 US gal) |
| DEF Tank Capacity |
83 L (21.9 US gal) |
| Hydraulic System Fluid Capacity |
Approx. 270 L (71.3 US gal, car - dismantling); 300 L (79.3 US gal, multi - dismantling) |
| Hydraulic Tank Capacity |
140 L (37.0 US gal) |
| Engine Oil Capacity |
22 L (5.8 US gal) |
| Hydraulic System |
|
| Main Relief Pressure |
34.3 MPa (4,974 psi, main circuits); 29.0 MPa (4,206 psi, swing) |
| Main Pump Flow |
2 × 220 L/min (2 × 58.12 gpm); pilot pump flow: 20 L/min (5.28 gpm) |
