KOBELCO

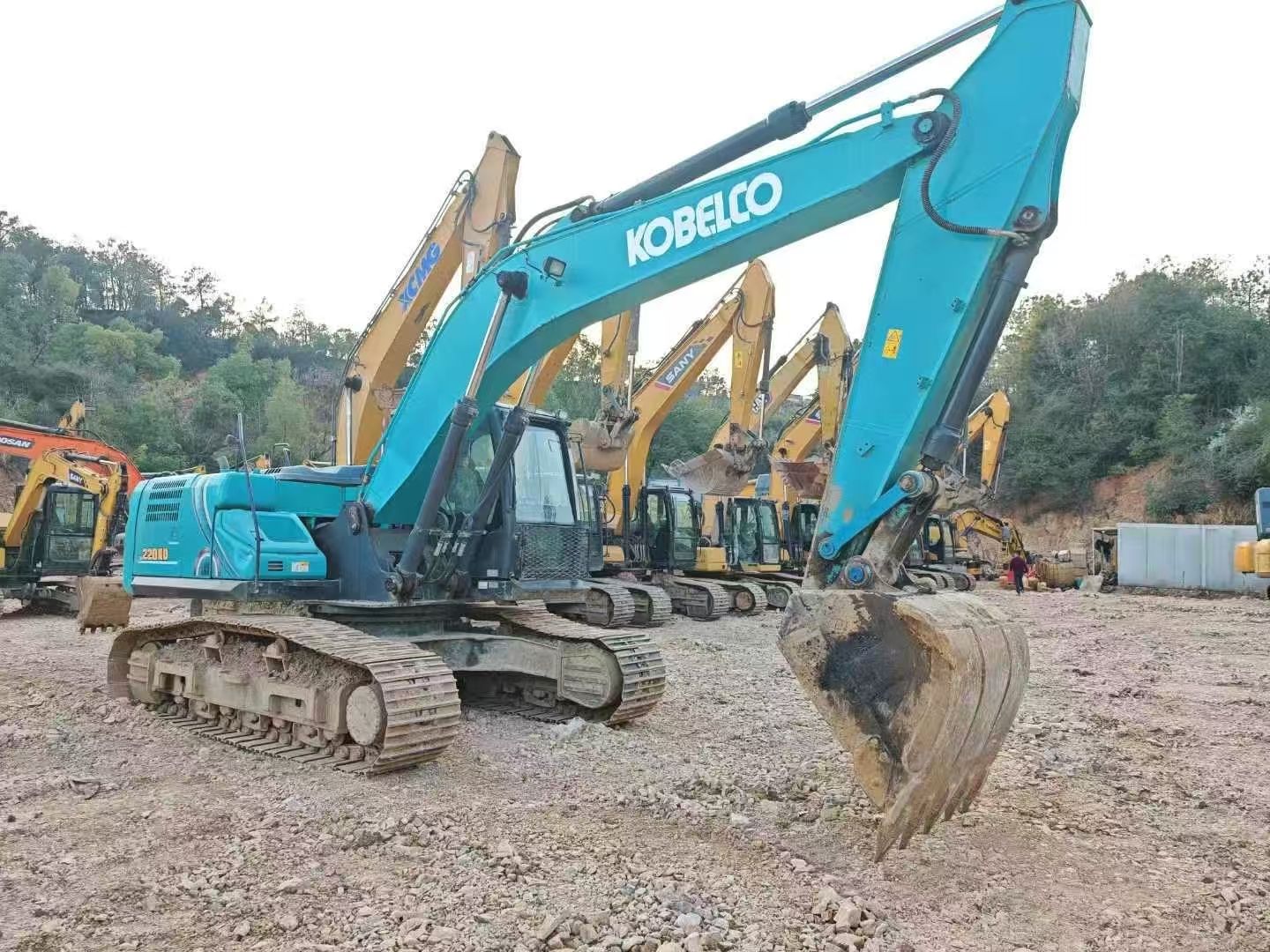

USED KOBELCO SK220
USED KOBELCO SK220
Precio habitual
$21,000.00 USD
Precio habitual
Precio de oferta
$21,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specifications of KOBELCO SK220-10 (Standard Configuration)
| Category | Specifications |
|---|---|
| Basic Information | |
| Model | KOBELCO SK220-10 |

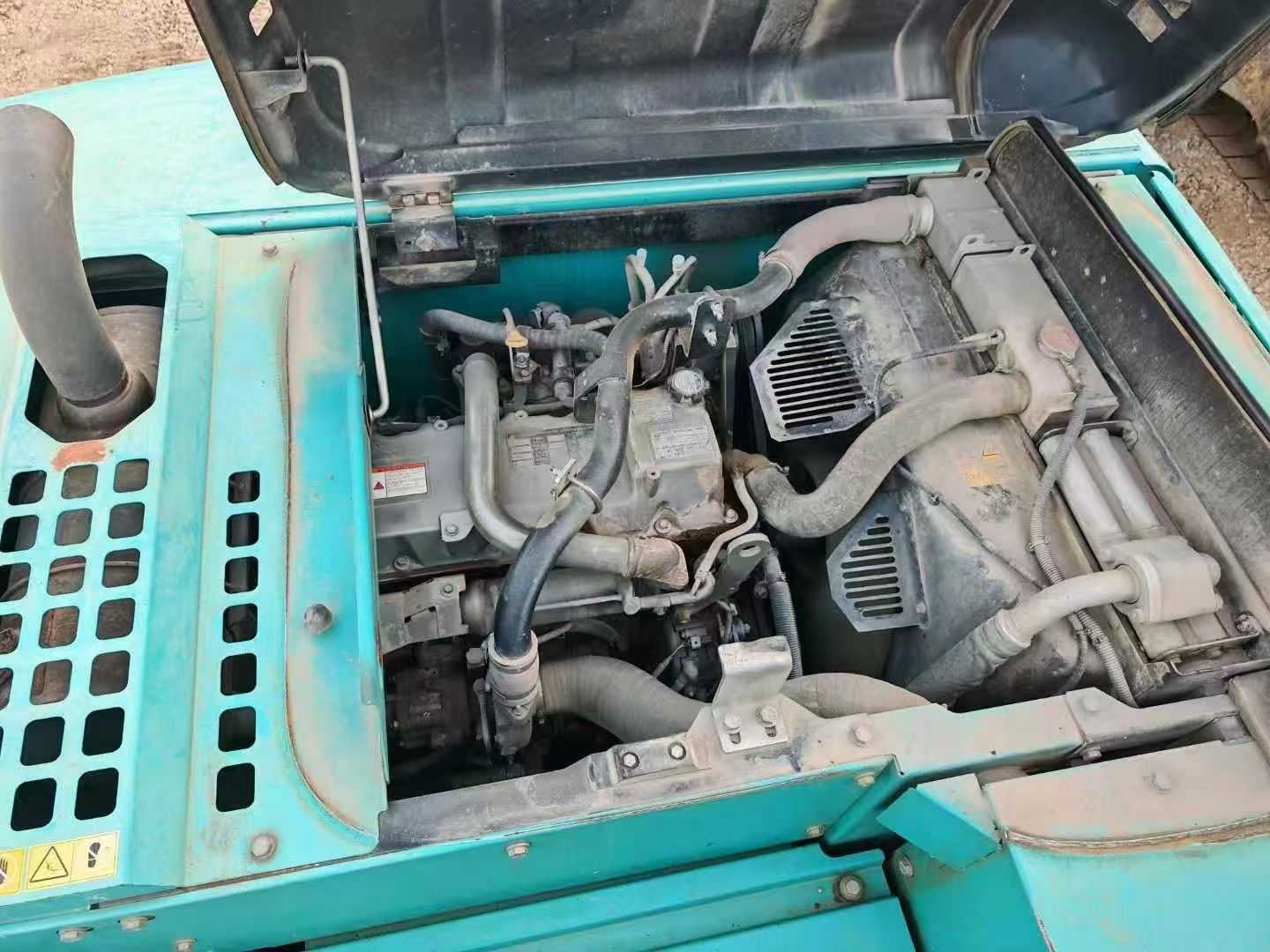

| Engine Model | Hino J05ETG (4-cylinder, water-cooled, turbocharged with intercooler, direct-injection diesel, Tier 3/Stage IIIA compliant)Kobelco Eu... |
| Displacement | 5.123 L (312.6 cu in) |
| Net Power | 118 kW (158 HP) @ 2000 rpm (ISO 14396) |
| Operating Weight | 21,800-22,300 kg (48,061-49,163 lbs, standard); 22,200-22,800 kg (48,942-50,265 lbs, XDLC) |
| Standard Bucket Capacity | 1.1 m³ (1.44 cu yd, ISO heaped) |
| Performance Parameters | |
| Max Travel Speed | 6.0 km/h (3.7 mph, high); 3.6 km/h (2.2 mph, low)Kobelco Eu... |
| Max Digging Depth | 6,160 mm (20.21 ft, standard arm) |
| Max Digging Height | 9,400 mm (30.84 ft) |
| Max Dumping Height | 6,400 mm (21.00 ft) |
| Max Digging Reach | 9,800 mm (32.15 ft) |
| Swing Speed | 13.3 rpmKobelco Eu... |
| Bucket Digging Force | 143 kN (14.6 tf, standard); 157 kN (16.0 tf, power boost) |
| Arm Crowding Force | 102 kN (10.4 tf, standard arm); 121 kN (12.3 tf, short arm); 112 kN (11.4 tf, standard arm, power boost); 133 kN (13.6 tf, short arm, power boost)Kobelco Eu... |
| Drawbar Pull | 228 kN (23,250 kgf, ISO 7464)Kobelco Eu... |
| Climbing Ability | 35° (70%)Kobelco Eu... |
| Dimensions | |
| Track Width | 600 mm (23.62 in, standard); 800 mm (31.50 in, optional)Kobelco Eu... |
| Track Gauge | 2,790 mm (9.15 ft) |
| Overall Length (bucket on ground) | 9,680 mm (31.76 ft) |
| Overall Width | 2,990 mm (9.81 ft) |
| Overall Height (top of cab) | 3,080 mm (10.10 ft) |
| Rear Swing Radius | 2,550 mm (8.37 ft) |
| Capacities | |
| Fuel Tank | 320 L (84.5 US gal)Kobelco Eu... |
| Hydraulic System Fluid Capacity | Approx. 244 L (64.5 US gal)Kobelco Eu... |
| Hydraulic Tank Capacity | 140 L (37.0 US gal)Kobelco Eu... |
| Engine Oil Capacity | 22 L (5.8 US gal) |
| Hydraulic System | |
| Main Relief Pressure | 34.3 MPa (4,974 psi, boom/arm/bucket/travel); 37.8 MPa (5,482 psi, power boost)Kobelco Eu... |
| Main Pump Flow | 2 × 220 L/min (2 × 58.12 gpm); pilot pump flow: 20 L/min (5.28 gpm)Kobelco Eu... |
