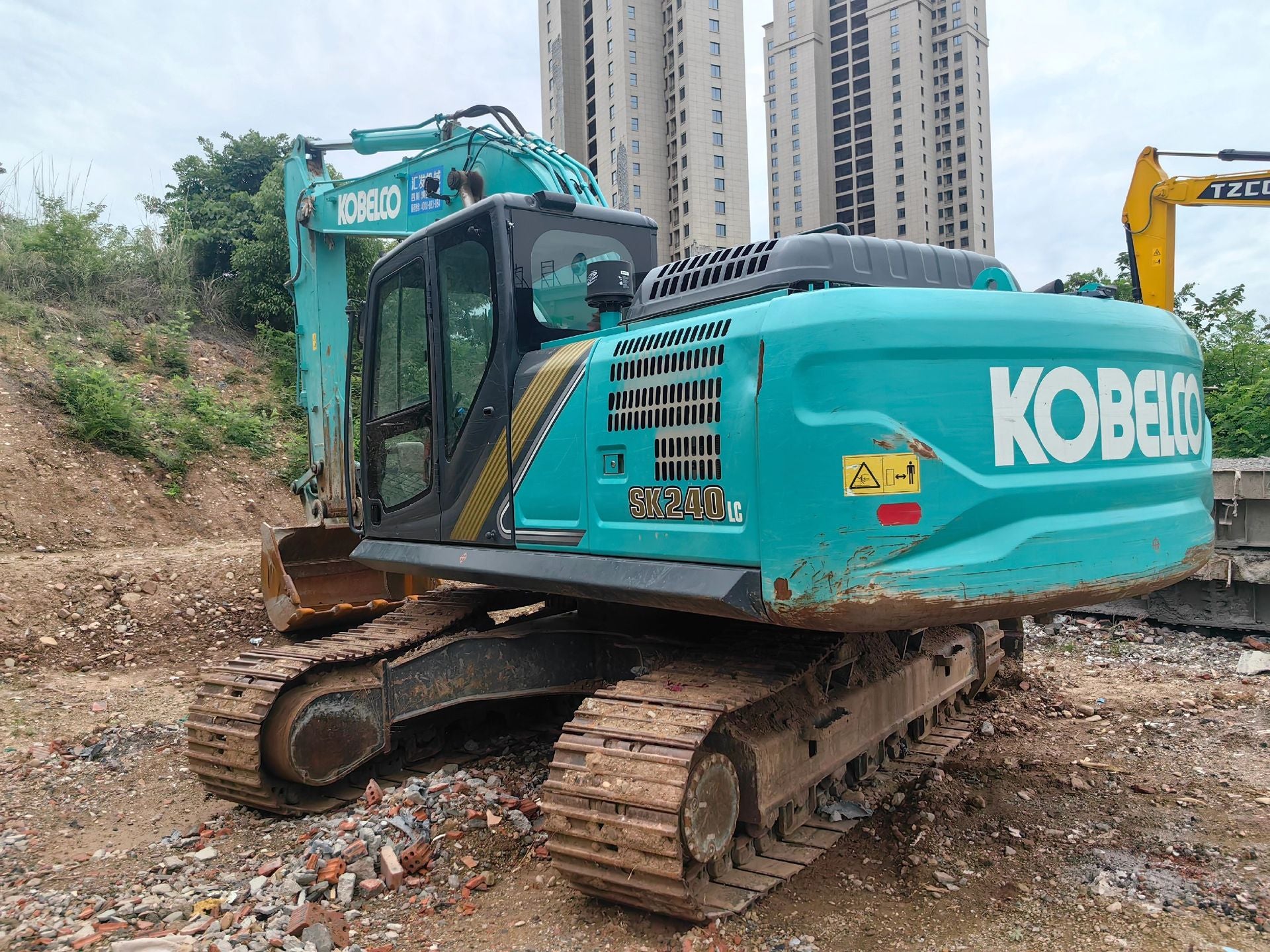

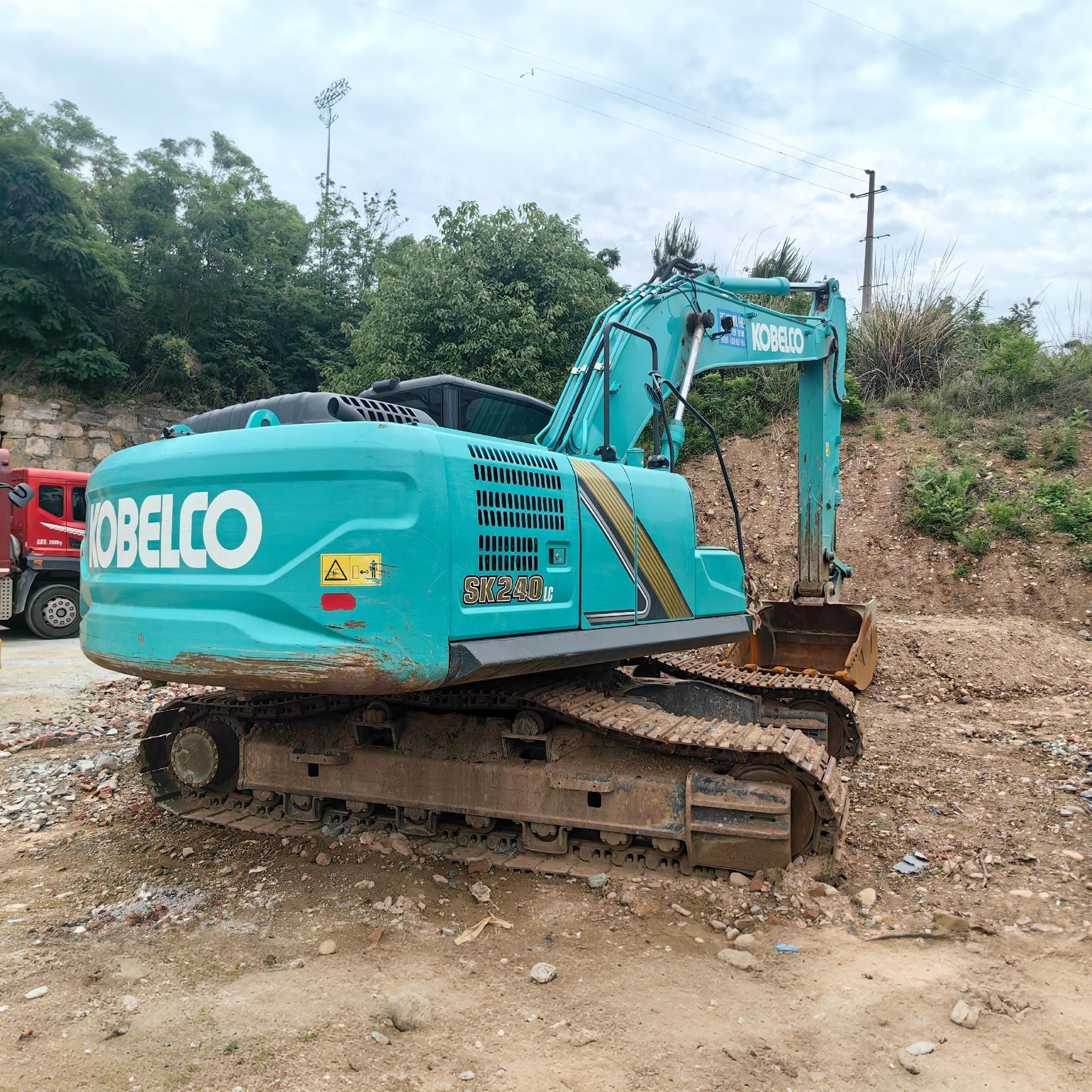

Used Kobelco SK240LC-12 Excavator for Sale
Used Kobelco SK240LC-12 Excavator for Sale
Precio habitual
$23,000.00 USD
Precio habitual
Precio de oferta
$23,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
| Item | Specification |
|---|---|
| Model | KOBELCO SK240LC-12 Hydraulic Crawler Excavator |
| Operating Weight (Std Cab + 600mm Track) | 24000 kg |
| Standard Heaped Bucket Capacity (ISO) | 1.3 m³ (Optional: 1.4 m³) |
| Overall Transport Length | 9590 mm |
| Overall Transport Width | 2990 mm |
| Overall Transport Height (Cab Top) | 3030 mm |
| Standard Track Shoe Width | 600 mm |
| Track Gauge | 2390 mm |
| Track Length on Ground | 3450 mm |
| Ground Clearance | 480 mm |
| Rear Swing Radius | 2860 mm |
| Engine Model | HINO J05E-UY 4-Cylinder Turbocharged Intercooled Diesel Engine |
| Engine Type | Water-cooled, 4-stroke, in-line, turbo+intercooler direct injection diesel |
| Rated Net Power | 124 kW @ 2000 rpm |
| Engine Displacement | 5.123 L |
| Max Engine Torque | 590 N·m @ 1600 rpm |
| Fuel Tank Capacity | 420 L |
| Hydraulic Tank / Full System Volume | 150 L / 260 L |
| Main Hydraulic Relief Pressure (Normal/Boost) | 34.3 MPa / 37.8 MPa |
| Total Main Pump Flow | 2×240 L/min |
| Max Digging Reach (Ground Level) | 9930 mm |
| Max Total Digging Reach | 10100 mm |
| Max Digging Depth | 6650 mm |
| Max Vertical Wall Digging Depth | 5900 mm |
| Max Digging Height | 9850 mm |
| Max Dumping Height | 6940 mm |
| Bucket Digging Force (ISO/Normal) | 145 kN (159 kN with Power Boost) |
| Arm Digging Force (ISO/Normal) | 110 kN (121 kN with Power Boost) |
| Drawbar Pull Force | 226 kN |
| Swing Speed | 12.5 rpm |
| Travel Speed (Low/High) | 3.7 km/h / 6.0 km/h |
| Gradeability | 35° (70%) |
| Ground Contact Pressure | 49.2 kPa |
| Standard Boom Length | 5650 mm |
| Standard Stick Length | 2940 mm |
