KOBELCO

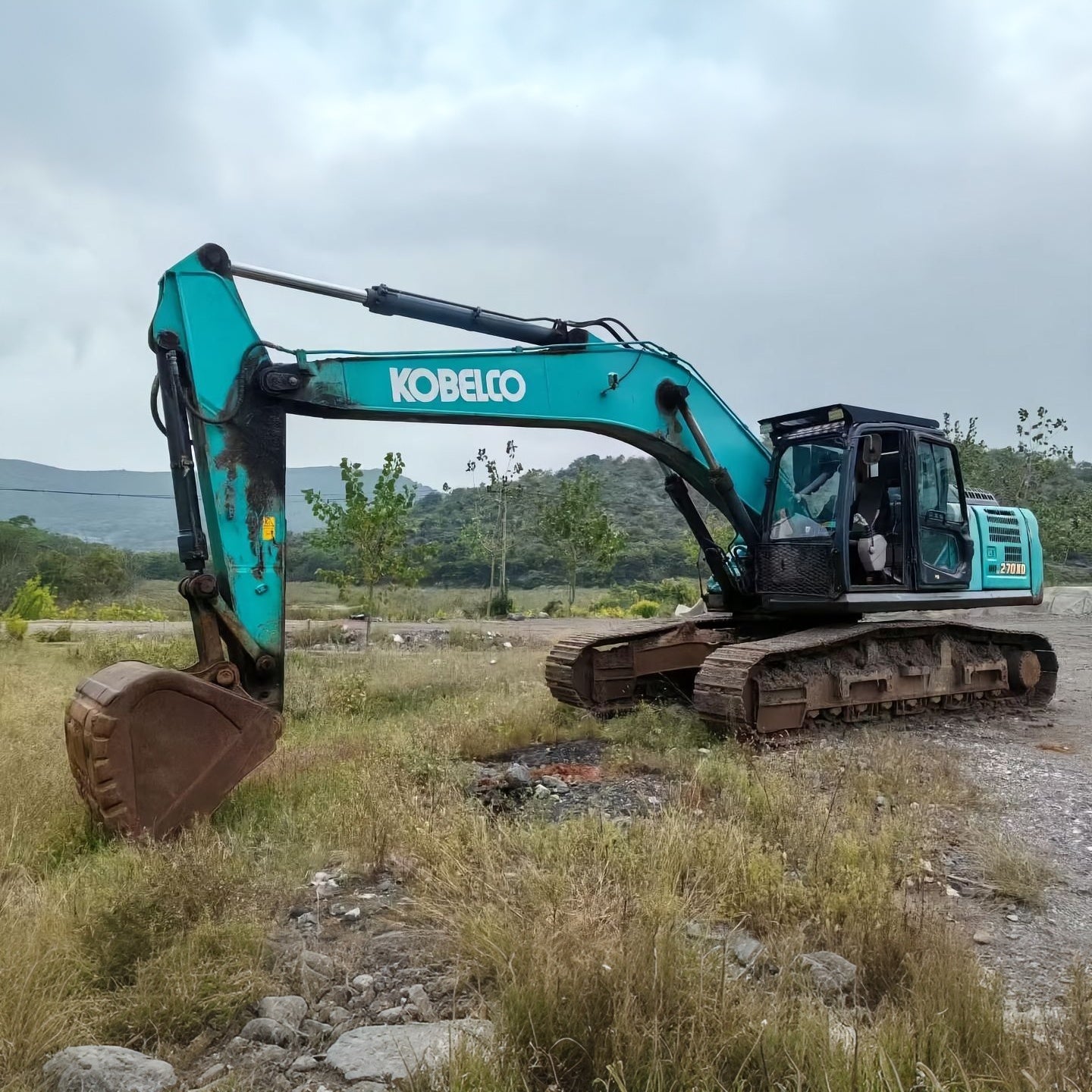

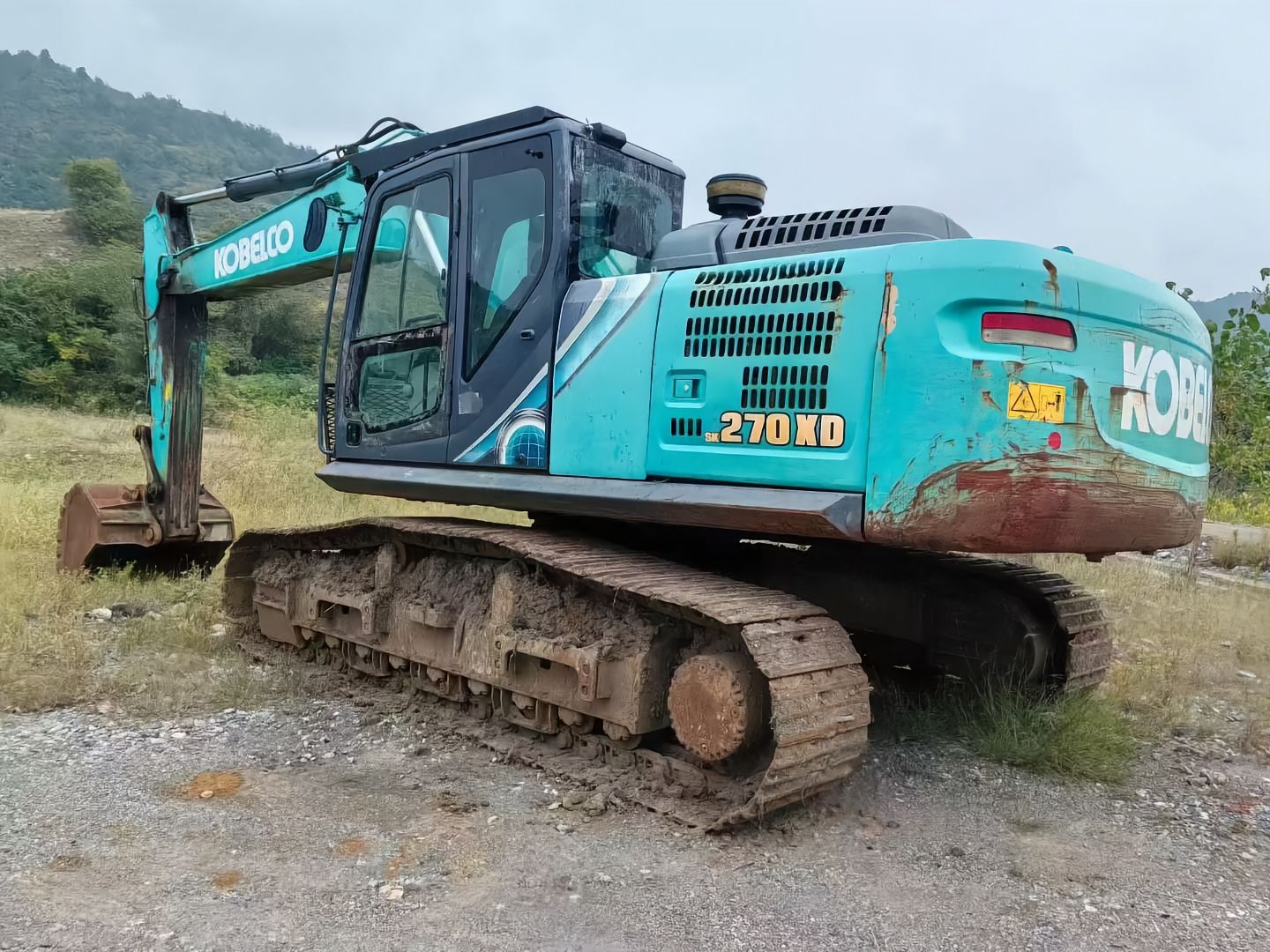

Used Kobelco SK270XD-10 Excavator for Sale
Used Kobelco SK270XD-10 Excavator for Sale
Precio habitual
$27,000.00 USD
Precio habitual
Precio de oferta
$27,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
| Item | Specification |
|---|---|
| Model | KOBELCO SK270XD-10 Hydraulic Crawler Excavator |
| Operating Weight (Std Cab + 600mm Track) | 27800 kg |
| Standard Heaped Bucket Capacity (ISO) | 1.4 m³ (Optional: 1.2–1.6 m³) |
| Overall Transport Length | 10230 mm |
| Overall Transport Width | 3080 mm |
| Overall Transport Height (Cab Top) | 3200 mm |
| Standard Track Shoe Width | 600 mm |
| Track Gauge | 2590 mm |
| Track Length on Ground | 3850 mm |
| Ground Clearance | 460 mm |
| Rear Swing Radius | 2980 mm |

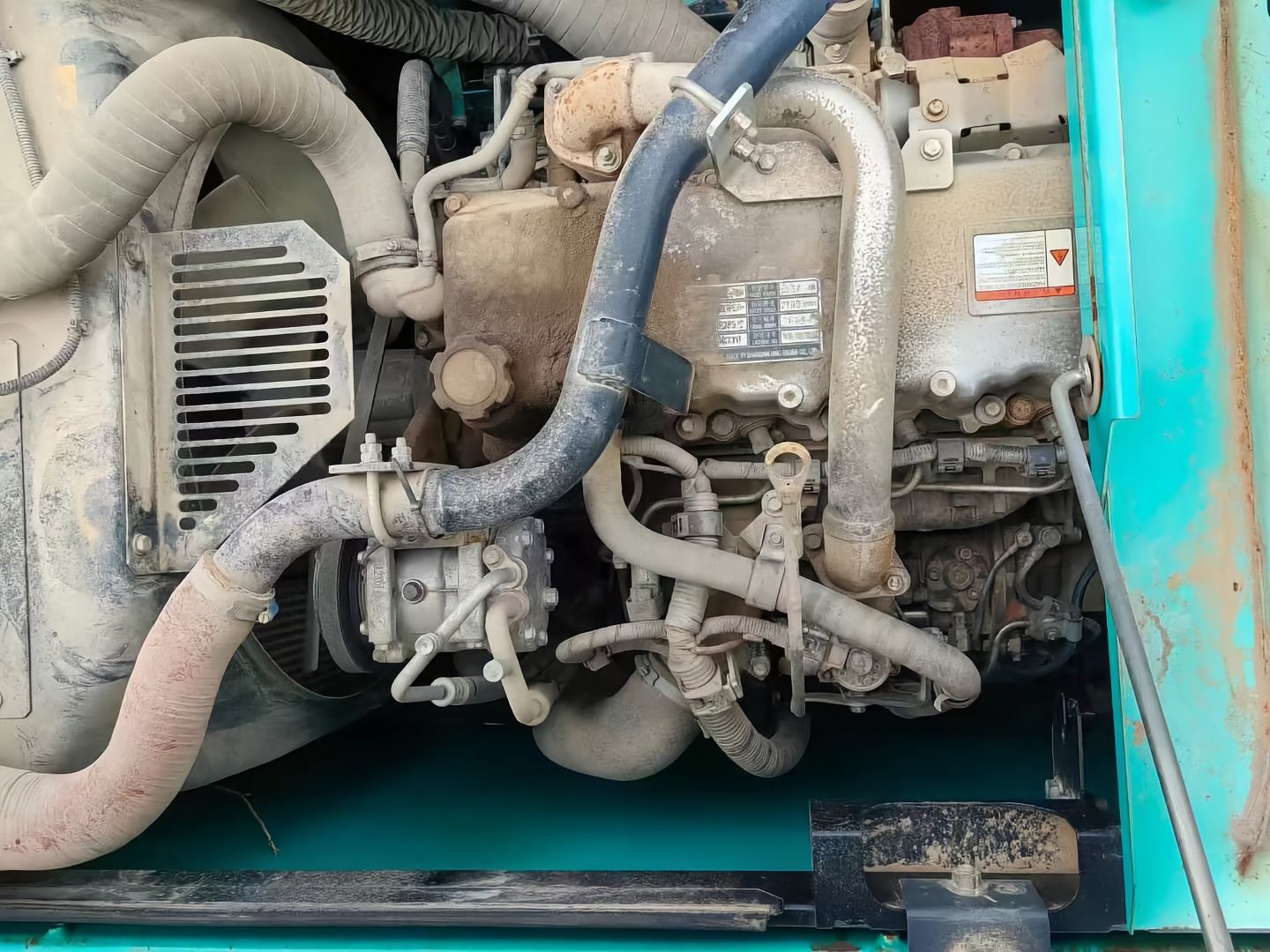

| Engine Model | HINO J05ETB-EDDK 4-Cylinder Turbocharged Intercooled Diesel Engine |
| Engine Type | Water-cooled, 4-stroke, in-line, turbo+intercooler direct injection diesel |
| Rated Net Power | 132 kW @ 2100 rpm (ISO 9249) |
| Engine Displacement | 5.123 L |
| Max Engine Torque | 654 N·m @ 1600 rpm |
| Fuel Tank Capacity | 403 L |
| Hydraulic Tank / Full System Volume | 165 L / 280 L |
| Main Hydraulic Relief Pressure (Normal/Boost) | 34.3 MPa / 37.8 MPa |
| Total Main Pump Flow | 2×250 L/min + 21 L/min |
| Max Digging Reach (Ground Level) | 10140 mm |
| Max Total Digging Reach | 10310 mm |
| Max Digging Depth | 6990 mm |
| Max Vertical Wall Digging Depth | 6200 mm |
| Max Digging Height | 9760 mm |
| Max Dumping Height | 7700 mm |
| Bucket Digging Force (ISO/Normal) | 170 kN (187 kN with Power Boost) |
| Arm Digging Force (ISO/Normal) | 142 kN (156 kN with Power Boost) |
| Drawbar Pull Force | 244 kN |
| Swing Speed | 10.8 rpm |
| Travel Speed (Low/High) | 3.8 km/h / 6.1 km/h |
| Gradeability | 35° (70%) |
| Ground Contact Pressure | 55.0 kPa |
| Standard Boom Length | 6020 mm |
| Standard Stick Length | 2980 mm |
