| Model |
– |

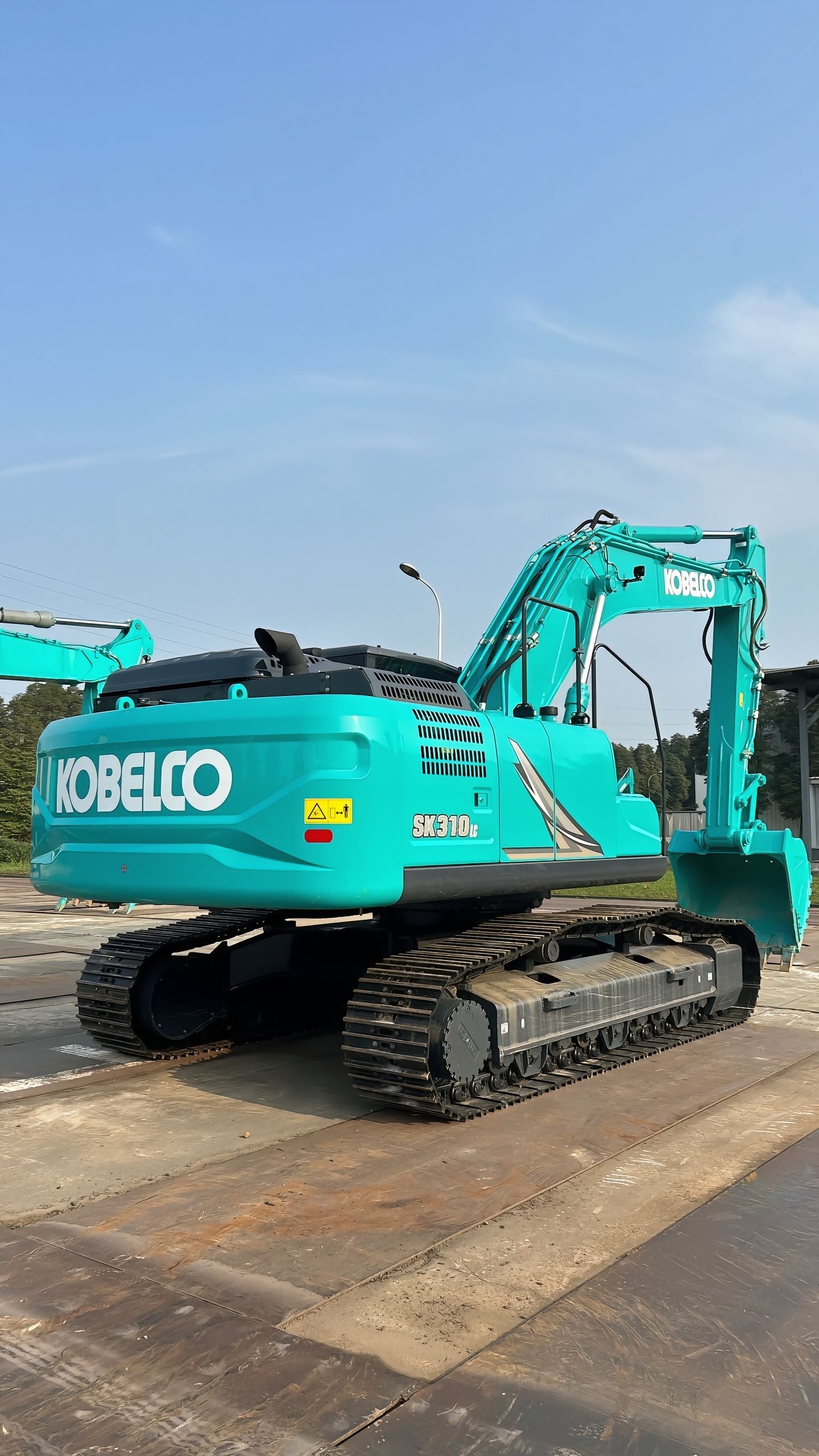

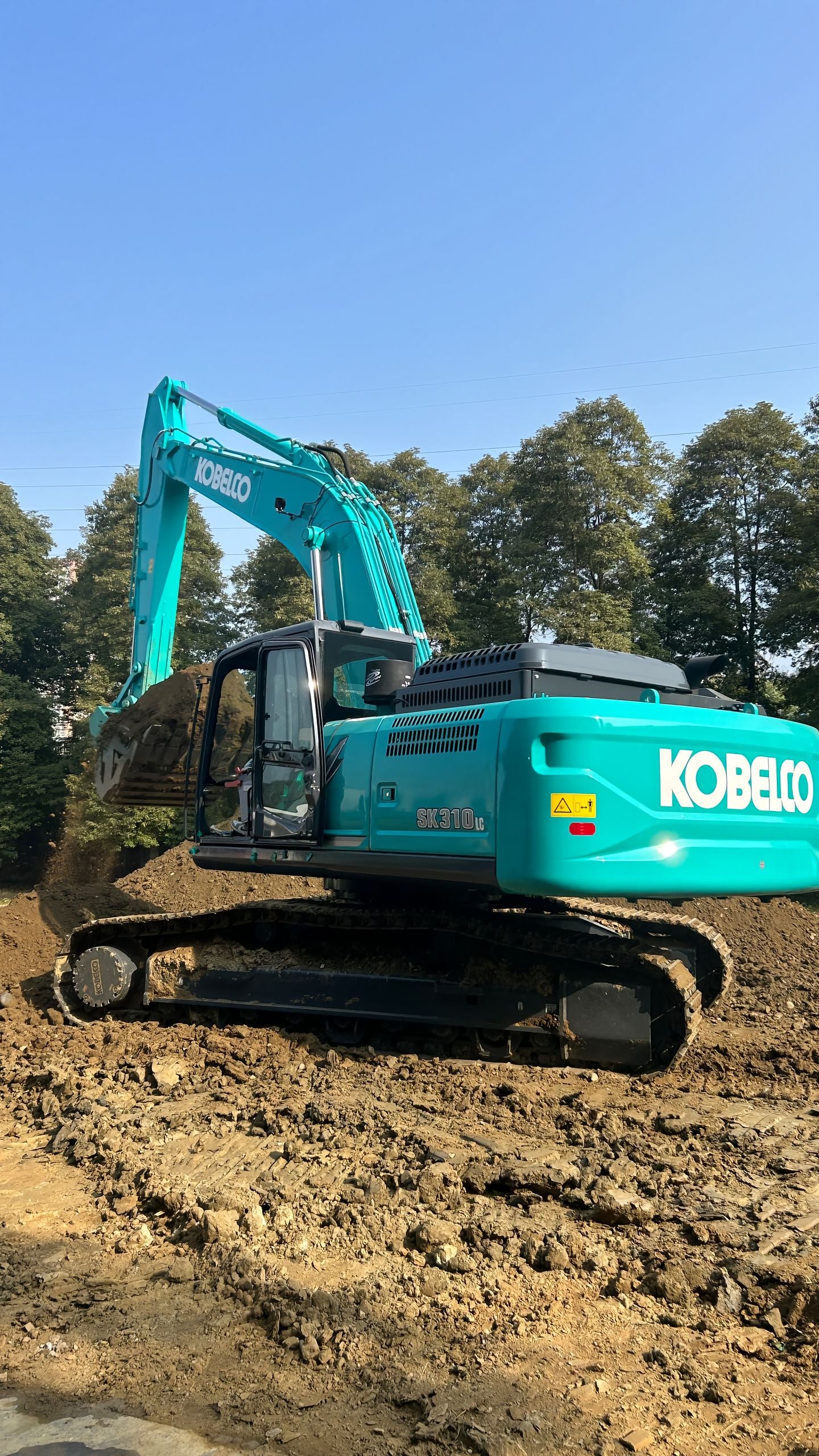

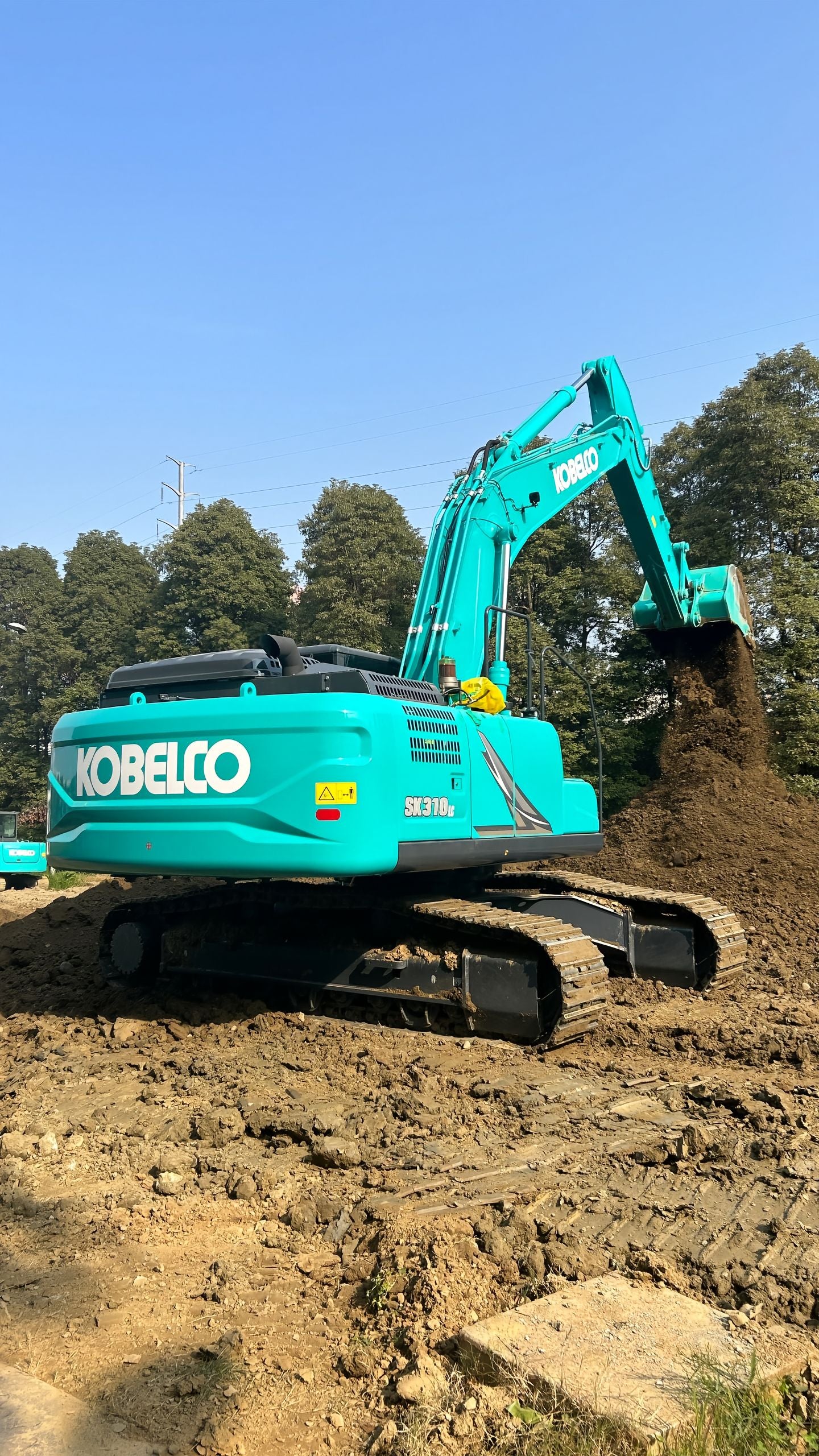

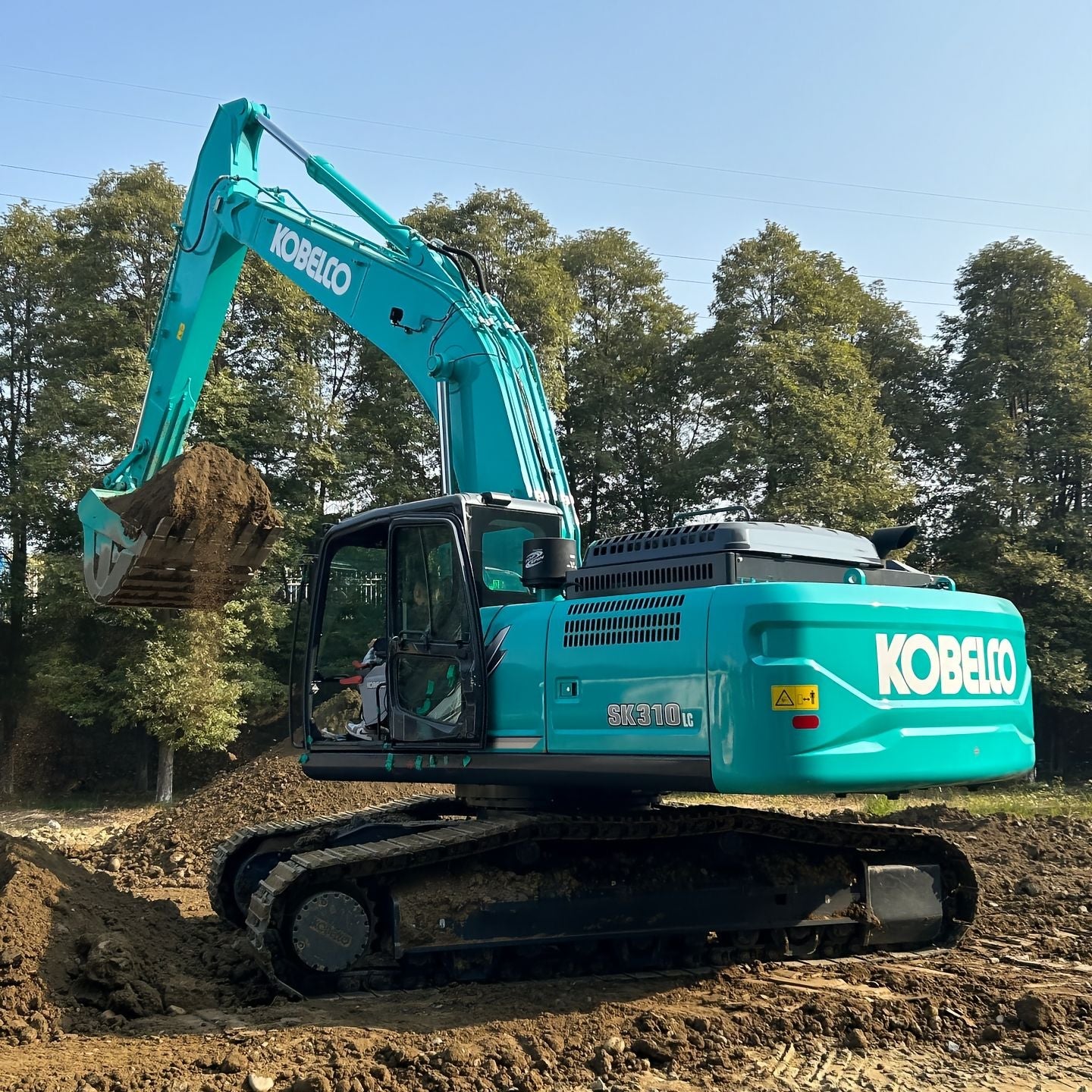

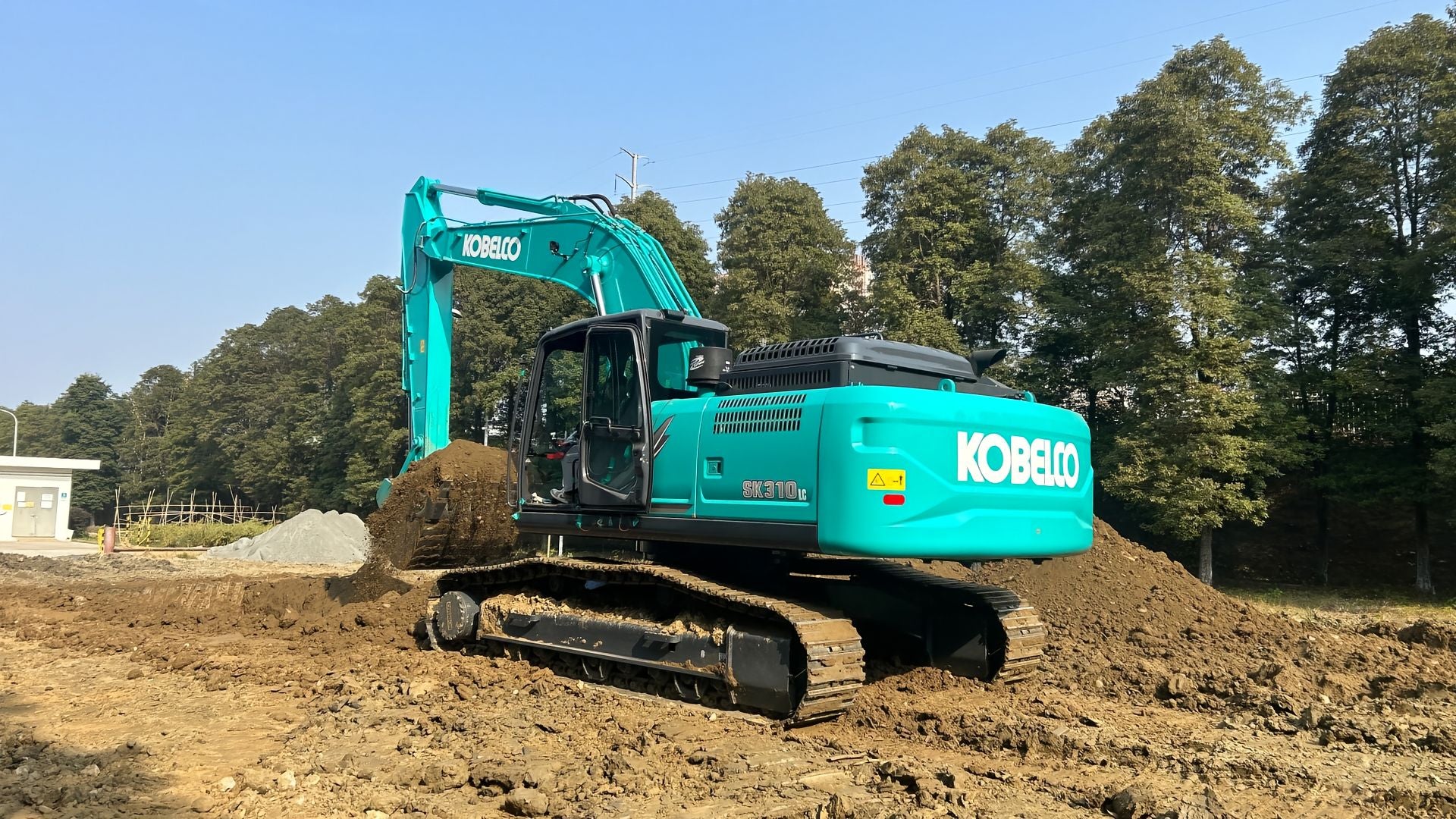

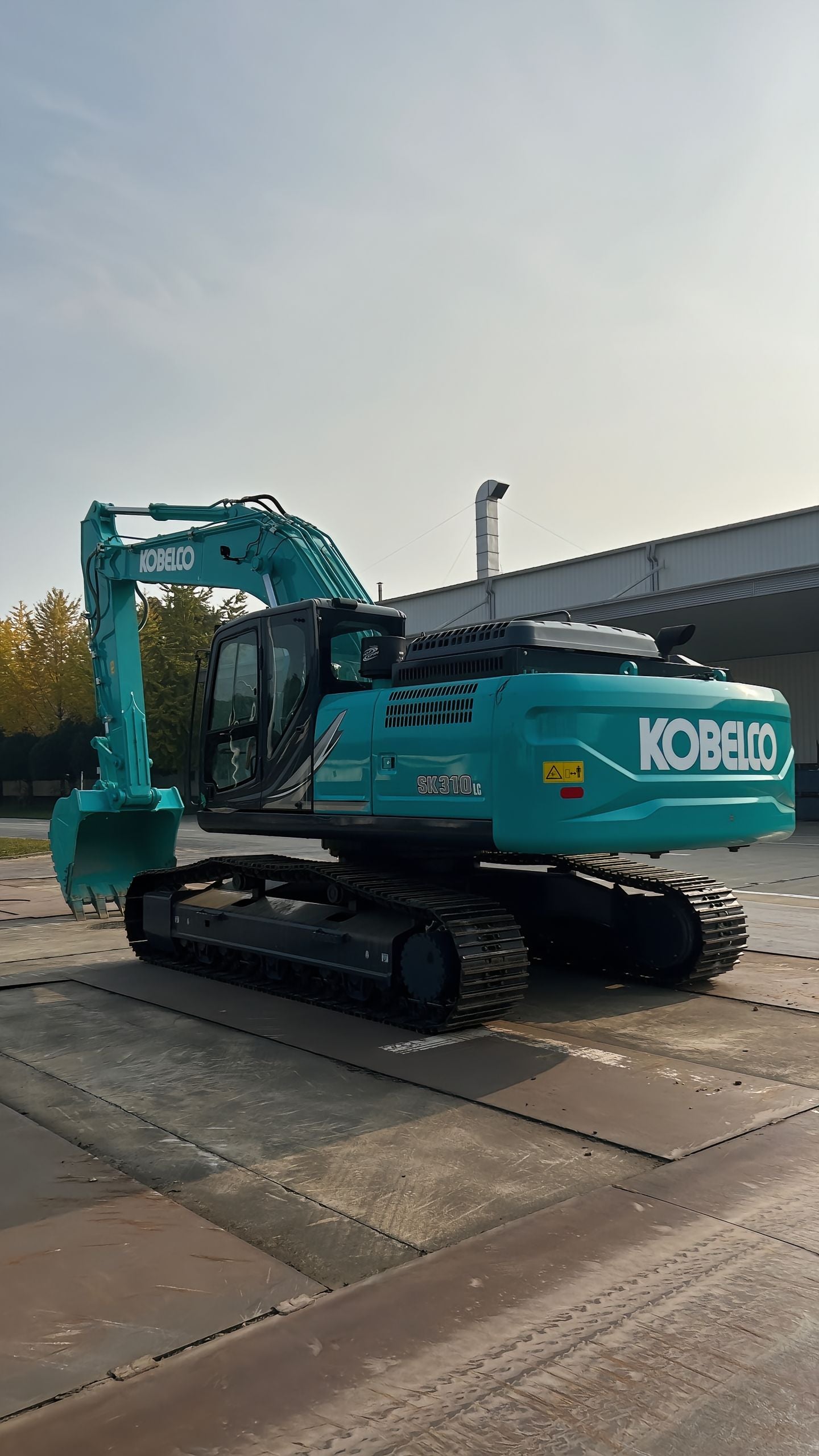

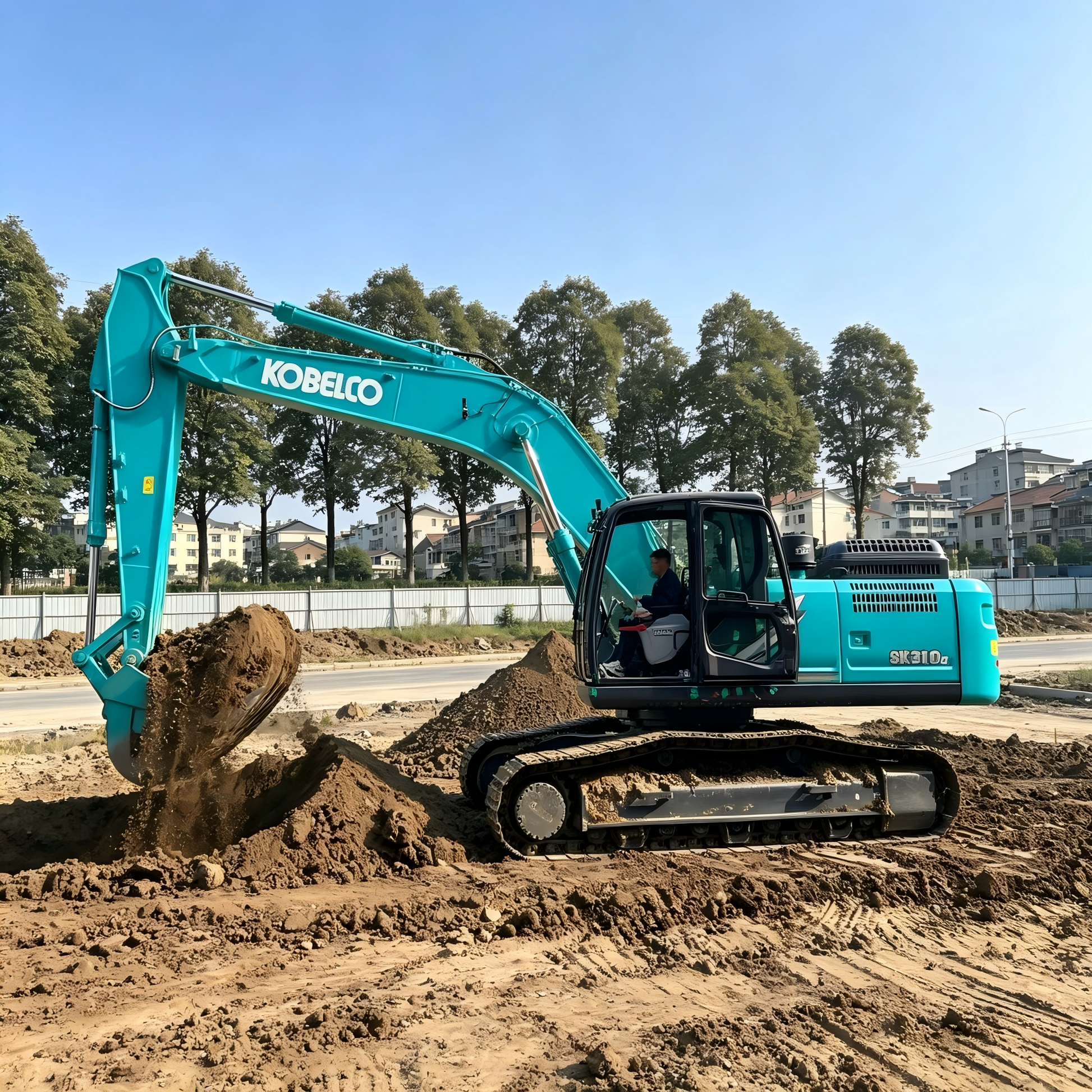

KOBELCO SK310LC‑12 |
| Operating Weight (Std. config.) |
kg |
31,200 |
| Bucket Capacity (Heaped, Std.) |
m³ |
1.6 |
| Engine Model |
– |
Kobelco‑Cummins B7 |
| Engine Type |
– |
4‑cycle, water‑cooled, turbocharged, after‑cooled, direct injection |
| Rated Net Power |
kW (HP) |
180 (241) |
| Rated Engine Speed |
rpm |
2,000 |
| Emission Standard |
– |
China Stage IV / EPA Tier 4 Final |
| Boom Length |
m |
6.2 |
| Arm Length |
m |
3.1 |
| Max. Digging Radius |
mm |
10,860 |
| Max. Digging Depth |
mm |
7,200 |
| Max. Digging Height |
mm |
10,080 |
| Bucket Digging Force (Std./Boost) |
kN |
184 / 203 |
| Arm Digging Force (Std./Boost) |
kN |
125 / 137 |
| Swing Speed |
rpm |
7.3 |
| Travel Speed (High / Low) |
km/h |
5.3 / 3.2 |
| Gradeability |
% |
70 |
| Drawbar Pull |
kN |
279 |
| Overall Length (Transport) |
mm |
10,710 |
| Overall Width (Transport) |
mm |
3,190 |
| Overall Height (To Cab Top) |
mm |
3,200 |
| Track Shoe Width (Std.) |
mm |
600 |
| Track Gauge |
mm |
2,590 |
| Ground Pressure (Std. Shoe) |
kPa |
59 |
| Fuel Tank Capacity |
L |
640 |
| Hydraulic Tank Capacity |
L |
250.6 |
| Coolant Capacity |
L |
26 |
| DEF/Urea Tank Capacity |
L |
85 |
