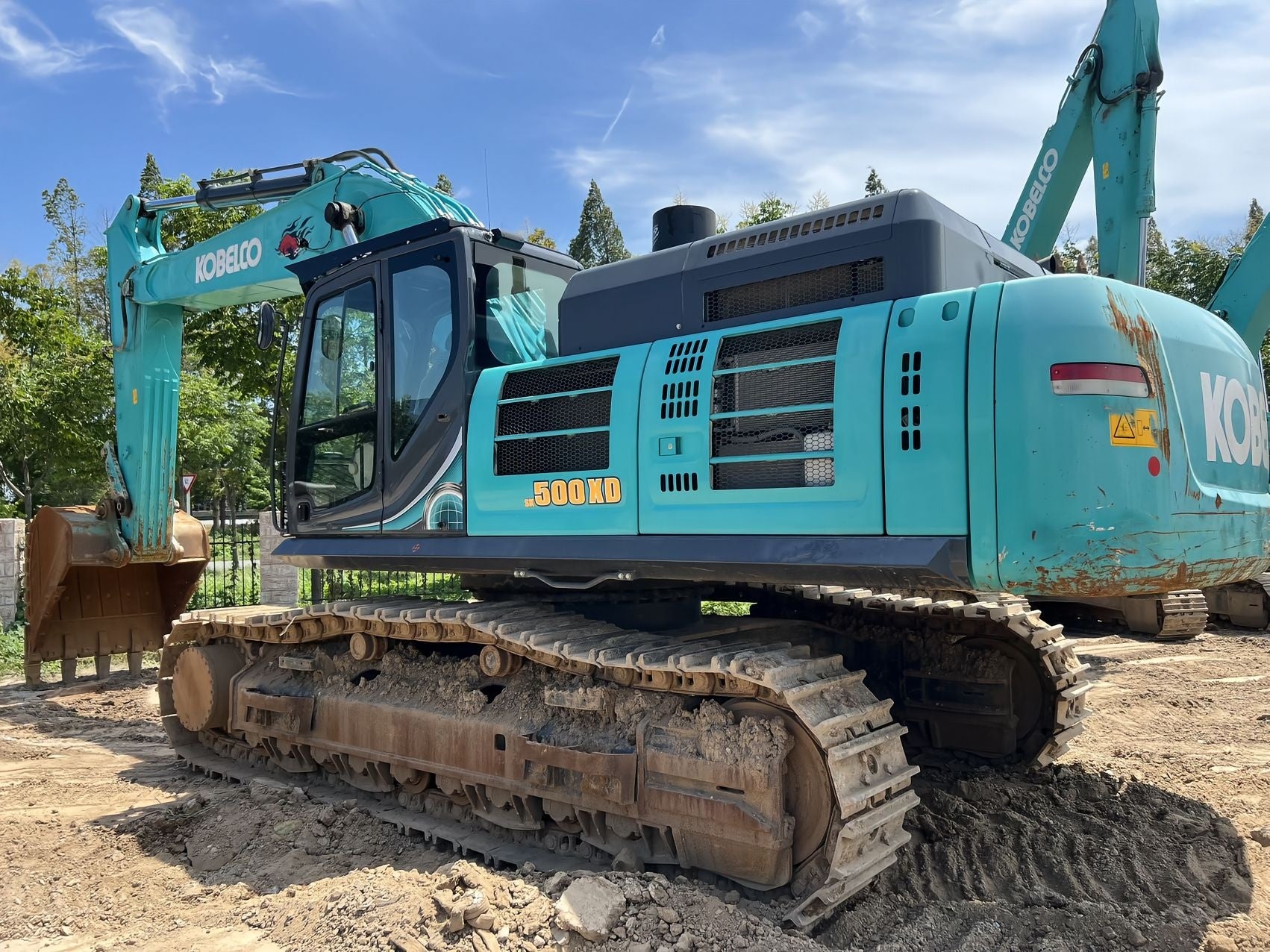

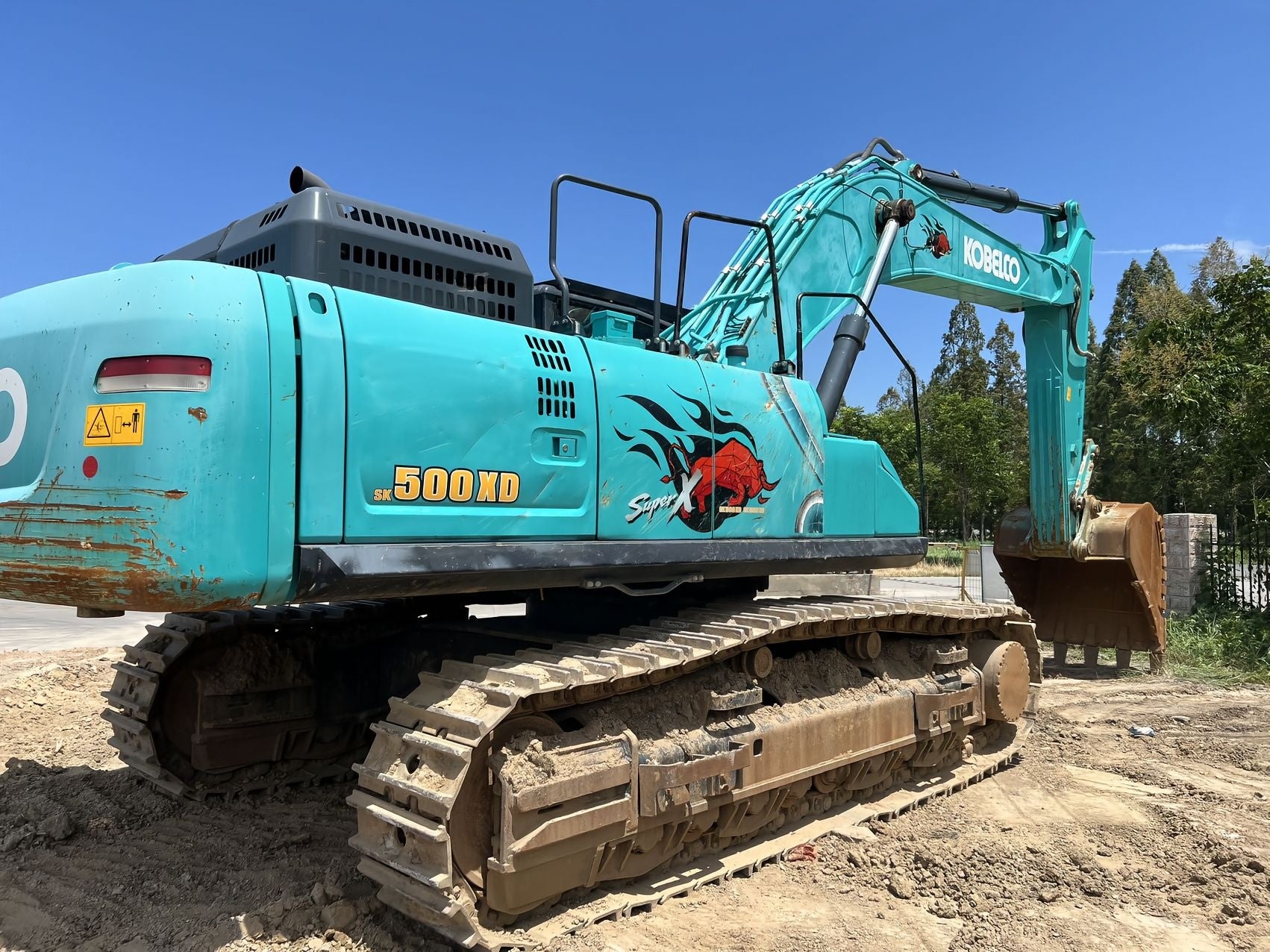

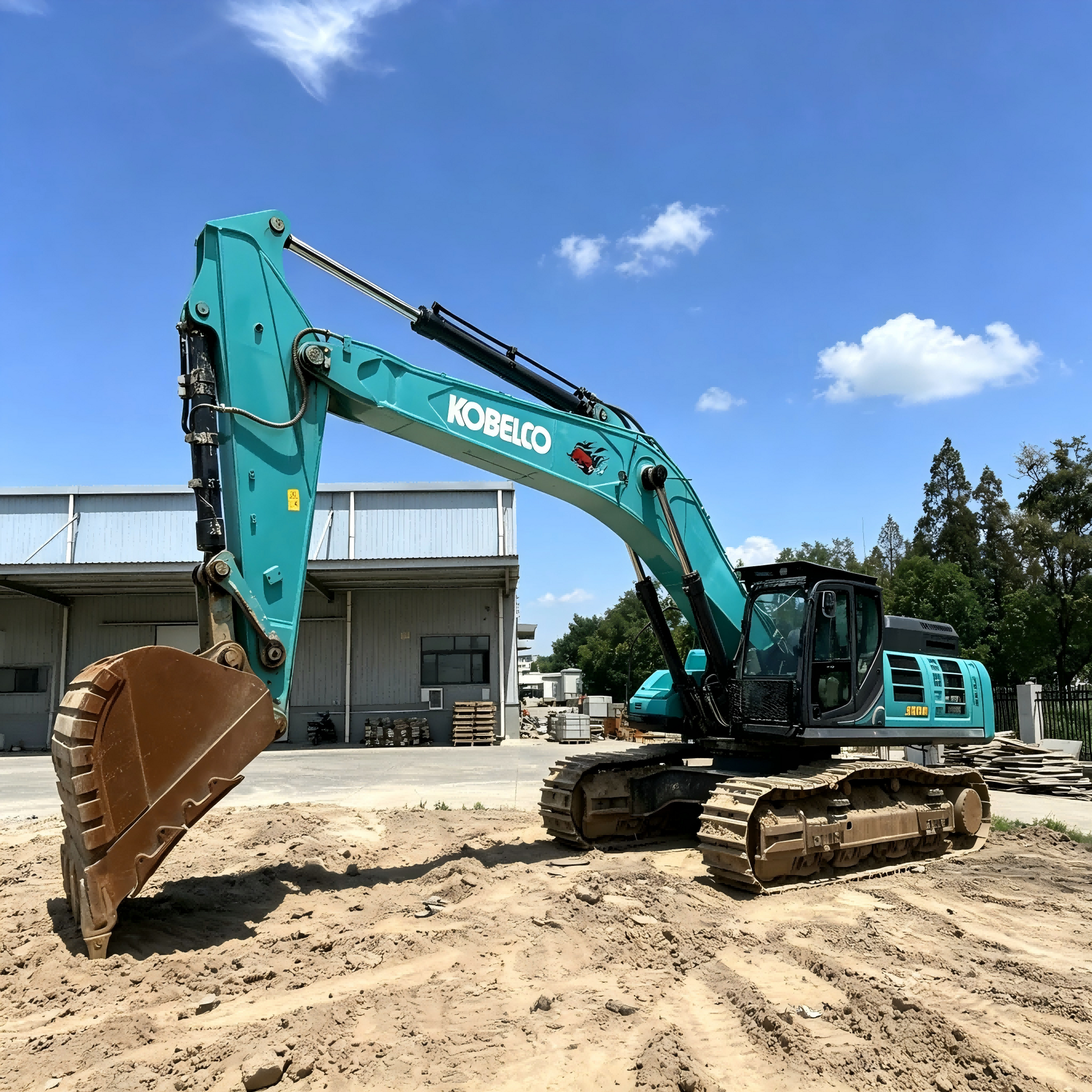

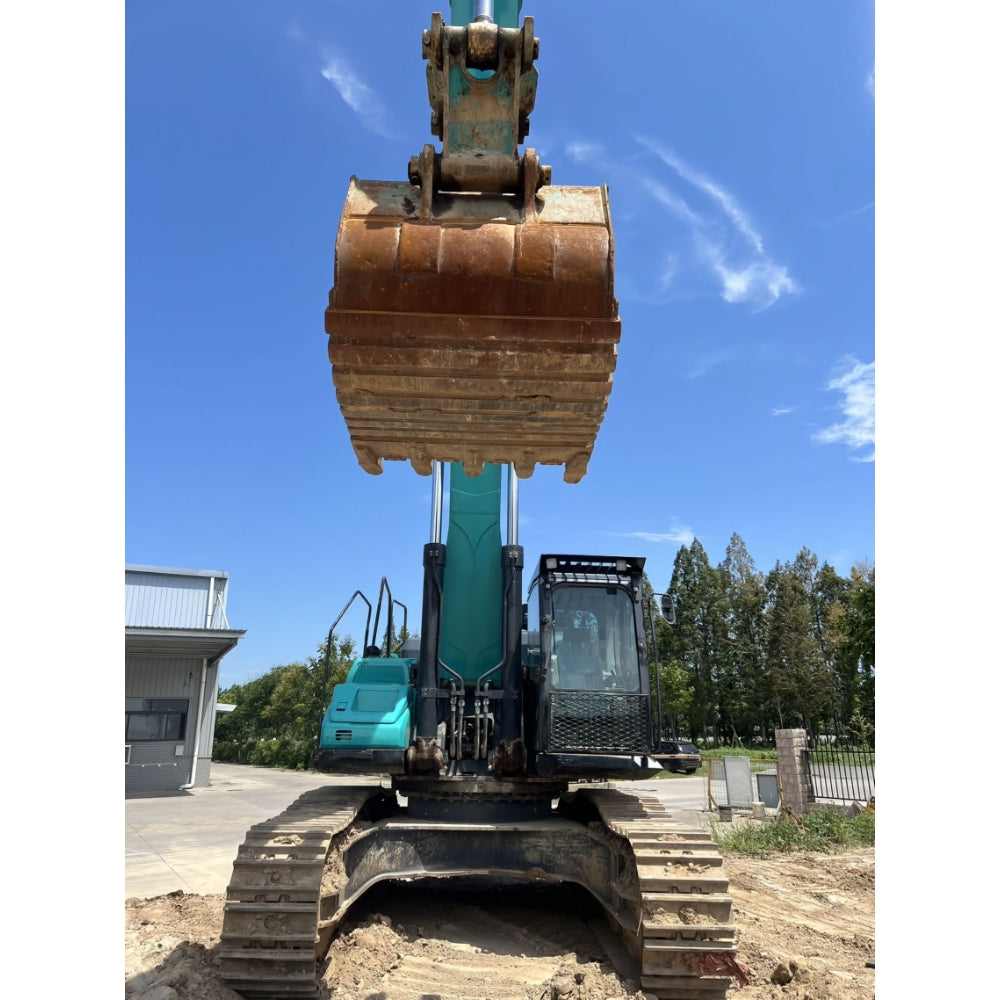

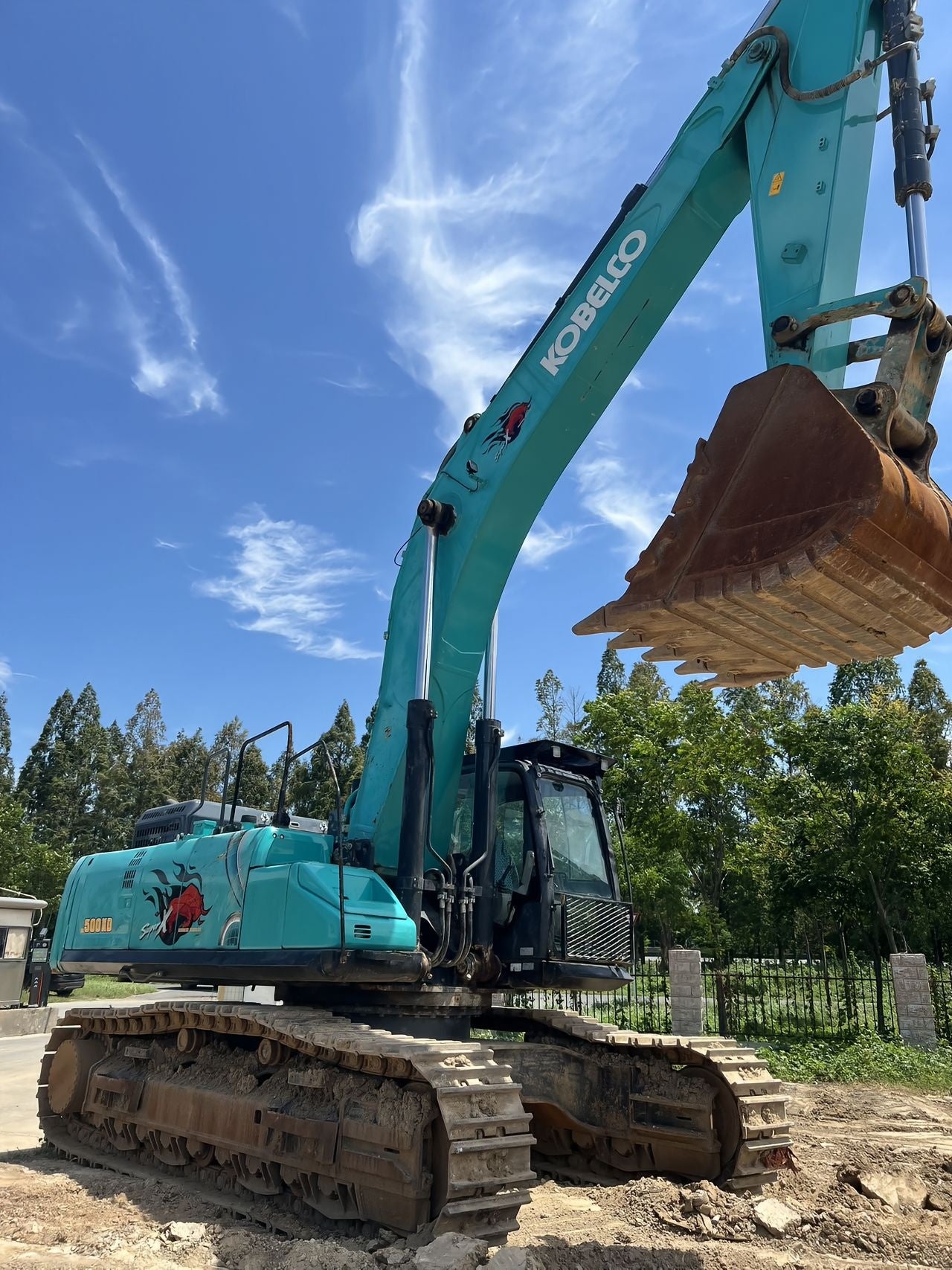

USED KOBELCO SK500XD-11

USED KOBELCO SK500XD-11

$45,000.00 USD
$45,000.00 USD
Oferta Agotado
Parameter Unit Value
Model – KOBELCO SK500XD‑11
Operating Weight kg 51,100
Standard Bucket Capacity (Heaped) m³ 2.8
Bucket Capacity Range m³ 2.1–3.0
Engine Model – Hino E13CBB
Engine Type – 4‑cycle, water‑cooled, turbocharged, direct injection
Rated Net Power kW 300
Rated Engine Speed rpm 1,800
Emission Standard – China Non‑road Stage IV
Swing Speed rpm 6.5
Travel Speed (High) km/h 5.4
Travel Speed (Low) km/h 3.2
Gradeability % 70
Drawbar Pull kN 415
Bucket Digging Force (Std.) kN 267
Bucket Digging Force (Power Boost) kN 292
Arm Digging Force (Std.) kN 223
Arm Digging Force (Power Boost) kN 244
Max. Digging Radius mm 11,690
Max. Digging Depth mm 7,370
Max. Digging Height mm 10,850
Max. Dumping Height mm 7,490
Overall Transport Length mm 12,210
Overall Transport Width mm 3,580
Overall Transport Height mm 3,790
Standard Track Shoe Width mm 600
Track Gauge mm 2,750
Ground Pressure kPa 92
Fuel Tank Capacity L 650
Hydraulic Tank Capacity L 300
