KOBELCO

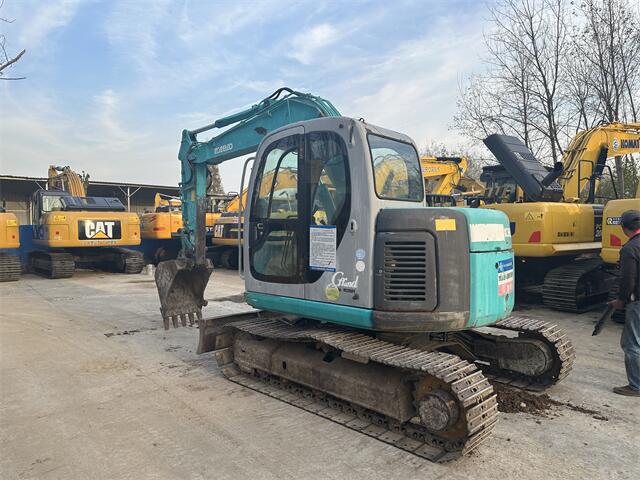

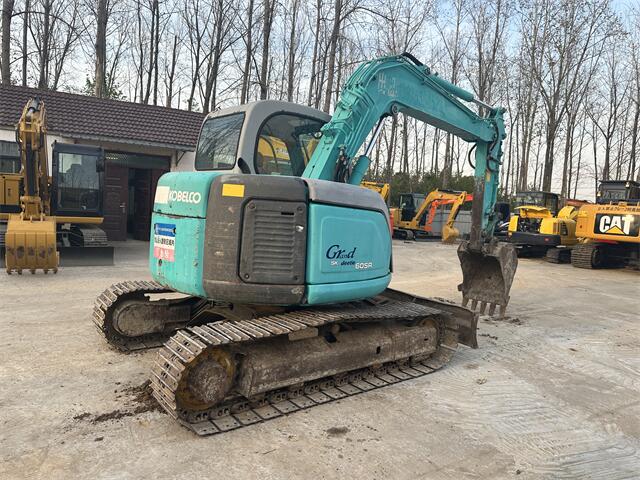

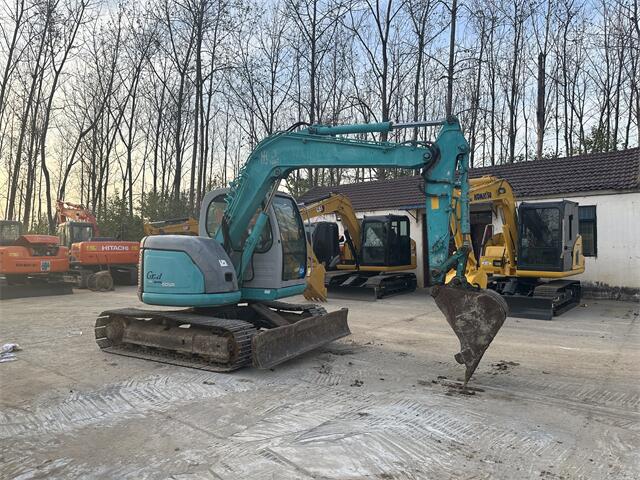

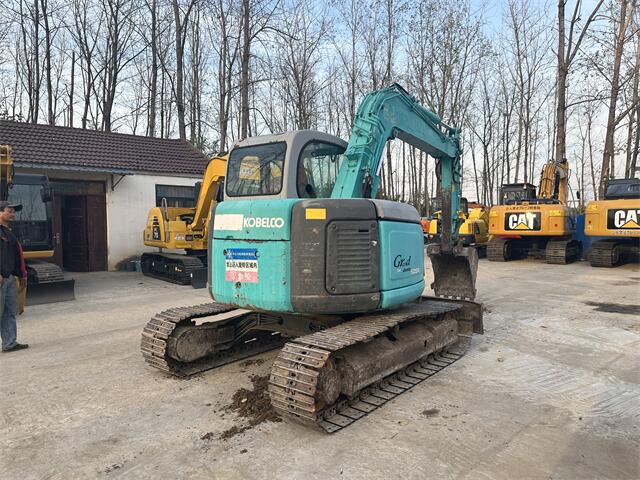

USED KOBELCO SK60SR
USED KOBELCO SK60SR
Precio habitual
$10,500.00 USD
Precio habitual
Precio de oferta
$10,500.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specifications of KOBELCO SK60SR (Standard Configuration)
| Category | Specifications |
|---|---|
| Basic Information | |
| Model | KOBELCO SK60SR |
| Engine Model | Isuzu CC - 4JG1 (4-cylinder, water-cooled, direct - injection diesel) |
| Displacement | 3.059 L (186.7 cu in) |
| Net Power | 40.5 kW (55 HP) @ 2100 rpm (ISO 9249/SAE J1349) |
| Max Torque | 196.1 N·m (144.6 lb·ft) @ 1800 rpm |
| Operating Weight | 6,700 kg (14,771 lbs) |
| Standard Bucket Capacity | 0.28 m³ (0.366 cu yd, heaped) |
| Performance | |
| Max Travel Speed | 4.2 km/h (2.6 mph) (high); 2.5 km/h (1.55 mph) (low) |
| Max Digging Depth | 3,890 mm (12.76 ft) |
| Max Digging Height | 5,730 mm (18.80 ft) |
| Max Dumping Height | 4,200 mm (13.78 ft) |
| Swing Speed | 9.5 rpm |
| Bucket Digging Force | 45.1 kN (4,600 kgf) |
| Arm Crowding Force | 28.4 kN (2,896 kgf) |
| Climbing Ability | 35° |
| Dimensions | |
| Track Width | 400 mm (15.75 in) |
| Track Gauge | 1,900 mm (6.23 ft) |
| Overall Length (with bucket on ground) | 5,780 mm (18.96 ft) |
| Overall Width | 2,320 mm (7.61 ft) |
| Overall Height (top of cab) | 2,600 mm (8.53 ft) |
| Min Ground Clearance | 360 mm (14.17 in) |
| Capacities | |
| Fuel Tank | 120 L (31.7 gal) |
| Hydraulic System Fluid Capacity | Approx. 90 L (23.8 gal) |
| Hydraulic Tank Capacity | Approx. 45 L (11.9 gal) |
| Hydraulic System | |
| Main Relief Pressure | 29.4 MPa (4,264 psi) (boom, arm, bucket); 24.5 MPa (3,553 psi) (swing circuit) |
| Main Pump Flow | 2 × 58 L/min (2 × 15.32 gpm); pilot pump: 12 L/min (3.17 gpm) |
