| Basic Information |
|
| Model |

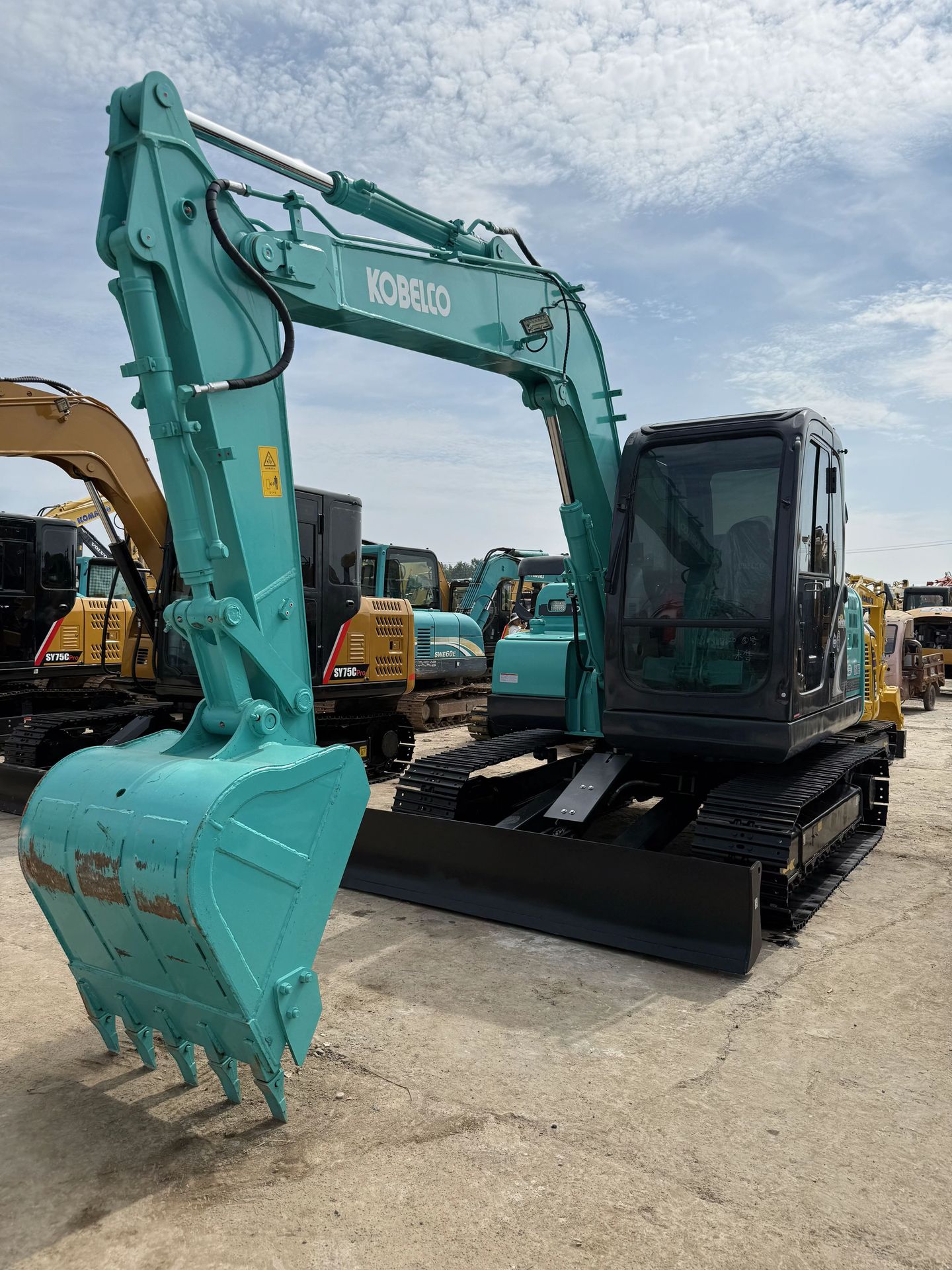

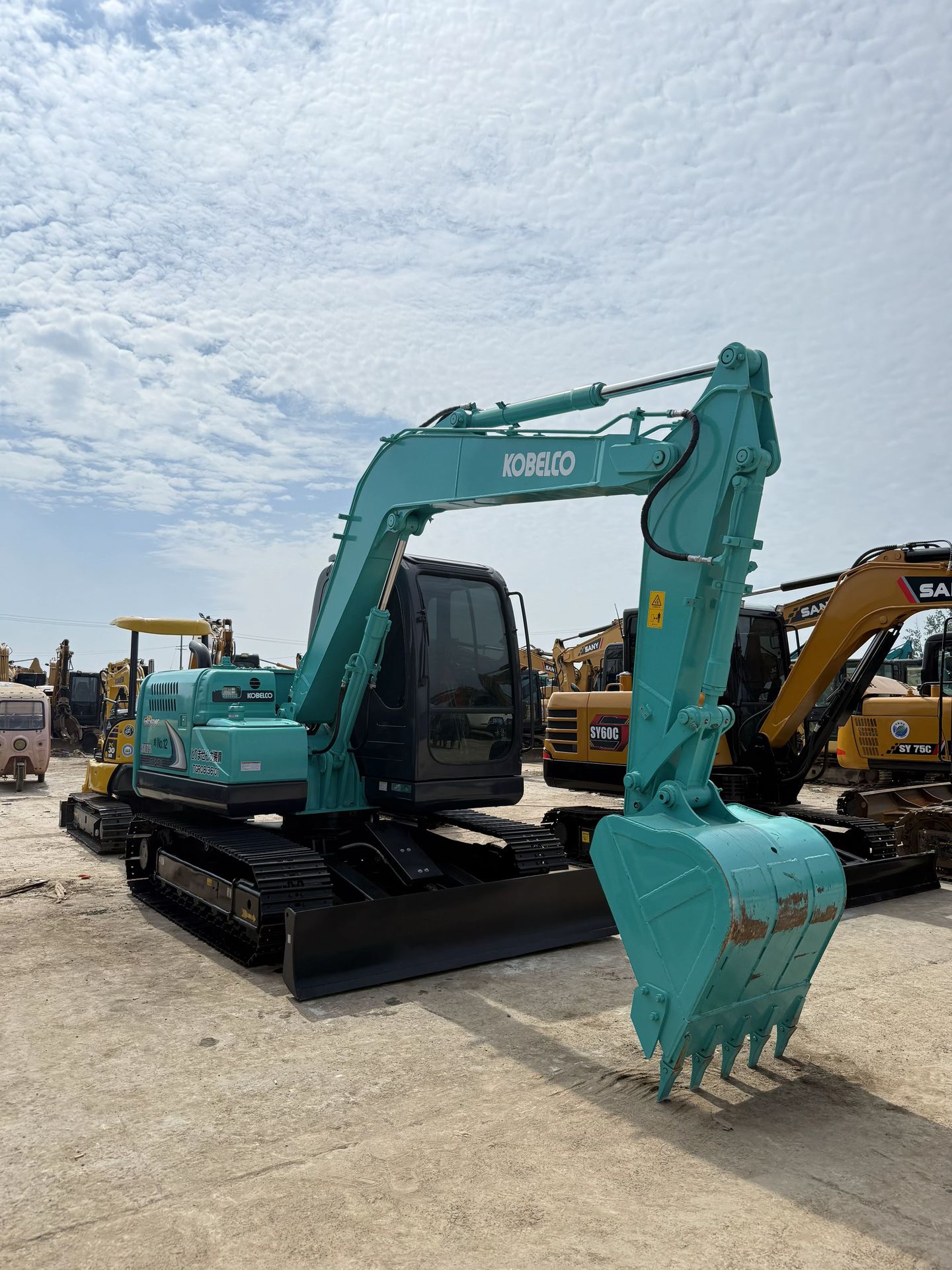

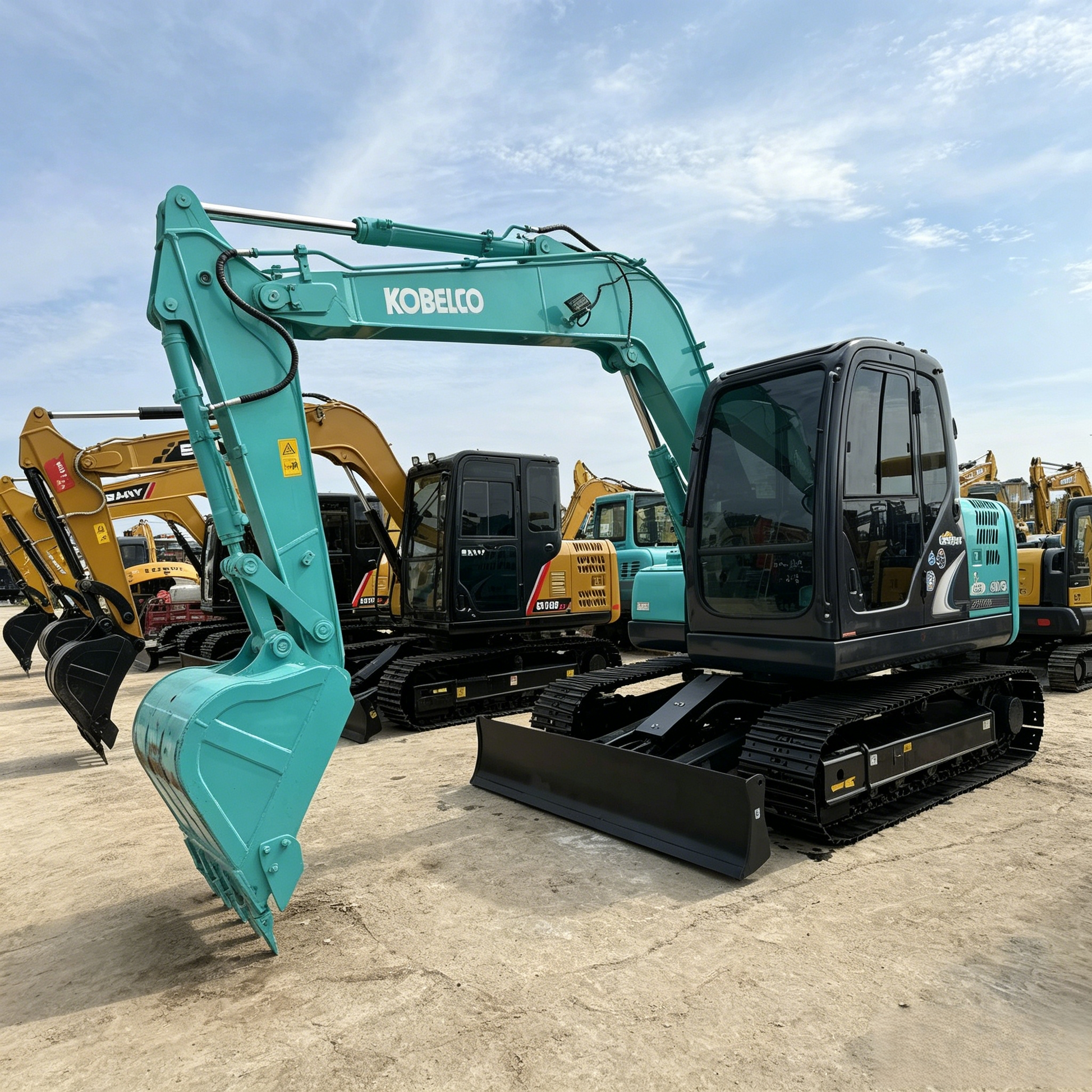

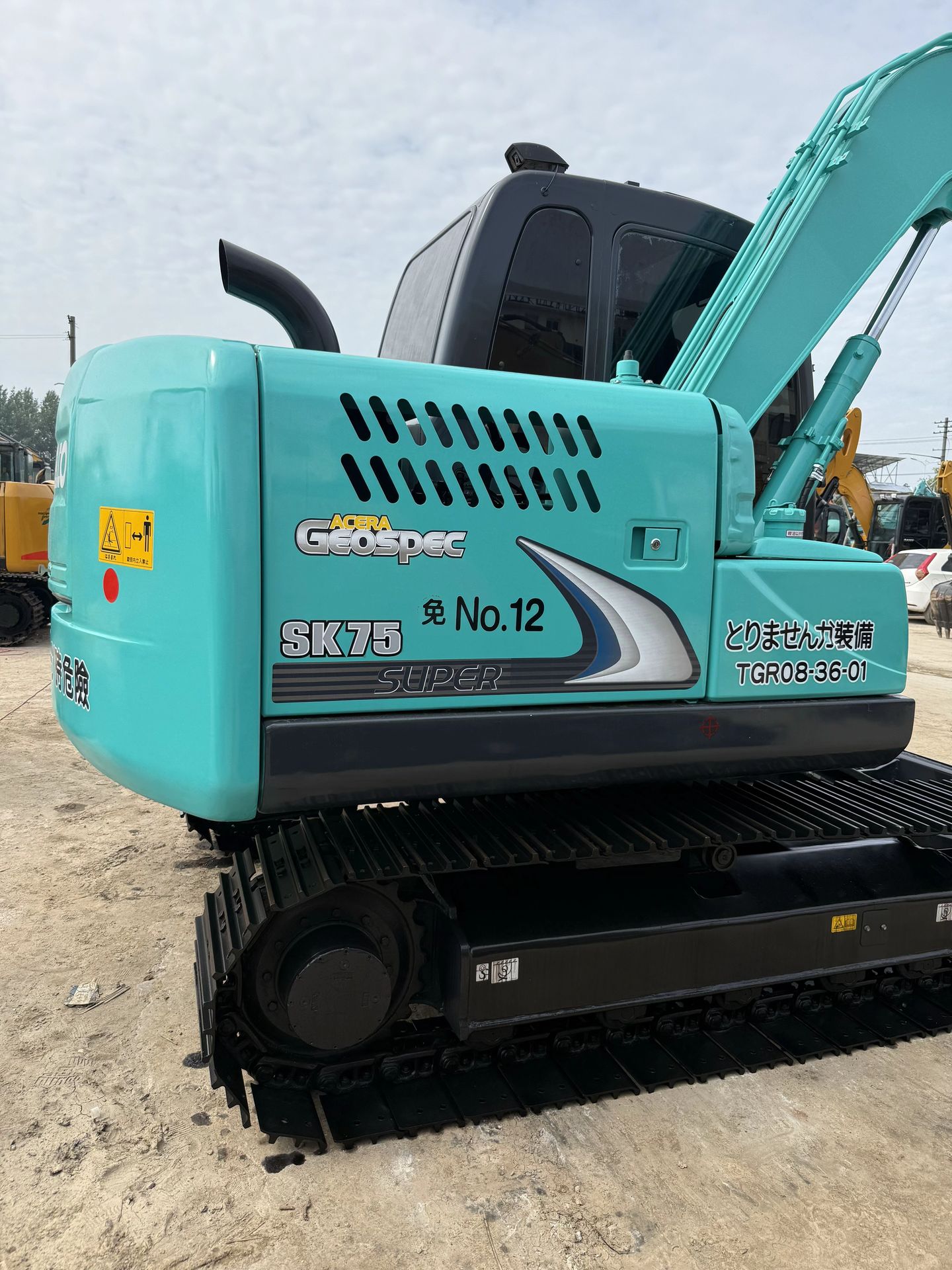

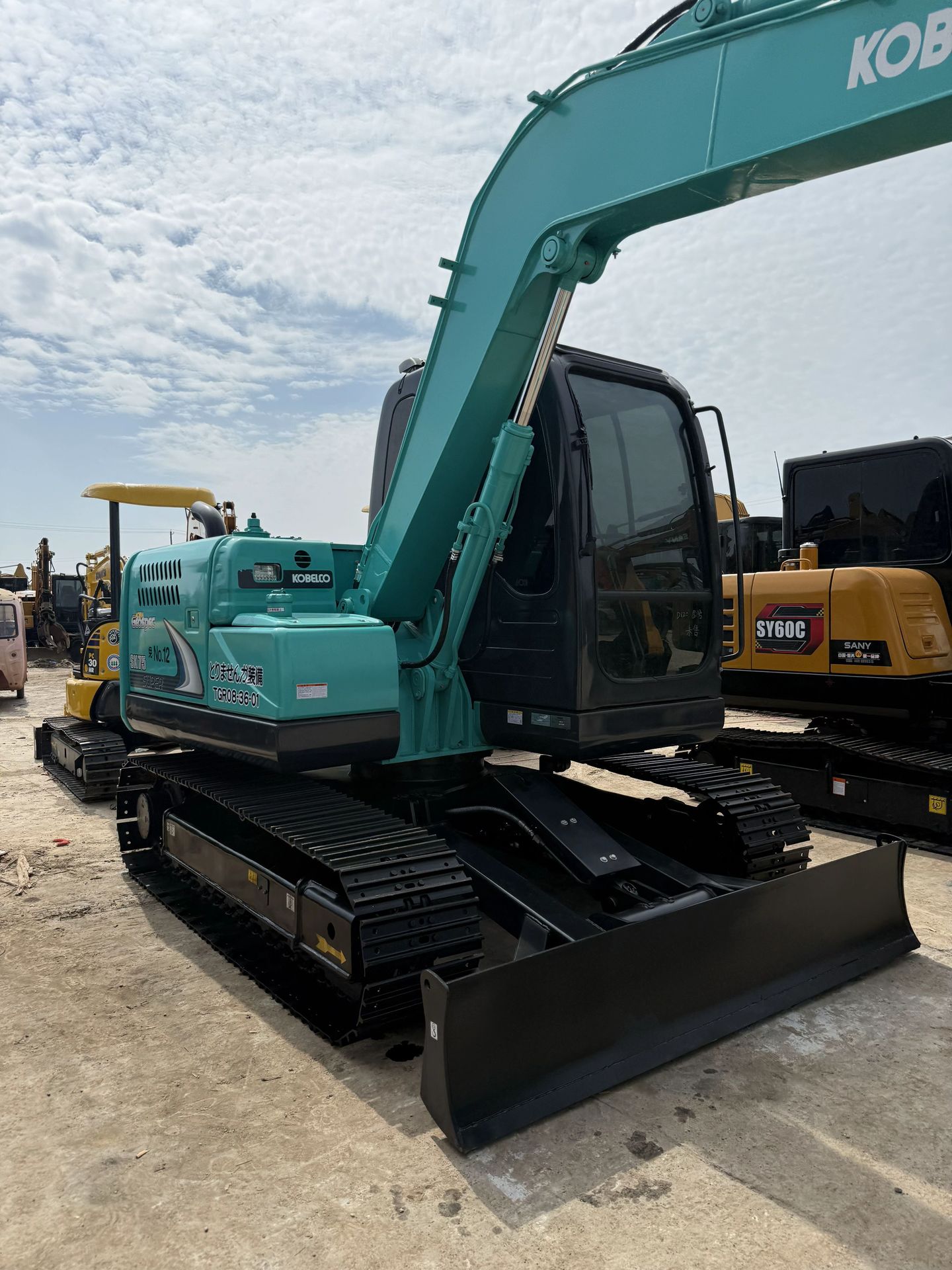

KOBELCO SK75 (SK75-11) |
| Engine Model |
YANMAR 4TNV98-AVYBNC (4-cylinder, water-cooled, direct-injection diesel) |
| Displacement |
3.318 L (202.5 cu in) |
| Net Power |
41.8 kW (56.0 HP) @ 2100 rpm (ISO 9249, with fan); 44.4 kW (59.5 HP) @ 2100 rpm (ISO 14396, without fan) |
| Operating Weight |
7,760 kg (17,108 lbs) (standard with dozer); 7,220 kg (15,917 lbs) (without dozer) |
| Standard Bucket Capacity |
0.40 m³ (0.523 cu yd, heaped); 0.29 m³ (0.379 cu yd, struck) |
| Performance |
|
| Max Travel Speed |
5.0 km/h (3.1 mph) (high); 2.6 km/h (1.6 mph) (low) |
| Max Digging Depth |
4,370 mm (14.34 ft) |
| Max Digging Height |
6,380 mm (20.93 ft) |
| Max Dumping Height |
4,610 mm (15.12 ft) |
| Swing Speed |
11.3 rpm |
| Bucket Digging Force |
55.4 kN (5,650 kgf) |
| Arm Crowding Force |
39.2 kN (4,000 kgf) |
| Climbing Ability |
30° (58%) |
| Dimensions |
|
| Track Width |
450 mm (17.72 in); optional 600 mm (23.62 in) |
| Track Gauge |
2,000 mm (6.56 ft) |
| Overall Length (with bucket on ground) |
6,420 mm (21.06 ft) |
| Overall Width |
2,500 mm (8.20 ft) |
| Overall Height (top of cab) |
2,710 mm (8.89 ft) |
| Min Ground Clearance |
400 mm (15.75 in) |
| Rear Swing Radius |
1,650 mm (5.41 ft) |
| Capacities |
|
| Fuel Tank |
140 L (37.0 US gal) |
| Hydraulic System Fluid Capacity |
107 L (28.26 US gal) |
| Hydraulic Tank Capacity |
67 L (17.70 US gal) |

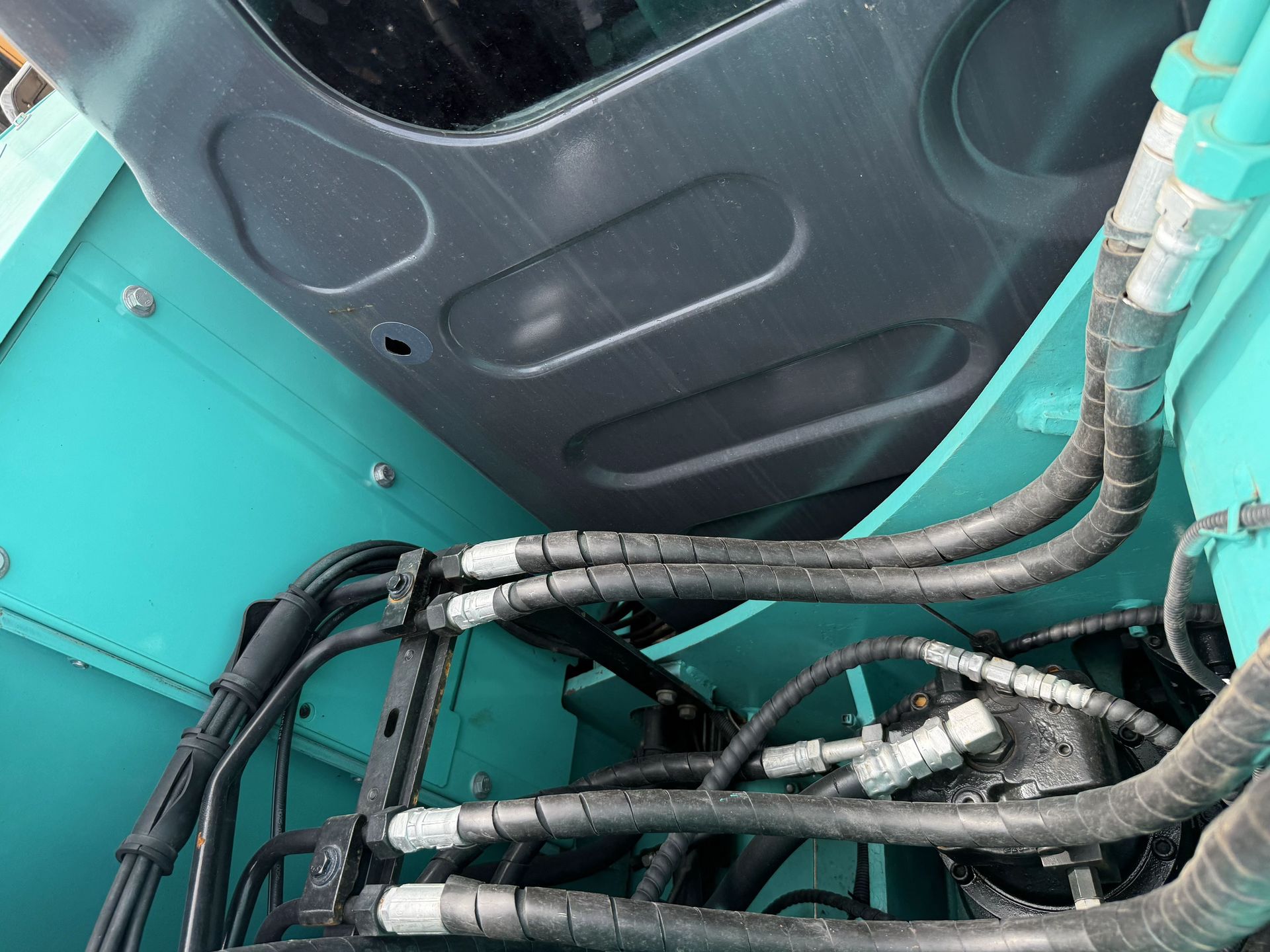

| Hydraulic System |
|
| Main Relief Pressure |
29.4 MPa (4,264 psi) (boom, arm, bucket); 24.5 MPa (3,553 psi) (swing circuit) |
| Main Pump Flow |
1×126 L/min (33.29 gpm); pilot pump: 17 L/min (4.49 gpm) |
