| Model |

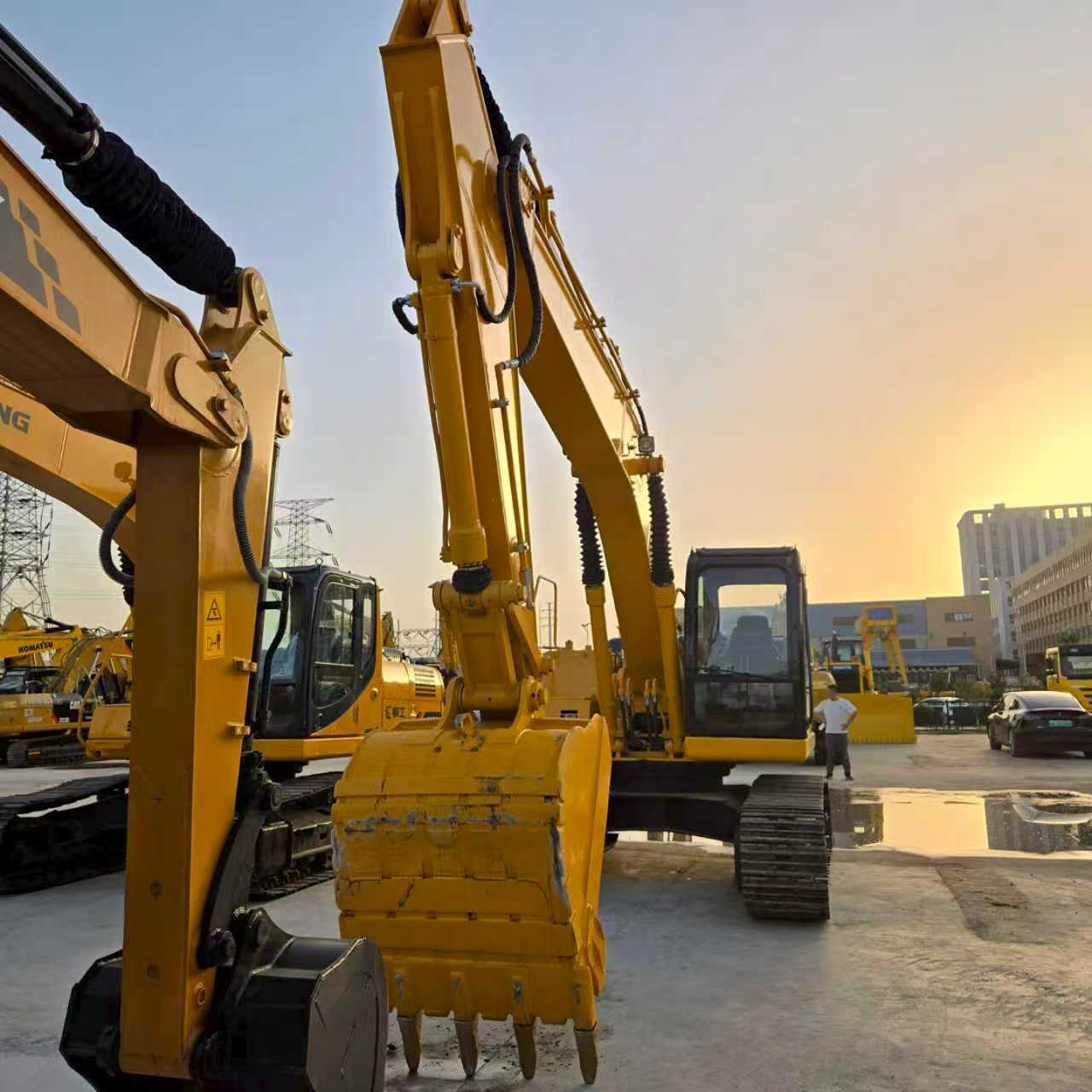

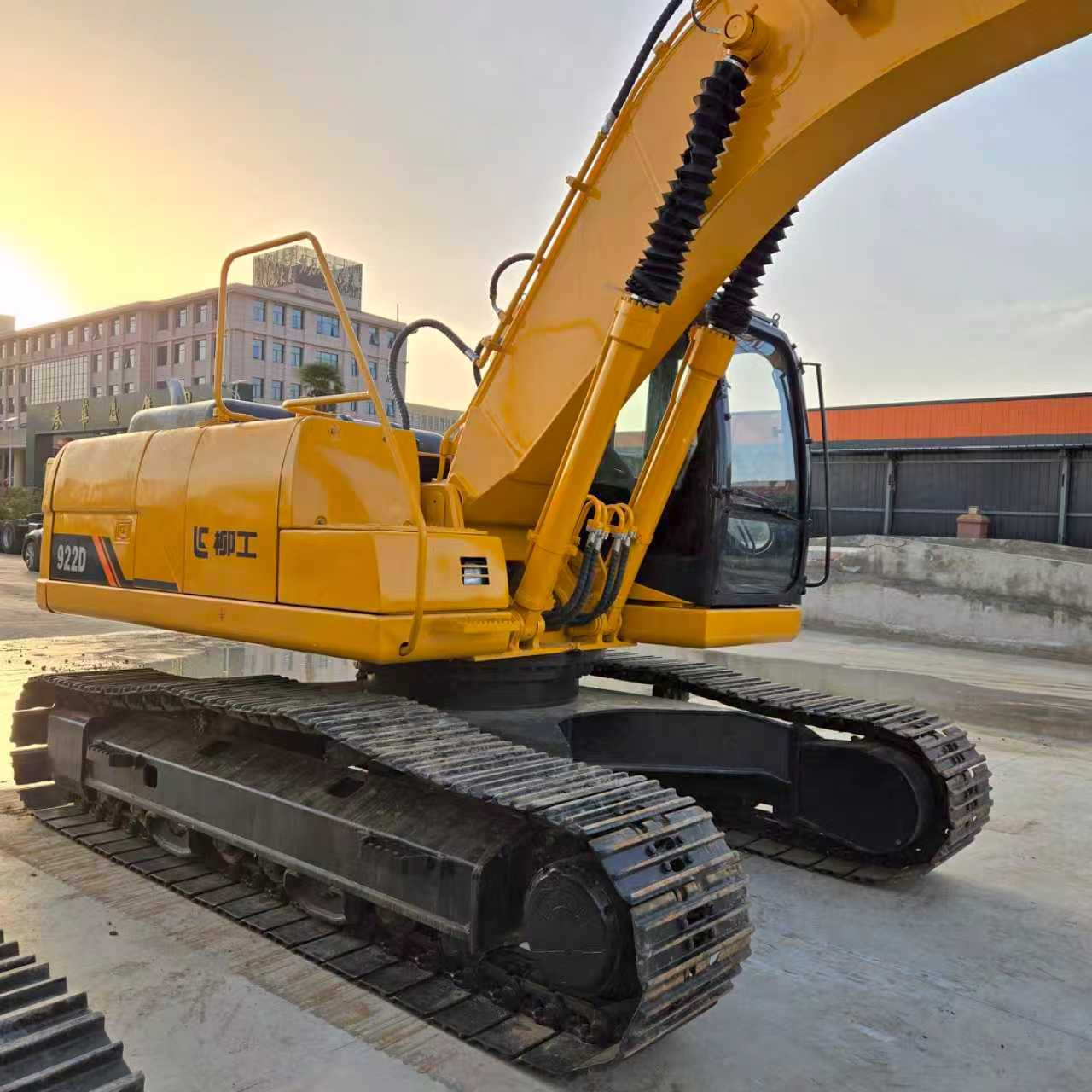

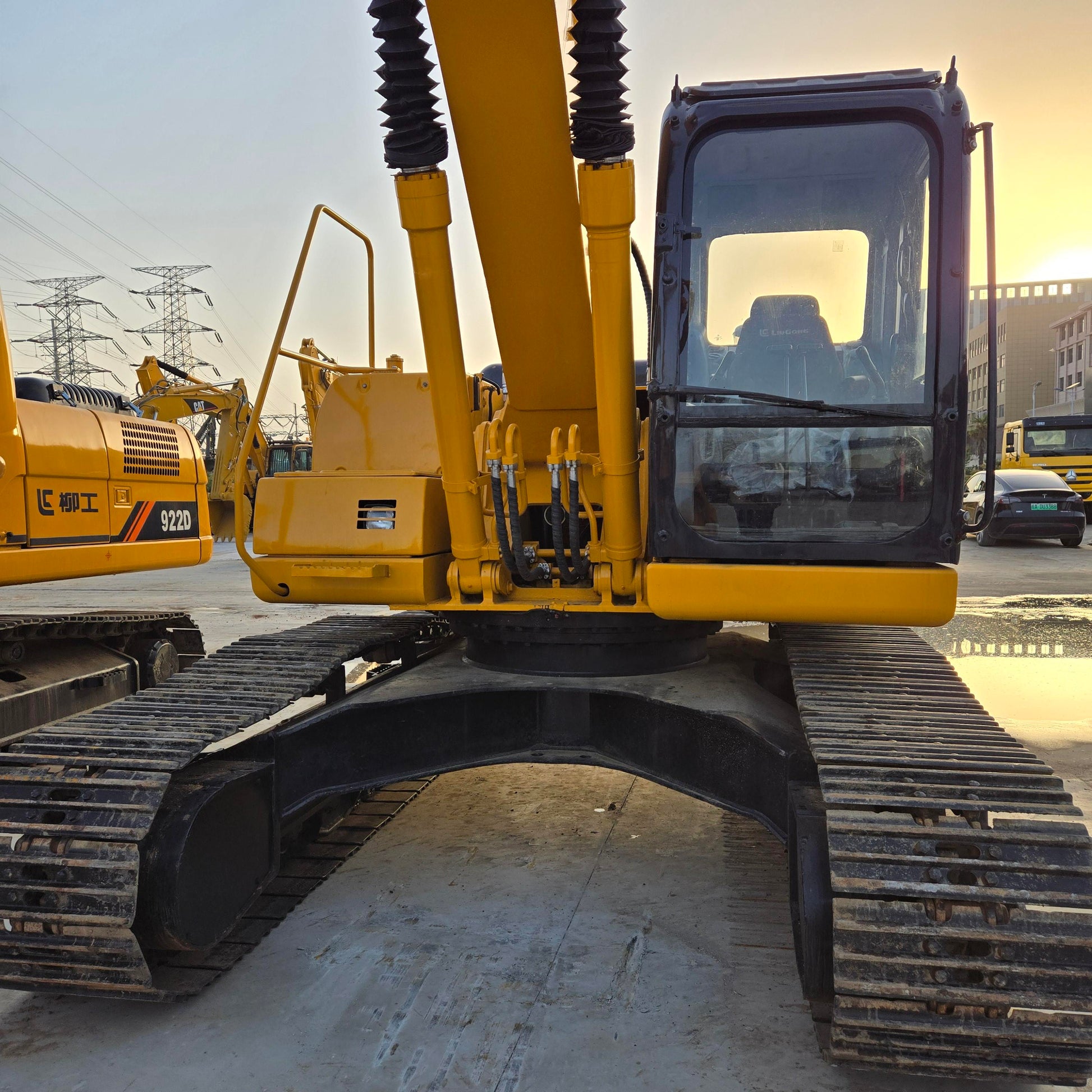

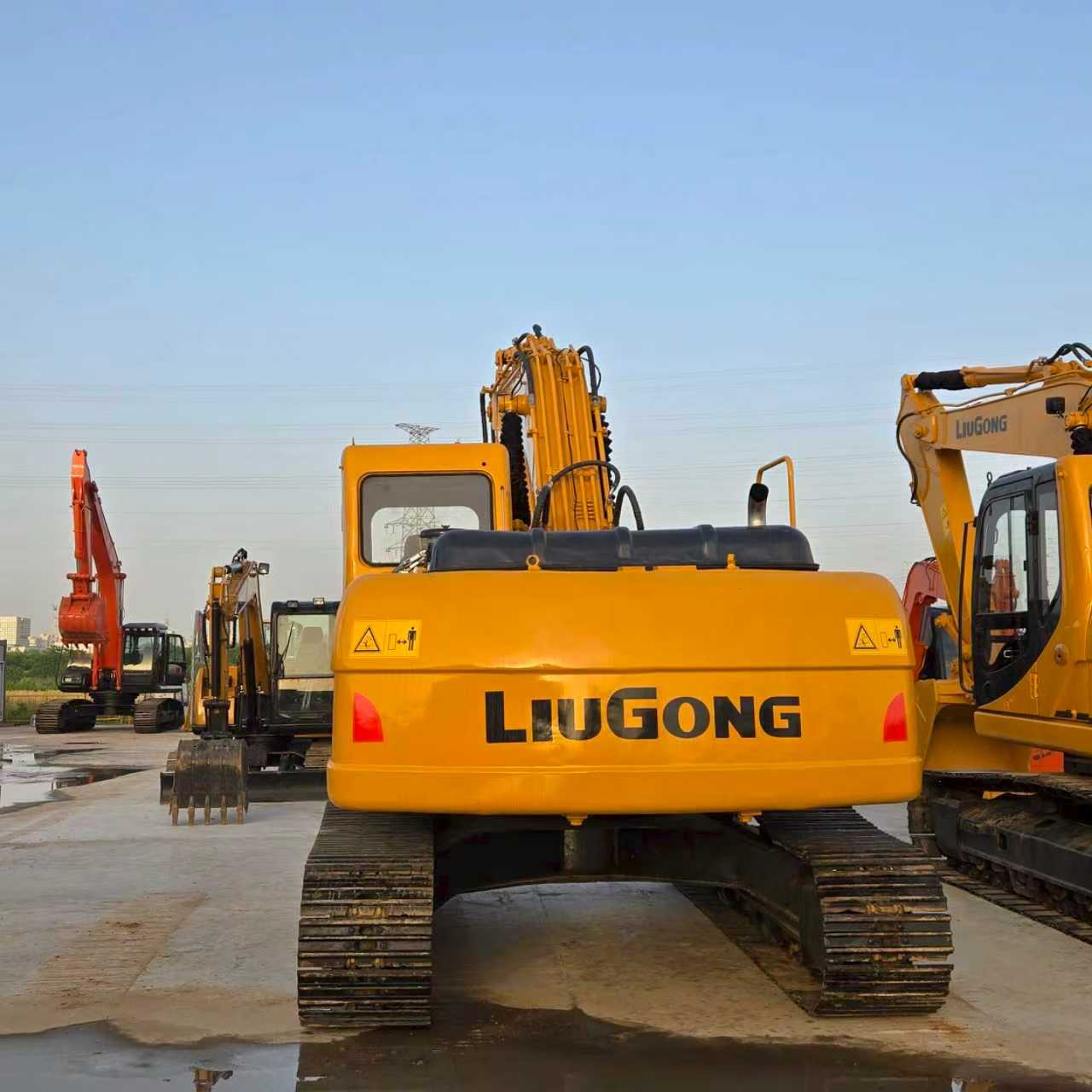

LIUGONG 922 |
| Operating Weight |
22,000 kg - 24,100 kg (varies by model variant) |
| Engine Type |
Diesel (e.g., Cummins QSB 6.7, EU Stage IV) |
| Rated Power |
112 kW - 169 hp (124 kW) @ 2,000 - 2,050 rpm |
| Bucket Capacity |
0.9 m³ - 1.2 m³ (standard: 1.0 m³) |
| Max. Digging Depth |
6,615 mm - 6,720 mm |
| Max. Dumping Height |
6,770 mm - 7,265 mm |
| Max. Digging Reach |
9,850 mm - 9,910 mm |
| Swing Speed |
10.5 rpm - 12 rpm |
| Travel Speed (Low/High) |
2.9 km/h - 4.9 km/h |
| Ground Pressure |
46.5 kPa - 50 kPa (with 600 mm track) |
| Track Width |
600 mm (standard) |
| Fuel Efficiency |
High-pressure common rail, electronically controlled direct injection with auto-idle and auto-shutdown features |
| Emission Standards |
EU Stage IIIA / EPA Tier 3 / China Stage IV (varies by model) |
| Key Features |
- Strong boom and arm for high breakout force
- Load-sensing hydraulics for optimized performance
- Easy maintenance with ground-level service points
- Comfortable cabin with excellent visibility |
