| Official Model |

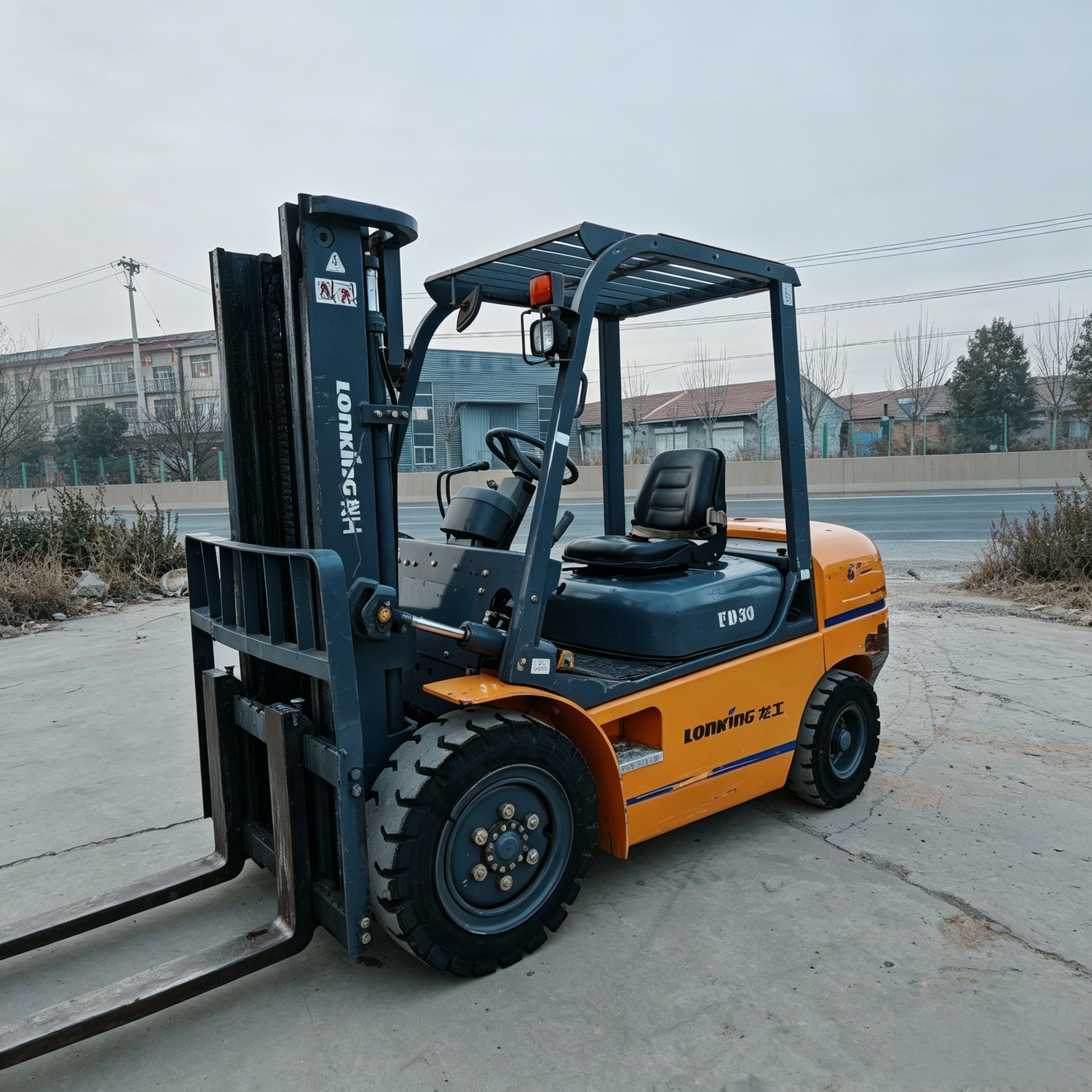

LONKING FD30 |
| Machine Type |
3‑Ton Internal Combustion Diesel Forklift Truck |
| Rated Load Capacity |
3000 kg (3 t) |
| Load Center Distance |
500 mm |
| Standard Mast Lifting Height |
3000 mm (Optional: 4000 / 4500 / 6000 mm) |
| Fork Size (L×W×T) |
1070 × 125 × 45 mm |
| Overall Length (with Fork) |
2710 mm |
| Overall Width |
1260 mm |
| Overall Height (Mast Lowered) |
2145 mm |
| Operating Weight |
4480 kg |
| Engine Model |
Xinchai C498BPG / Quanchai QC498 Diesel Engine (Euro V / China Stage V) |
| Rated Power |
44 kW (60 HP) @ 2650 rpm |
| Fuel Type |
Diesel |
| Fuel Tank Capacity |
70 L |
| Transmission Type |
Mechanical / Automatic Power‑shift Transmission |
| Tire Specification |
Front: 28×9‑15; Rear: 6.50‑10 Solid / Pneumatic Tire |
| Max Travel Speed |
18 km/h |
| Gradeability |
20 % |
| Turning Radius |
2450 mm |
| Steering Mode |
Hydraulic Power Steering |
| Braking System |
Hydraulic Foot Brake + Hand Parking Brake |
| Cab Configuration |
Open‑type Standard Cab, Optional Closed Cab with Air‑Conditioning & Heater |
| Main Applications |
Warehouse logistics, factory workshop, port & freight station, construction site loading‑unloading, cargo stacking & short‑distance handling |
